Youmile 5 pcs PCF8574 IO Expansion Board PCF8574 I/O Expander I2C Evaluation Develop Module with DuPont Cable for Arduino & Raspberry Pi

• 【Remote expansion】: The PCF8574 IO Expansion Board provides general-purpose remote I/O expansion via the two-wire bidirectional I2C-bus (serial clock (SCL), serial data (SDA)).

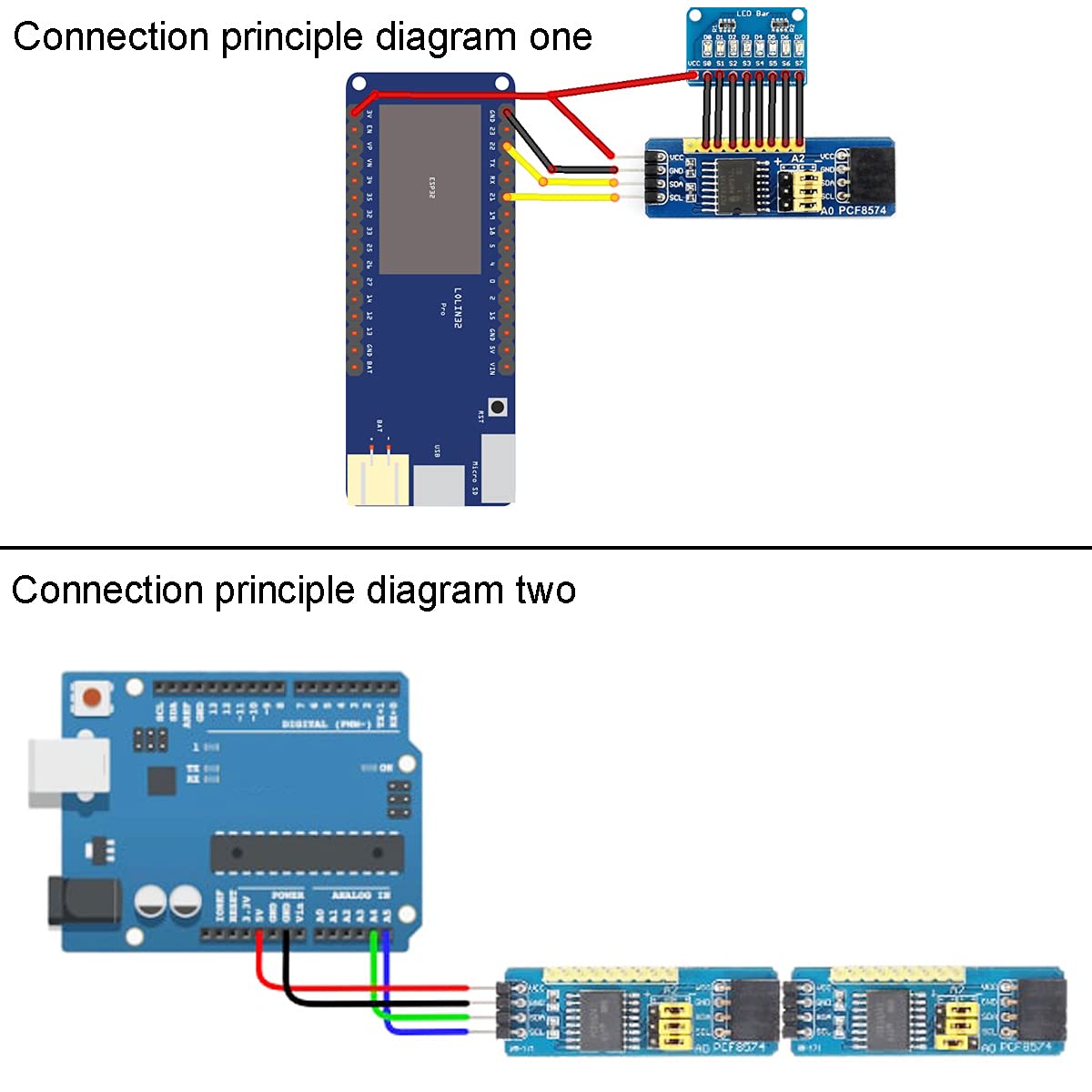

• 【Multiple expansions】: Based on the I2C interface I / O expansion modules, using 2 I / O can expand 8 I / O (up to 8 simultaneous use PCF8574, expanded to 64 I / O).
• 【Interface type】: Support two interface types: Pin or row seat to access the target board
• 【Special design】: This 8-bit input/output (I/O) expander for the two-line bidirectional bus (I2C) is designed for 2.5-V to 6-V VCC operation.
• 【Widely used】: Applicable to a variety of platforms including AVR STM8 C8051F for Arduino.

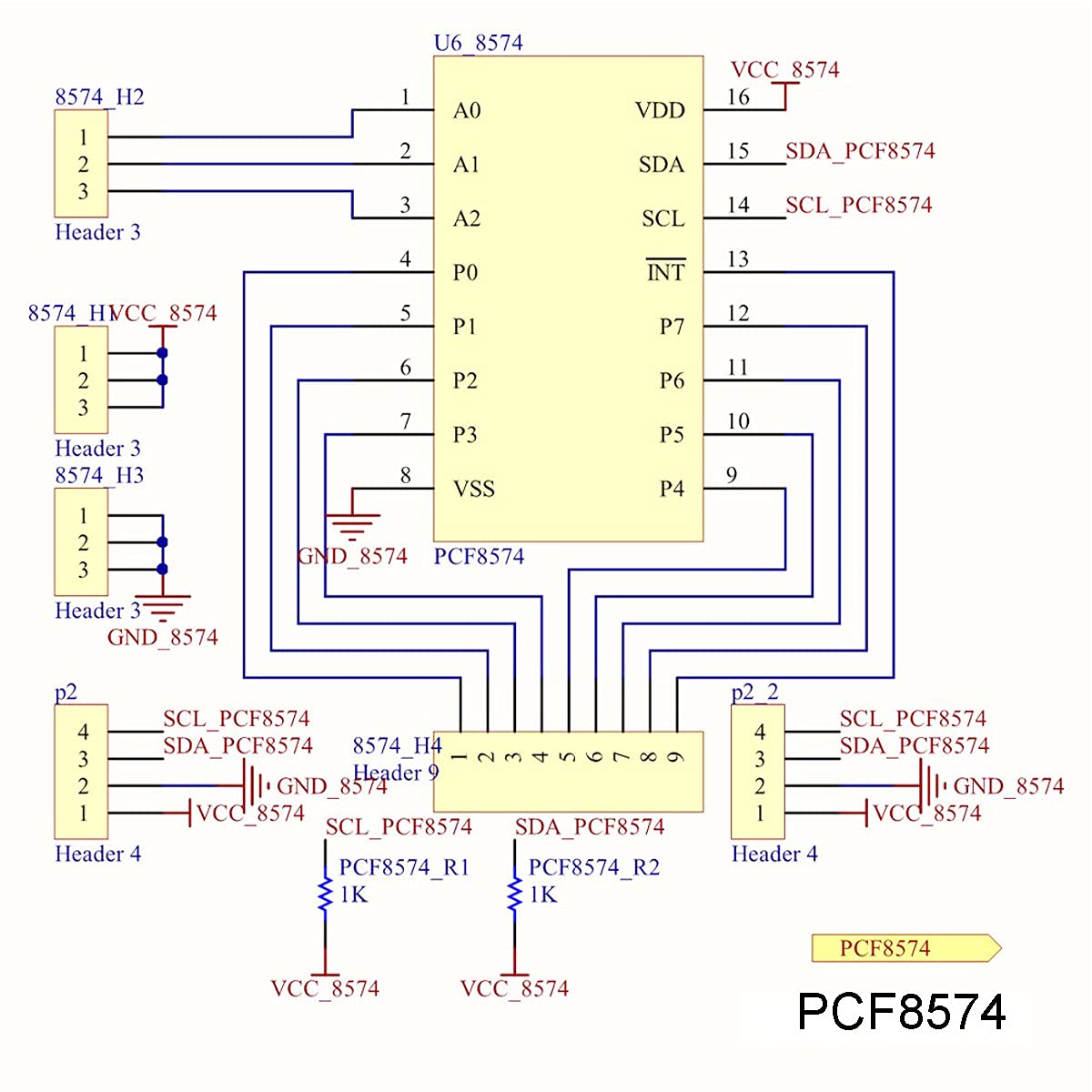

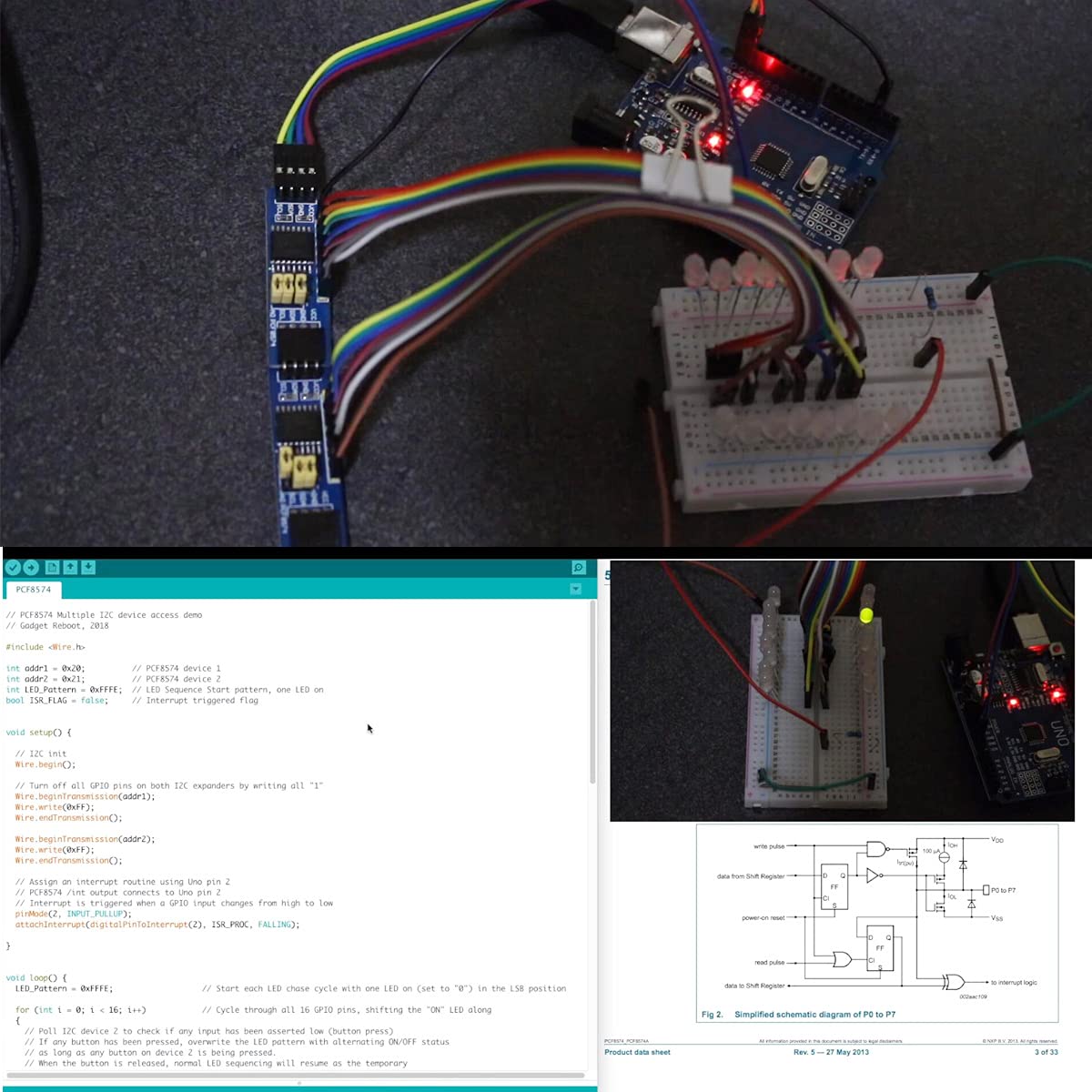

Product description Specifications Operating voltage: 2.5 V to 6 V with non-overvoltage tolerant I/O held to VDD with 100 uA current source Operating temperature: -40~85 Celsius Low Standby-Current Consumption of 10 μA Max I2C to Parallel-Port Expander 100 kHz I2C-bus interface (Standard-mode I2C-bus) Open-Drain Interrupt Output Compatible with Most Microcontrollers Latched Outputs with High-Current Drive Capability for Directly Driving LEDs Latch-Up Performance Exceeds 100 mA Features: 1.I2C interface, I / O expansion module, two I / O scalability 8 I / O (up to 8 simultaneous use the PCF8574 expanded to 64 I / O) 2. Supports two interface types access target board: Pin or row seat, Support I2C bus cascade (by pin header row seat docking methods can be used simultaneously multiple I2C modules) 3.Typical application: I / O resource shortage MCU I / O expansion 4.Main resources: the PCF8574 I2C interface, 8-bit parallel Information includes: Test procedures (AVR, STM8, C8051F) Circuit schematics Related PDF data Package Included: 5 x PCF8574 IO Expansion Module 1 x 20PIN Male and female DuPont cable
