Youmile 5 Pcs KY-032 Infrared Obstacle Avoidance Sensor Module Infrared Sensor Smart Electronics Keyes 4pin IR for Arduino DIY Smart Car Robot

• 【Product parameters】: Working voltage: DC 3.3V-5V; Working current: 20mA; Working temperature: -10degree+50degree

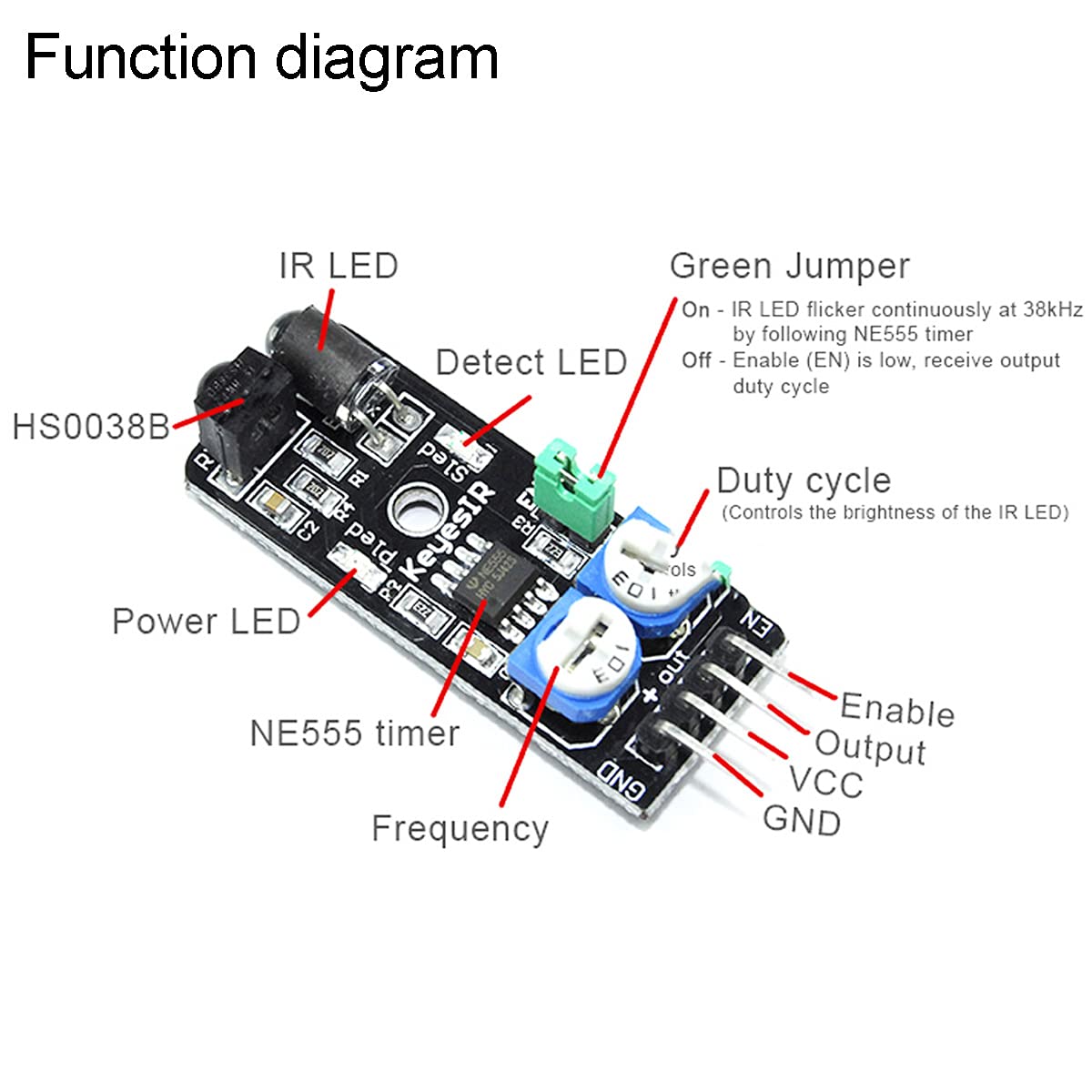

• 【Module features】: IO interface: 4 line (-/+/S/EN); Output signal: TTL Level; Adjusting mode: Multi resistance regulation
• 【Module detection distance and angle】: Detection distance: 2-40cm; Effective angle: 35°
• 【Advantages】: The sensing distance of the module is 2-40 cm, the distance is long, and the anti-interference ability is good.
• 【Item Condition】: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence

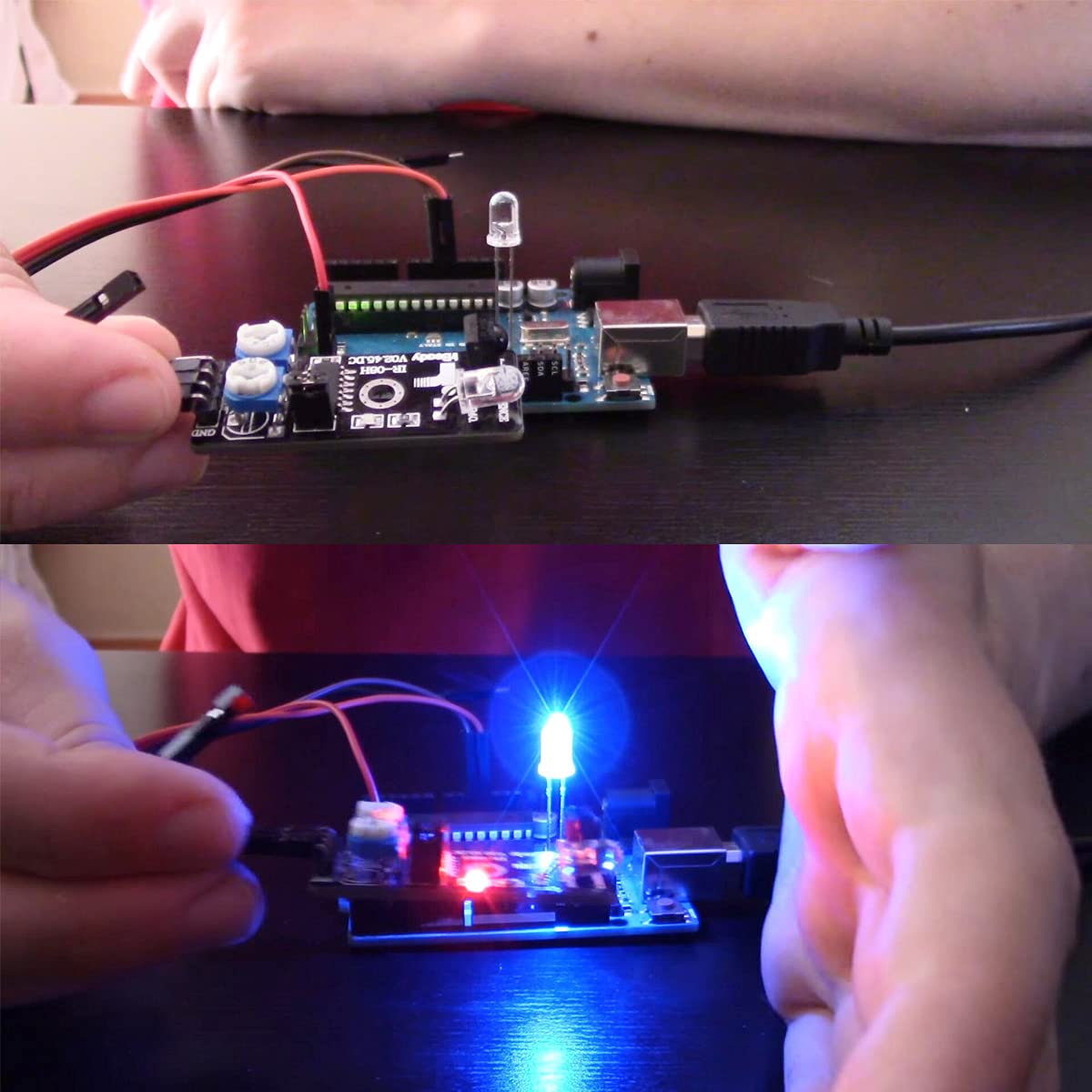

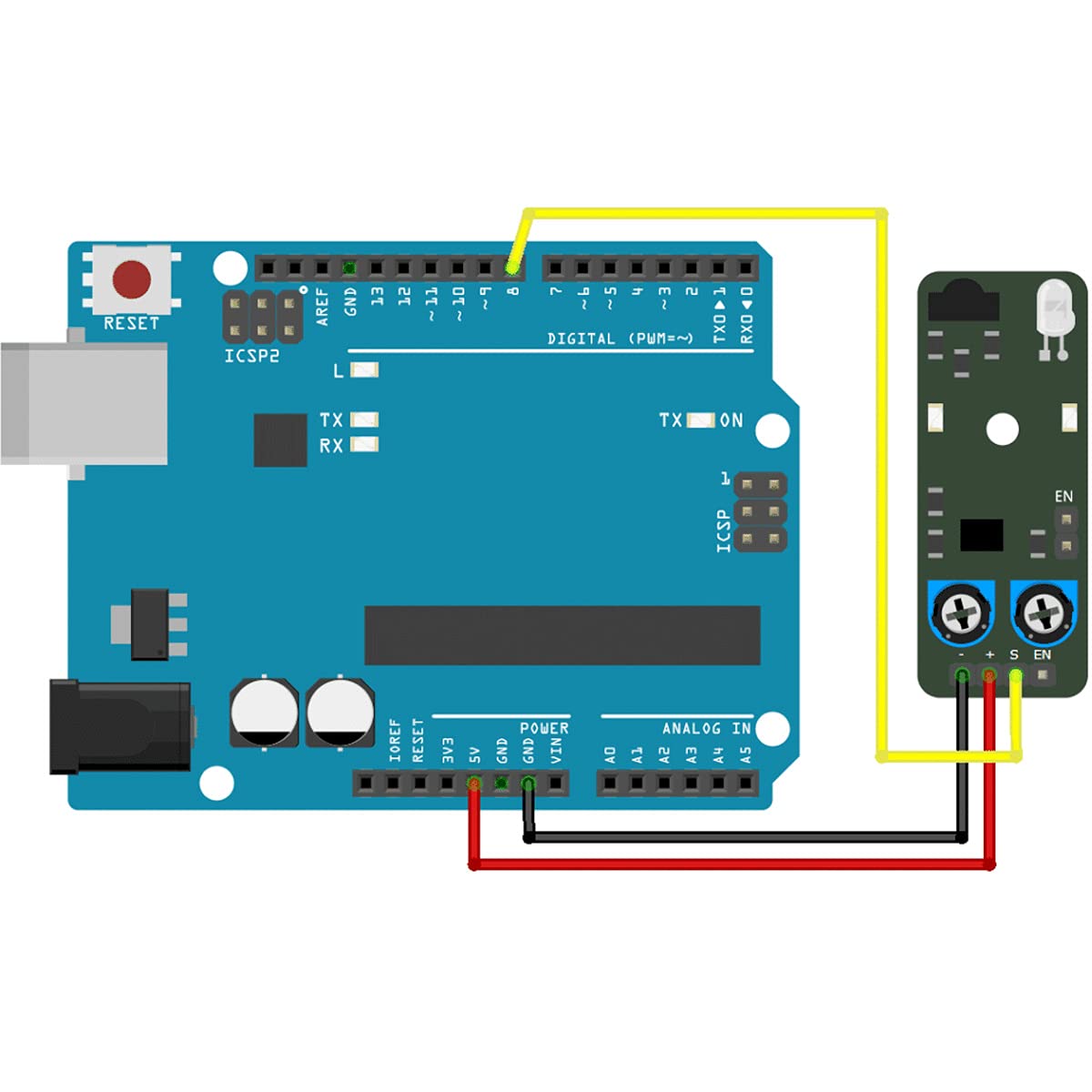

Product description Here we use the obstacle avoidance module and digital 13 interface with LED to build a simple circuit, making the obstacle avoidance warning light, accessing the avoidance sensor to digital 3 interface, when the obstacle avoidance sensor senses the signal, LED light, otherwise off. VCCA connects to 3.3V power supply VCCB connects to 5V power supply GND connects to power negative pole respectively, the two power supply should be common-grounded with each other When Ax has TTL 3.3V input, Bx will get TTL 5V output When Bx has TTL 5V input, Ax will get TTL 3.3V output NO direction control required Package Includes: 5 x KY-032 Infrared Obstacle Avoidance Sensor Module
