Youmile 5 pcs DC Voltage Display 0.28inch 3 Wire LED Display Red Panel Mini Digital Voltmeter DC 0-100V Voltmeter Tester Meter with Crimp terminal CH-2

• 【What it does】: This mini DC voltage display can detect the voltage of DC0-100V and display it on the LED digital tube.
• 【Features】: Stable performance and high precision.If the voltage is below 10 V, the resolution is 0. 01V.Voltage resolution above 10V is 0. 1V.This ensures both measurement accuracy and higher voltages.
• 【Easy assembly】: The voltmeter is small in size and light in weight.With reverse polarity protection and 3-wire digital voltmeter, it is easy to install and connect.
• 【Display mode】: It is displayed by three 0.28'LED digital tubes, and the display color is red.
• 【Voltage and current】: Operating Voltage: 4.0-30V;Detection voltage: DC 0V ~ 100V;Working current: less than 20mA.

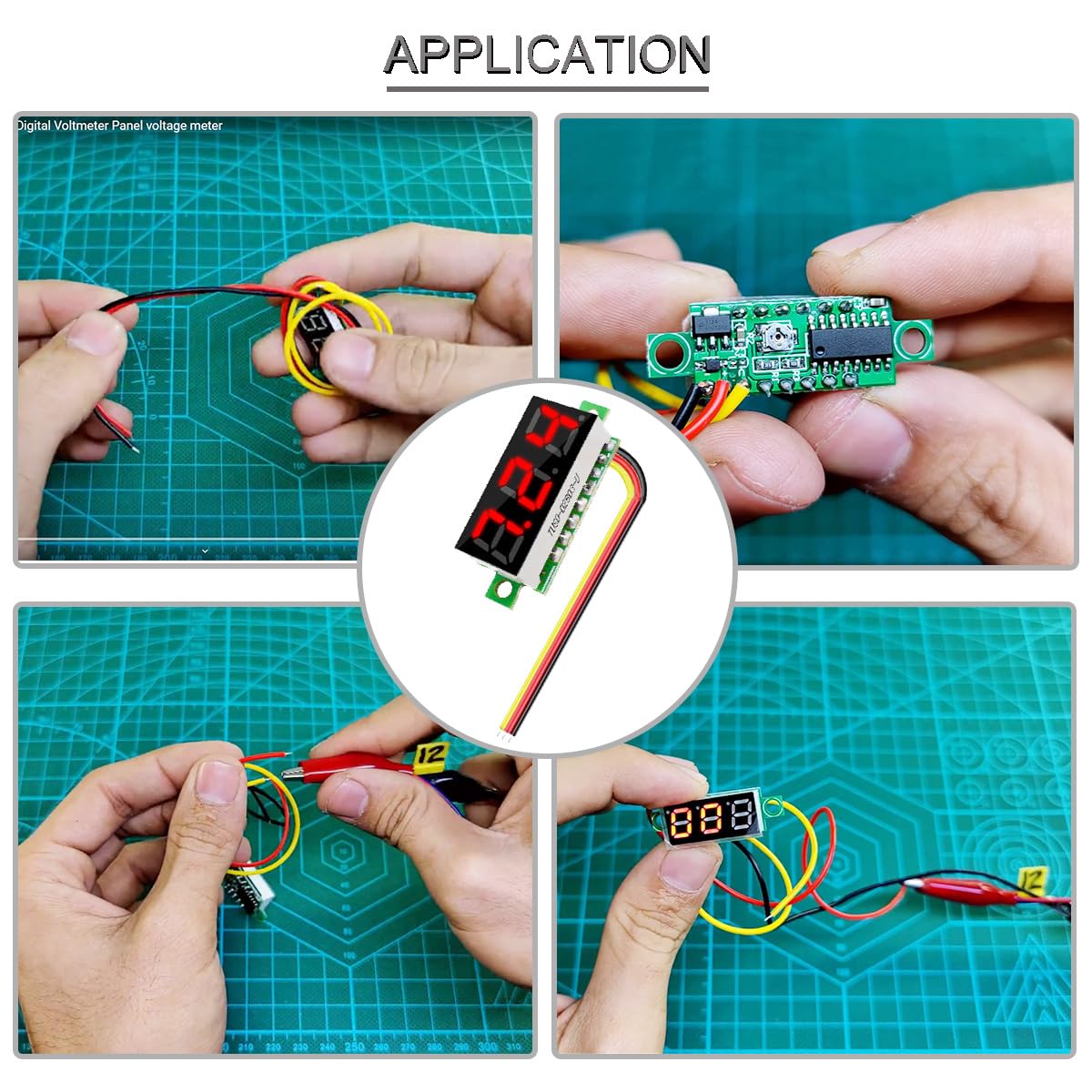

• 【Applications】: Commonly used in battery voltage detection.For example, robots, automobiles, ships, and industrial medical equipment.
• 【Package Includes】: 5 x 0.28inch Mini 3 Wire Digital Voltmeter(Red);5 x Crimp terminal(CH-2).

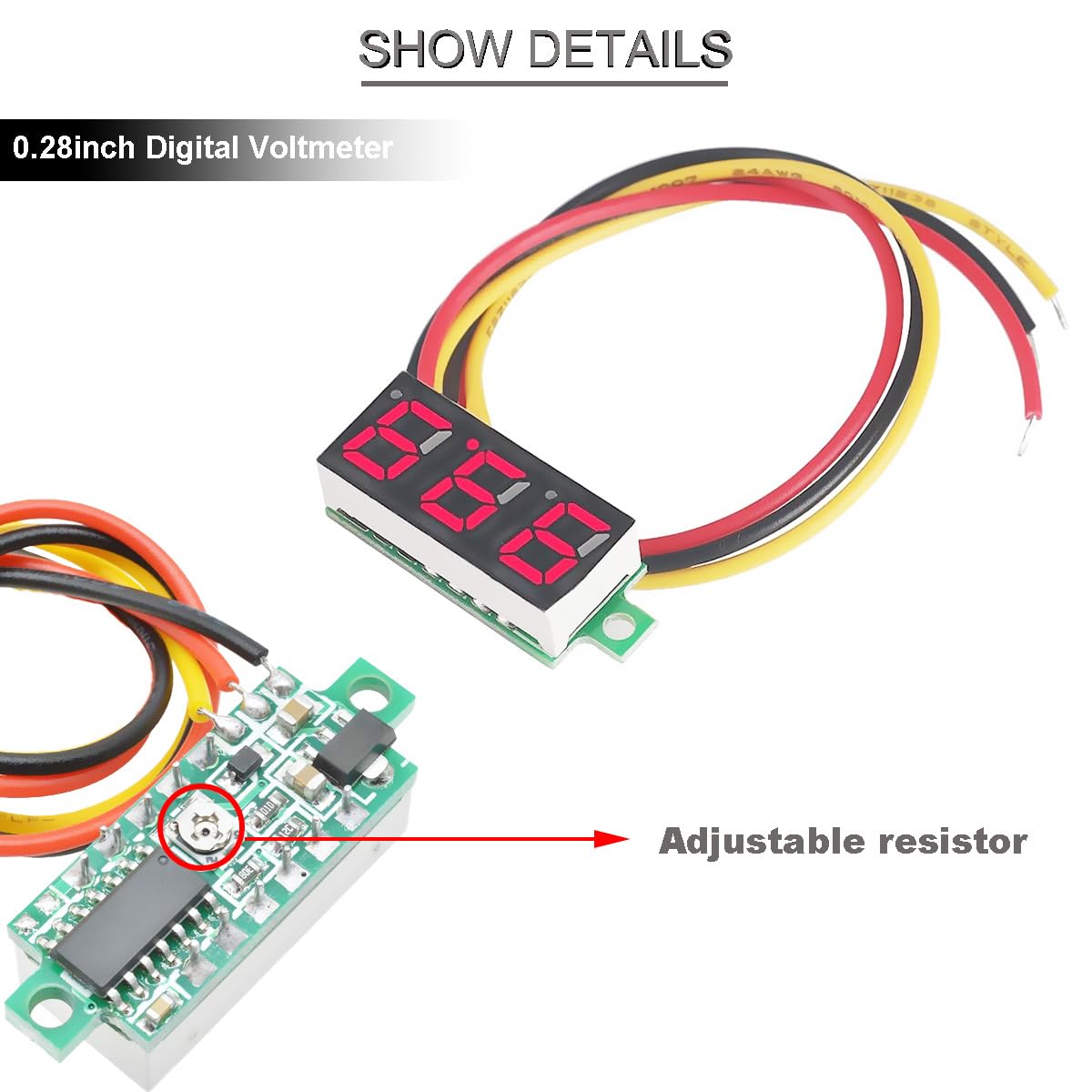

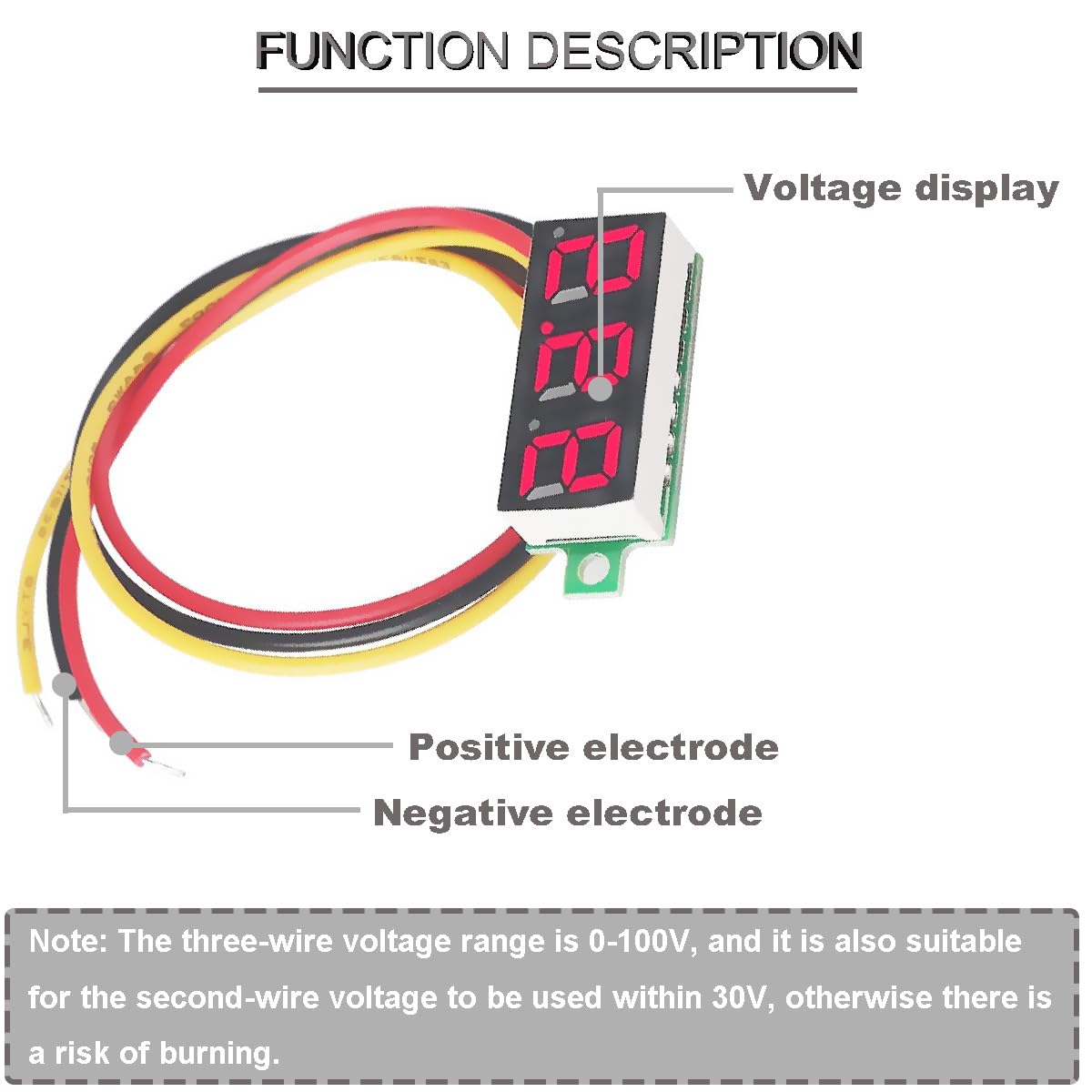

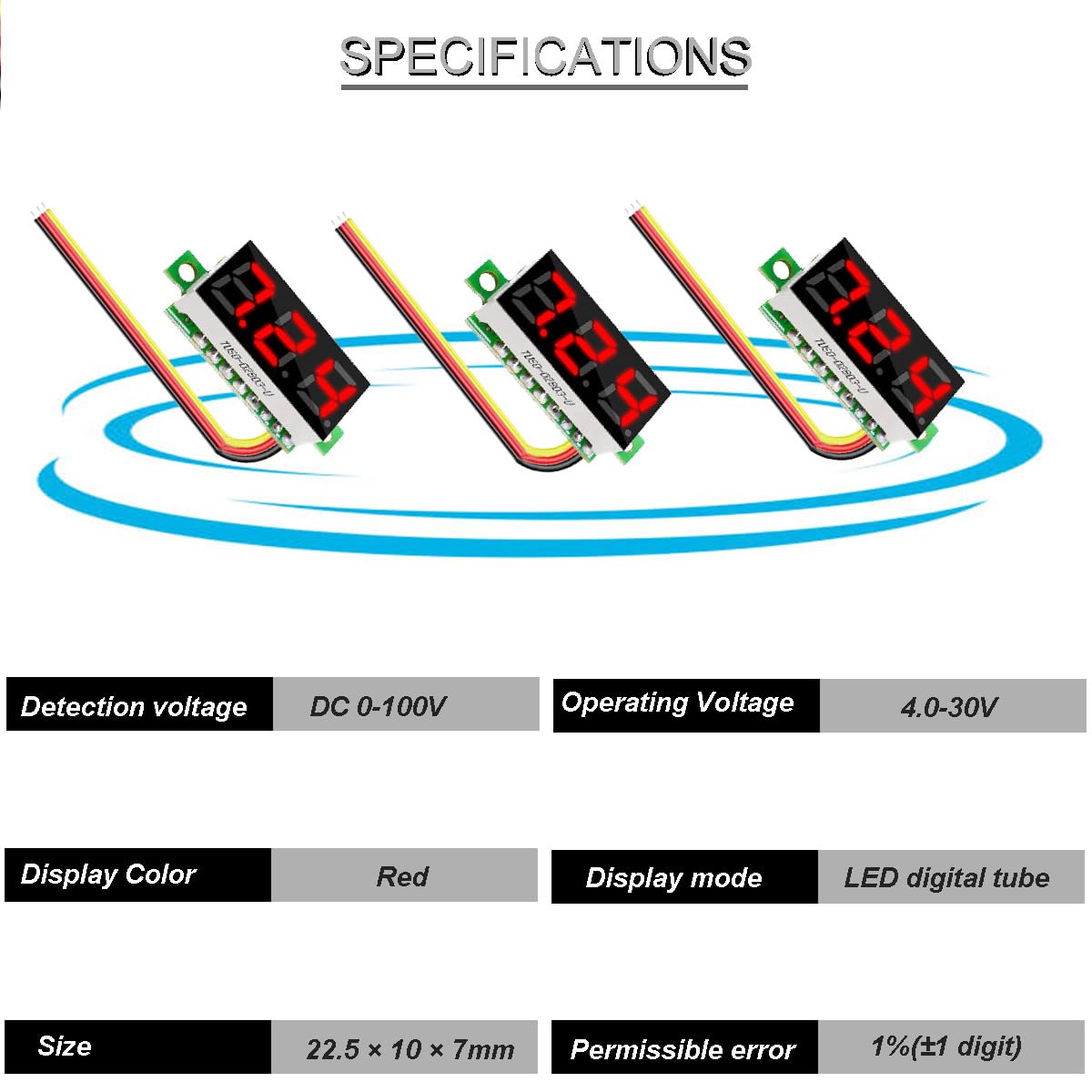

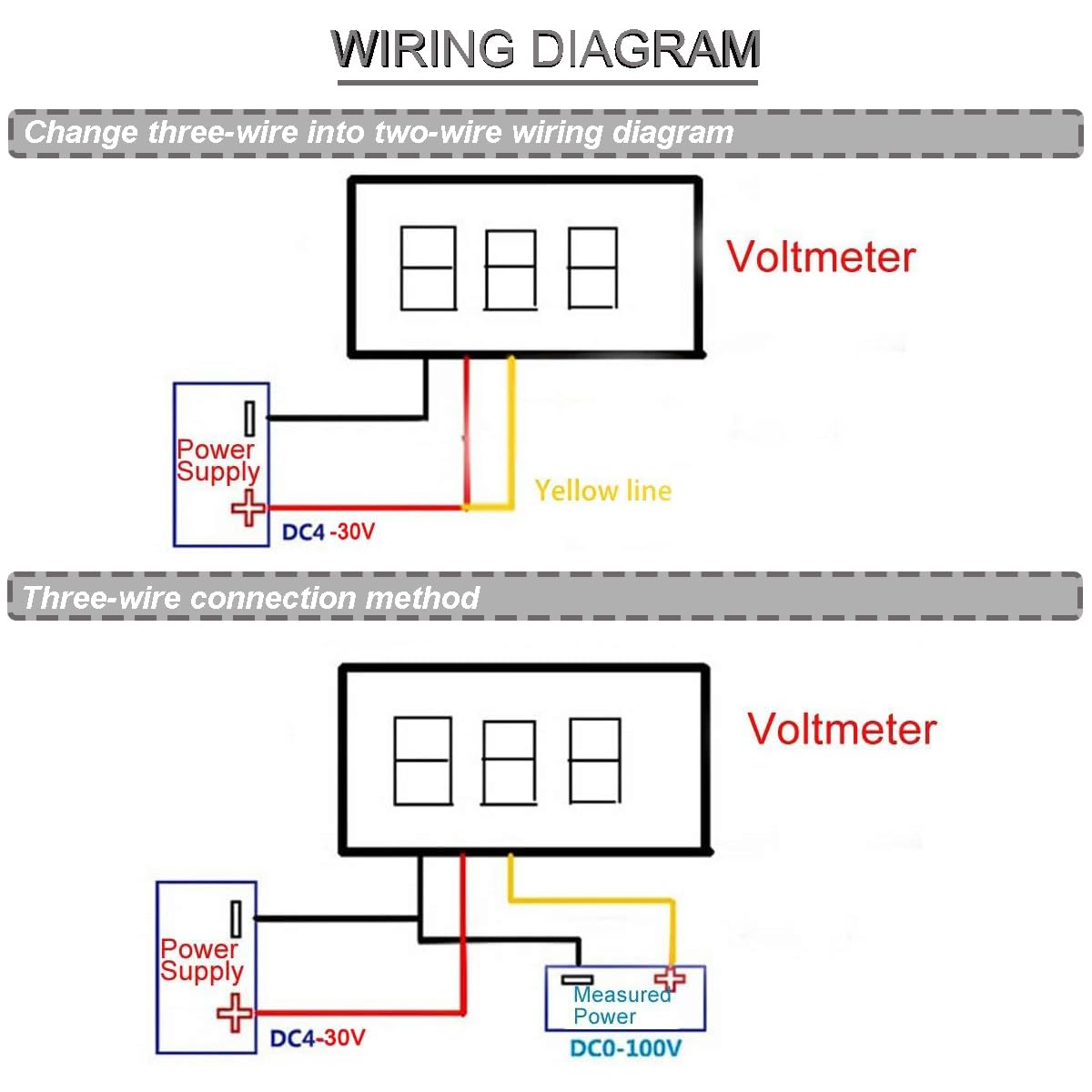

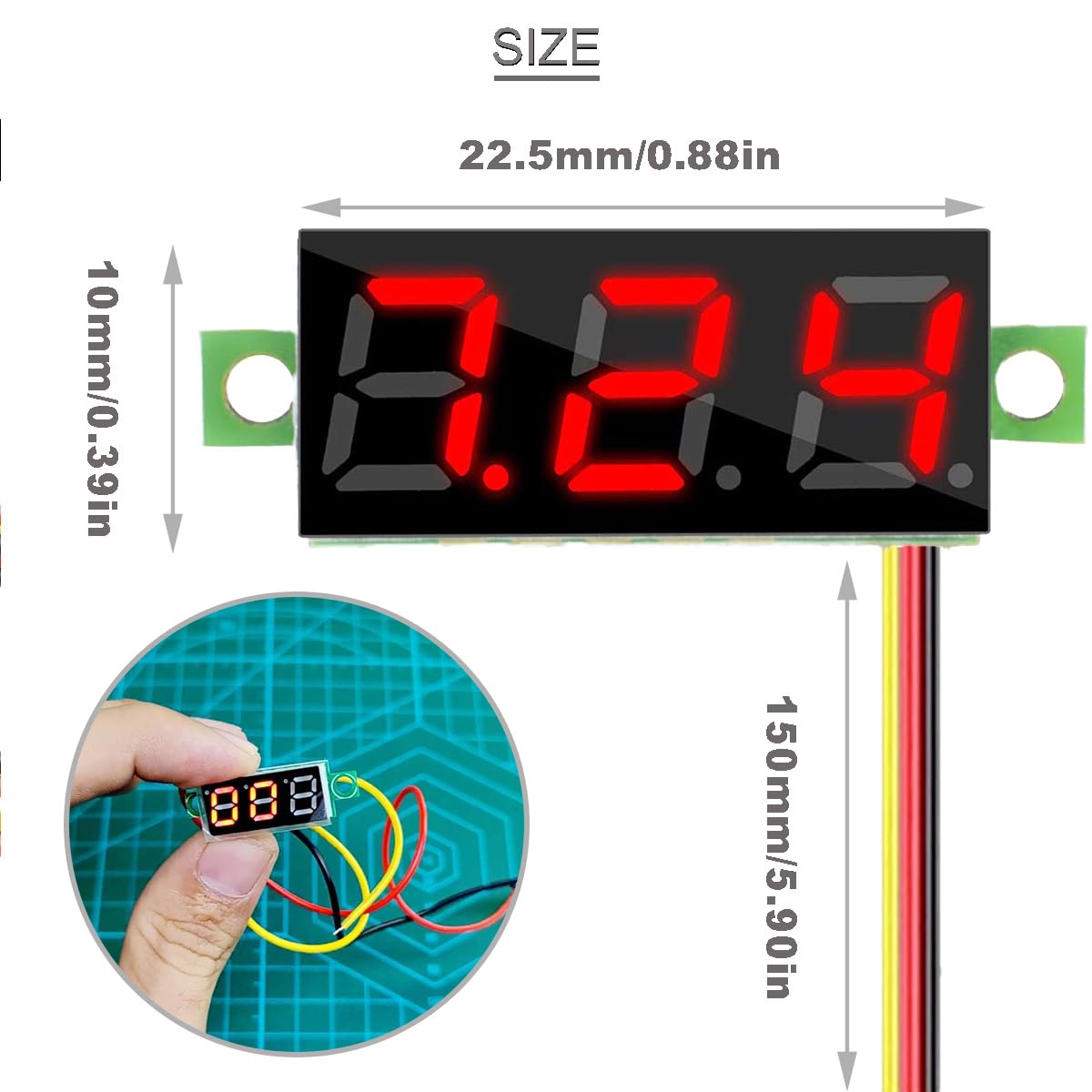

Feature 1. High precision 2.Reverse connection protection 3. Adjustable withstand voltage - turn clockwise to reduce the voltage, and can work directly at 5V, 9V, 12V, and 24V. 4. Three-wire connection, or change the three-wire connection to two-wire connection. Specification: Operating Voltage: 4.0-30V Detection voltage: DC 0V ~ 100V Working current: less than 20mA Display Color: Red Display mode: three digit 0.28'LED digital tube Dimensions: 22.5 × 10 × 7mm (length x width x height) Installation hole: 23 × 10 mm Measurement rate: more than or equal to 200mS / times Accuracy: 3% Operating temperature: -10 ~ +65 ℃ Working humidity: 10~80% Working pressure: 80~106kpa Permissible error: 1%(±1 digit) Package Includes: 5 x 0.28inch Mini 3 Wire Digital Voltmeter(Red) 5 x Crimp terminal(CH-2)
