Youmile 5 pcs CL01-12 Microwave Oven Induction Cooker High Voltage Diode Rectifier + 5 pcs Microwave Fuse Ceramic Tube 20 Amp 250 V Fuse 6 x 30 mm Slow Blow Fuse

• 【Diode parameters】：Withstand Voltage: 12 KV, Rated Current:350 mA,O Terminal Diameter: 4.2mm/0.17in, Female Terminal Size:1/4 in/6.3 mm Standard.
• 【Replace】: for high voltage diode which marked T3512, 3512,CL01-12, HVM12, 512H.
• 【Fuse parameters】: Rated voltage: 250 V; Rated current: 20 Amp; Total size: 6 x 30 mm/ 0.24 x 1.2 in (diameter x length)
• 【Type and compatibility】: slow acting blow (time delay) ceramic fuse, durable and resist surge current, compatible with GE WB27X10388 and Kenmore microwave
• 【Main function】: Can be applied for protecting the circuit against overload, overcurrent and short circuit, when the fuse is burnt out, will not produce glass fragments, safe to use

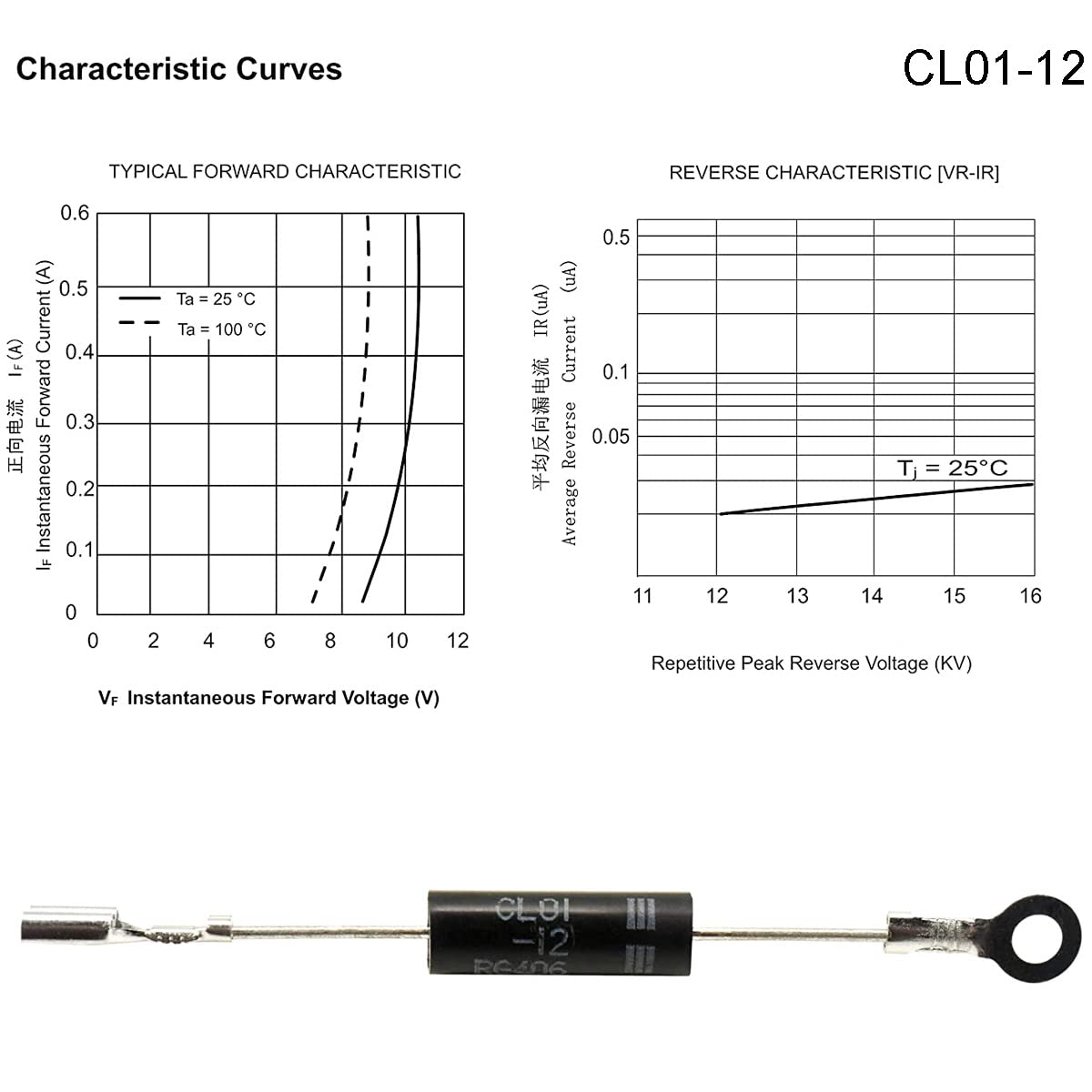

Product description Diode Specification: Product name: Microwave oven high voltage diode Model: CL01-12 Voltage: 12kV Current: 350mA Peak current: 50A Application field: household appliances Feature Plastic molding transfer. Axial silver lead, solderable. Single phase, medium wave, resistive or inductive. Low-level structure, low forward pressure drop and low reverse leakage, with high forward overload current capability, ensuring high temperature welding. Replace with the following models HVM12 HVR-1X3 T3512 T4512 512H, etc. Fuse Nice protection: If the microwave replacement fuse is placed correctly, the fuse will cut off the current when the current abnormally increases to a certain height and heats up, thus play a role in the safe operation of the protection circuit. Specifications: Diameter: 6.35 mm/ 0.24 inches Length: 30 mm/ 1.2 inches Rated voltage: 250 V Rated current: 20 Amp Body material: ceramic Fuse type: slow acting blow (time delay) ceramic fuse Package includes: 5 x Diode 5 x Fuse
