Youmile 4PACK PCF8591 AD/DA Converter Module Analog to Digital Conversion Module Digital to Analog conversion For Arduino Raspberry Pi

• Low standby current.through the I2C bus serial input / output.
• PCF8591 by 3 hardware address pins addressing. Sampling rate PCF8591 I2C bus rate decided.
• 4 analog inputs programmable as single-ended or differential inputs.Automatic incremental channel selection.
• PCF8591 analog voltage range from VSS to VDD.PCF8591 built-in track and hold circuit.
• 8-bit successive approximation A / D converter. through an analog output DAC gain. module chip using PCF8951 .

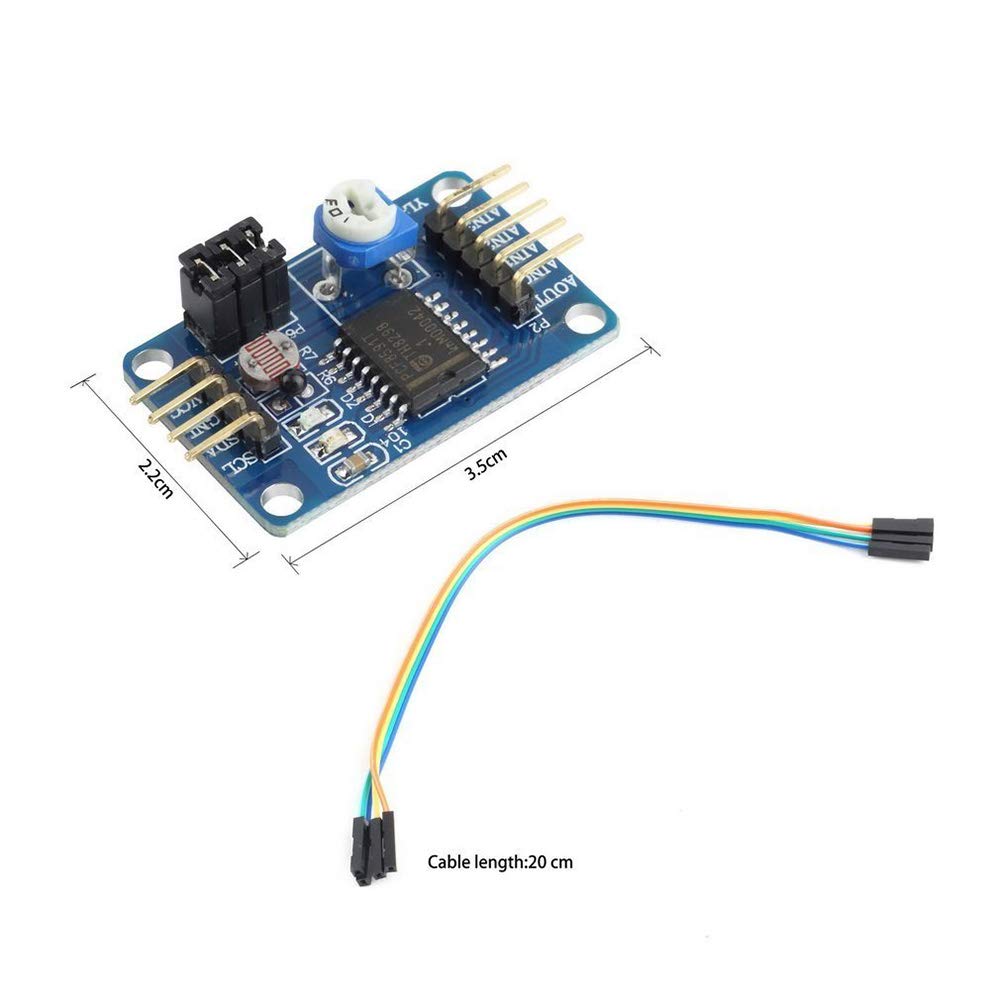

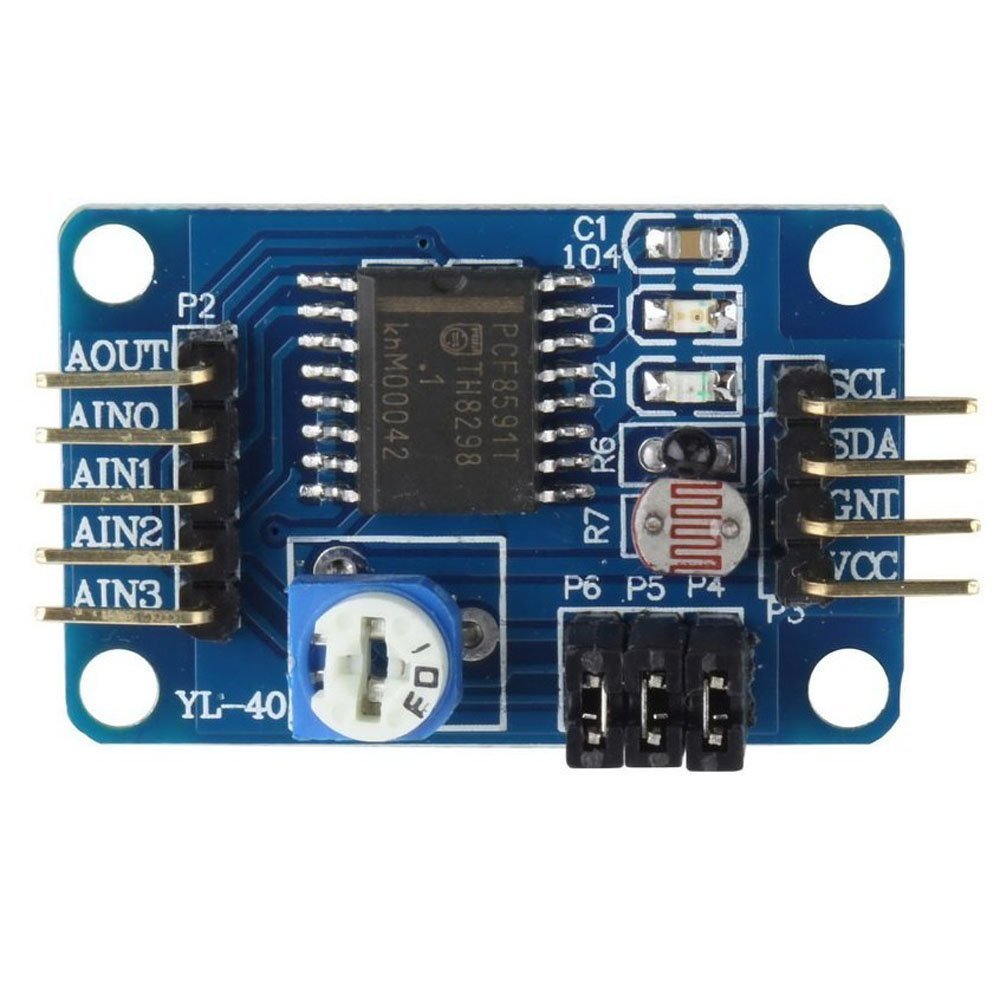

Description: 1. The module chip uses PCF8951 2. The module supports external 4-channel voltage input acquisition (voltage input range 0-5v) 3. The module integrates the photoresistor, which can capture the ambient light intensity with AD 4. Module integrated thermistor, can collect accurate temperature value of environment through AD 5. Module integrates 1 channel 0-5V voltage input acquisition (adjusts input voltage via blue potentiometer) 6. The module has a power indicator (the indicator will light when power is supplied to the module) 7. Module with DA output indicator, when the module DA output interface voltage reaches a certain value, it will light DA output indicator on the board, the greater the voltage, the greater the brightness of the indicator; 8. Module PCB size: 3.6cm x 2.3cm/1.5 x 0.9inch 9. Standard double panel, thickness 1.6mm, beautiful layout, surrounded by holes, aperture: 3mm, easy to fix. Specification: 1 single power supply 2. Operating voltage range of PCF8591 2.5V-6V 3. Low standby current 4. Serial input/output via I2C bus 5.PCF8591 addressed through 3 hardware address pins 6. The sampling rate of the PCF8591 is determined by the I2C bus speed 7.4 analog inputs programmable to single-ended or differential inputs 8. Automatic incremental channel selection 9. Analog voltage range of PCF8591 from VSS to VDD 10.PCF8591 Built-in Tracking and Hold Circuit 11.8-bit successive approximation of A/D converter 12. DAC gain is achieved through one analog output Package Included: 4 x PCF8591 Module AD DA Converter Module
