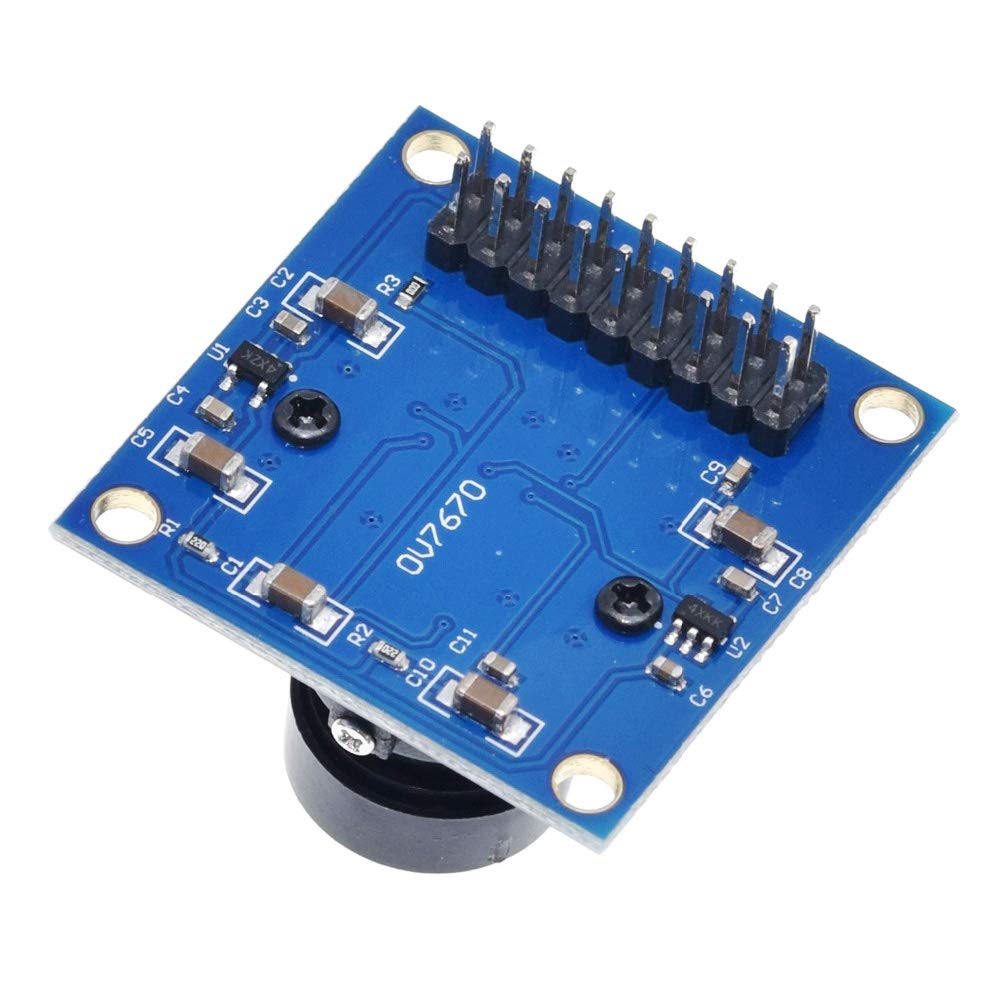

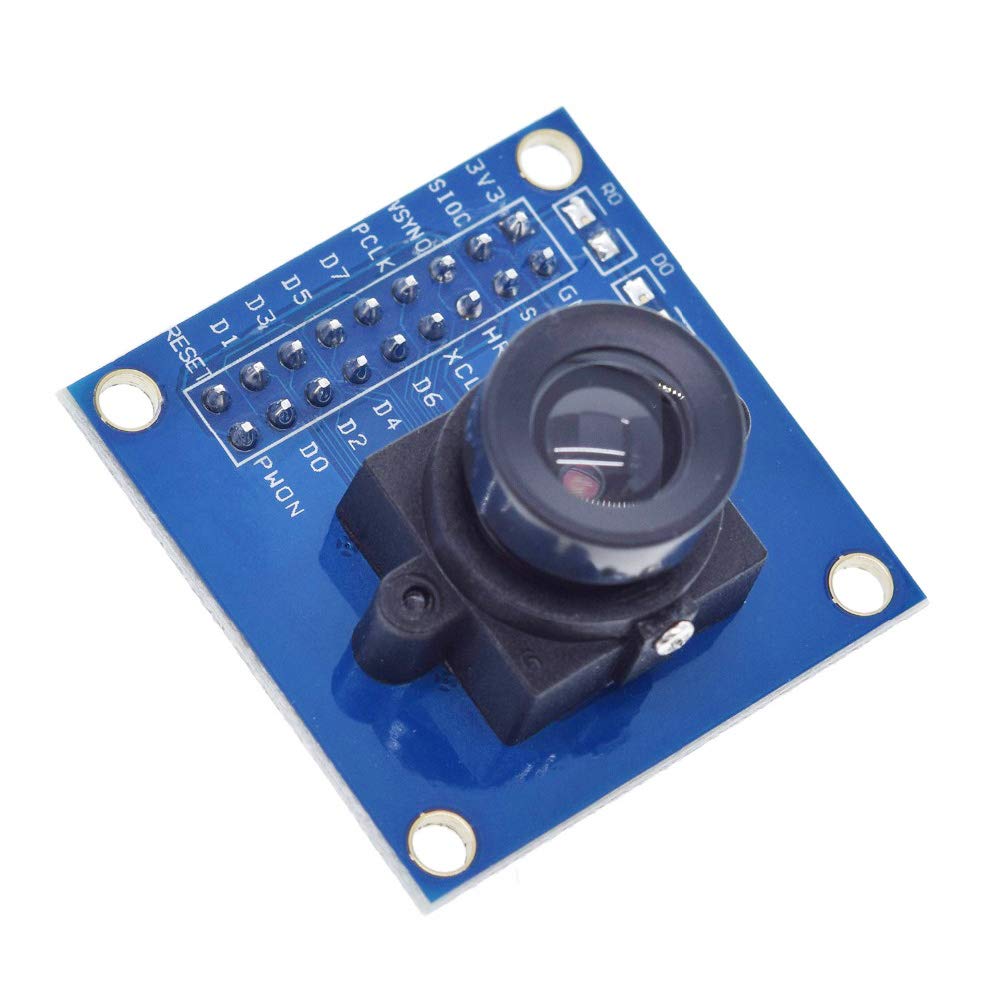

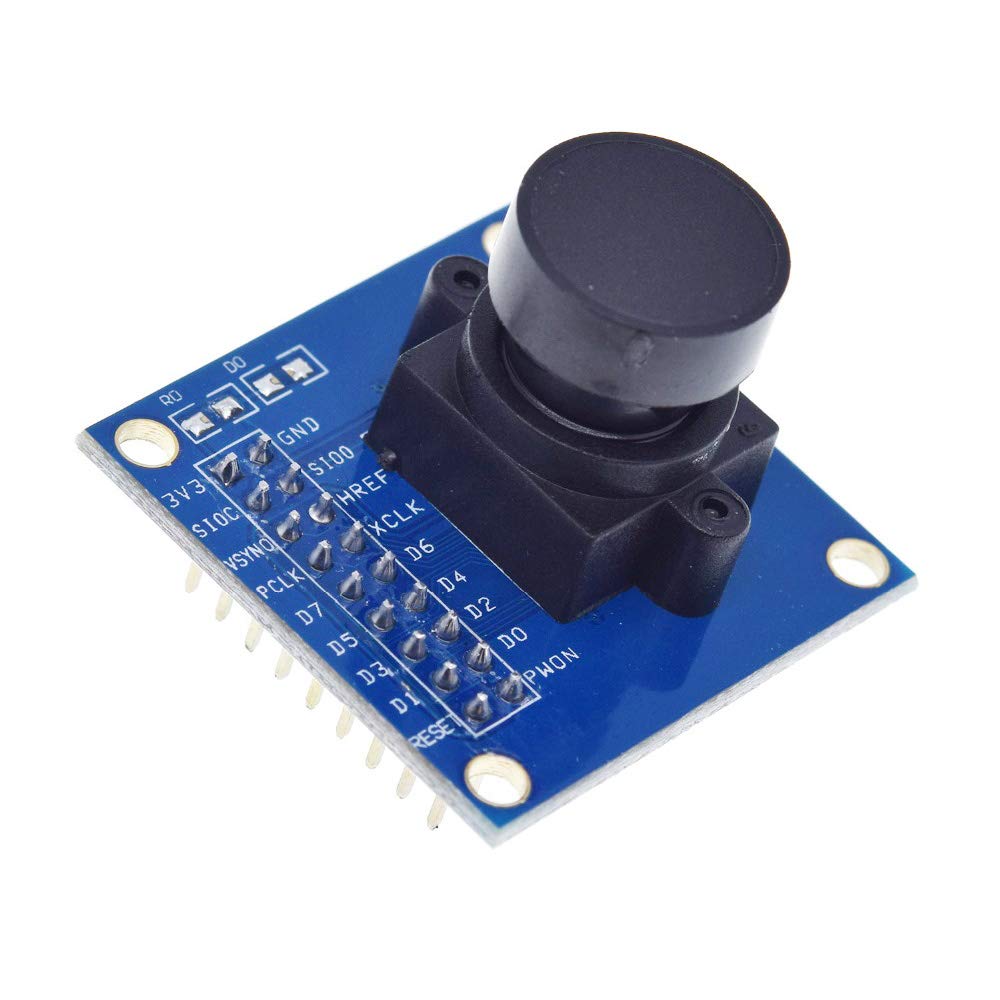

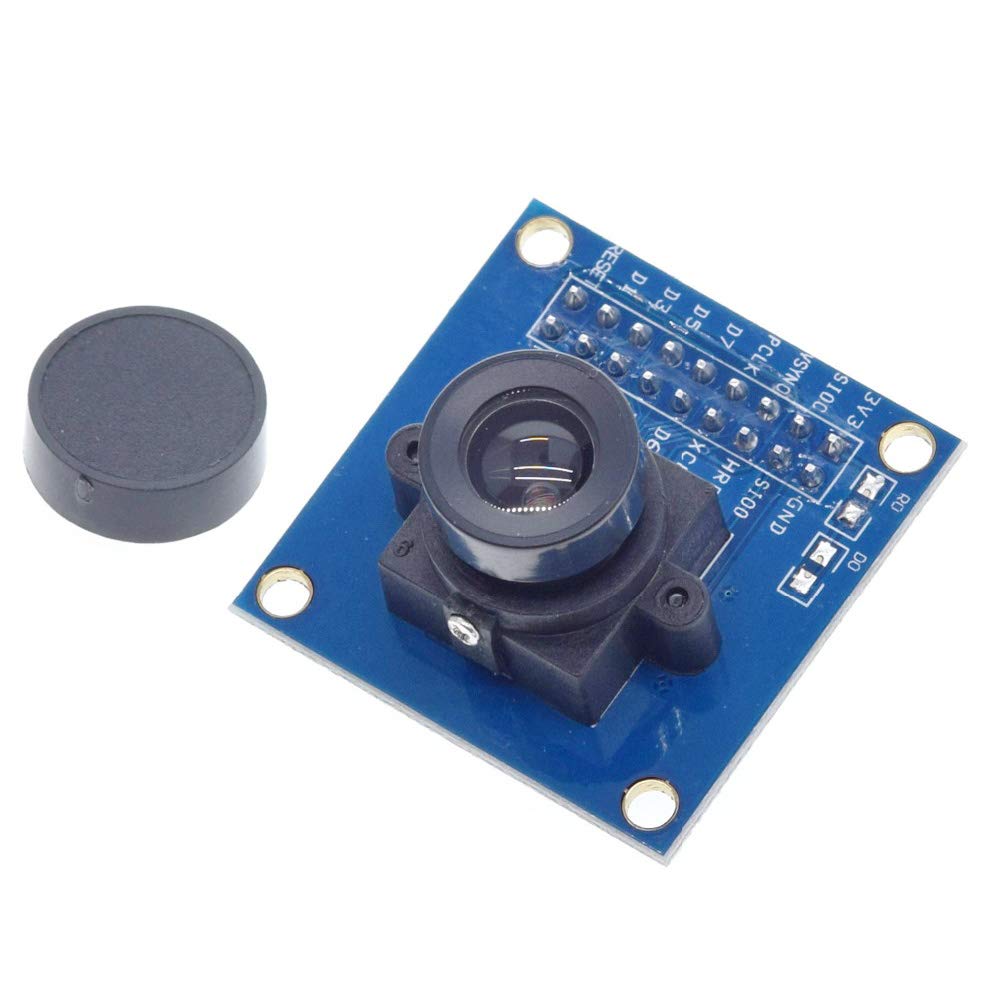

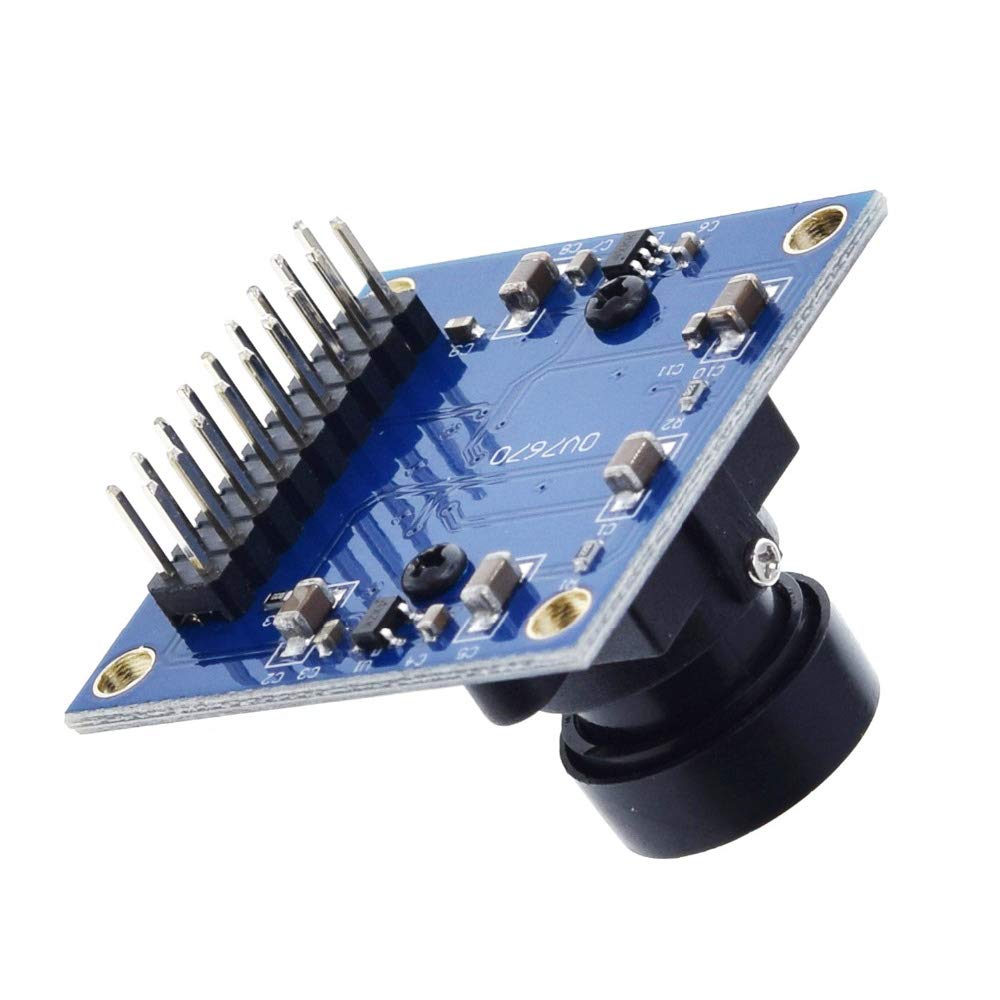

Youmile 2PCS OV7670 Camera Module 640x480 0.3Mega 300KP VGA CMOS I2C Module for Arduino ARM with Dupont Cable

• Resolution 640x480 VGA; IO voltage 2.5V to 3.0V (internal LDO power supply to the core 1.8V); Power operation 60mW/15fps VGAYUV
• Process of image processing functions, including gamma curve, white balance, saturation and chroma can be through the SCCB programming interface.OmmiVision image sensor application of sensor technology, unique to reduce or eliminate the optical or electronic defect such as fixed pattern noise, tail, float away, etc., improve the quality of the image, get clear and stable color images.
• Low automatic control functions including: automatic exposure control, automatic gain control, automatic white balance, automatic eliminate the light stripes, black level calibration automatically. The image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
• RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format; Second-ranking supports VGA, CIF, and from CIF to 40 x of various sizes
• Package Content:2 x OV7670 Camera Module, 1 x 11.8" Male-Male Dupont Cables 40 PIN

Feature: 1. Low high sensitivity for low illumination applications 2. Low low voltage is suitable for embedded application 3. Low standard SCCB interface, compatible with the I2C interface 4. RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format 5. Second-ranking supports VGA, CIF, and from CIF to 40 x of various sizes 6. Low VarioPixel the sampling method 7. Low ISP has eliminate noise and bad point compensation function 8. Low support image zooming 9. Low lens light compensation 10. Low 50/60 hz automatic detection 11. Automatically adjust the low saturation (UV) 12. Low edge enhancement automatic adjustment 13. Automatically adjust the low noise reduction Parameters: 1. Sensitive array 640 x480 2. IO voltage of 2.5 V to 3.0 V (internal "to nuclear power 1.8 V) 3. Power dissipation work 60 mw / 15 fpsvgayuv 4. Dormancy <20 mu A 5. Operating temperature - 30 C to 70 C 6. Stable work 0 Cto 50 C 7. The output format (8 bits)?YUV/YCbCr4:2-2 RGB565/555/444 GRB4:2-2 Raw RGB Data 8. Optical size 1/6" 9. The view Angle of 25 ° 10. The biggest showbiz rate 30 FPS VGA 11. The sensitivity of 1.3 V/(Lux - SEC) 12. 46 the dB SNR 13. Dynamic range of 52 dB 14. Browse mode line by line 15. Electronic exposure lines 1 through 510 16. Pixel area of 3.6 mu m x 3.6 microns 17. Dark current 12 mV/s at 60C Package Included: 2 x OV7670 Camera Module 1 x 11.8" Male-Male Dupont Cables 40 PIN
