Youmile 2PACK PCB Protection Board 25A 3S 11.1V 12.6V Li-ion 18650 Lithium Battery Charger PCB BMS Protection Board Lipo Cell Module with Balance Charging For Current Drill Motor

• High-accuracy voltage detection circuit, fine workmanship and durable.
• Highlight: Over-discharge protection, overcurrent protection, overcharge protection, Short Circuit Protection; High charge and discharge current; Compact size and lightweight.
• With equalizer. Increase battery life, safety and stability.
• MOS transistor can control the battery charge and discharge, low standby current consumption.
• 0

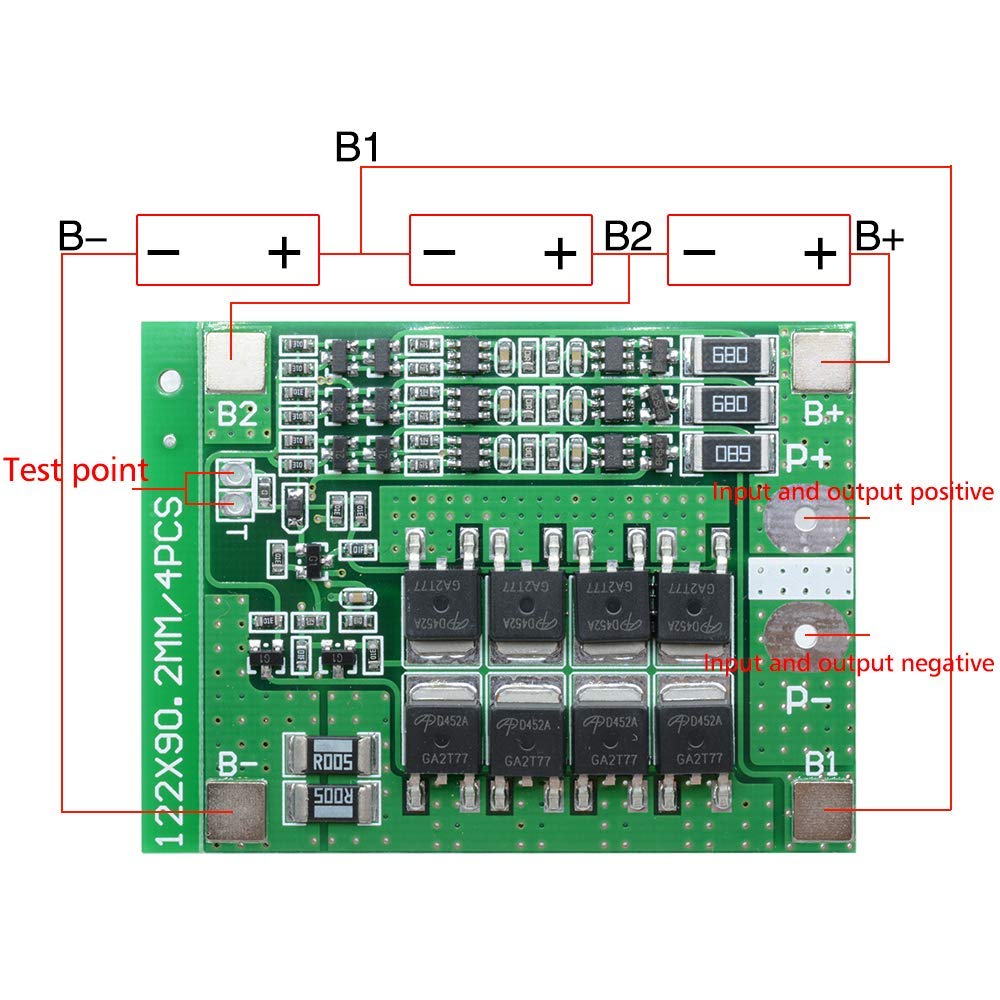

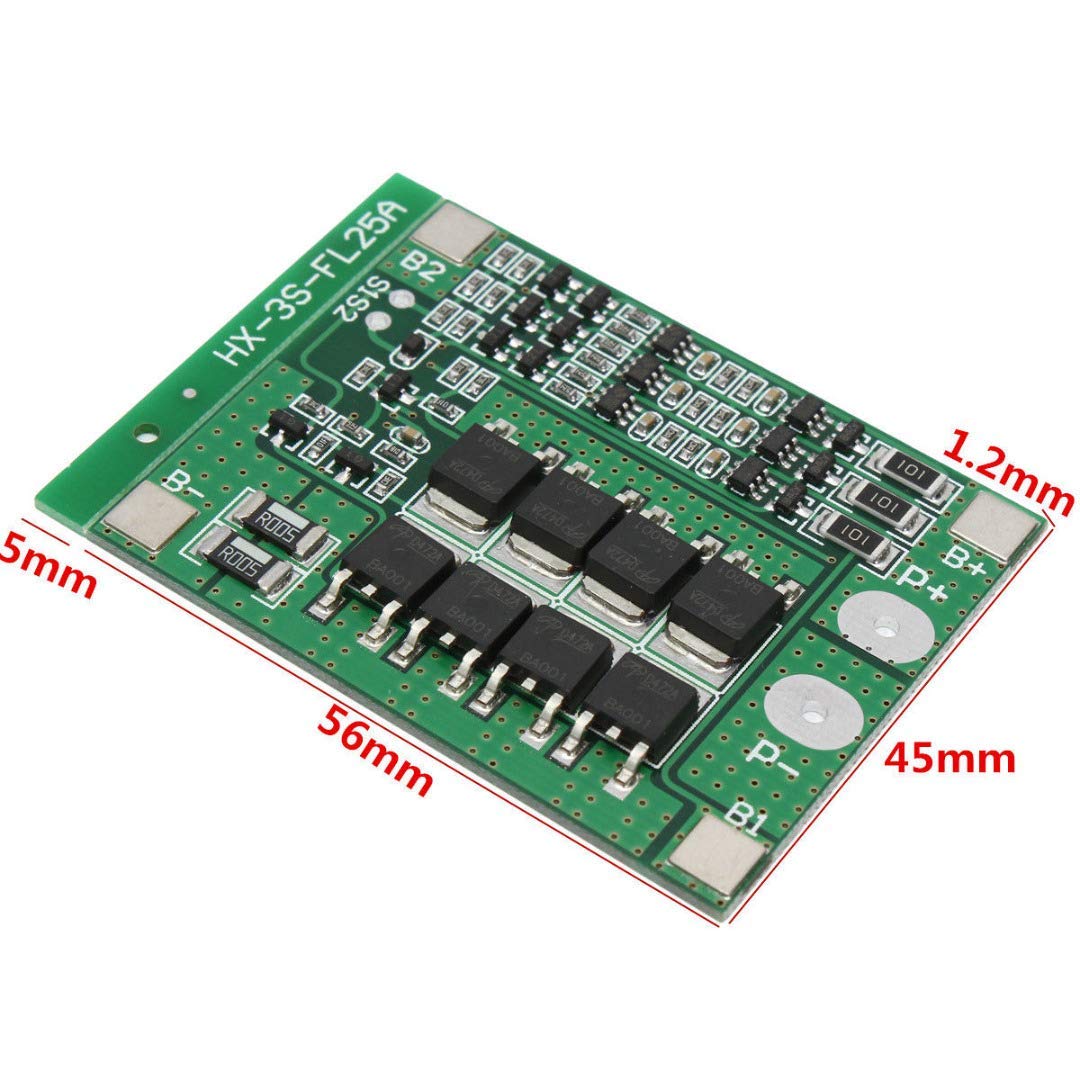

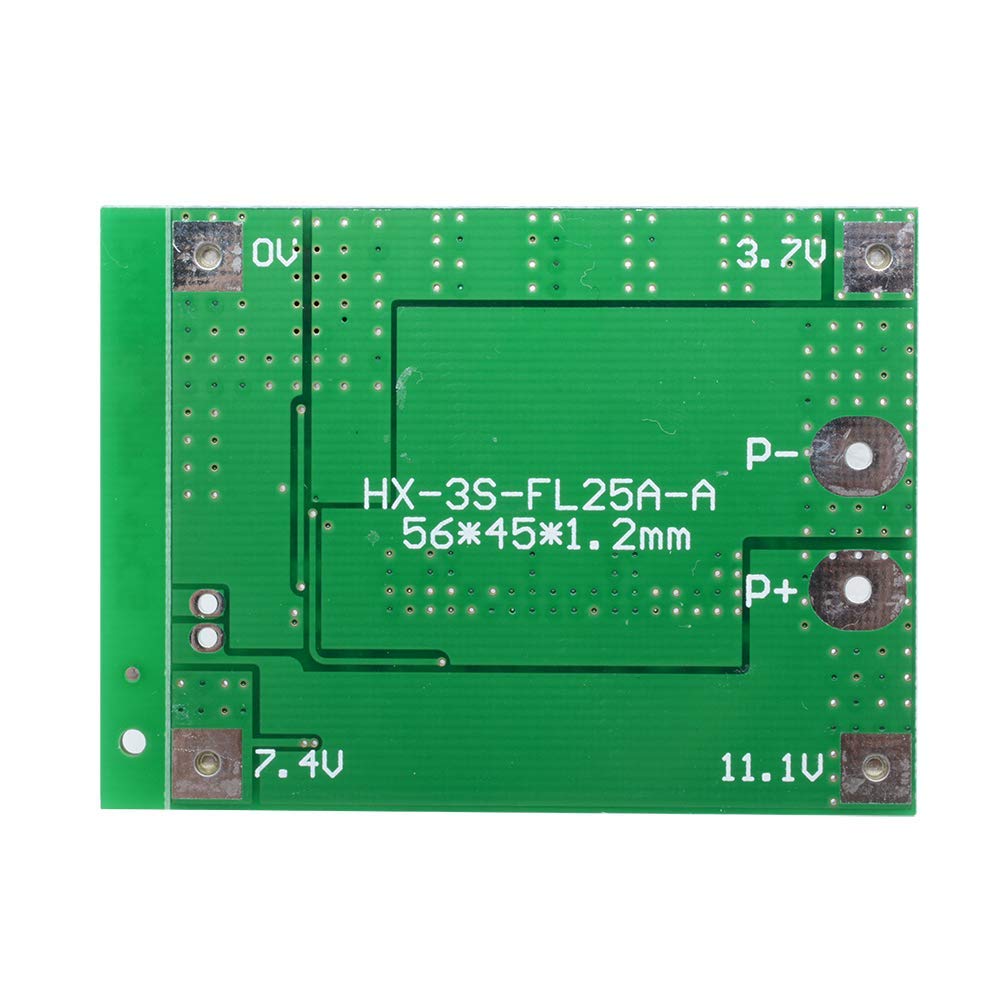

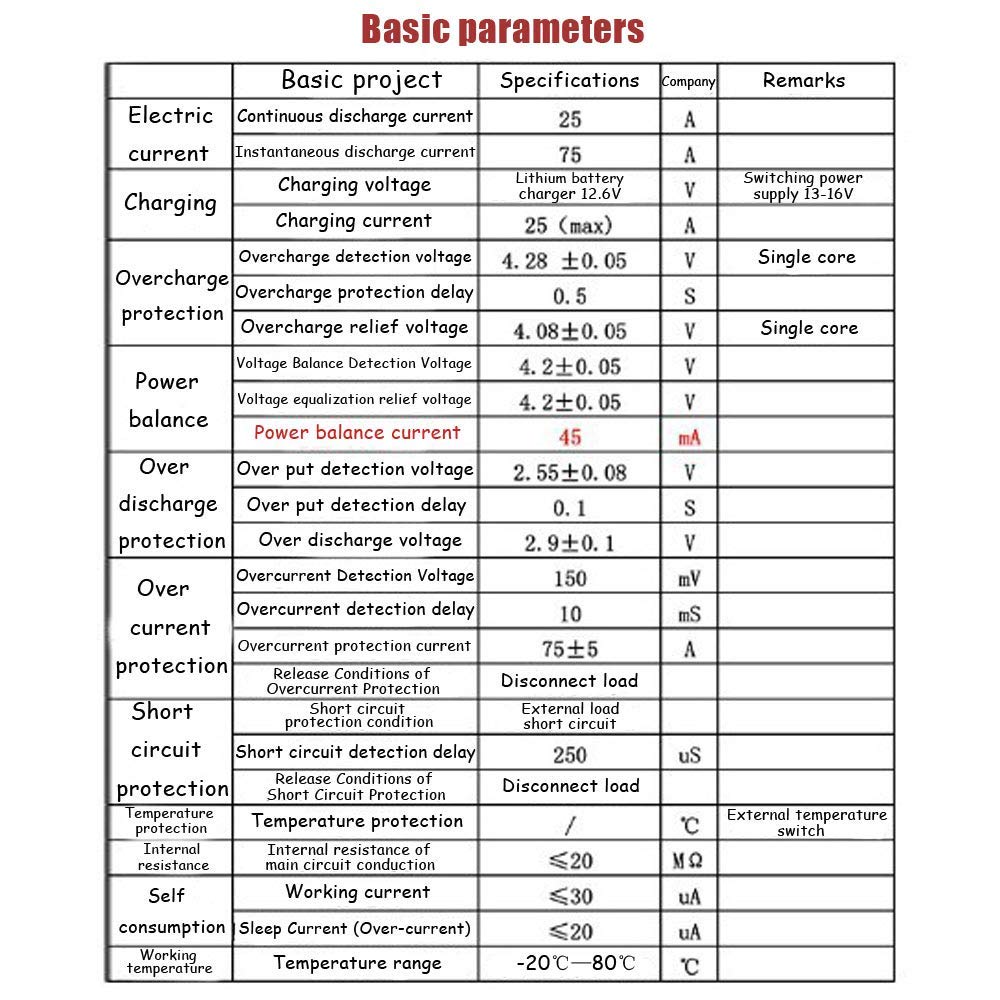

Description: Features: 100% Brand New and High Quality Strictly according to the diagram wiring: 0V (B) 3.7V (B1)7.4V (B2)11.1V (B+), Do not deliberately short circuit. After the line is connected, need to charge first, then have output. When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use. Do not mix the good battery and the battery. The capacity of the battery internal resistance is closer will be better. Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying. Specification: Over voltage range: 4.25 4.35±0.05v Over discharge voltage range: 2.3 3.0±0.05v Maximum operating current: 0 25A Maximum transient current: 34 40A Quiescent current: less than 30uA Internal resistance: less than 100m? Working temperature: 40 +50°C Storage condition: 40 +80°C Effective life: more than30000h Short circuit protection: Yes, delayed self-recovery Size: 56mm x 45mm x 1.2mm/2.2 x 1.8 x 0.05inch (L*W*H) Material: PCB Package Includes: 2 x Battery Protection Board 25A 3S 11.1V 12.6V 1 x 14AWG 50cm/19.6inch Power Wire
