Youmile 2PACK light sensor module Chip Digital Intensity illumination BH1750FVI Stable DC 5V Light Ball Tools Compatible For Arduino

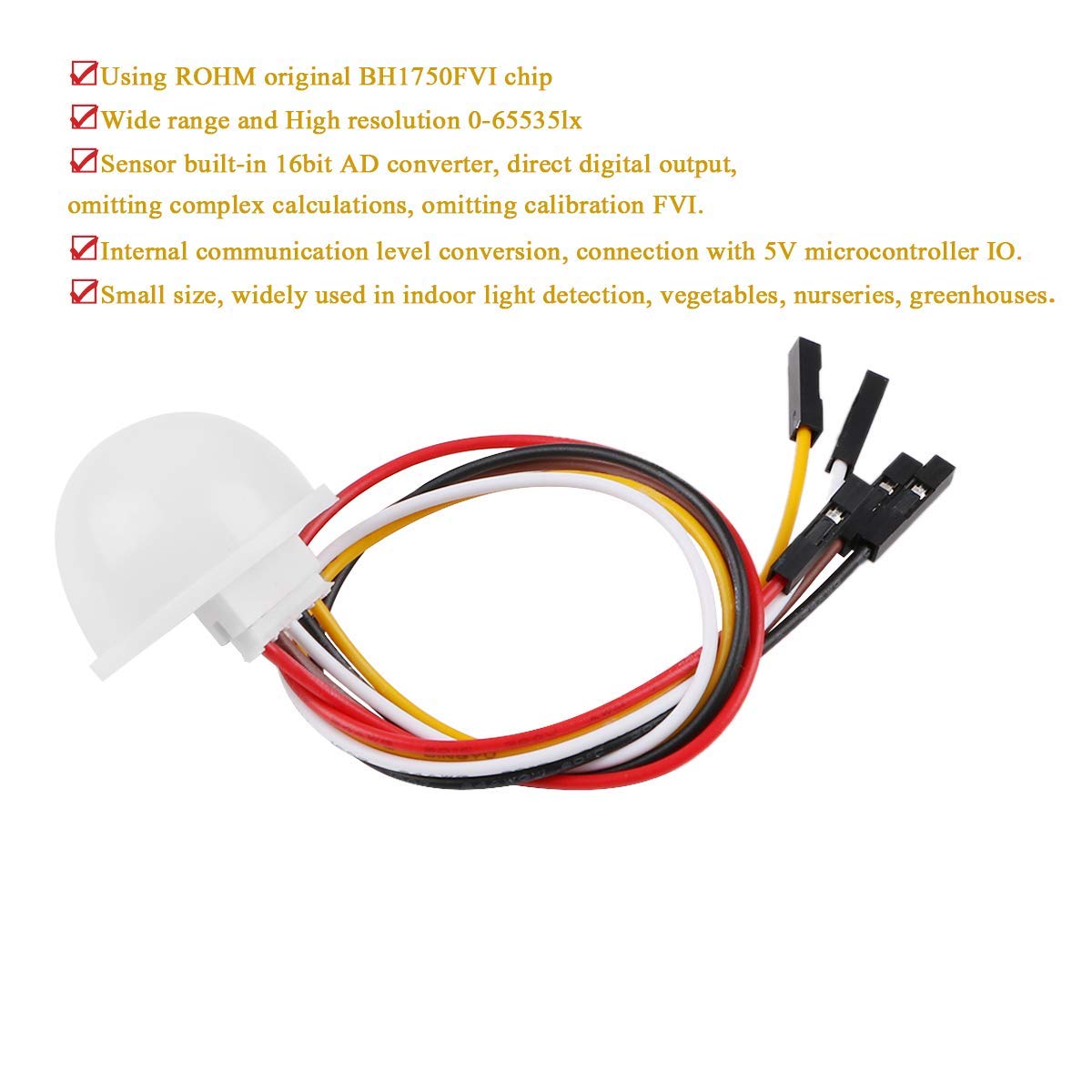

• Using ROHM original BH1750FVI chip; Illumination range: 0-65535lx, sensor built-in 16bit AD converter, direct digital output, omitting complex calculations, omitting calibration FVI https://drive.google.com/open? id=1Qjv2cRWzmWCricUg3gDFVkVWEjhZlDY3

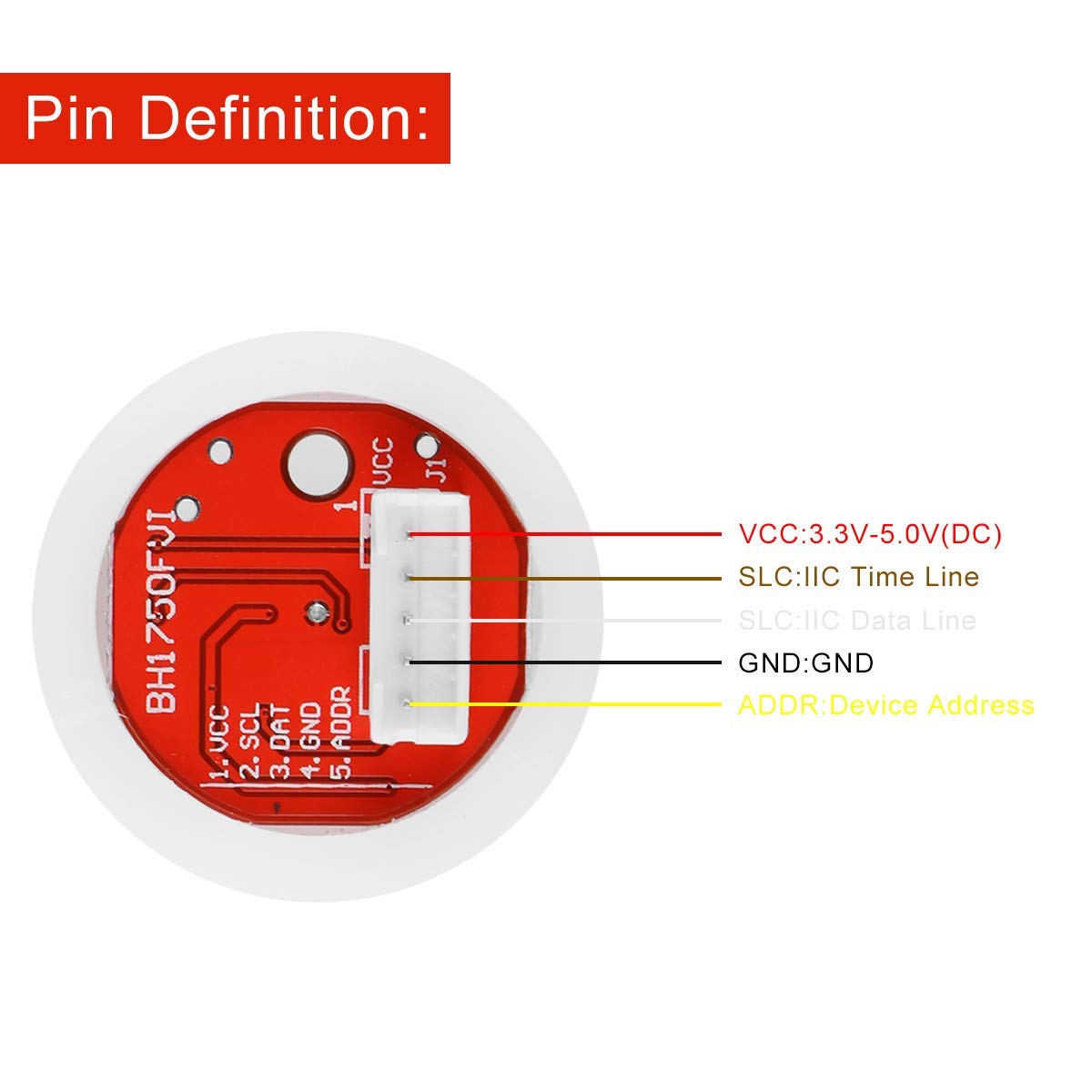

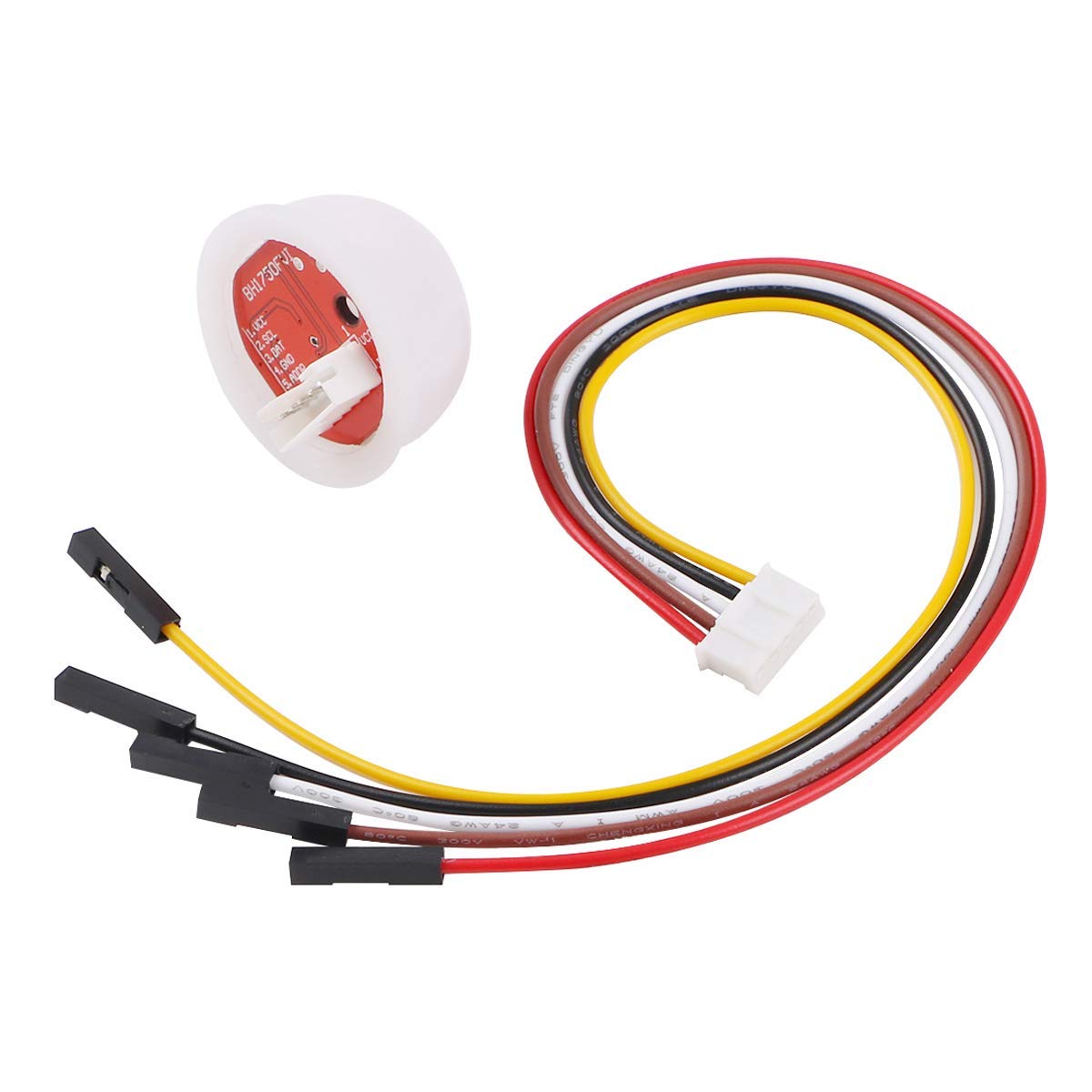

• Internal communication level conversion, connection with 5v microcontroller IO, support STM32/51/Arduino; XH2.54 interface cable, convenient for customers DIY; . Small size, widely used in indoor light detection, vegetables, nurseries, greenhouses
• The brightness of the keyboard backlight can be adjusted using the light intensity data acquisition module, and the resolution module can detect a wide range of light intensityl; BH1750FVI is an digital Ambient Light Sensor IC for I 2 C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone.

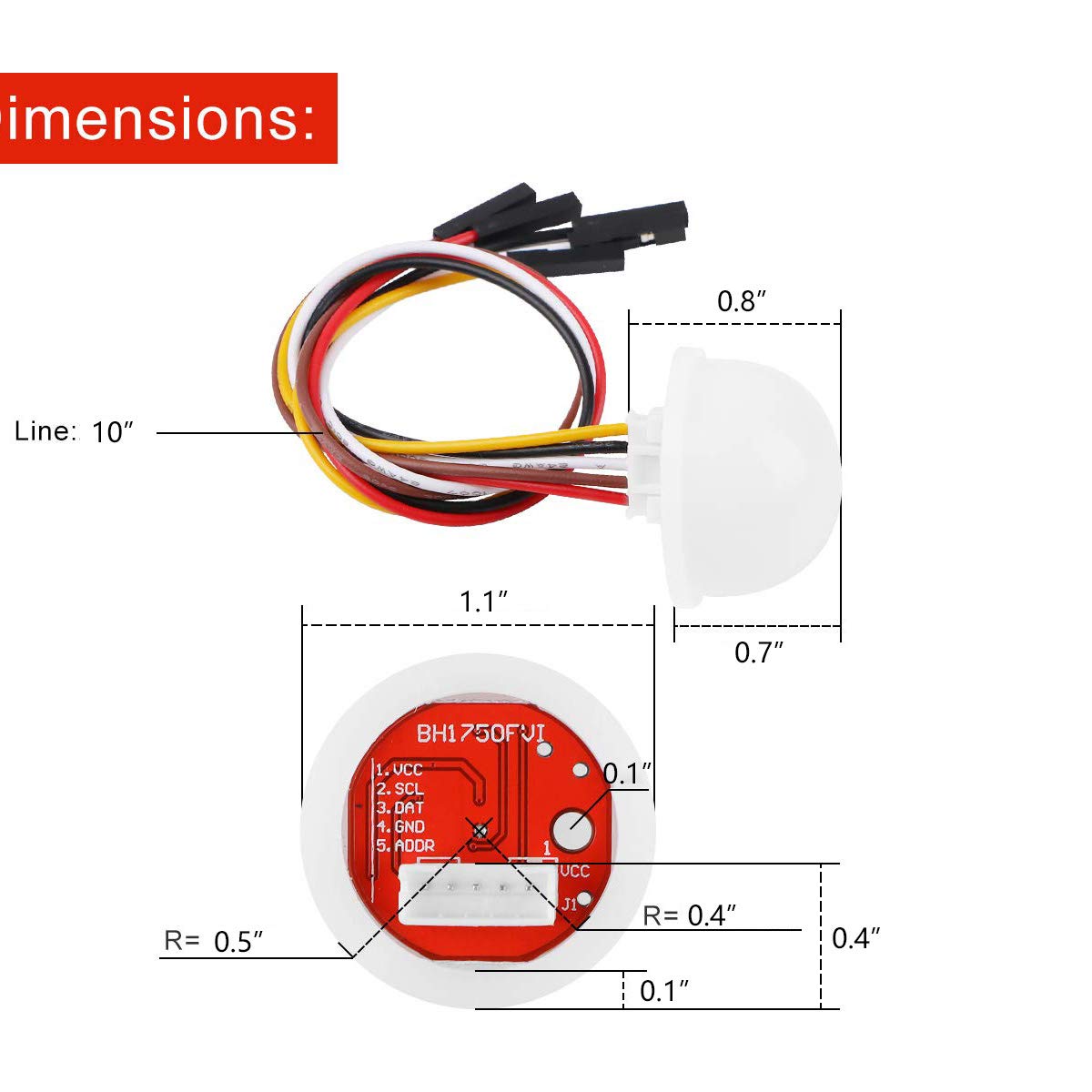

• Using the light intensity data collected by the module, can adjust the LCD brightness of the keyboard backlight.The outer diameter of 1",the large diameter edge 1.1", high 1" (plus light beads), easy to use; The light source dependence weak: incandescent, fluorescent, halogen, white LED, or fluorescent.
• Applications: Mobile phone, LCD TV, NOTE PC, Portable game machine, Digital camera, Digital video camera, PDA,LCD display.

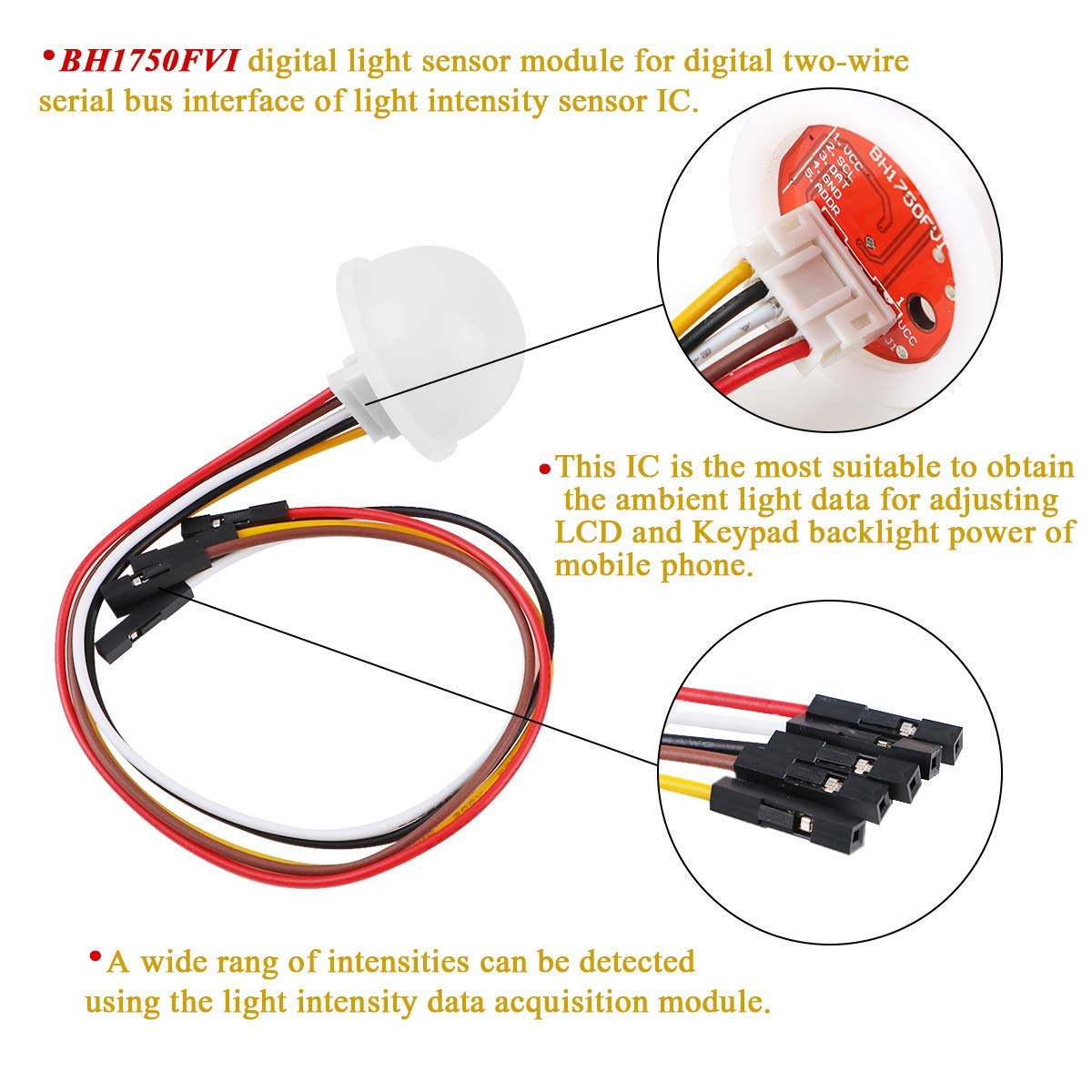

Descriptions: 1. BH1750FVI is an digital Ambient Light Sensor IC for I 2 C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. It is possible to detect wide range at High resolution.( 1 - 65535 lx ). 2. BH1750FVI digital light sensor module for digital two-wire serial bus interface of light intensity sensor IC. The brightness of the keyboard backlight can be adjusted using the light intensity data acquisition module, and the resolution module can detect a wide range of light intensity. Features: 1. I 2 C bus Interface ( f / s Mode Support ) 2. Spectral responsibility is approximately human eye response 3. Illuminance to Digital Converter 4. Wide range and High resolution. ( 1 - 65535 lx ) 5. Low Current by power down function 6. 50Hz / 60Hz Light noise reject-function 7. 1.8V Logic input interface 8. No need any external parts 9. Light source dependency is little. 10. It is possible to select 2 type of I 2 C slave-address. 11. Adjustable measurement result for influence of optical window ( It is possible to detect min. 0.11 lx, max. 100000 lx by using this function. ) 12. Small measurement variation (+/- 20%) 13. The influence of infrared is very small. 14. Line length: 0.78", 5 PIN Package included: 2 x light Sensor Module
