Youmile 20PCS Vertical Slide Switches 1P2T SPDT 3 Pin 2 Position DC50V 0.5A SS12D10 High Knob Micro Slide Switch with 20PCS Mini Panel Slide Switch ON/Off SS12F15 3Pin Latching Toggle Switch

• 2 Different Slide Switch: Vertical slide switches and panel slide switch
• 3 Pin Slide Switch: This is a switch that changes the working state (open, close) of the contact by sliding the control lever.
• Durable Material: Our Toggle Vertical Slide Switch are made of high-quality plastic and metal. The workmanship is excellent, and the mechanical life is not less than 10000 times.
• Widely used for small power electronic projects, electronic toys, audio equipment, electronic musical instruments,etc
• Package Content:20 x SS12D10 Vertical Slide Switch, 20 x SS12F15 Panel Slide Switch

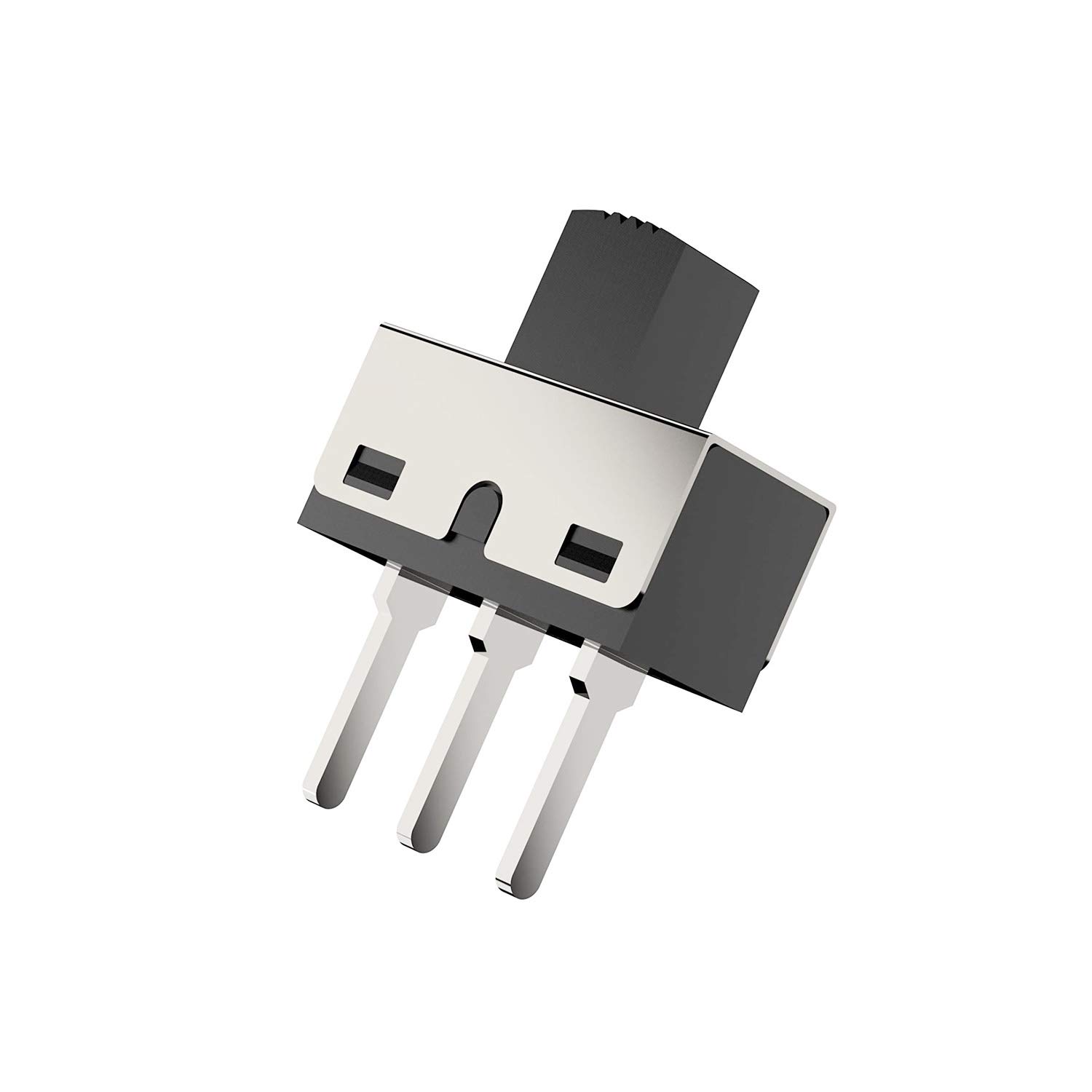

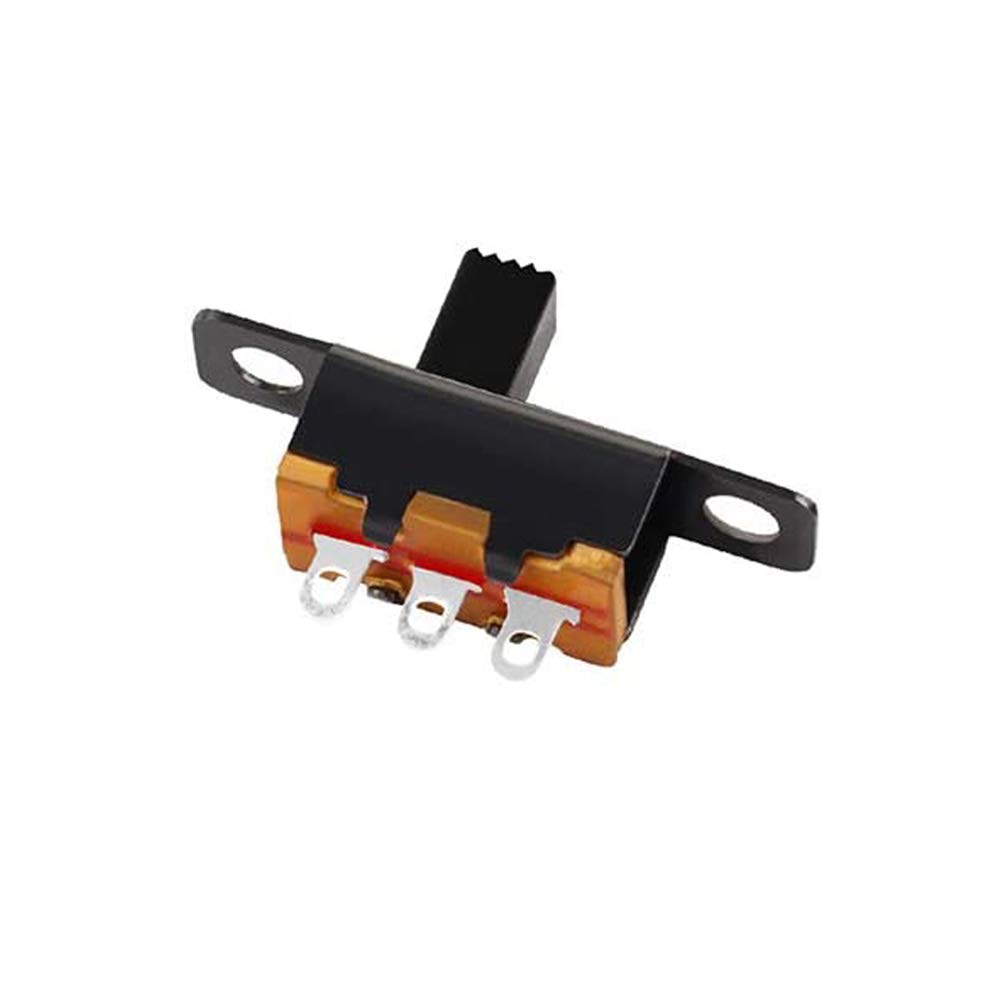

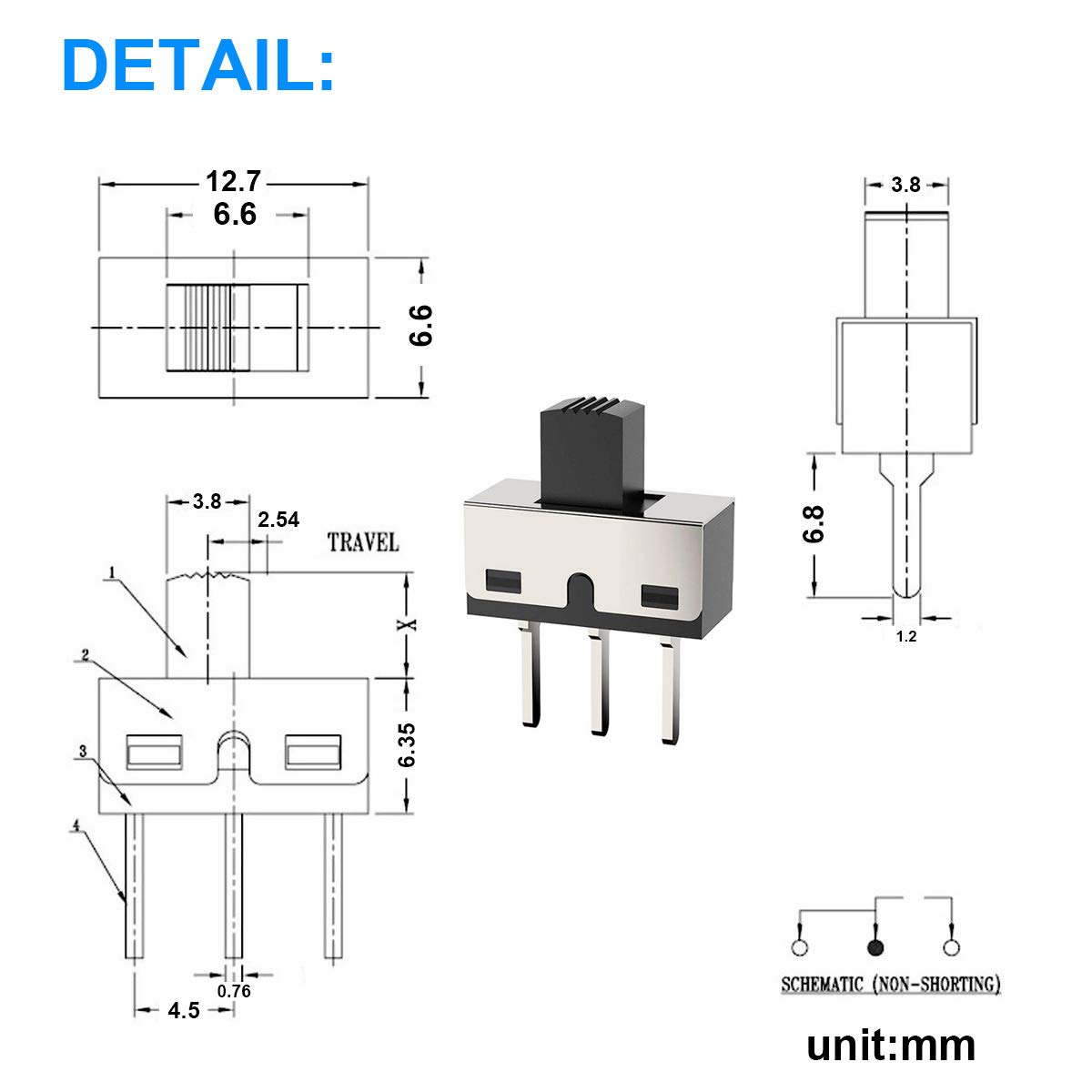

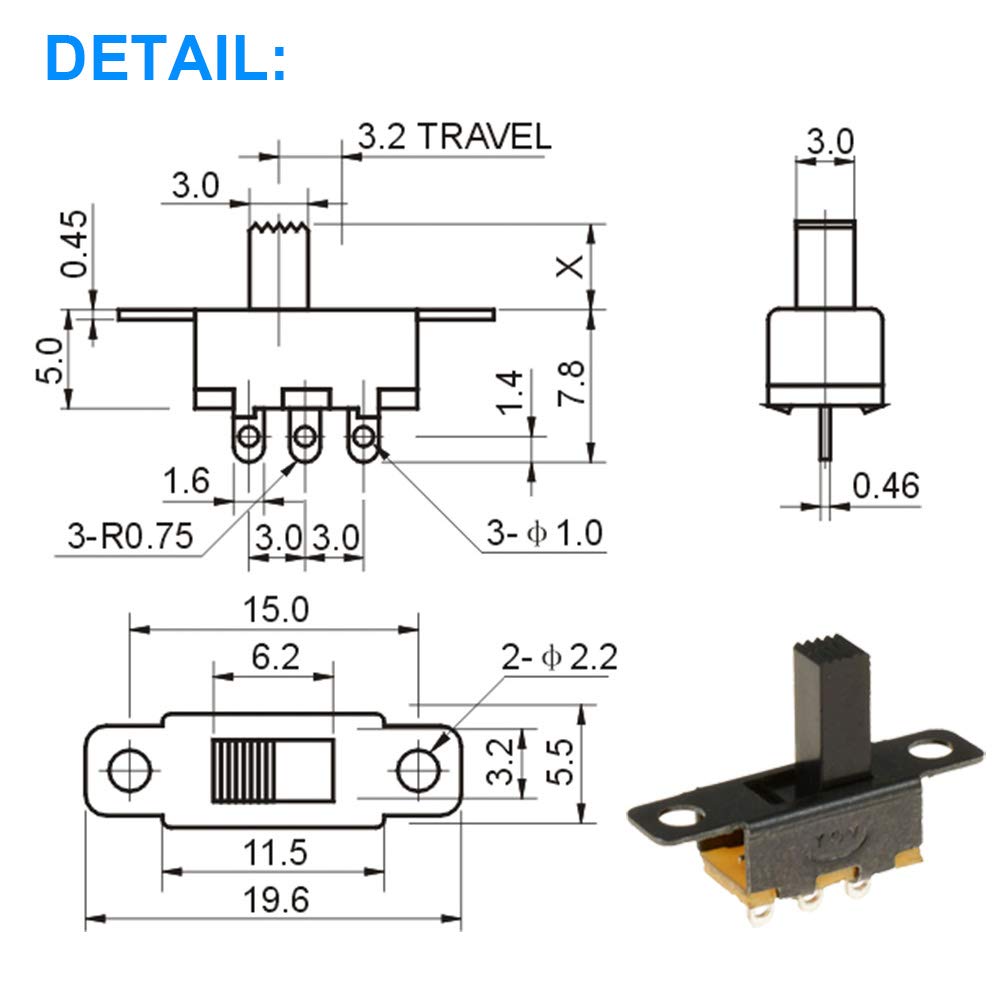

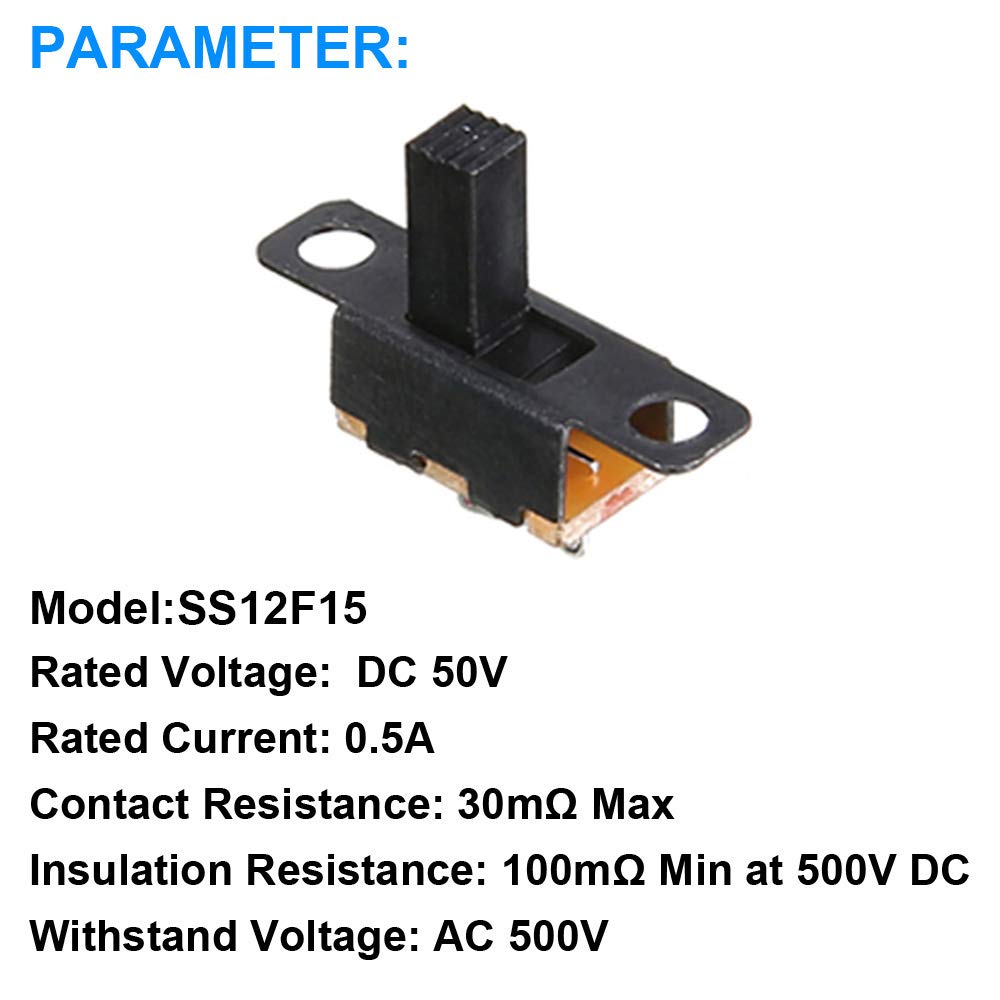

Description: SS12D10 Vertical Slide Switch: Type: 1P2T Rated Voltage: DC 50V Rated Current: 0.5A Switch Size: 12.7 X 6.6 X 13.2mm/0.5 X 0.26 X 0.52inch(LxWxH) Soldering Pin Size: 6.8 X 1.3 X 0.8mm/0.27 X 0.05 X 0.03inch(LxWxH) Sliding Knob Length: 5mm/0.19inch SS12F15 Panel Slide Switch: Rated Voltage: DC 50V Rated Current: 0.5A Contact Resistance: 30mΩ Max Insulation Resistance: 100mΩ Min at 500V DC Withstand Voltage: AC 500V Package Included: 20 x SS12D10 Vertical Slide Switch 20 x SS12F15 Panel Slide Switch
