Youmile 2 pcs WS2812 RGB LED Controller Module ESP8266 ESP-01 ESP-01S RGB LED Controller Adapter Module with cable and Dupont Line for Arduino

• 【Product introduction】: This is a WS2812 RGB LED control module based on ESP-01S! With that you can easily control the WS2812 light bar / light Own lighting control system. Support for IDE programming.
• 【Parameters】: Interface: 3Pin PH2.0 connector; Pin Control: GPIO2; Support 3.7V lithium battery; Master: ESP-01S; Material: Plastic
• 【Operating voltage】: DC 3.7 V-5 V (Please note: positive voltage supply VCC on the board is connected to the VCC on the WS2812 3PIN connector Therefore, if your light bar / lamp has 5V power, uses DC 3.7V-5V power supply)

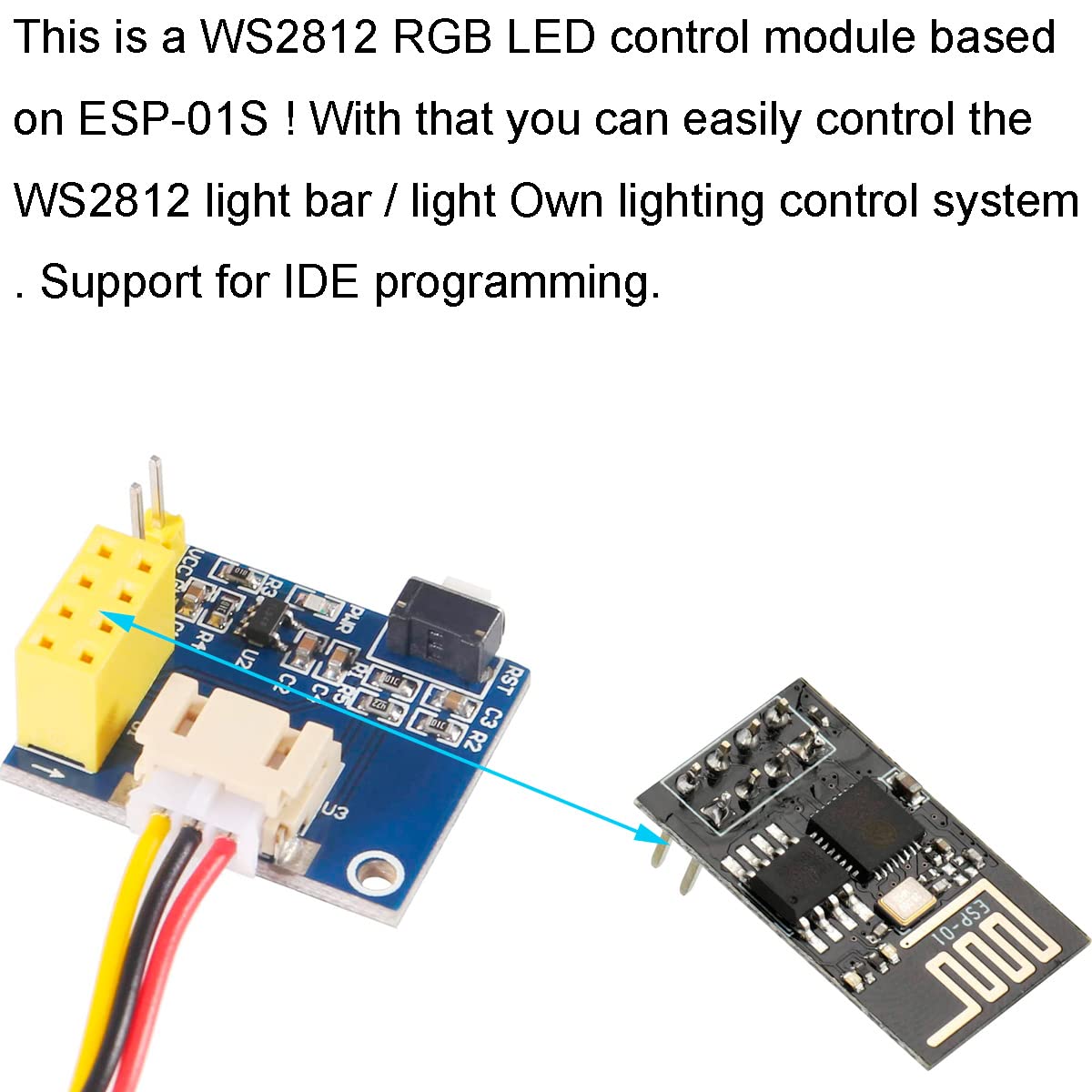

• 【Application example】:Download the program to ESP-01S；Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)； Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header
• 【Item Condition】: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence

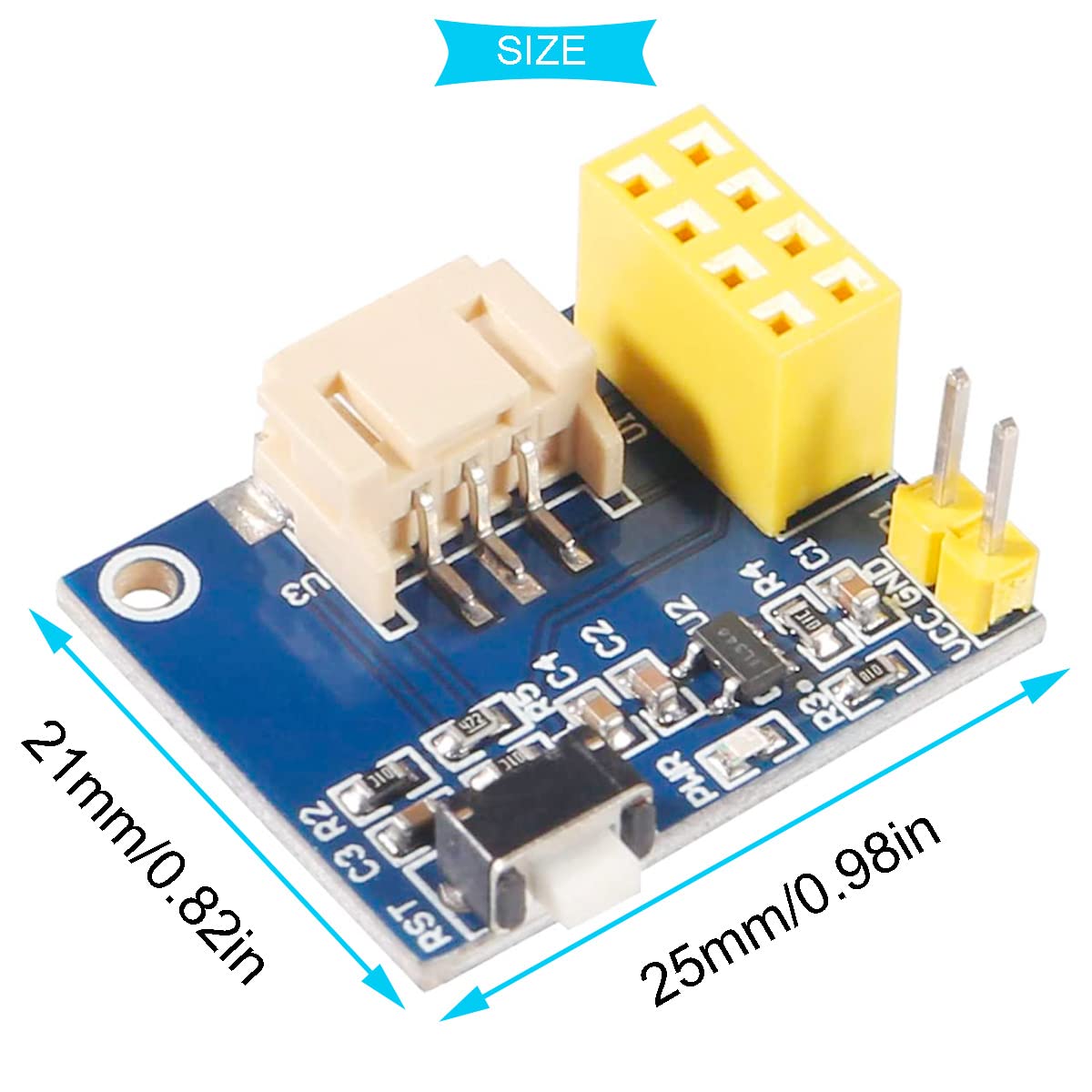

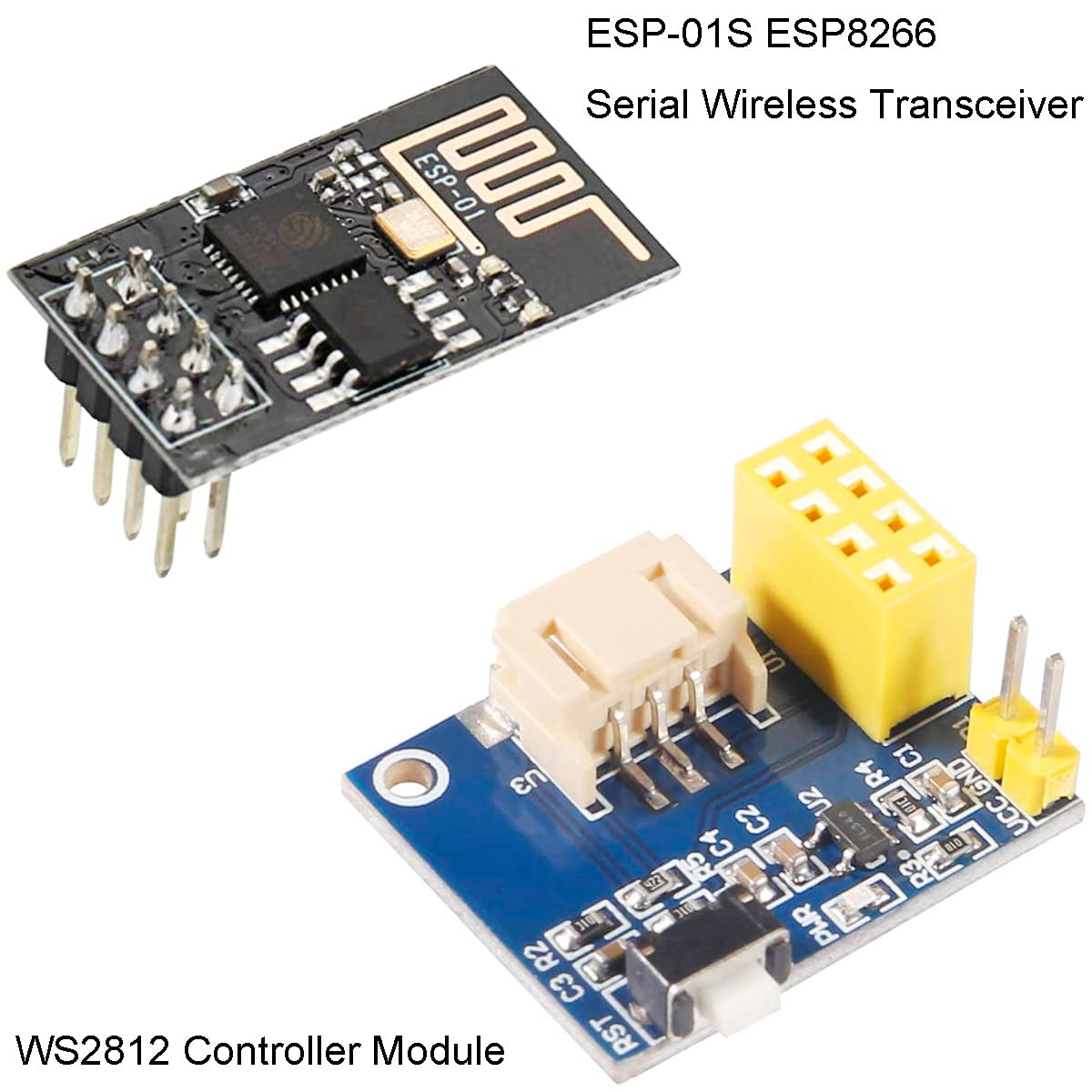

Product description This is a WS2812 RGB LED control module based on ESP-01S ! With that you can easily control the WS2812 light bar / light Own lighting control system. Support for IDE programming. Master: ESP-01S (this module includes ESP-01S) Pin Control: GPIO2 Interface: 3Pin PH2.0 connector Operating voltage: DC 3.7 V-5 V (Please note: positive voltage supply VCC on the board is connected to the VCC on the WS2812 3PIN connector Therefore, if your light bar / lamp has 5V power, uses DC 3.7V-5V power supply) 3.7V holder Material: Plastic Product detailed size: wireless module size: 24x15mm/0.94x0.59inch ESP-01S RGB LED module :25x21mm/0.98x0.83inch Package Includes: 2 x ESP-01S ESP8266 Serial Wireless Transceiver 2 x WS2812 Controller Module 1 x 10 pin male and female Dupont cable
