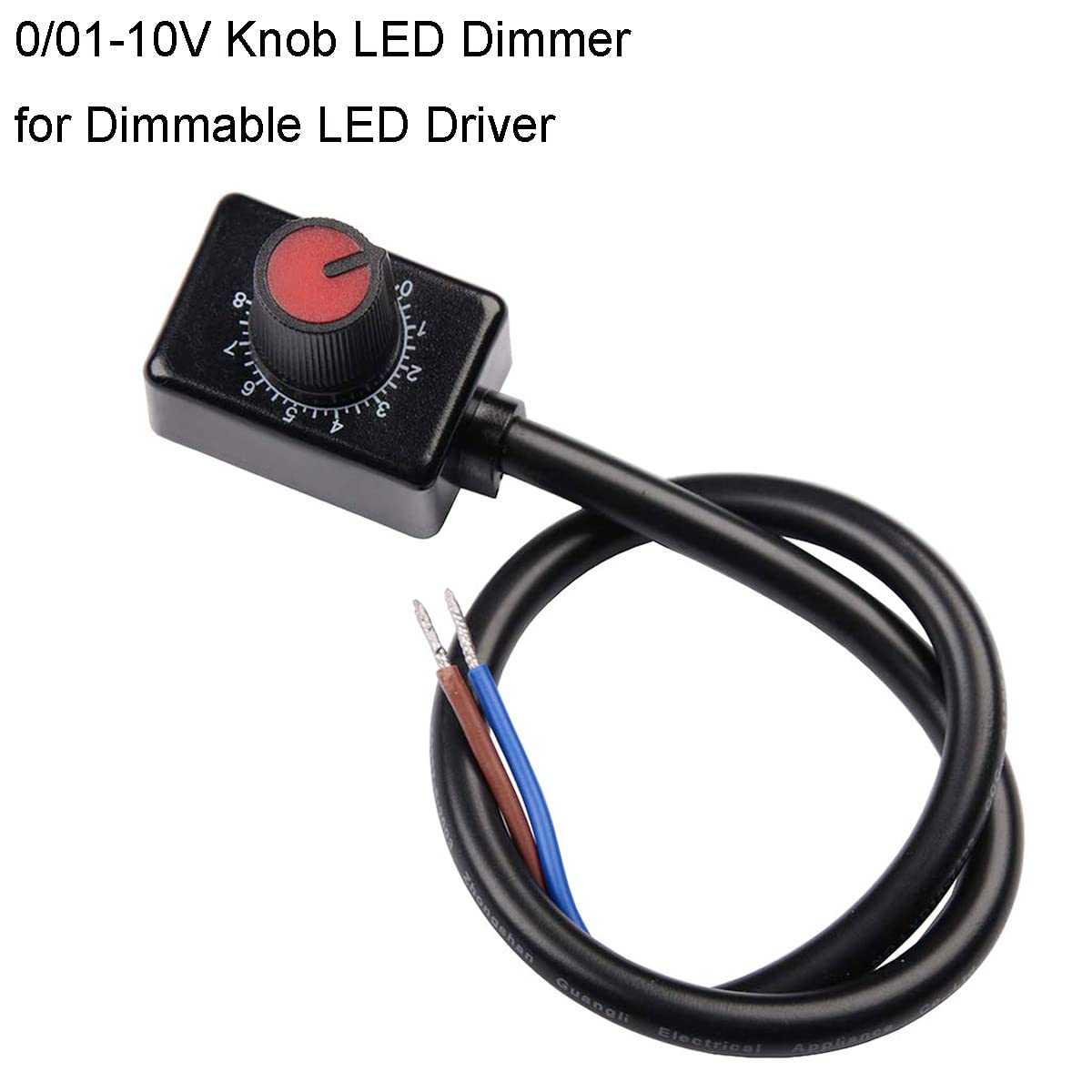

Youmile 2 pcs DC 0/1-10V Knob LED Dimmer Mini Controller Rotary Switch PWM Dimming with knob cap for 0/1-10V Dimmable LED Drivers Controling Interior Light Grow Lamp

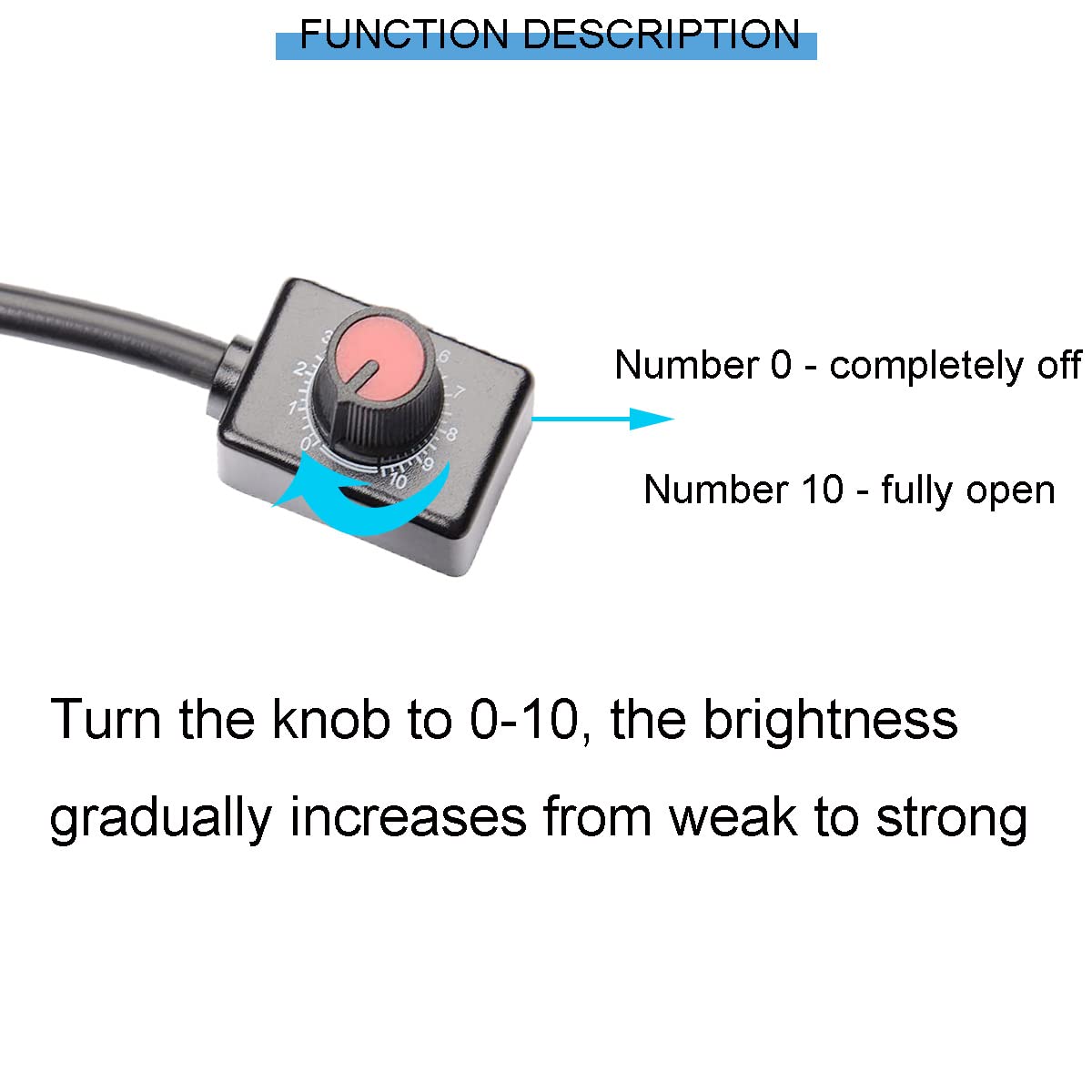

• 【Dimmer adjustment range】:0-100% ; it also has switch ON-OFF ;Accurate scale can effectively prevent reverse connection and make it more convenient to use.

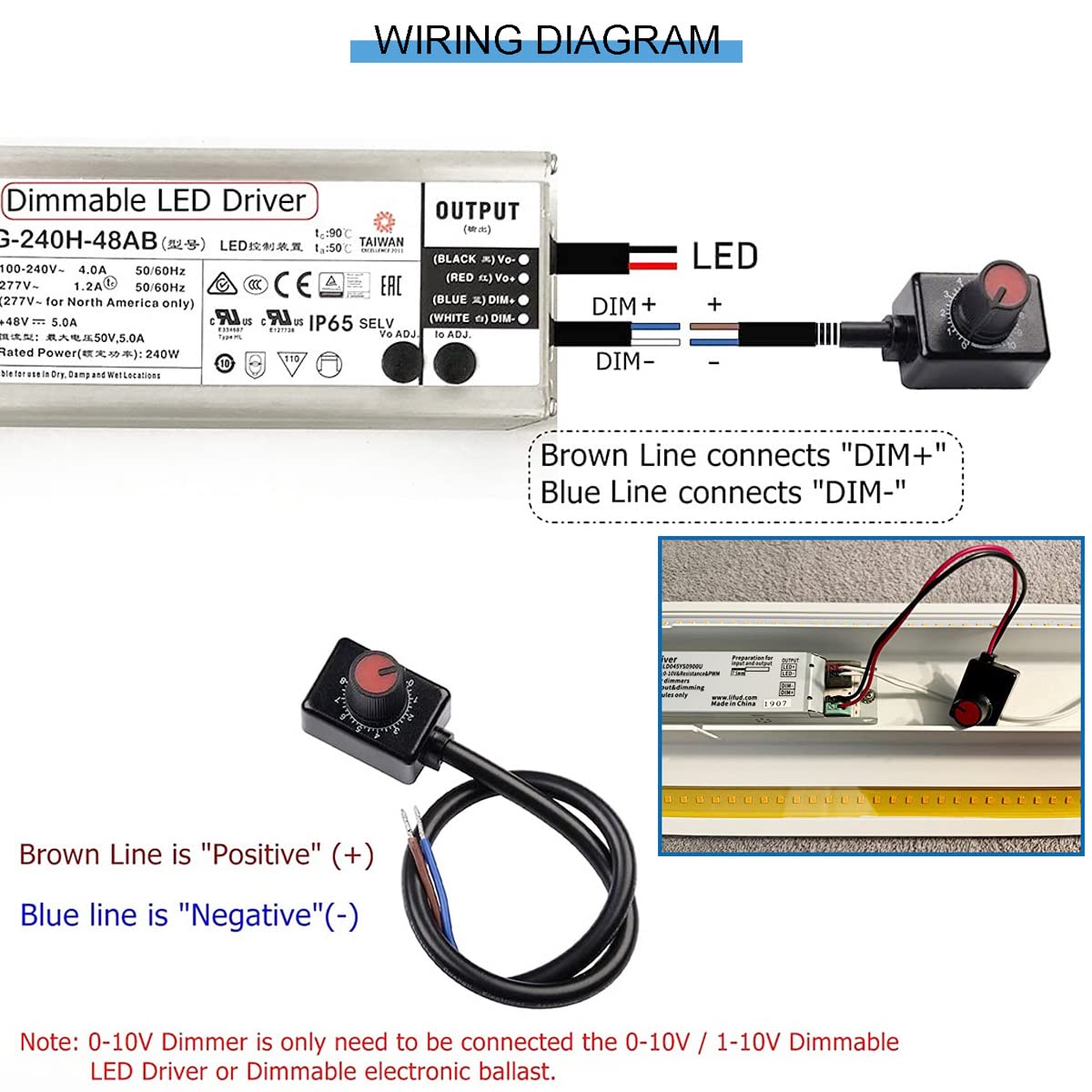

• 【Easy to wiring】:Brown line connecting "+",Blue line connecting "-";Compatible with various 0/1-10V dimming signal drivers ;DO NOT connect it with AC power directly.

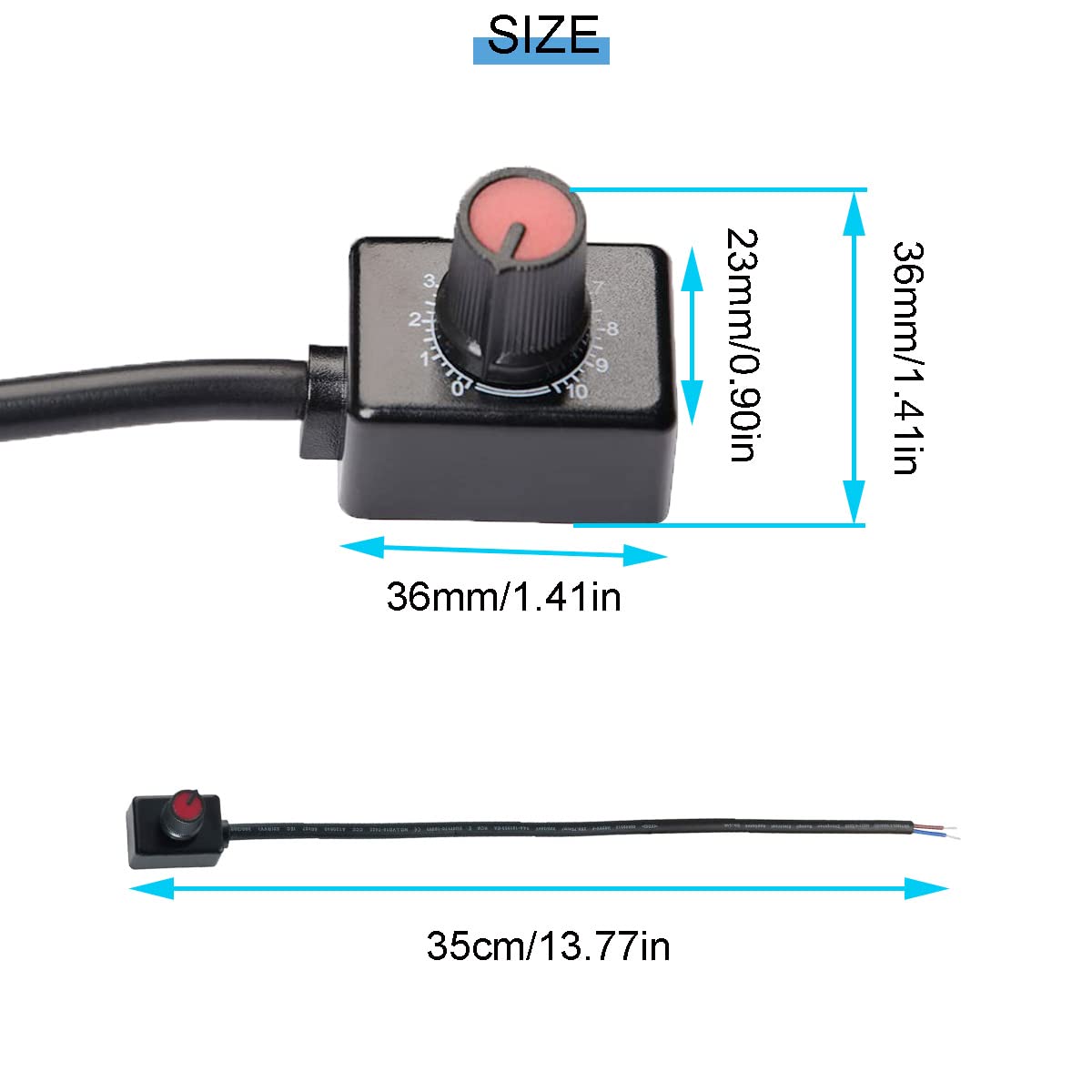

• 【Dimmer size】:36*23*36MM(including knob height); Wire length:35cm/13.77in

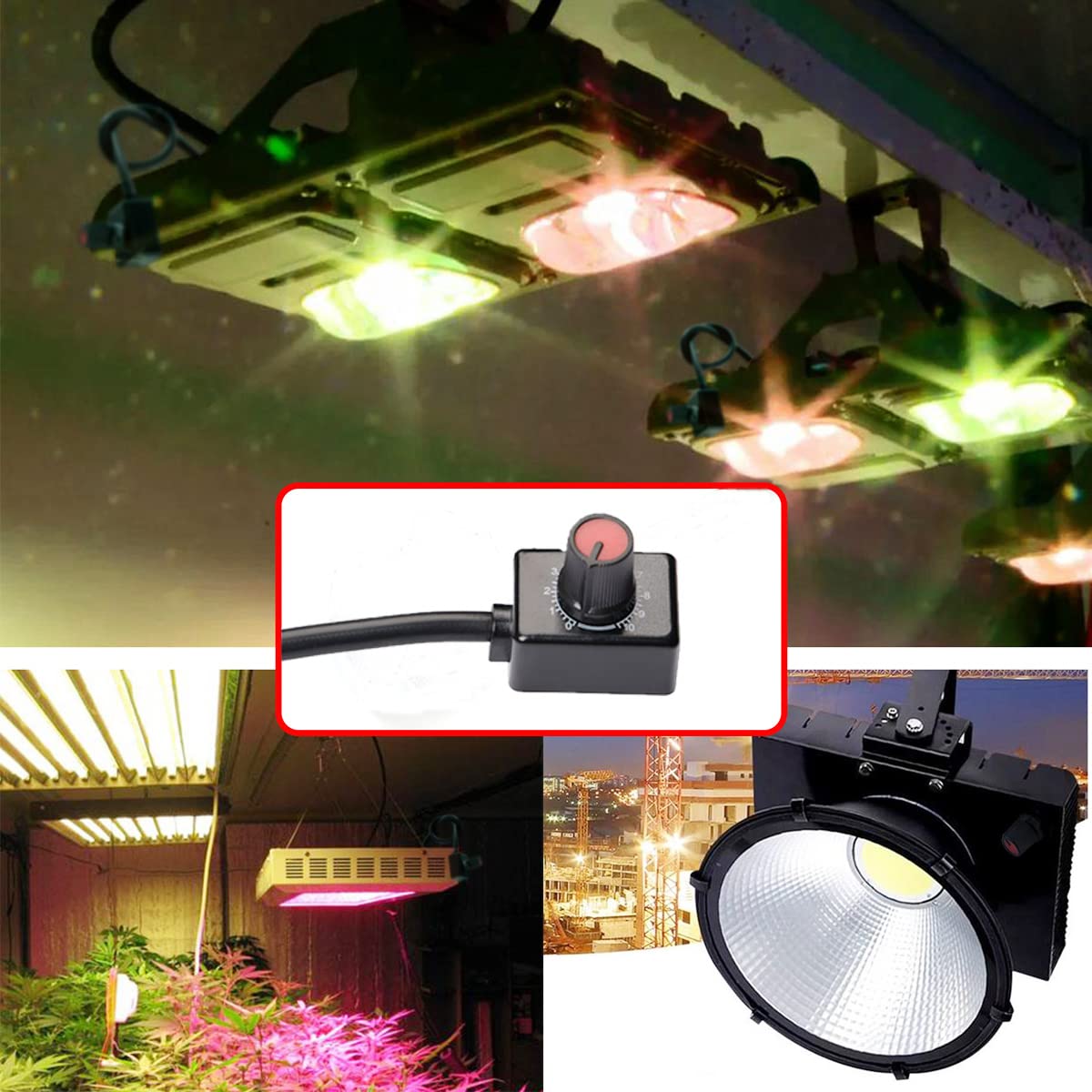

• 【Small and practical】:0-10V Dimmer is small and practical, it can be used with downlight, track light, wall washer light, plant light, etc.
• 【Note】:Place the driver away from direct heat sources and in well-aired spaces .If the driver is built-in ,sufficient ventilation must be ensured.

Product Description Specification : Input Voltage(Max.):10V DC Input Voltage(Min.):0.5V DC Effective dimming signal current (Max.): 40mA Signal Votalge:0-10V Dimmer adjustment range: 0-100%(Stepless dimming),no flicking and Anti-interference Working Temperature:-15~50 ℃ ambient operating at full load Dimension: 36*23*36MM(including knob height) Wire Length:35cm/13.77in Installation: Surface munted or recessed Wirring Instruction : Brown line is positive pole, connect with DIM+ or D+ Blue line is negative pole ,connect with DIM- or D- Note: DO NOT connect it with AC power directly. 0-10V Dimmer is only need to be connected the 0-10V / 1-10V Dimmable LED Driver or Dimmable electronic ballast. Package Includes: 2 x Knob LED Dimmer 10 x Knob cap
