Youmile 10 pcs SF214E SEFUSE 216 Degree Celsius Metal Thermal Cutoffs Thermal Fuse 10A 250V with GT-1 Crimp terminal Silicone fiberglass sleeving for Household Electrical appliances

• 【What it does】:The SF214E Thermal Fuse, Widely Used in Electric Current Appliance as Heat Protection.When temperatures exceed the specified TF level, Electrical Contacts will Open.

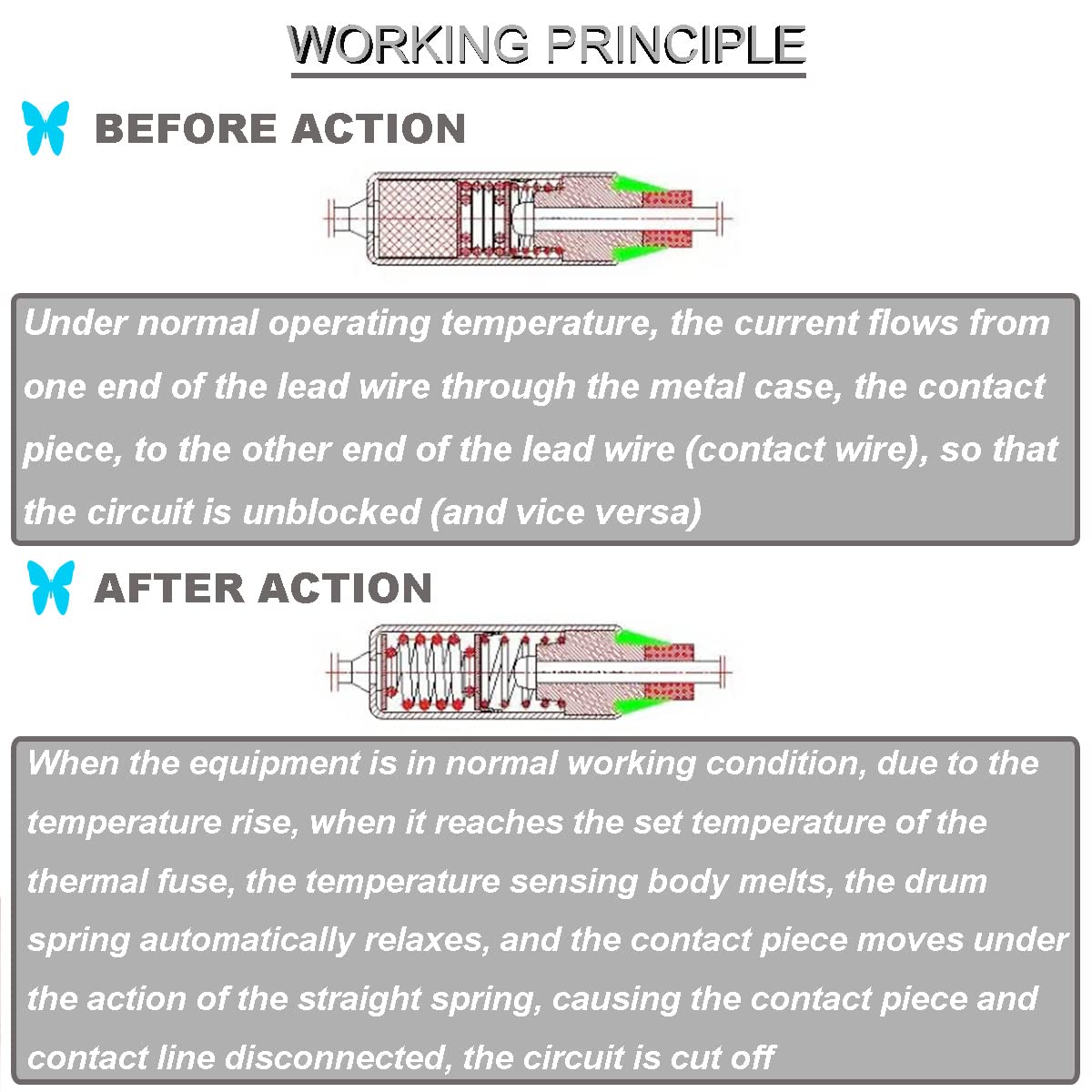

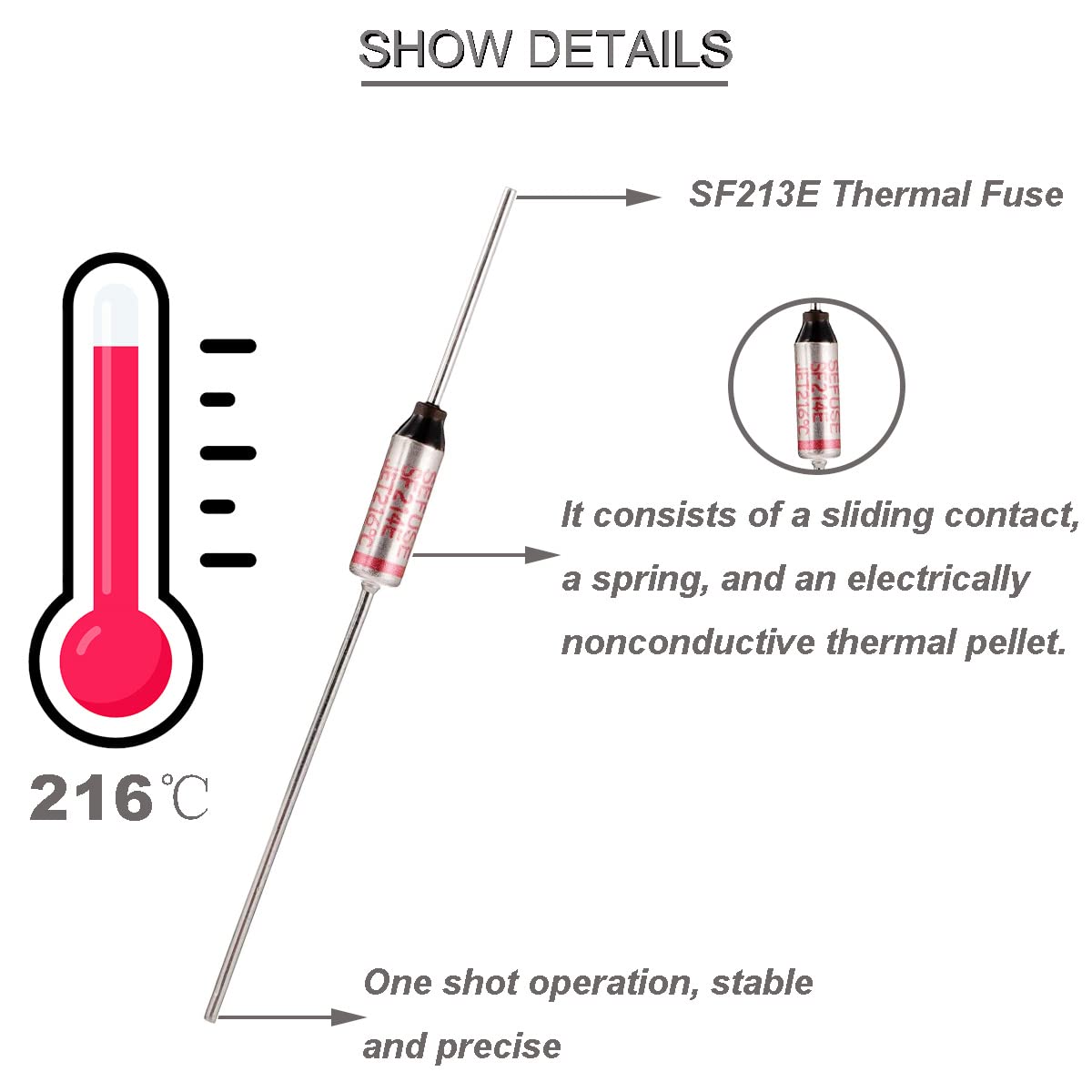

• 【Principle】:It consists of a sliding contact, a spring, and an electrically nonconductive thermal pellet.Before the thermal fuse is activated,current flows from the left lead to the sliding contact and through the metal housing to the right lead.
• 【Advantage】: One shot operation, stable and precise, compact, durable and reliable by hermetic seal structure, excellently sensitive to ambient temperature.
• 【parameters】: Model: SF214E, Rated Current: 10A, Rated Voltage: 250V, Rated Functioning Temperature: 216 Degree.
• 【Applications】: Suitable for electric home appliances, electric industrial equipment, office automation equipment, plain paper copiers, transformers, motors, etc.

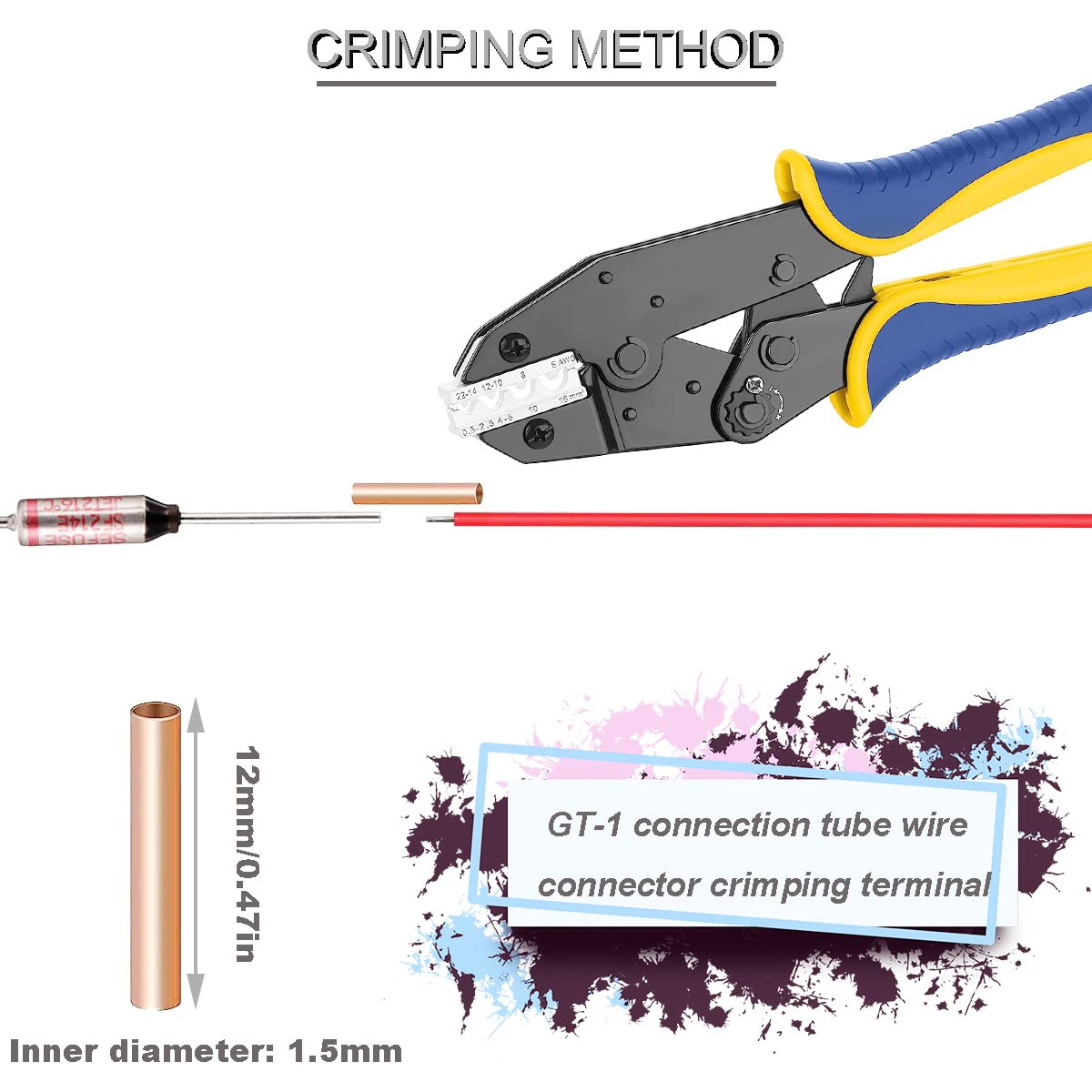

Product Description Thermal Fuse Characteristics: It consists of a sliding contact, a spring, and an electrically nonconductive thermal pellet.Before the thermal fuse is activated,current flows from the left lead to the sliding contact and through the metal housing to the right lead.When the external temperature reaches a predetermined temperature, the organic matter meltsand the compression spring becomes loose.That is, the spring expands and the sliding contact is separated from the left lead.The circuit is opened and the current between the sliding contact and the left lead is cut off. Specificions: Product name:Thermal Fuse Type: SF214E Rated working temperature: 216℃ Rated current: 10A Rated voltage: 250V / AC Shape: pointed tube Widely used in:Transformers, Electric motors, Electric fans, Hair dryers,Electric irons, Rice cookers, Copiers, Electric stoves, Chargers,power taps, Water dispensers, Coffee makers etc. Package Includes: 10 × SF214E Thermal fuse 20 x GT-1 connection tube wire connector crimping terminal 10 x Silicone fiberglass sleeving
