Youmile 10 pcs Mechanical Endstop Limit Switch Module Touch Switch Module with cable for 3D Printer Makerbot Prusa Mendel RepRap CNC for Arduino Mega 2560 1280 RAMPS 1.4

• 【Module advantages】: One-piece plug design, easy to install, hard to snap, convenient to plug or release.
• 【Connection line】: High quality 70cm 22AWG connecting line, thick internal copper core, withstanding 2A current, 300V voltage. Max insulation temperature of insulating layer up to 80 degree.
• 【Good versatility】: Common used 1A 125V AC limit switch, strong universality, can be used as switching terminal element of RepRap 3D printer, CNC machine, for Arduino / Mega etc. system.
• 【Scope of application】: Mechanical endstop limit switch kit, suitable for RepRap 3D Printer or CNC tool, supporting by RepRap electronics, RMAPS 1.4 and other common used RepRap board.
• 【Connection】: Red line connect to VCC (ramps +), Black line connect to GND (ramps -), Green line connect to SIGNAL (ramps s)

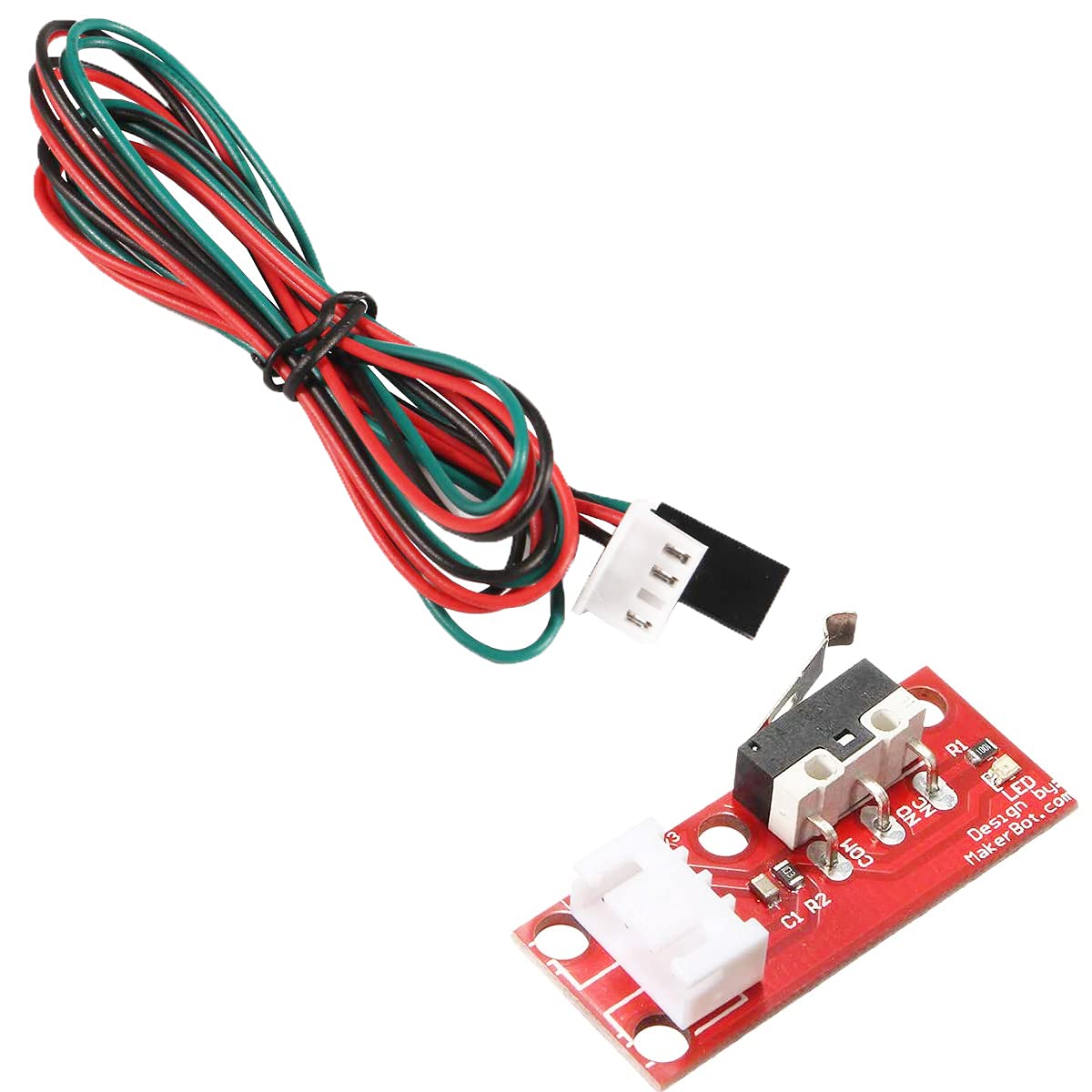

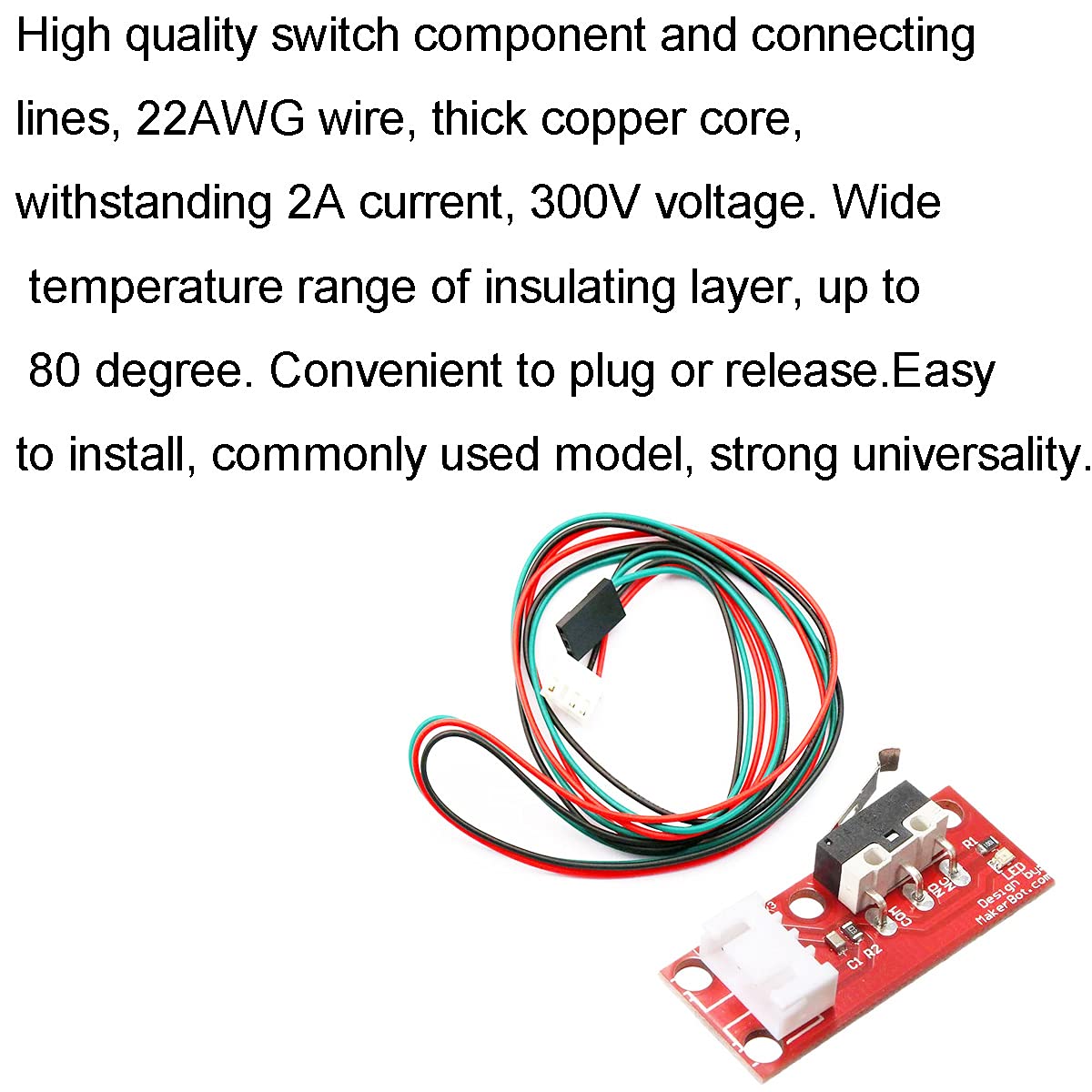

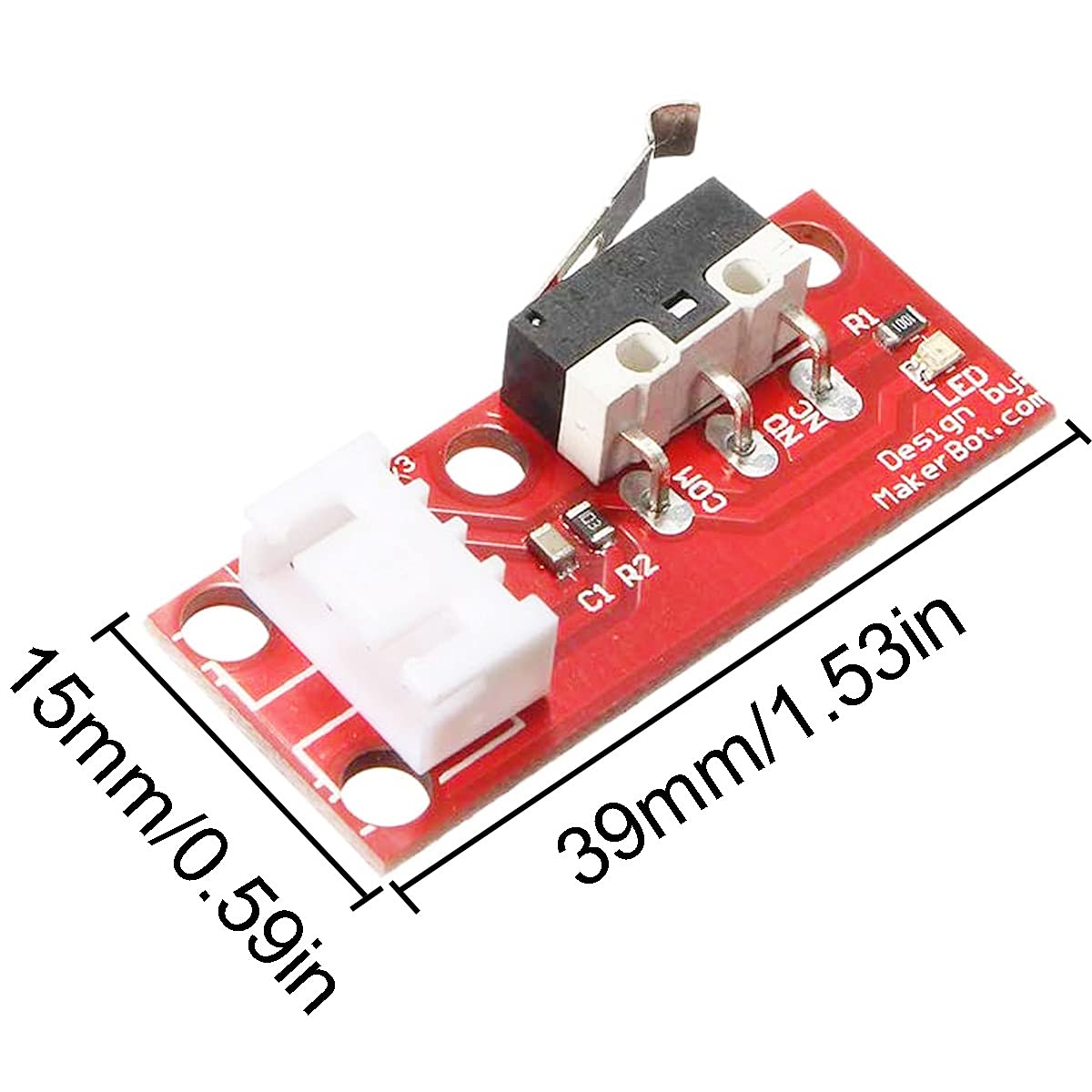

Product description High quality switch component and connecting lines, 22AWG wire, thick copper core, withstanding 2A current, 300V voltage. Wide temperature range of insulating layer, up to 80 degree. Convenient to plug or release. Feature: Product Name: 3D Printer Mechanical Endstop Limit Switch Cable Length: 70cm Switch Size: 32x10mm Advantage: Easy to install, commonly used model, strong universality. Connection: 1. Red line connect to VCC (ramps +) 2. Black line connect to GND (ramps -) 3. Green line connect to SIGNAL (ramps s) Package Includes: 10 x Mechanical Endstop Limit Switch 10 x 3Pin 70cm Cables
