Youmile 10 pcs Angle Sensor Module SW-520D Golden Ball Switch Tilt Sensor Module with DuPont Cable for Arduino

• 【Basic Features】: The working voltage of 3V - 5V; Output form: digital switch output (0 and 1)
• 【Easy installation】: Sensor can sense changes in body angle. A fixed bolt holes for easy installation.

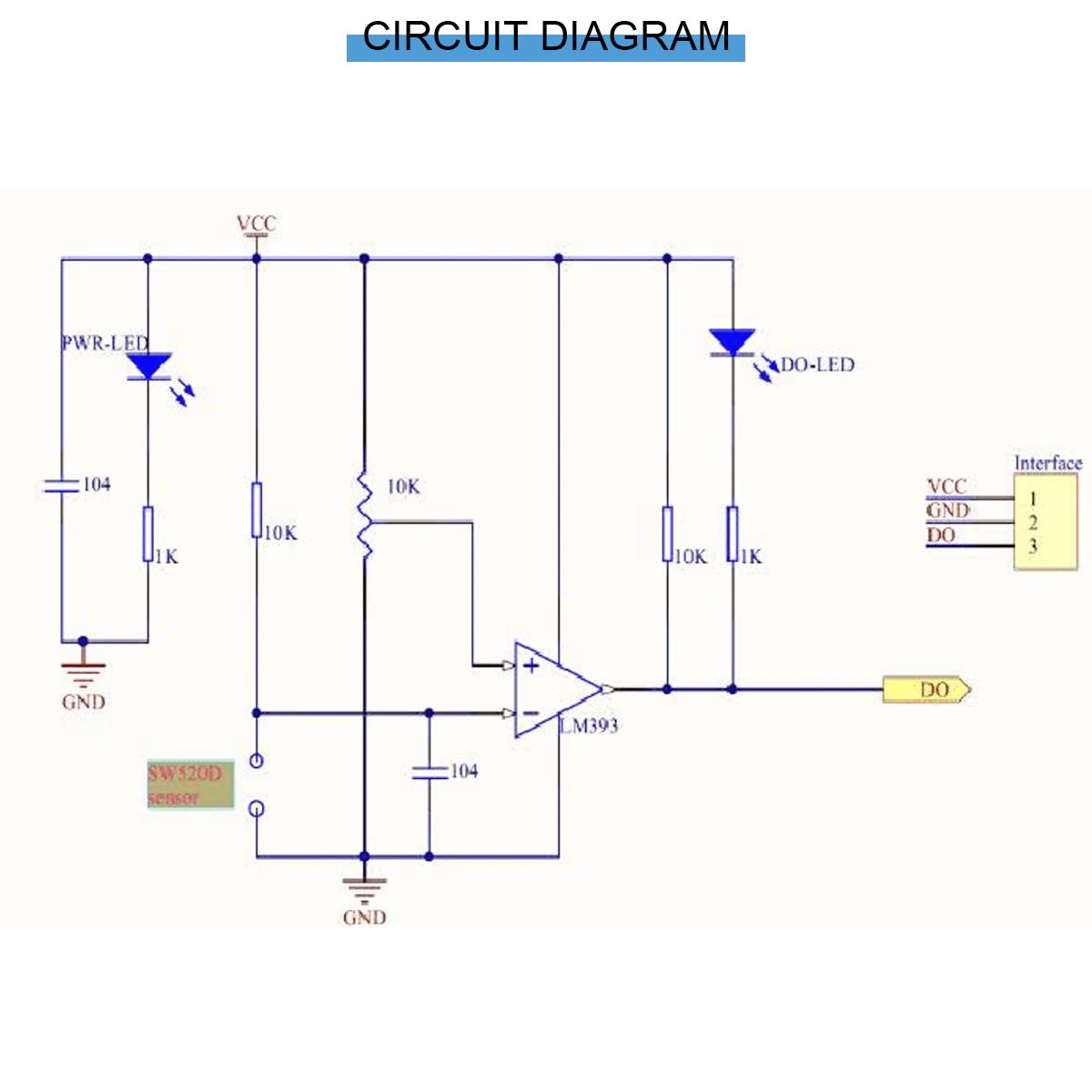

• 【High sensitivity】: Using the highly sensitive switch SW-520D as the angle sensor. Using a wide voltage LM393 comparator.
• 【Good overall performance】: The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
• 【Item Condition】: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence

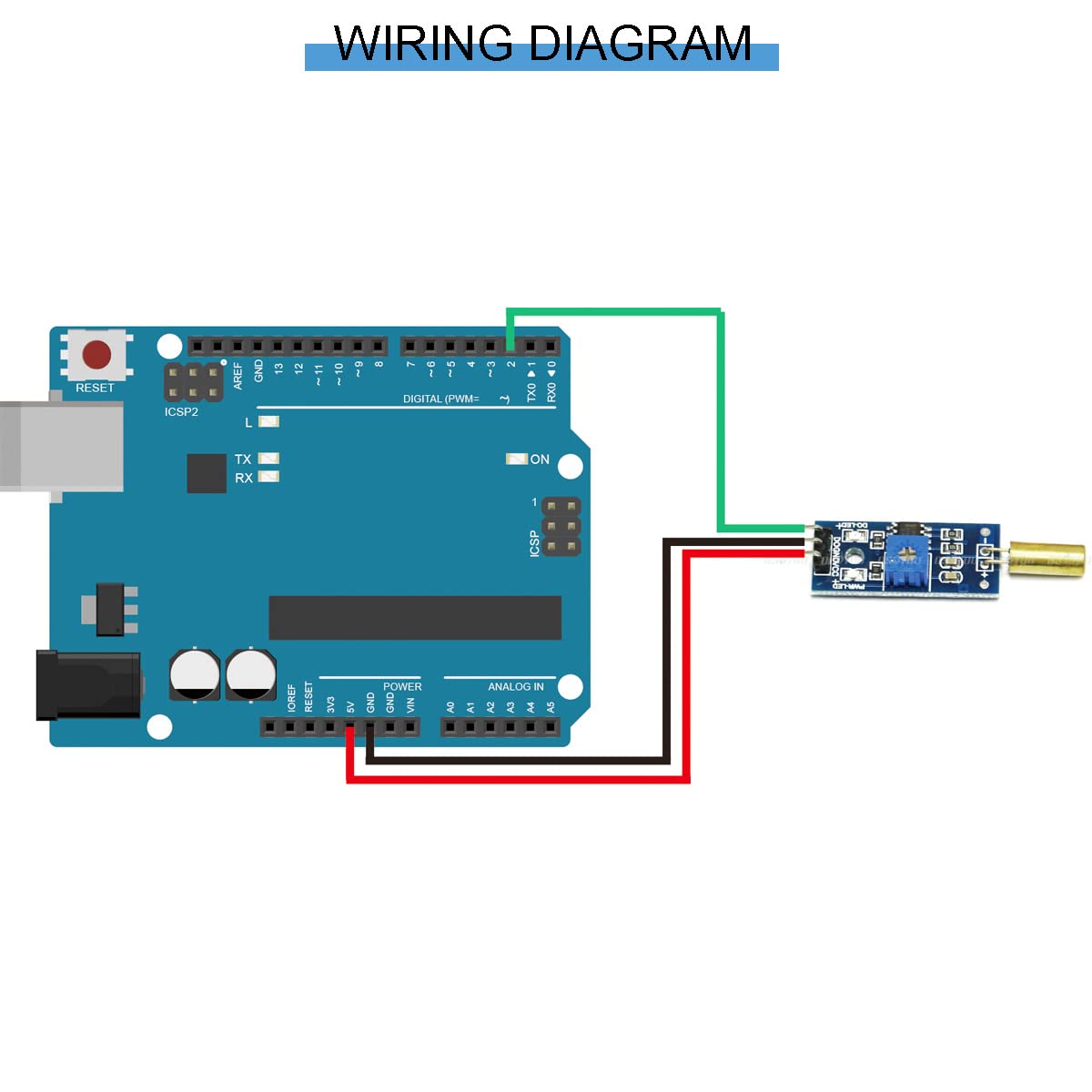

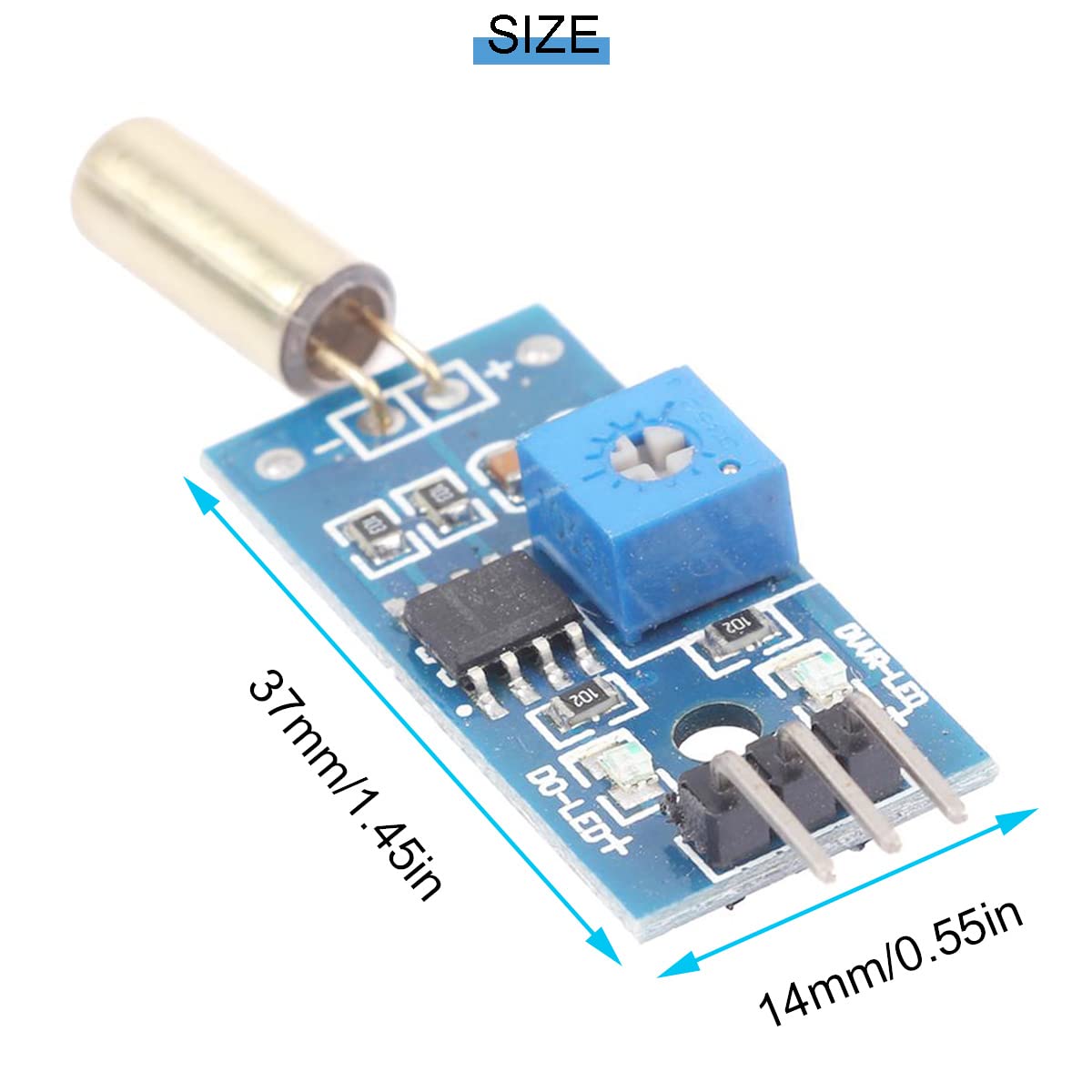

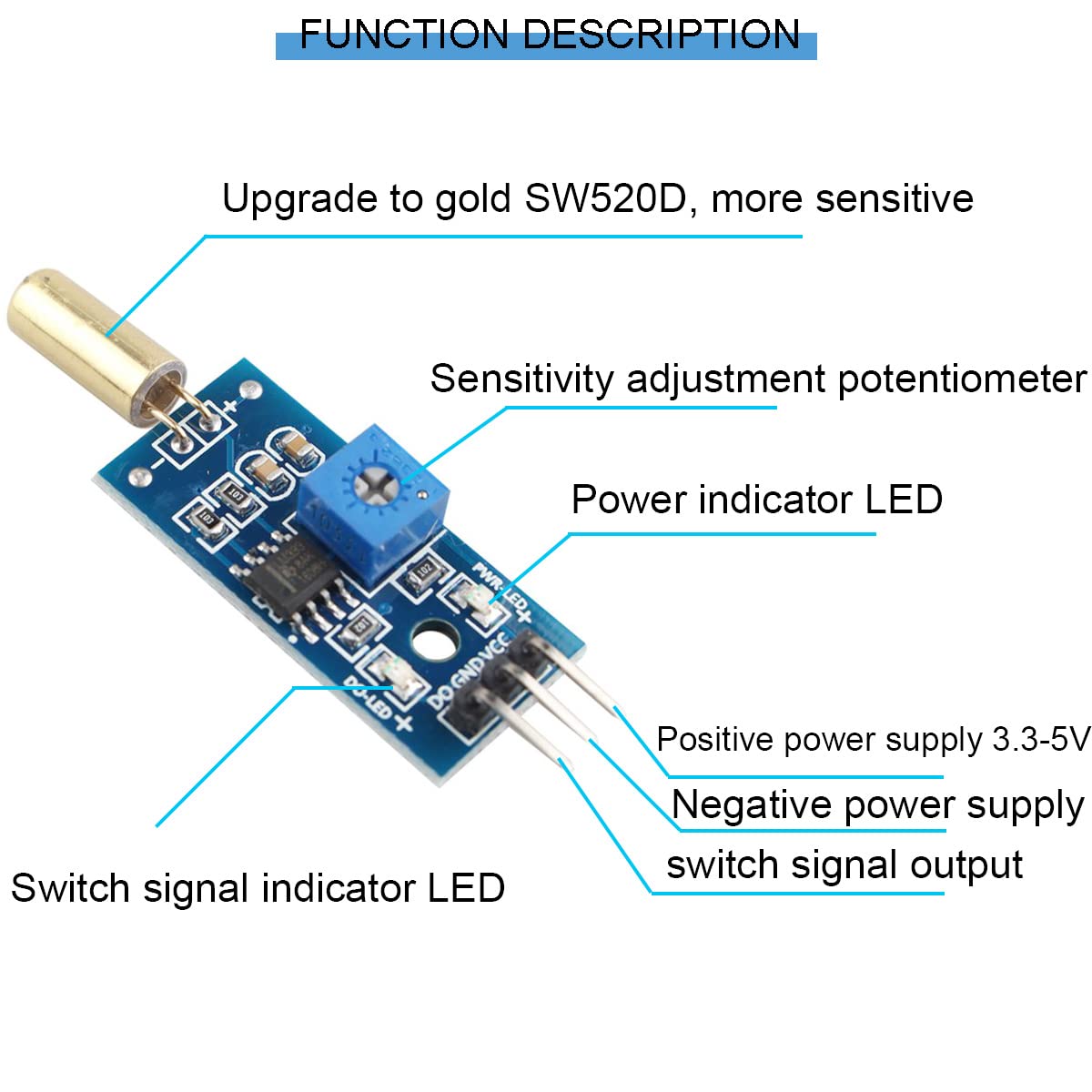

Product Description Description: 1.A fixed bolt holes for easy installation. 2.Sensor can sense changes in body angle. 3.The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma. 4.Using the highly sensitive switch SW-520D as the angle sensor. Using a wide voltage LM393 comparator. Specification: Working Voltage: 3.3V - 5V Output Form: Digital Switch Output (0 and 1) Small Board PCB Size: 37mm x 14mm x 7mm Total Length: 51mm Module for use: 1.Switch module output depends on the angle of the switch is turned on and off, when the angle switches off, DO output high, angle switch is turned on, DO output low. 2.The output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the angle change. 3.The output of the module can directly drive relays, which can be composed of a high-power switching angles to protect electrical equipment and other products when dumped automatic power-off function. Module Wiring Instructions: 1.VCC: Power Supply + 2.GND: Power Supply - 3.DO: Digital Signal Output 4.AO: This function is invalid with this vibration sensor Package includes: 10 x Angle Sensor Module 1 x 30pin Male and female DuPont cable
