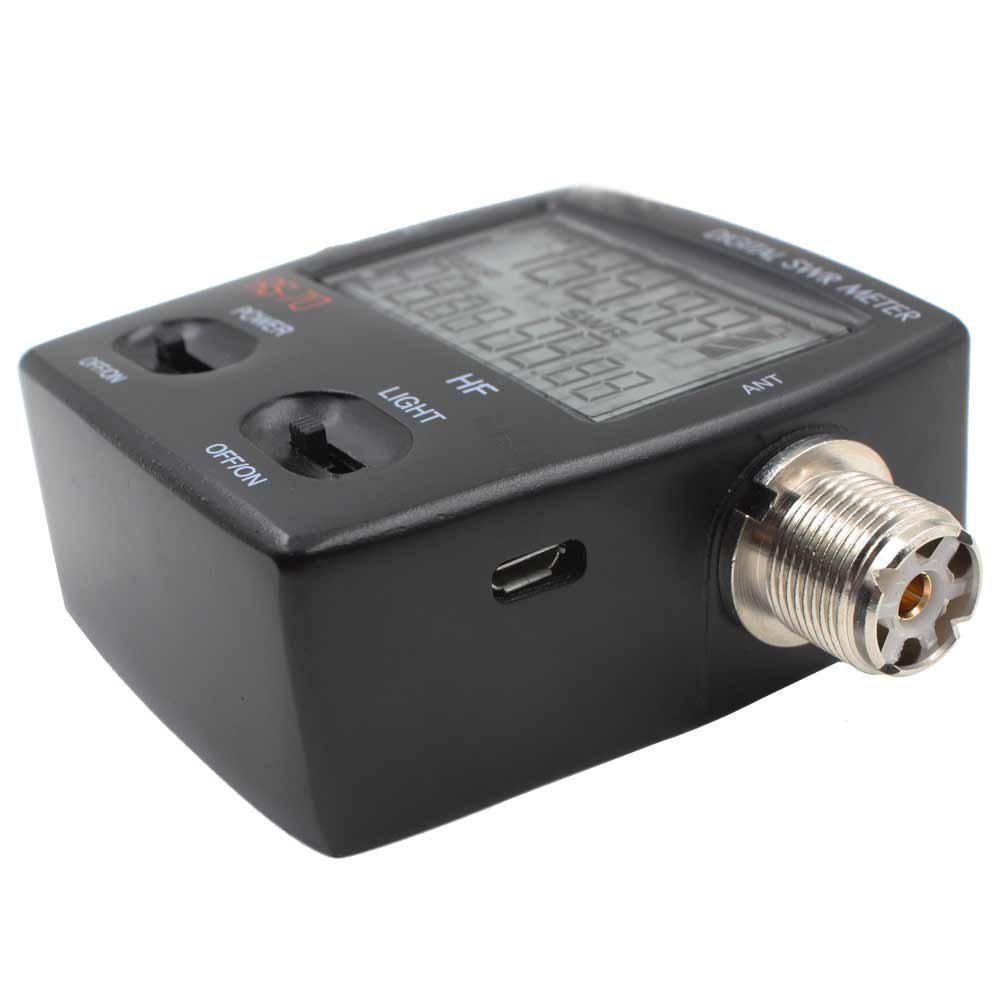

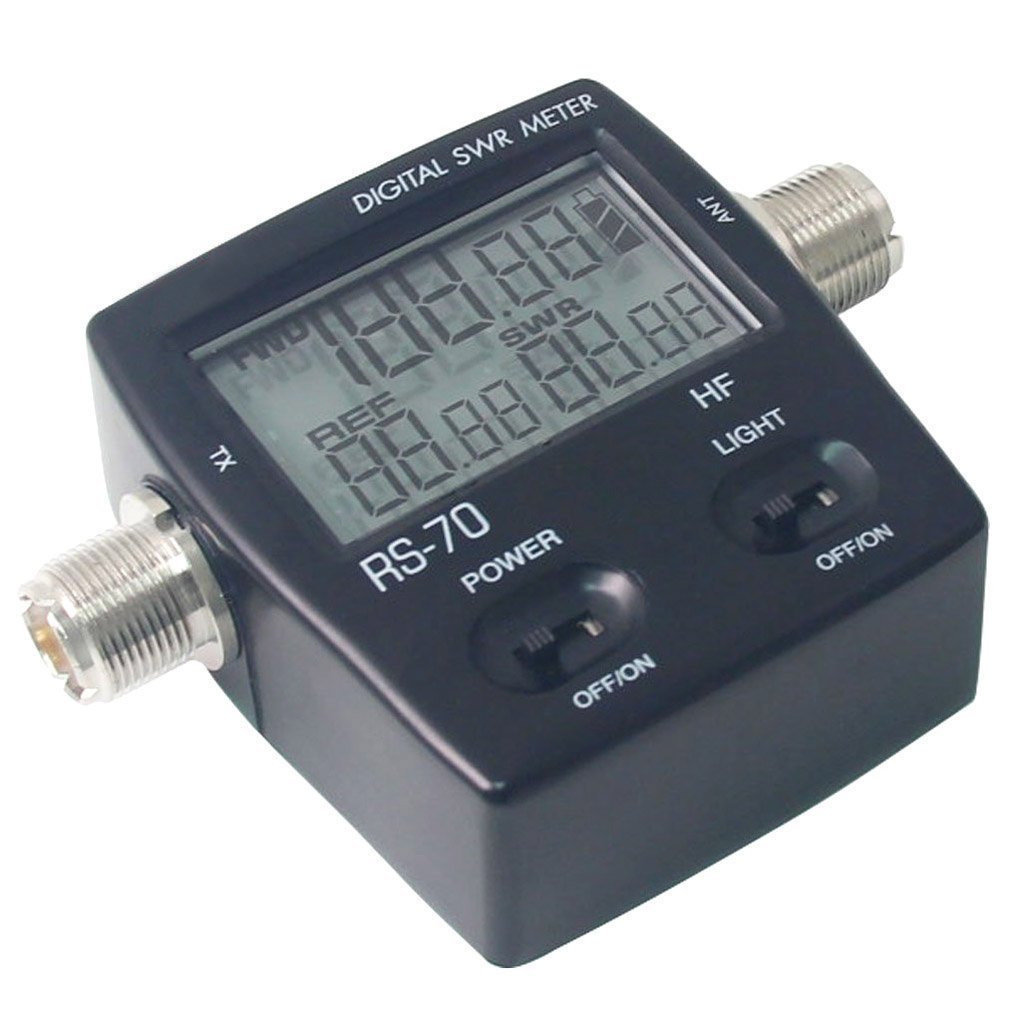

Youmei RS-70 Digital SWR/Watt Meter HF 1.6-60MHz 200W for Two-Way Radio
About this item
- Forward/Reflected/VSWR ration in one push button
- LCD backlight display for easy reading
- Convenient control layout for easy operation
- Powered by two AAA batteries/rechargeable batteries or external USB port
- Low insertion loss(0.3dB or lower) structure allows it to be connected permanently
Product description

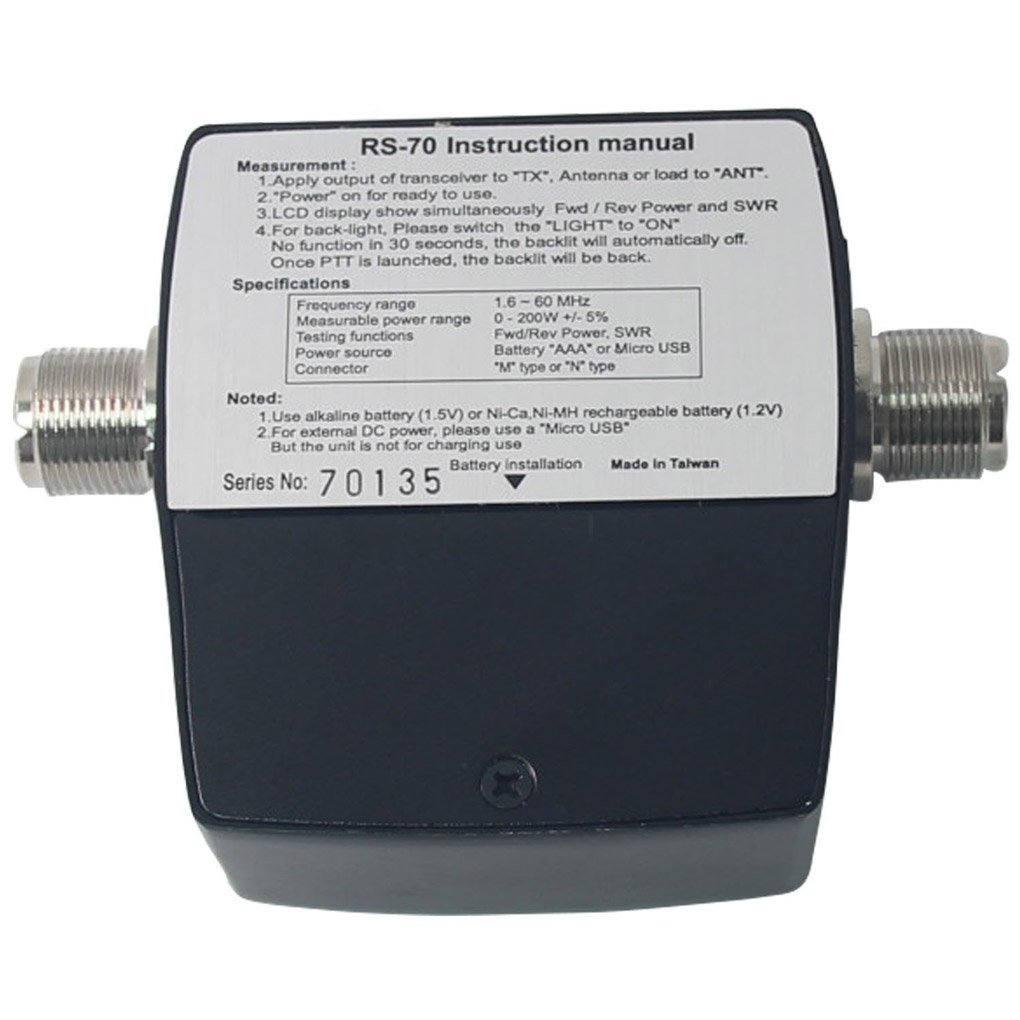

Specifications: Frequency range: 1.6-60 Mhz Power range:0-200W +/- 5% Impedance: 50 ohm Connector: M-J(So-239 (M)) Dimension: 70W x 78H x 30D mm Net Weight: 220g Measurement: 1. Apply output of transceiver to "TX" and antenna or load to "ANT". 2. "POWER" on for ready to use. 3. LCD display show simultaneously "Fwd/Ref Power and SWR". 4. For back-light, please switch "LIGHT" to "ON". 5. No function in 30 seconds, the backlight will automatically off. 6. Once PTT launched, the backlight will be back. Battery installation: 1. Remove the black screw from the cover to open the rear panel. 2. Install 2 pcs "AAA" batteries. 3. Can be used with alkaline or Ni-Ca, Ni-MH rechargeable battery. 4. This unit has no built-in charging circuitry. 5. Be sure to correct polarity of battery. 6. Remove the battery if the unit won't be used in long period. Packages includes: 1 x SWR/Power Meter(no batteries) ใ
Product details
