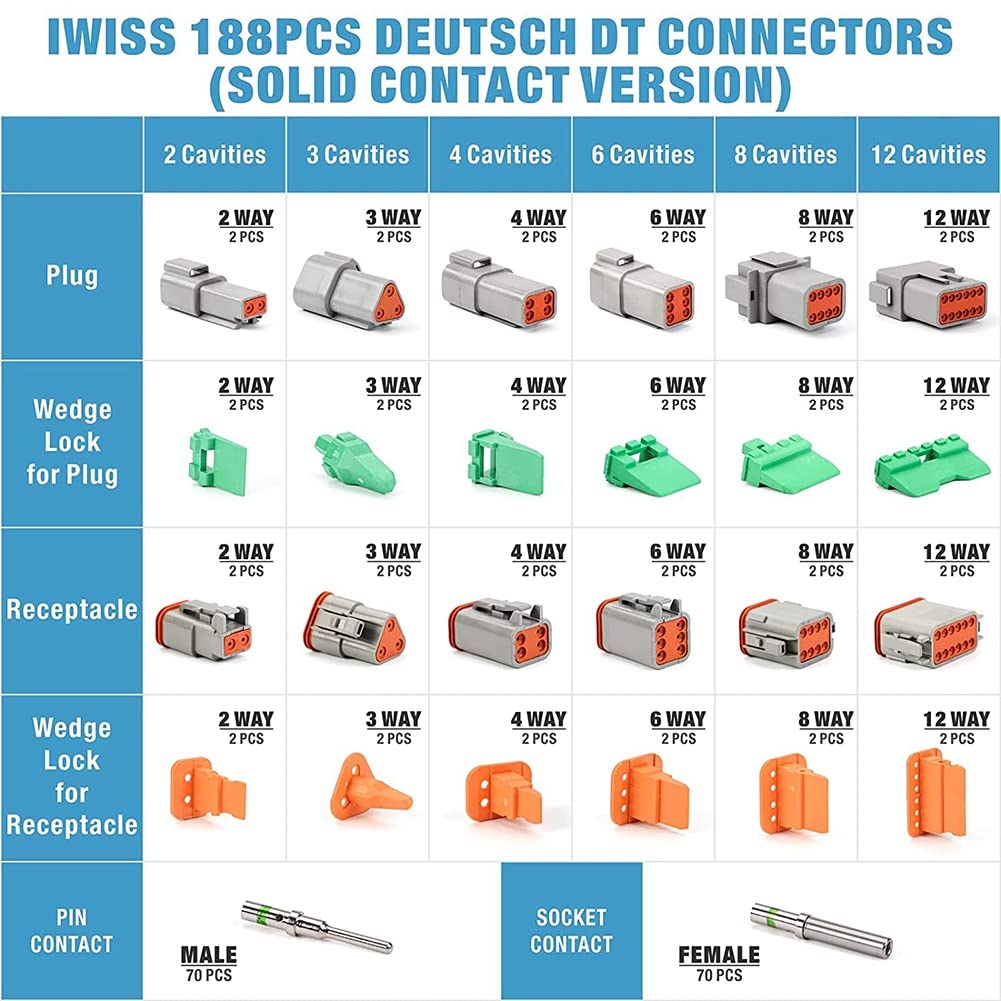

Yoiimiya 188PCS Deutsch DT Gray Connector Kit with 16 Solid Contacts in 2,3,4,6,8 and 12 Pin Configurations,Automotive Connectors

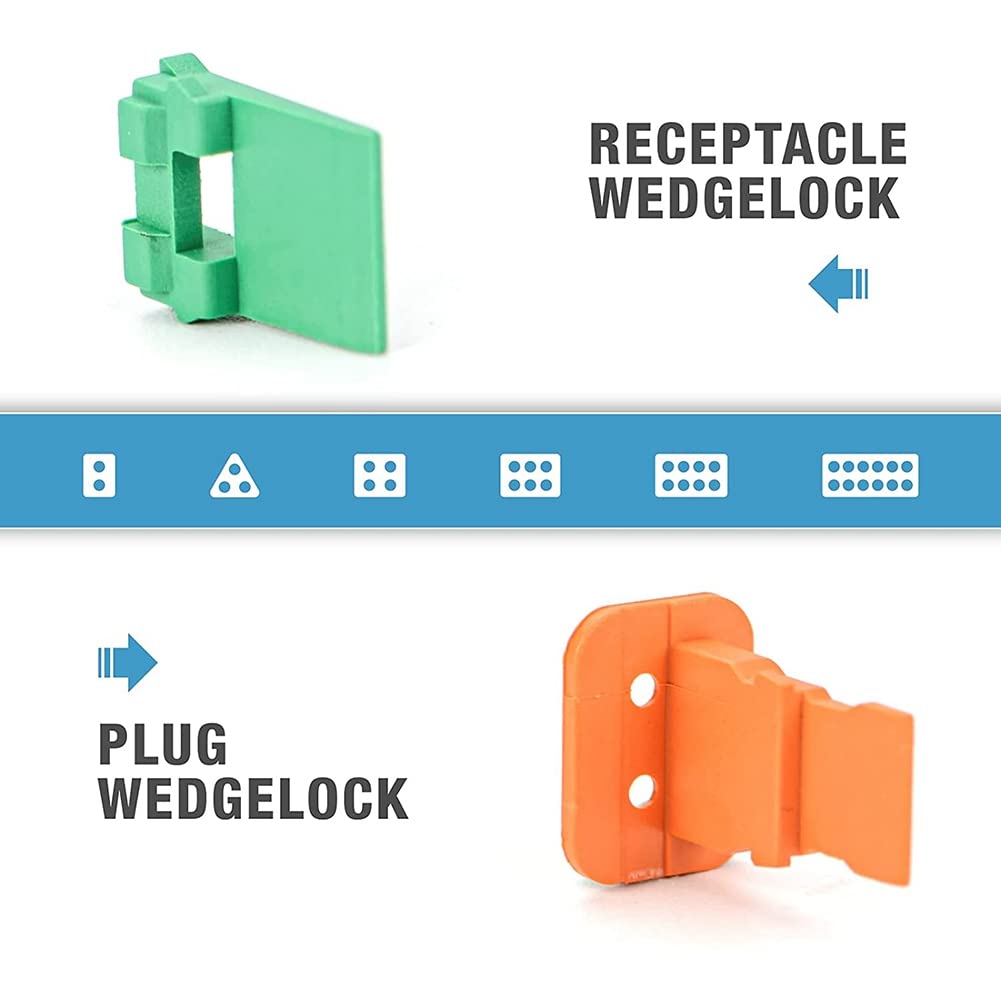

• Wedgelocks: Maintains correct contact alignment in connector housings. Can be removed with ET-01 removal tool.
• Sealable housings: The plug and socket each consist of a housing and secondary wedge. The secondary wedge serves to that the contact is fully seated and in the connector. The plug and secondary wedge are supplied separately.

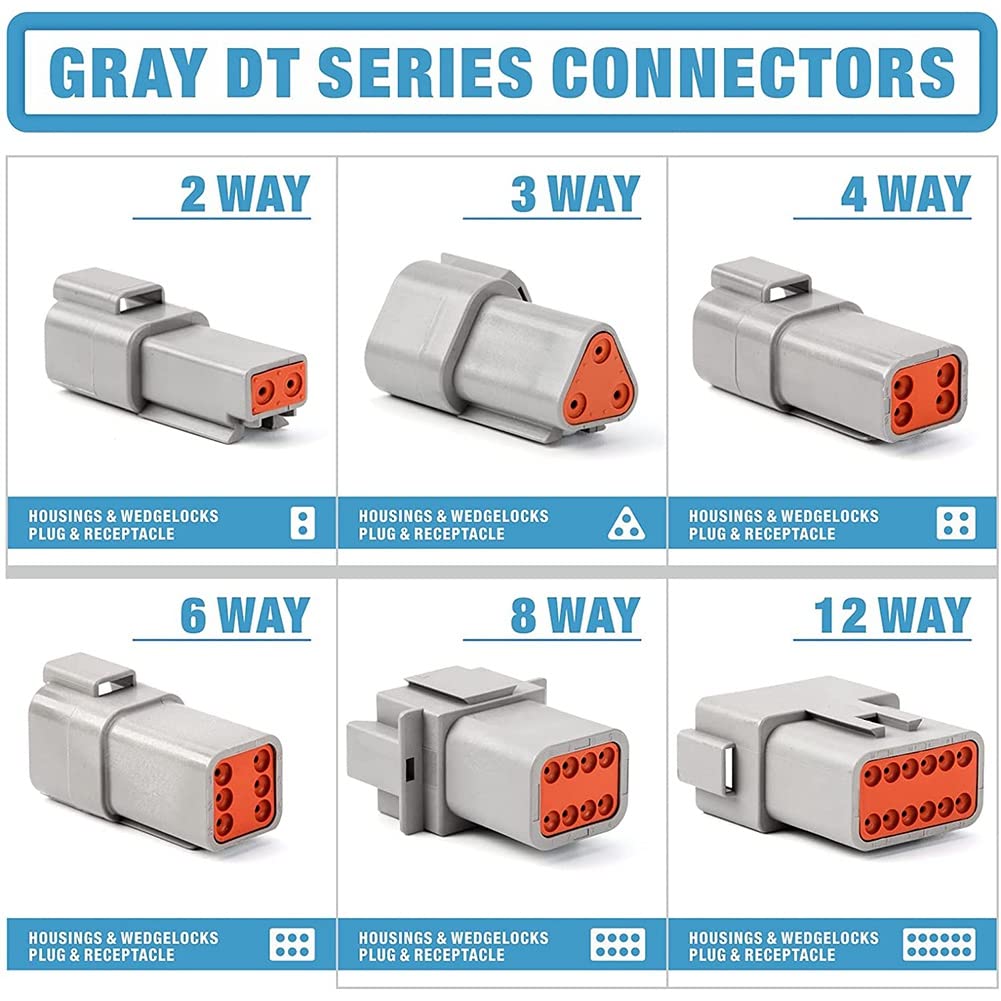

• DT Series: Deutsch DT sealed housings are available in 2, 3, 4, 6, 8 and 12 pins and size 16 contacts, each rated at 13 amps continuous. Housings feature an integrated interlock for mating.

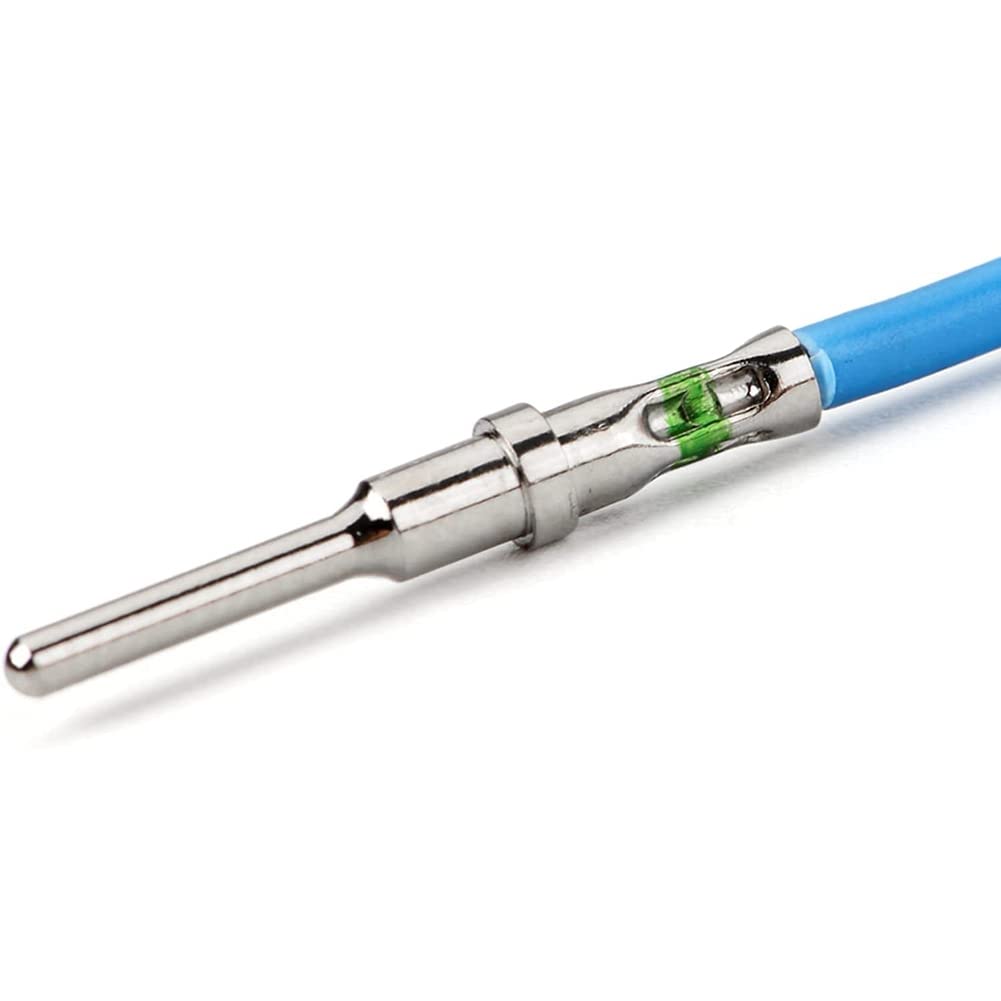

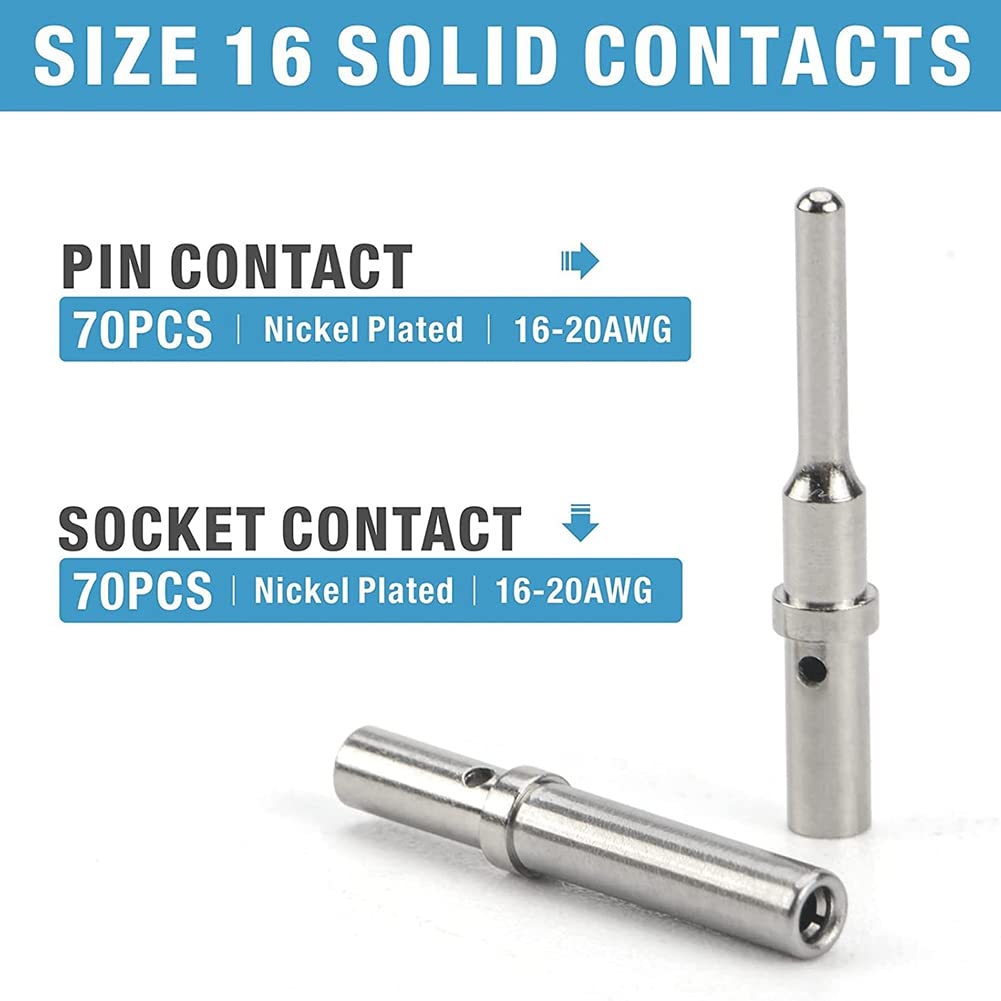

• Size 16 Solid Contacts: 0462-201-16141 (Socket) & 0460-202-16141 (Pin) - German size 16 plated solid socket for 20-16 AWG, plated copper alloy. Max 13 amps. Crimps with a 4-crimper. No soldering required.
• Applications: DT connectors offer proven reliability and robustness. Widely used in Bus, Off-Highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Leisure, Motorcycle.

Mating Pin Diameter: 1.59mm. Terminal Transmits:0-24A (Low ) Wire Size (AWG) 20 - 16 Wire Size (mm): .5 - 1.5 Operating Temperature (Max.): 125 Celsius [ 257 Fahrenheit ] Operating Temperature Range: -55 to 125 C. [ -67 - 257 Fahrenheit ] Terminal: 4 Crimp. Color: Material: Plastic. Package Included: 188 x DT Gray Connector Kit Only the above content, others are not included. Note: Due to the light and screen setting difference, the item's color may be slightly different from the actual product. Measurement deviations of +/- 1-3 cm are possible.
