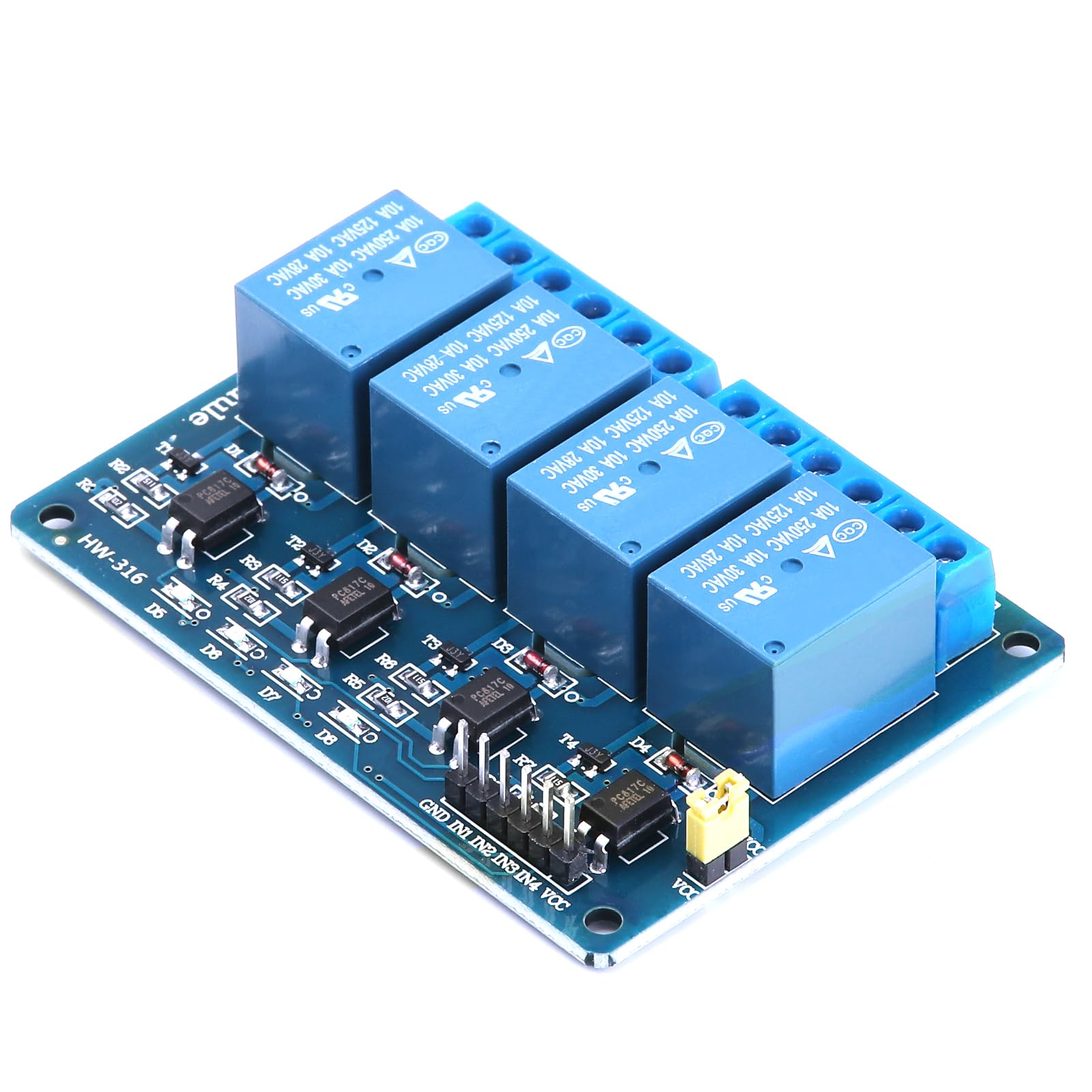

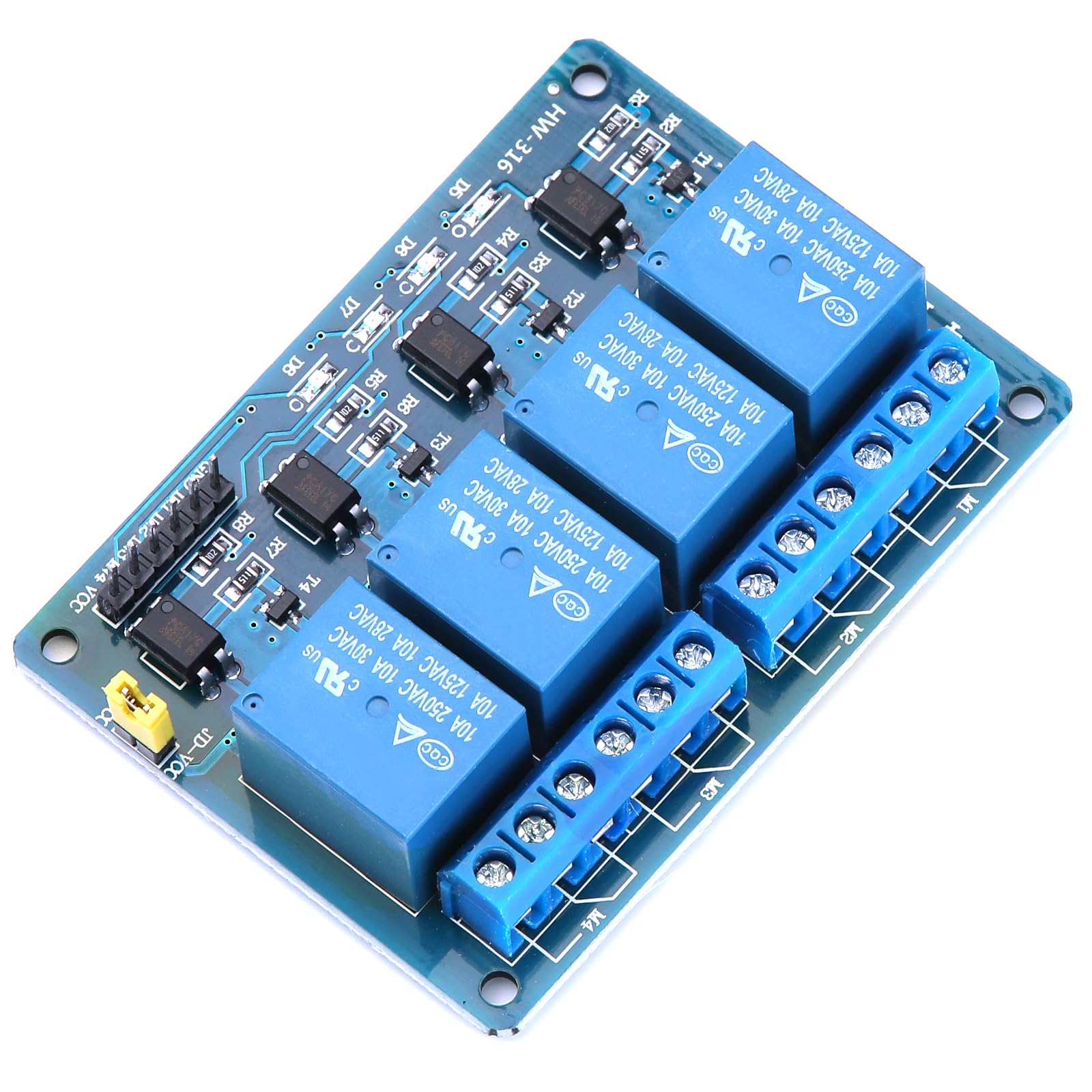

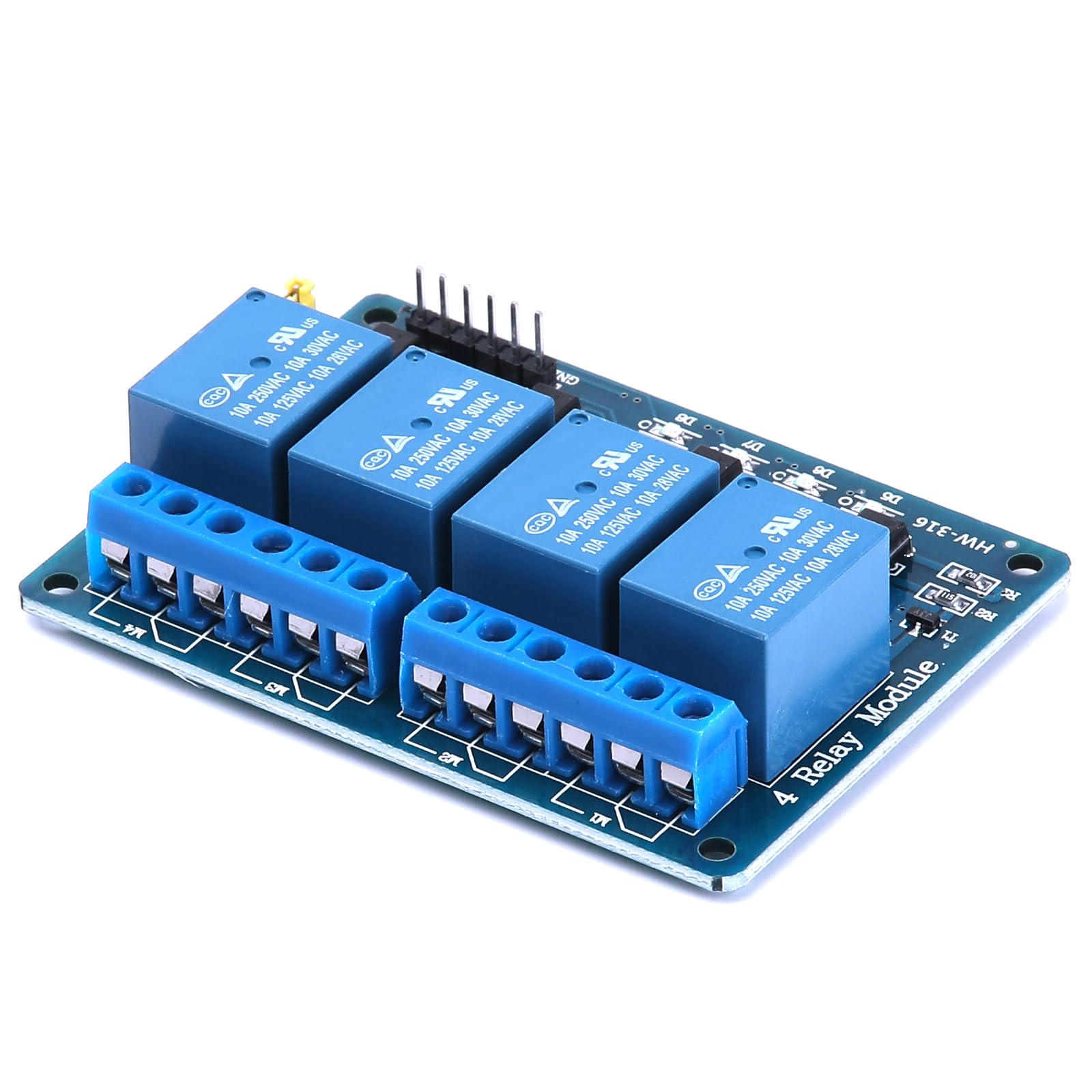

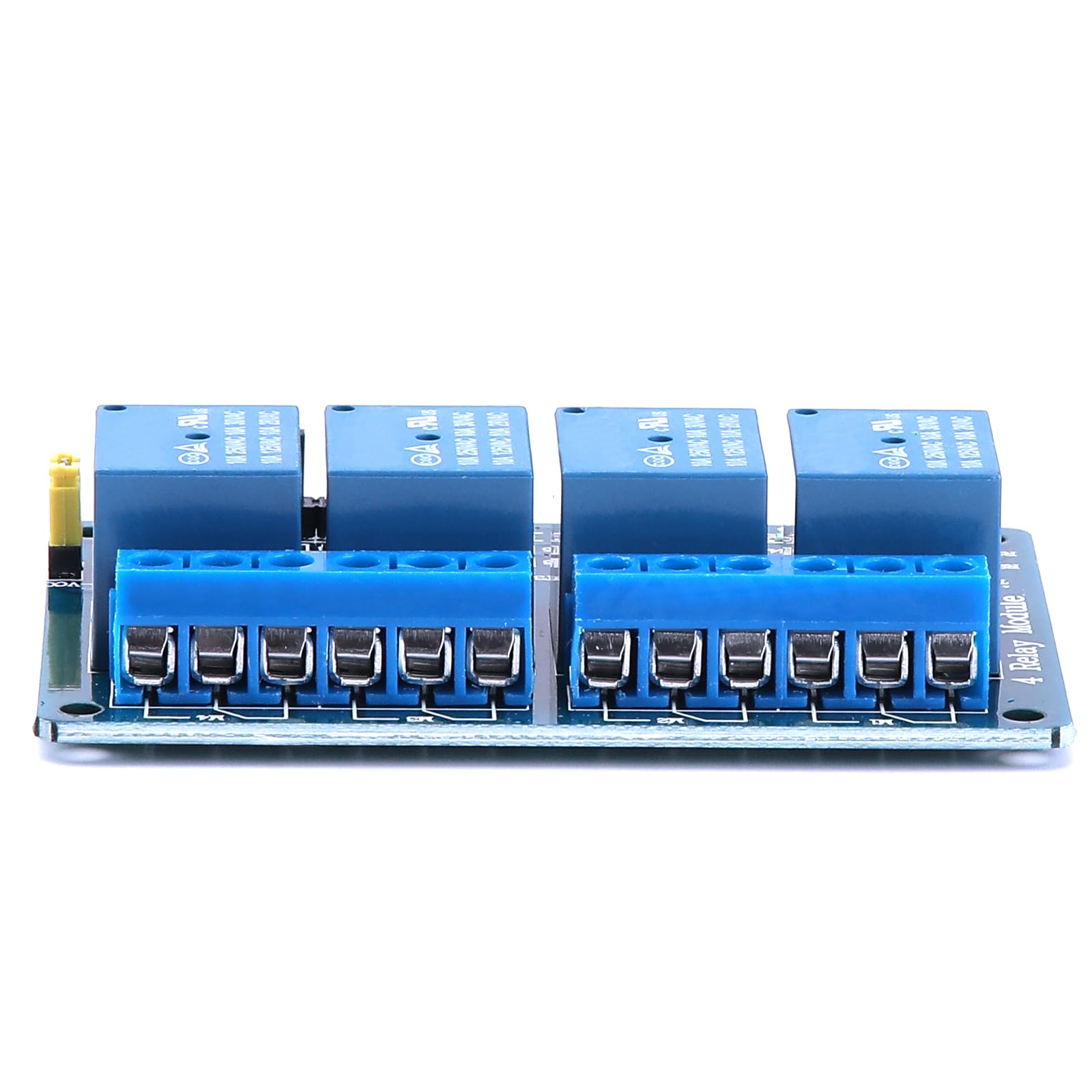

Yizhet Relay 5V 4 Channel, DC 5V 230V Relay Shield Module Control Board with Optocoupler for Raspberry Pi Arduino PIC AVR MCU DSP ARM TTL Logic (4 Channel)

• New 5V relay module, 4 Channel, Material: Durable hard PCB.
• DC5V 4 channel relay module interface board, and each one needs 15-20mA Driver Current.
• 5v relay board equiped with high-current relay, AC250V 10A; DC30V 10A.
• Standard interface that can be controlled directly by microcontroller such as Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, PLC, TTL logic
• 4 channel relay 5v with indication LED's for Relay output status.

DC 5V 4 Channel Relay Module with Optocoupler Specifications: 4 Channel 5V Relay Module Material: PCB + electronic component. Maximum relay contact: AC 250V 10A and DC 30V 10A. 4 channels, each need about 15-20mA current driver. LED indication of relay output status. Product size: 75 x 50 x 17 mm. Description: Standard interface that can be controlled directly by the microcontroller (Arduino, Raspberry Pi 3 Model B+, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, PLC, TTL logic) Widely used for household appliances, office machine, audio, equipment, automotive, etc. (Remote control TV receiver, monitor display, application of the current use of audio equipment high current.) Package contents: 1 x 4 channel 5V relay module
