YIXISI Battery Meter, Intelligent Cell Meter, Digital Battery Checker, Battery Balancer for LiPo/LiFe/Li-ion/NiCd/NiMH Battery Packs

• Multipurpose: The cell meter has multiple functions as it can display the estimated voltages for LiPo/LiFe/Li-ion (2-7 cells) packs and individual cells & NiCd / NiMH batteries for TX and RX (4-7 cells). The battery capacity checker can quickly check the estimated capacities for Lithium based battery pack and indicate if it requires charging before use.
• Battery Type: NiCd / NiMH (4 - 7 Cells), Lithium Type (2 - 7 Cells).

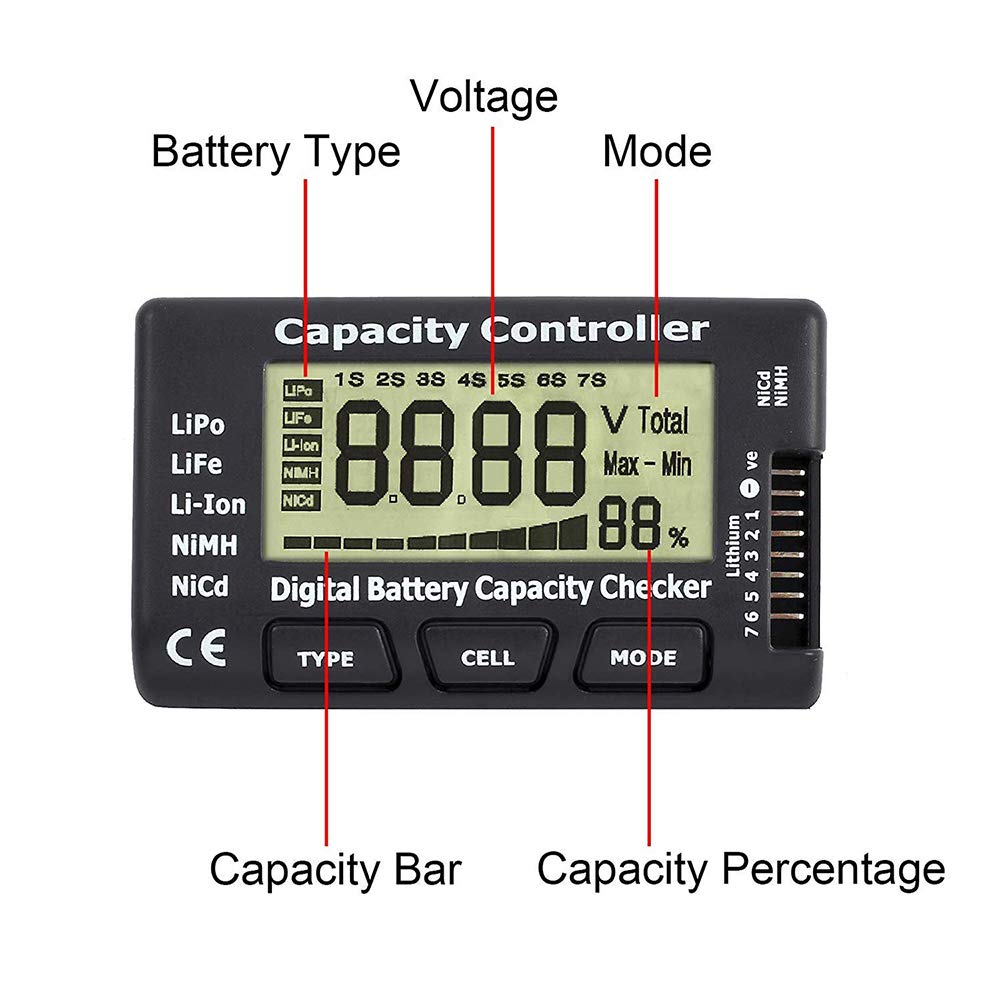

• Display Mode: Battery cell voltages, total voltages, lowest cell voltage, Highest cell voltage gap between highest cell voltage and lowest cell voltage, Remaining battery capacity (%).
• Application: Applies to check the batteries. It's very handy to read your cell voltage.
• Advantage: High quality, safe and durable, tiny and compact, easy to figure out and to use. High quality and lightweight with excellent performance.

Specifications: Dimensions (Length × Width × Height) : 84 × 50 × 16mm Battery Type: NiCd, NiMH, Li-Po, LiFe, Li-ion Cell Number: NiCd / NiMH (4-7 Cells), Lithium Type (2-7 Cells) Input cells: LIPO: 2-7 cells LIFE: 2-7 cells Li-lon: 2-7 cells NiCd: 4-7 cells NiMH: 4-7 cells Total Voltage: LIPO: √ LIFE: √ Li-lon: √ NiCd: √ NiMH: √ Total cell battery capacity(0-99%): LIPO: √ LIFE: √ Li-lon: √ NiCd: × NiMH: × Individual Battery cell voltage: LIPO: √ LIFE: √ Li-lon: √ NiCd: × NiMH: × Lowest/Highest cell voltage: LIFE: √ Li-lon: √ Li-lon: √ NiCd: × NiMH: × Voltage Difference Between Highest and lowest cell voltages: LIFE: √ Li-lon: √ Li-lon: √ NiCd: × NiMH: × Display Mode: -Battery cell voltages, Total voltages, Lowest cell voltage, Highest cell voltage. -Voltage gap between Highest cell voltage and Lowest cell voltage, Remaining battery capacity (%). -Press "TYPE" for 3 seconds until you hear 3 'Beep' sound , the 'LiPo' will Blink and the 1S - 6S will Blink - shows Cell Balancing begins Balancing Mode. -Press "MODE", it show out TOTAL Voltage, maximum voltage"MAX", minimum voltage "MIN", and voltage difference "MAX-MIN". -Press "CELL", you can see the voltage and power of each cell, the total voltage and the total power. Package : 1 piece of Version 2 Cellmeter - 7 Digital Battery Checker 1 piece of instruction paper (LiPO Battery and cable not included) NOTE: Li-ion/LiPo/LiFeP hobby battery packs NEED a balance connector in order to be tested. NiMH/NiCd battery packs NEED a Hitech/Futaba connector, or an adapter, in order to be tested.
