Y&H 600W MPPT Waterproof Grid Tie Inverter DC22-50V to AC230V for 36V Solar Panel Home Solar Panel System WGTI-600W-230V

• Grid Tie Inverter Using IP65 waterproof class, effectively prevent rainwater from eroding the surface. Connected in parallel, minimizing safety hazards. High quality and safe enough.【Prices include VAT tax】
• Recommended using solar panels：2X250~300W,Voc:36-50V. Voc(of a solar panel) must be in the 36-50V range to ensure the good output efficiency

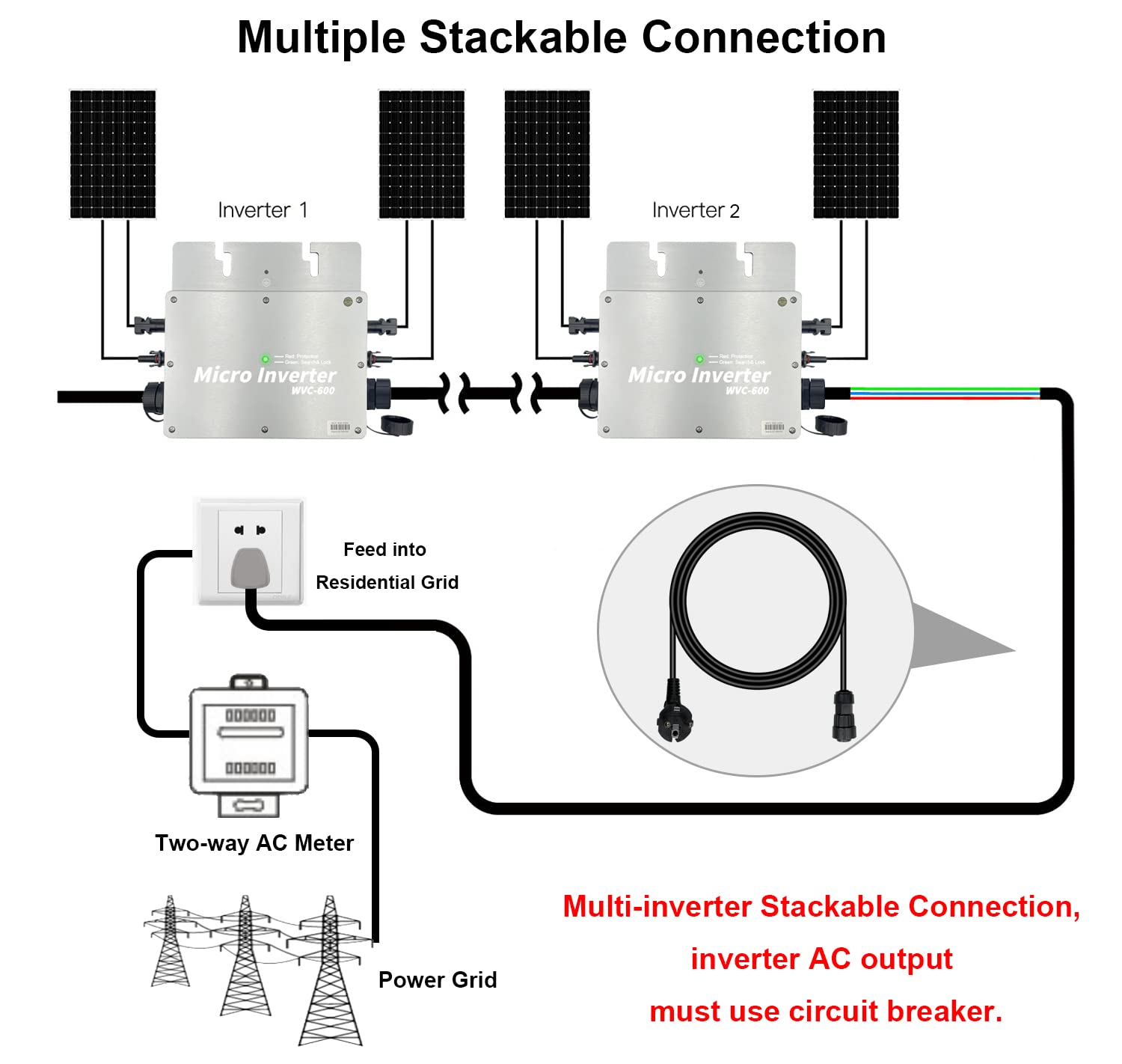

• High performance powerful MPPT (maximum power point tracking) algorithm, optimize the power from the solar panels to collect. Capture and collect sunlight effectively.Easy Multiple Parallel Stacks,Pure Sine Wave Output
• Adopts reverse efficient power transmission technology. Extra electricity is transmitted to the grid. Efficient use of the inverter to the power emitted.

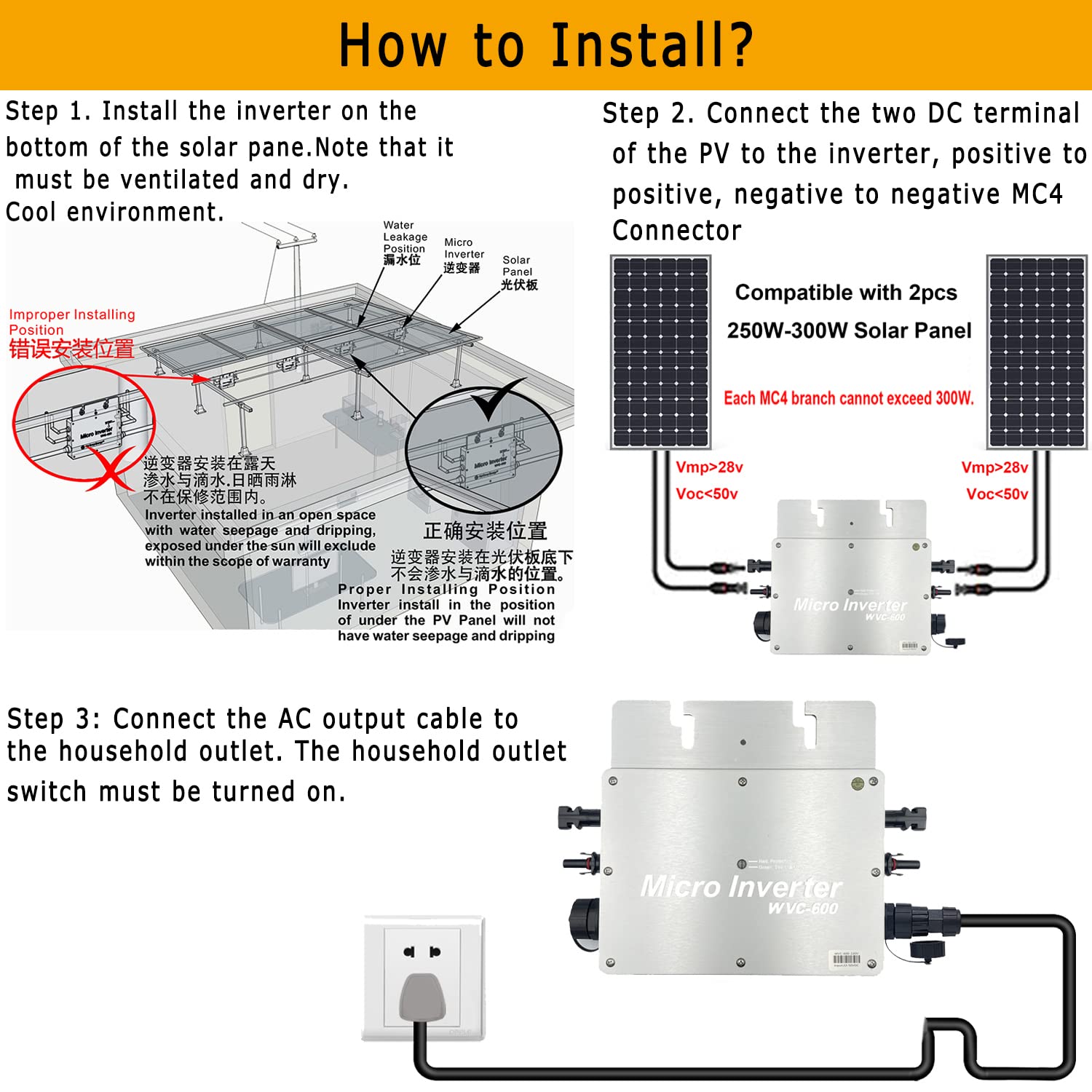

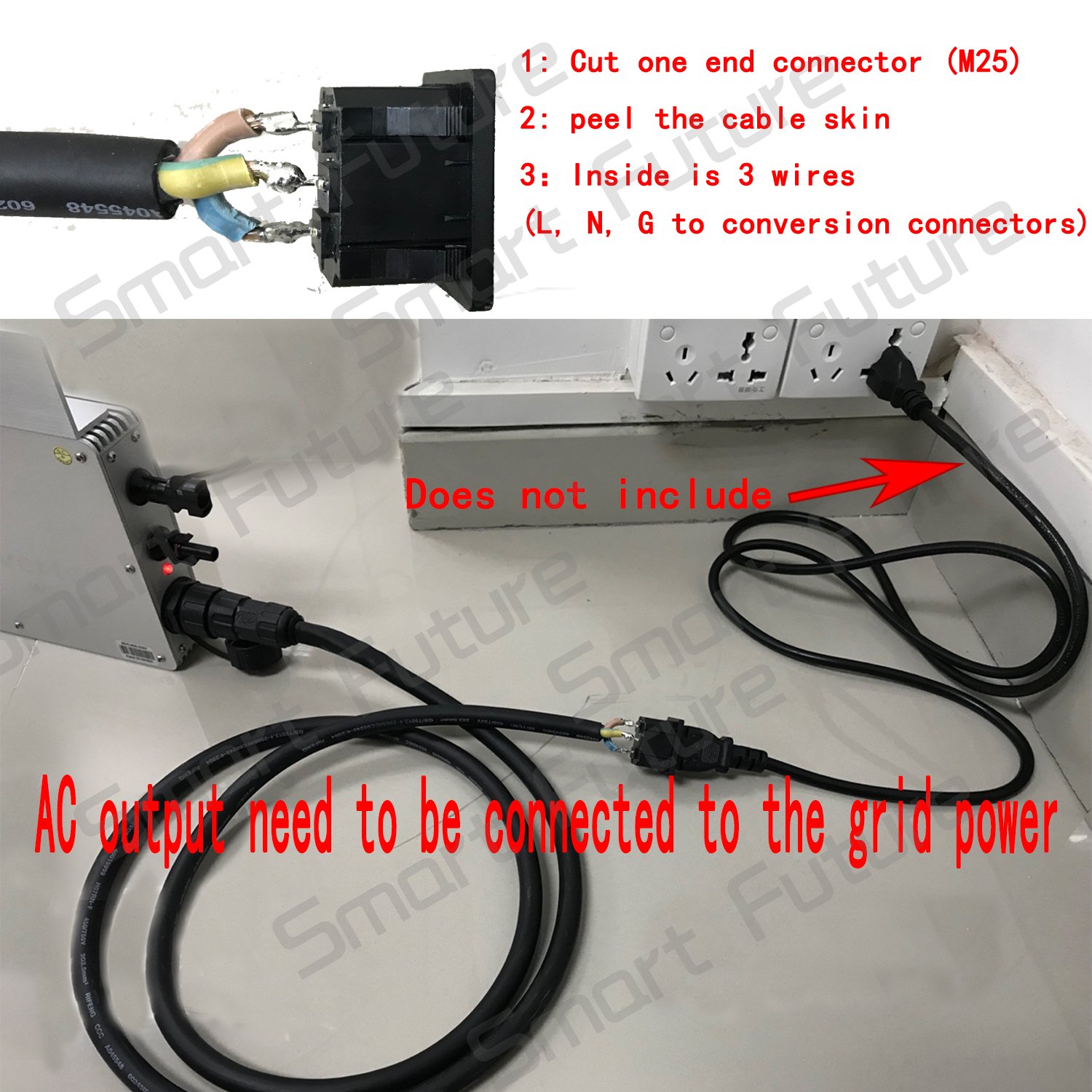

• The solar panels need to be directly connected to the grid‑connected inverter, and there is no need to connect batteries, more convenient to use.The AC output need to be connected to the grid power【We offer a 30-day free refund. 12 months warranty】

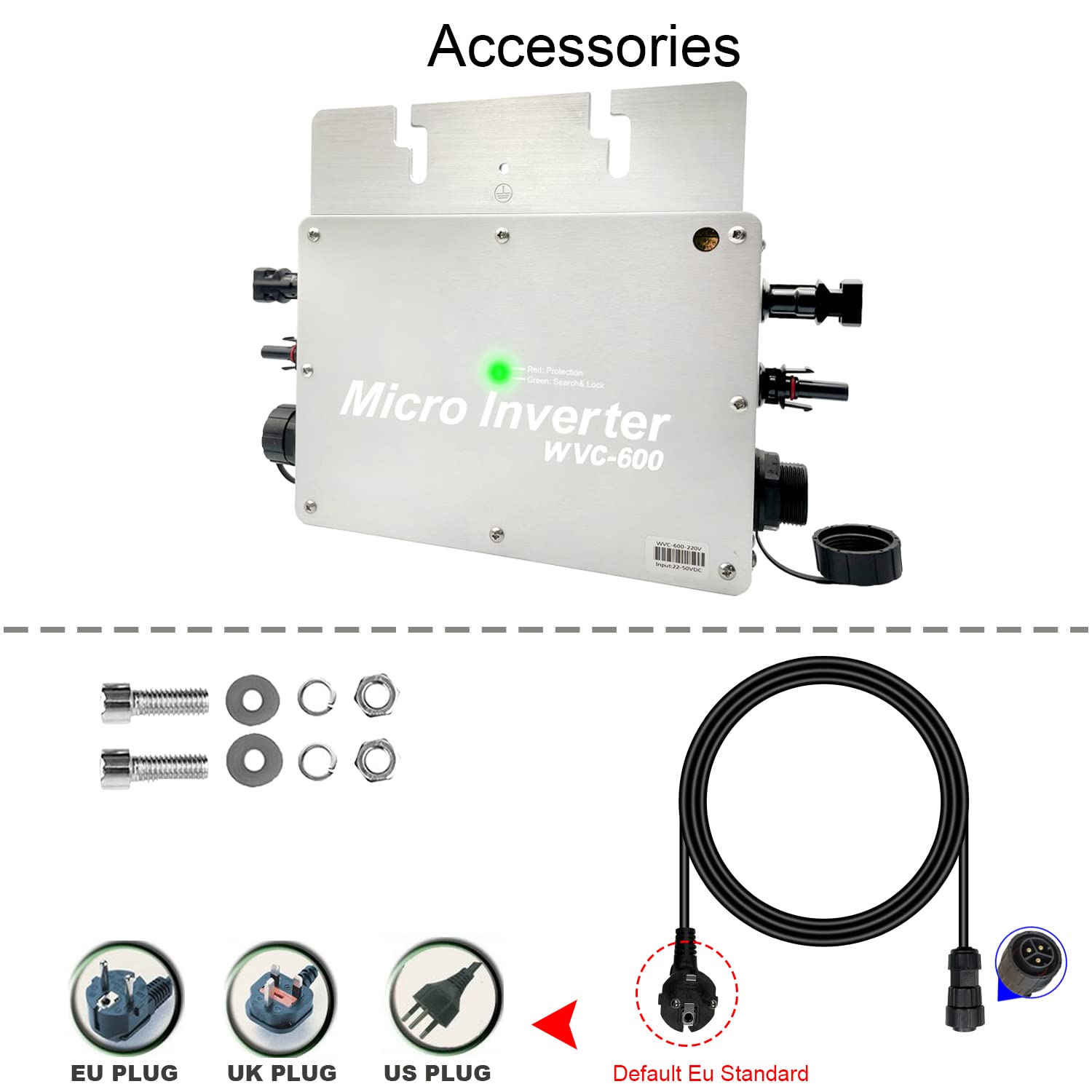

Note:Please do not install outdoors,avoid rain.You can install it in a ventilated, dry, cool place. Or the bottom of the solar panel. 600W Waterproof Grid Tie inverter,Pure Sine Wave Inverter DC22-50V to AC180-260V Output,50HZ/60HZ Auto 1.5Meters Three-Core Connection Cable Waterproof IP65 MPPT Tracking WGTI-600W grid tie micro inverter using IP65 waterproof streamline design,Can effectively prevent rainwater on the surface erosion,Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. Output Voltage：AC230V Rated voltage range：180-260VAC Maximum input power:600Watt Recommended using solar panels Power:2x250~300W Solar Panel Open Circuit Voltage Range:36-50VOC Peak power tracking voltage:22-45V Min/Max starting voltage：22-50V MPPT efficiency：99.5% Maximum DC short-circuit：40A Maximum input operating current:27.2A Peak power output:600Watt Rated output power:550Watt Rated output current： 2.39A Waterproof Rating：IP65 Max unit per branch circuit:10pcs（Single-phase） What's In Box: 1 x 600W Waterproof Grid Tie Inverter 1 x English User's Manual 1x 1.5 Meters Three-Core Connection Cable Installation Of Micro Inverter： 1、Installation for fixed the inverter on the PV holder with the screws attached 2、Connect the two DC terminal of the PV to the inverter, positive to positive, negative to negative. 3、Open the waterproof cap on AC output side of the micro inverter, then plug to AC power line. 4、Plug the AC output line to main AC cable; 5、Repeat the first step to the third step to complete the installation of micro inverters; 6、Finally, please connect the AC main cable to the utility grid to run renewable energy and saving money
