YEYIT 200Pcs Butt Connector, Electrical Terminals Crimp Connectors Electrical Wire Connectors, Insulated Cable Wire Crimp Set Electrical Crimping Tool

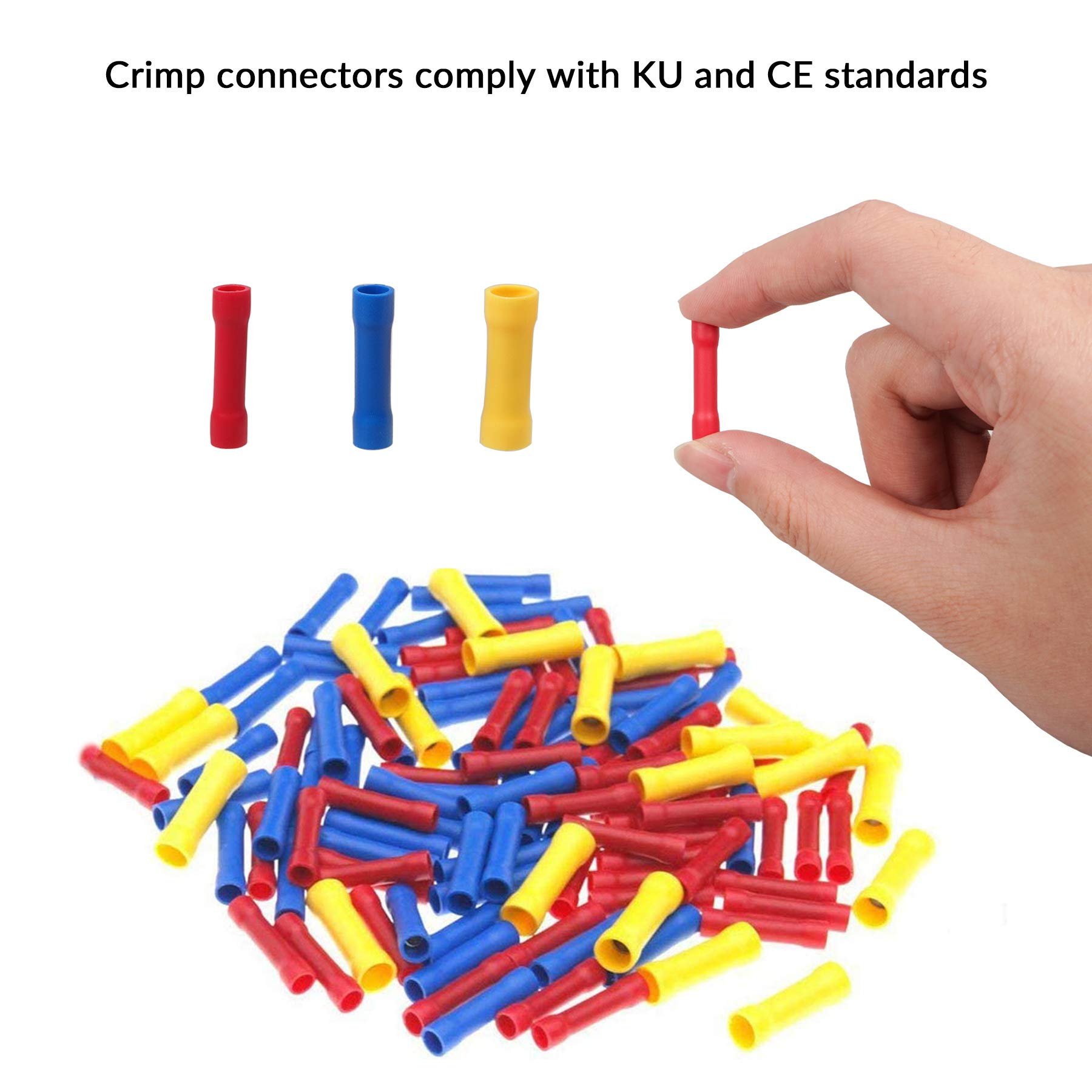

• [Selected material] Crimp connectors in line with KU and CE standards, with excellent tensile, puncture resistance, resistance to mechanical damage, the electrical connection to play an insulating and protective role

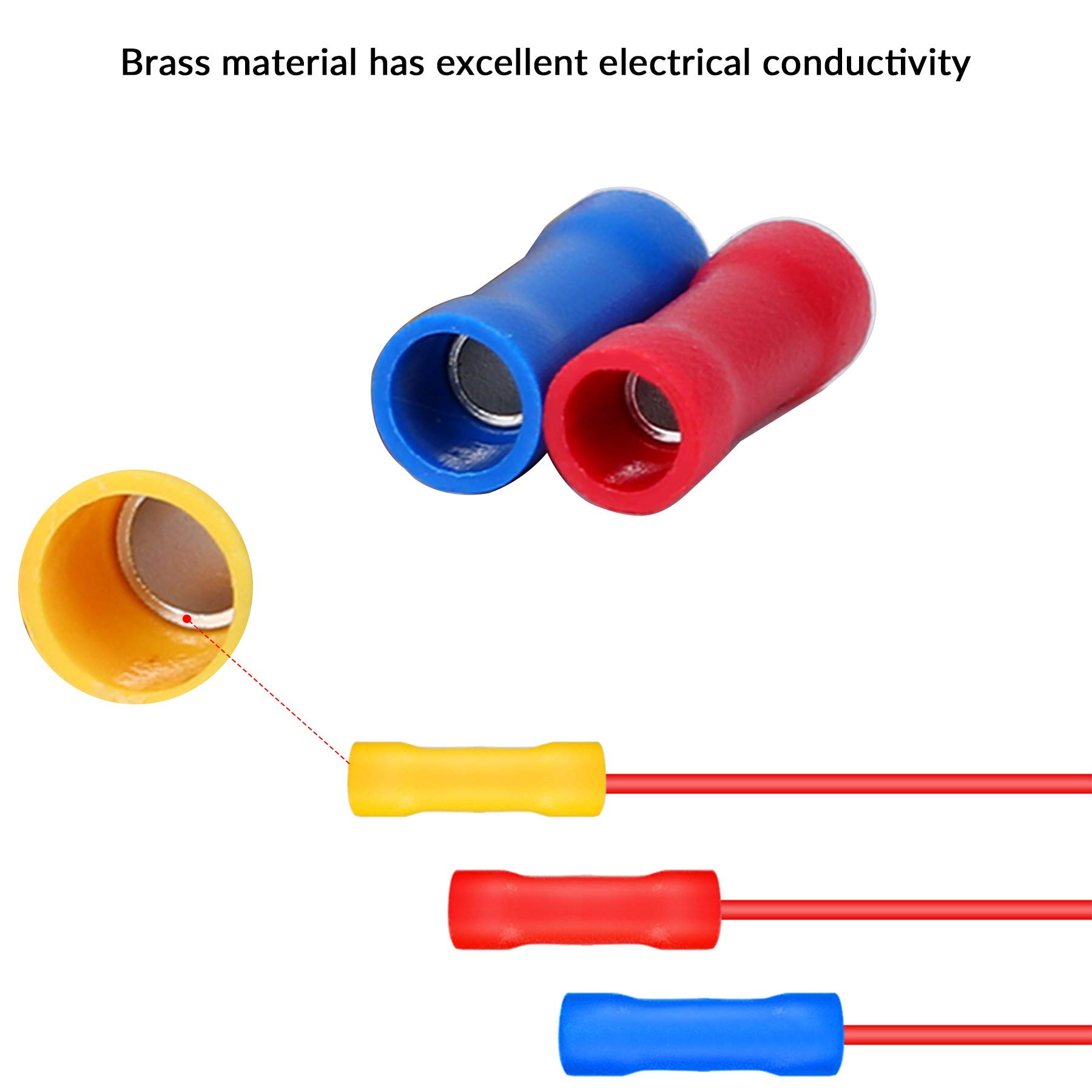

• [Premium copper core] High-purity copper tube in the middle of the wire connector has excellent conductive properties, eliminating the problem of copper tube openings, which provides greater current flow and reduces voltage, preventing wiring faults

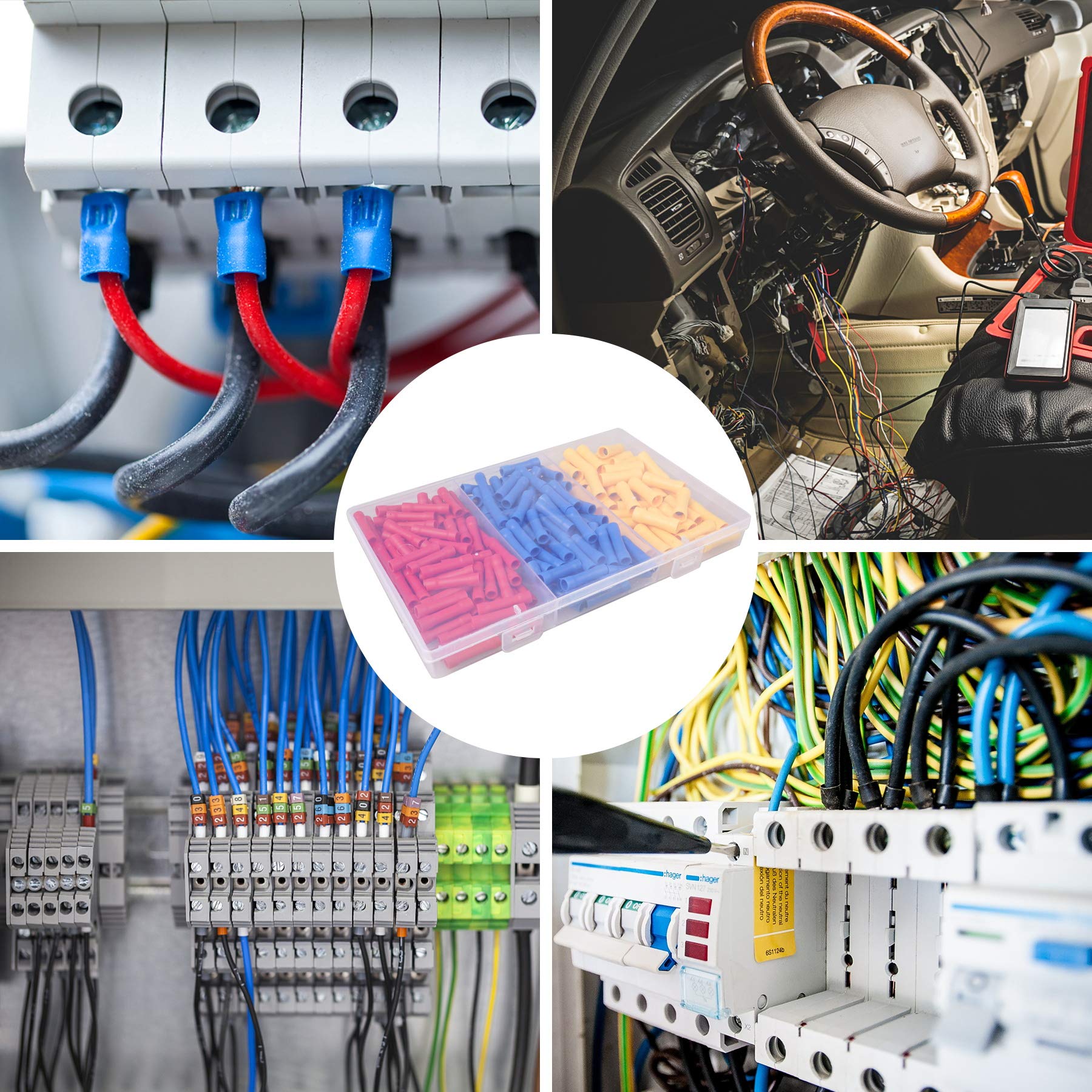

• [Scope of application] For automotive lighting, car speaker wire, any cable and wire project in home, workshop, garage, good connection and repair of electrical crimping tool

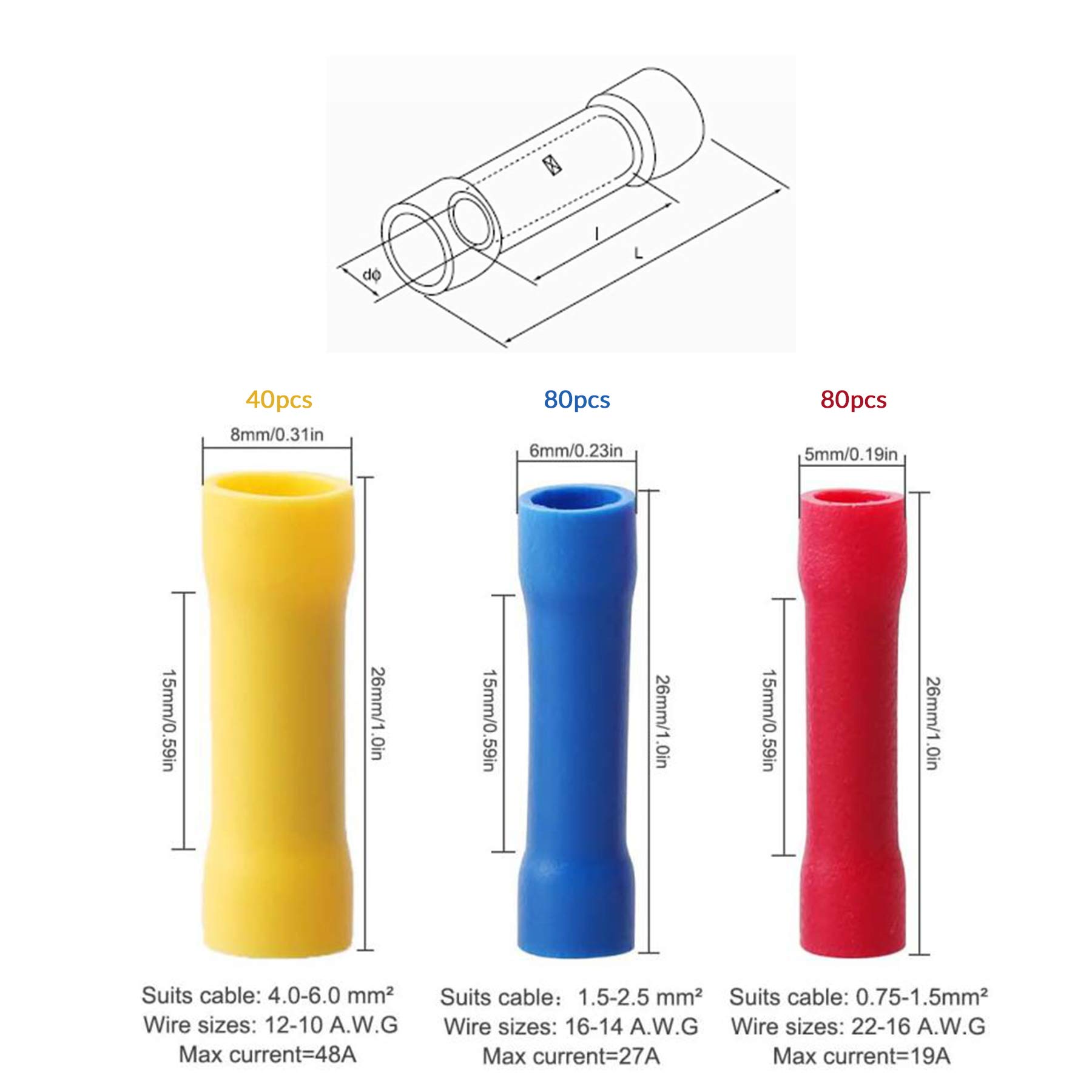

• [Model] BV1.25+BV2+ BV5; Material: copper+PVC, gauge 22-16 (red), 16-14 (yellow), 12-10 (blue), colored pipe with wire gauge stamp for easy identification of the correct size

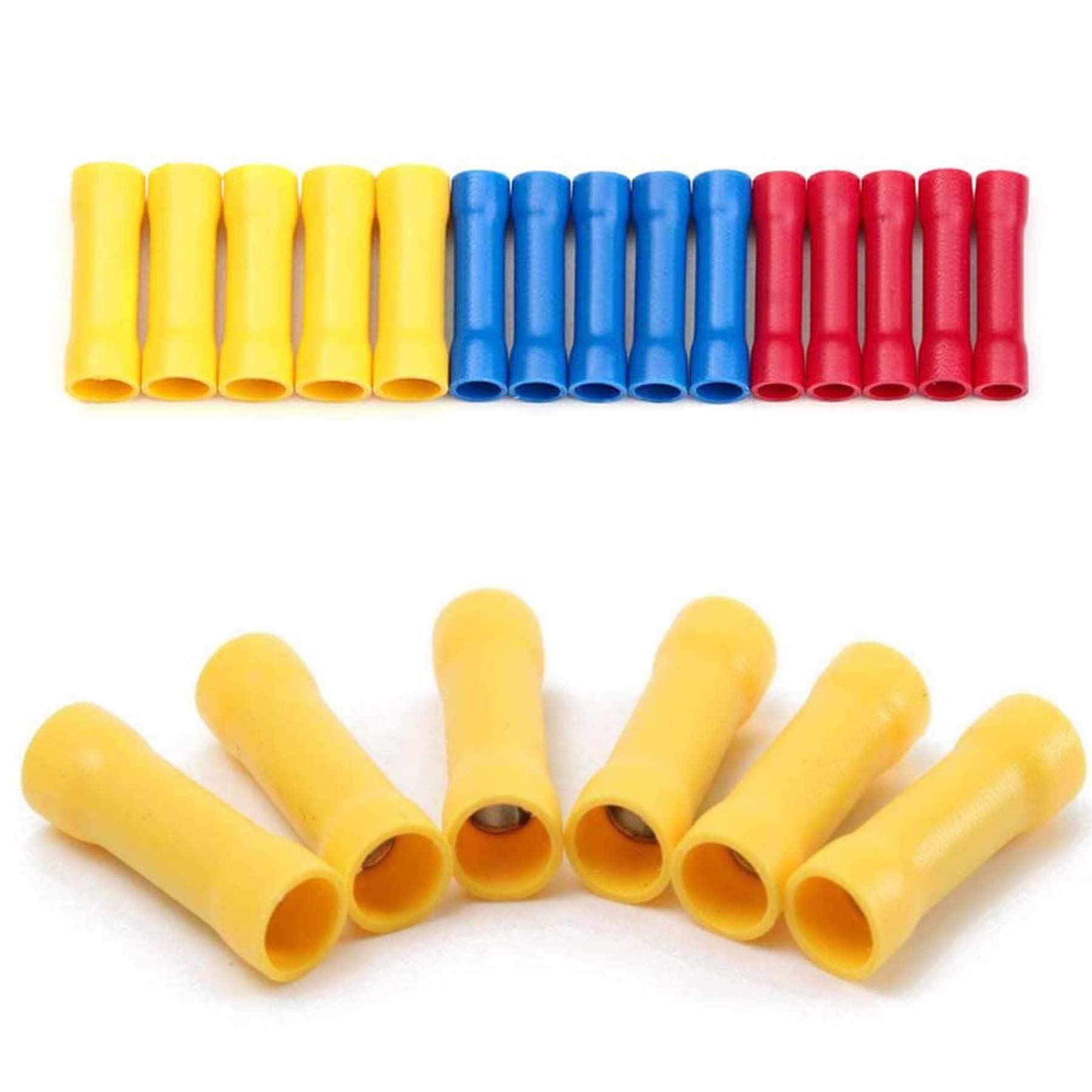

• [Packaging included] 80 red Butt Connector + 80 blue Butt Connector + 40 yellow Butt Connector, easy to install, low installation cost, more reliable than traditional crimp terminals

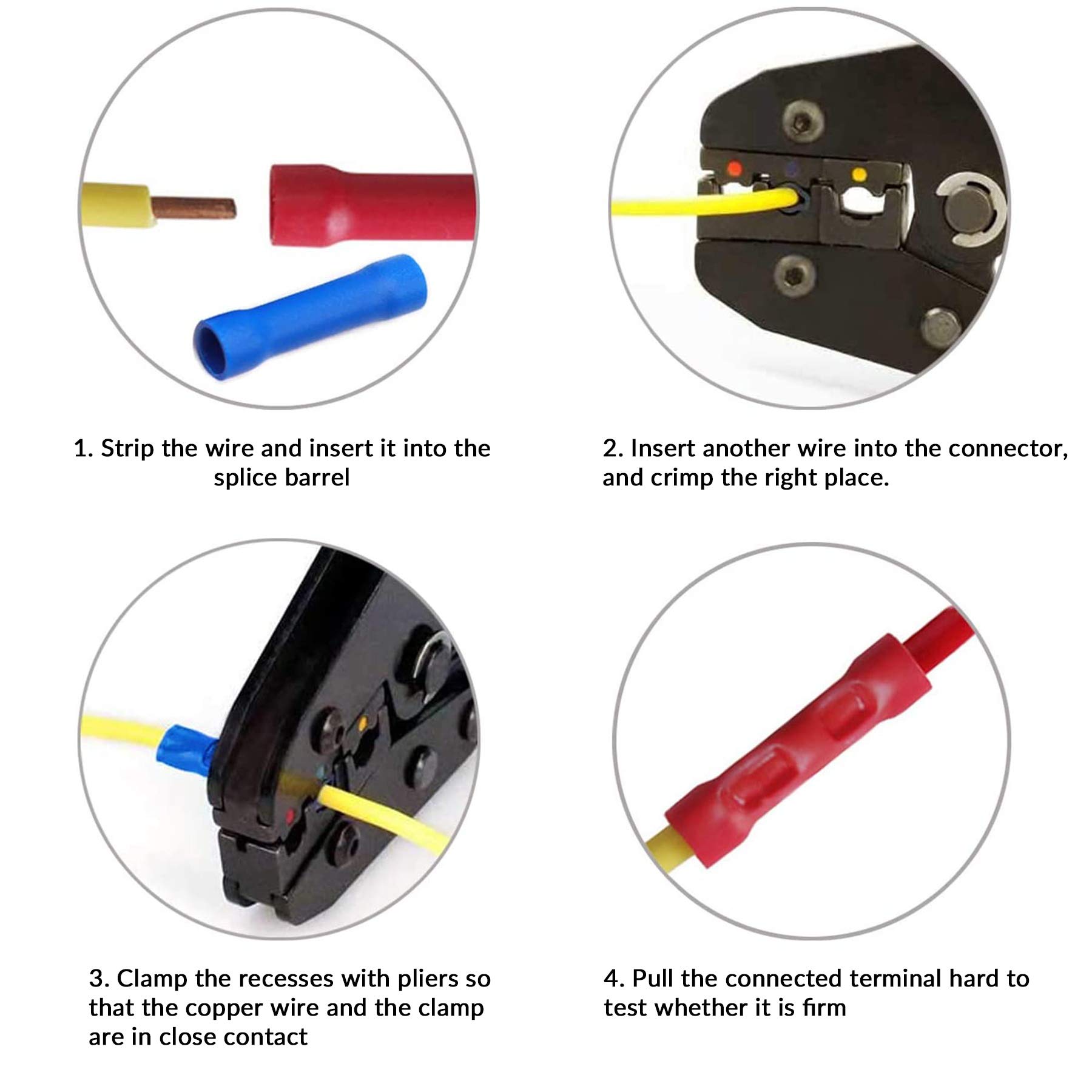

Product Description: Model：BV1.25+BV2+BV5.5 Type：terminal Operating frequency: low frequency Application range: Automotive Connector Type: DIN (large/medium/small) Line length: 0.5-2.5(mm) Production process: cold pressing Characteristics: Conductive Contact Material：Copper Colors: red, blue, yellow 80pcs Red Butt Connectors BV1.25 Color: red Maximum current: 19A Connector size: 0.5-1.5mm²/22-16awg cable 80pcs Blue Butt Connectors BV2 Color: Blue Maximum current: 27A Connector size:1.5-2.5mm²/16-14awg cable 40pcs Yellow Butt Connectors BV5.5 Yellow Docking Connector Maximum current: 48A Connector size:4-6mm²/12-10awg cable Package Includes: 200 butt connectors (80 red, 80 blue and 40 yellow) Please crimp one side of the butt connector with professional tool or they will be losing
