YAODHAOD HDMI Adapter Signals Terminal, Breakout Plastic/Metal Cover Terminal Breakout Board Connector,HDMI Screw Terminal Block Adapter

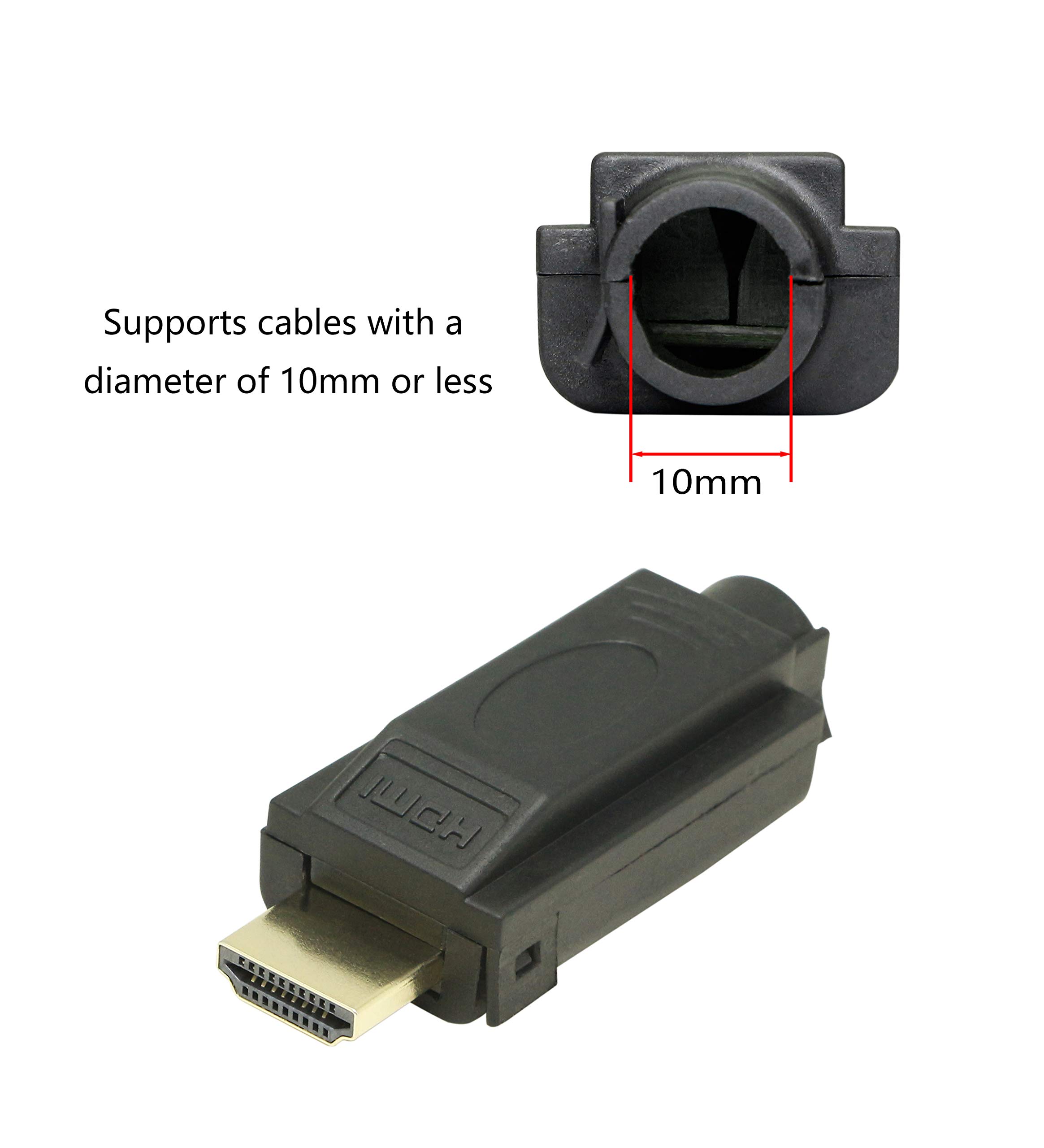

• Type: HDMI Terminal adapter，supports maximum cable diameter of 10mm. compatible with HDMI 2.0, （ HDMI 2.0 (24AWG) 19 1 core (5P 4C ADB)；1.4 and 1.3.
• Note：Most HDMI have different wiring schemes. Wiring diagrams vary from manufacturer to manufacturer. Our wiring diagram is shown in the application diagram and is generally for reference only. Considering that HDMI 2.0 has many nodes, it is recommended to use a universal meter to measure connections.

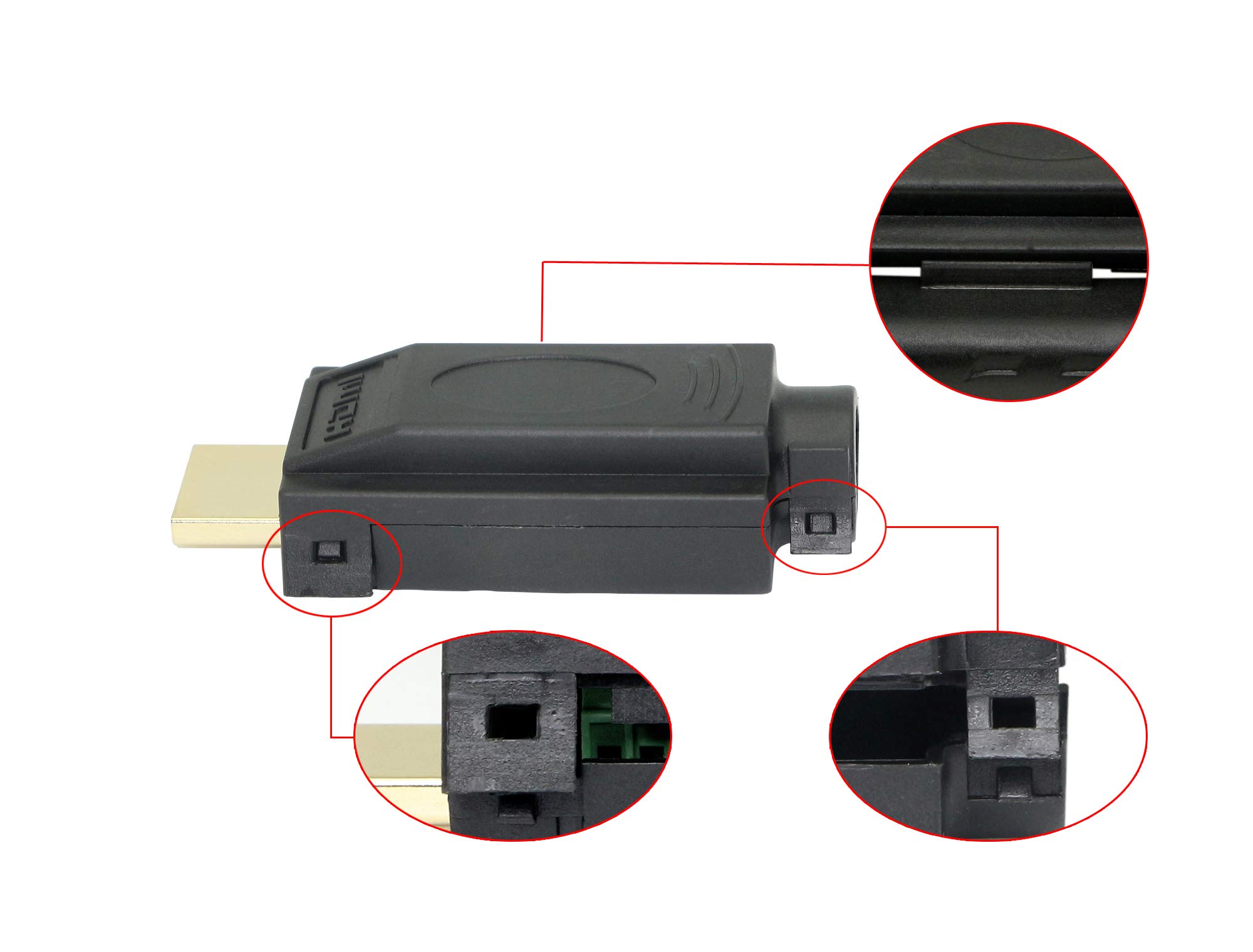

• No soldering required, easy to use,Requires only a screwdriver and a wire stripper to terminate HDMI cables,Saves time and hassle for installers.The housing is designed with a folding buckle for easy assembly and disassembly without tools.

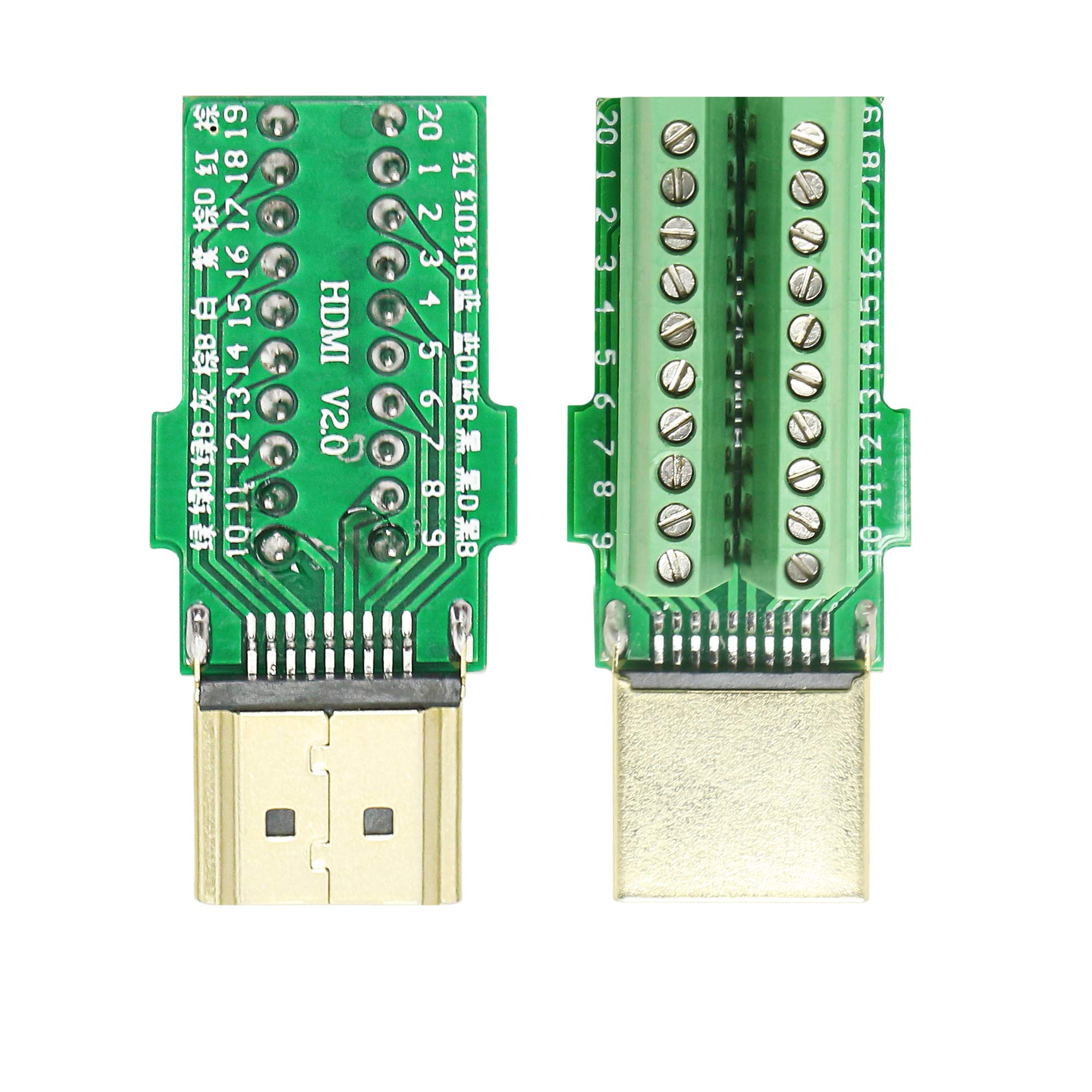

• Make your own custom HDMI cable or HDMI interface with ease, using this HDMI Plug to Breakout. You get a nice solid PCB with an HDMI plug and through hole pads that you can solder to assemble your own wiring jigs. You can add in some terminal blocks to make the wiring easier, or check out the HDMI Plug to Terminal Block Breakout which comes with them built in.
• If you just need a plain HDMI cable, we have plenty and it's less expensive to just buy a standard cable than DIY it. So, we recommend this adapter when you have some unusual setup or wiring needs like splicing off the I2C or power pins.

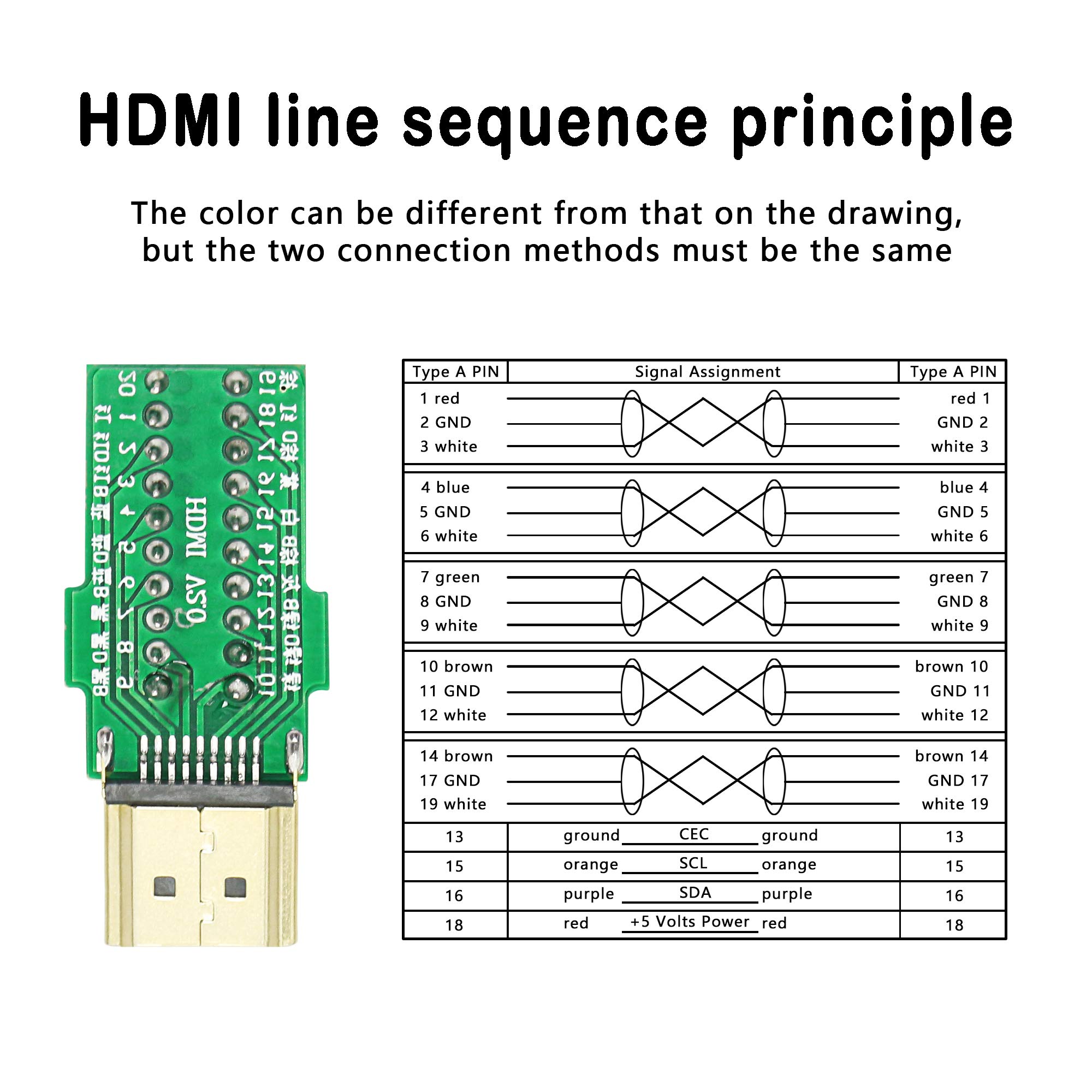

Product Name：HDMI solderless adapter Connectors 1 : HDMI male jack . Connectors 2 : 20 Pin/Way female screw terminal block jack. Size:50mm*23mm*17mm/1.96*0.9*0.67" 19+1 cable connet the calbe with the broad, the 2.0 cable just like the picture show. 1- green 2- Ground line 3- white 4- blue 5- Ground line 6- white 7- red 8- Ground line 9- white 10- brown 11- Ground line 12- white 14- white 17- Ground line 19- black 13 - black 15- white 16- purple 18- red 20-Ground line If your cable is 15+1 cable. 2 5 8 11 don't need connect If your cable is 14+1 cable. 2 5 8 11 14 don't need connect If your cable is 13+1 cable, 2 5 8 11 13 14 don't need connect Note：Most HDMI have different wiring schemes. Wiring diagrams vary from manufacturer to manufacturer. Our wiring diagram is shown in the application diagram and is generally for reference only. Considering that HDMI 2.0 has many nodes, it is recommended to use a universal meter to measure connections.
