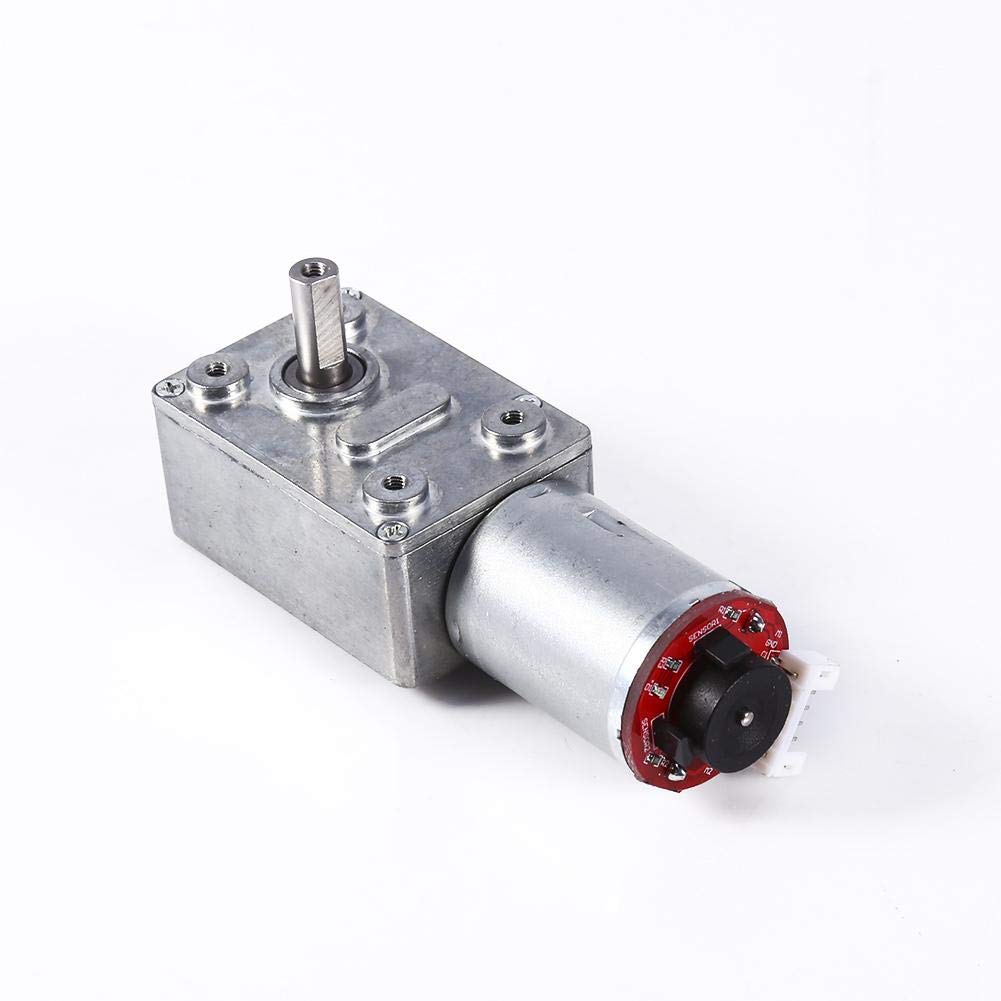

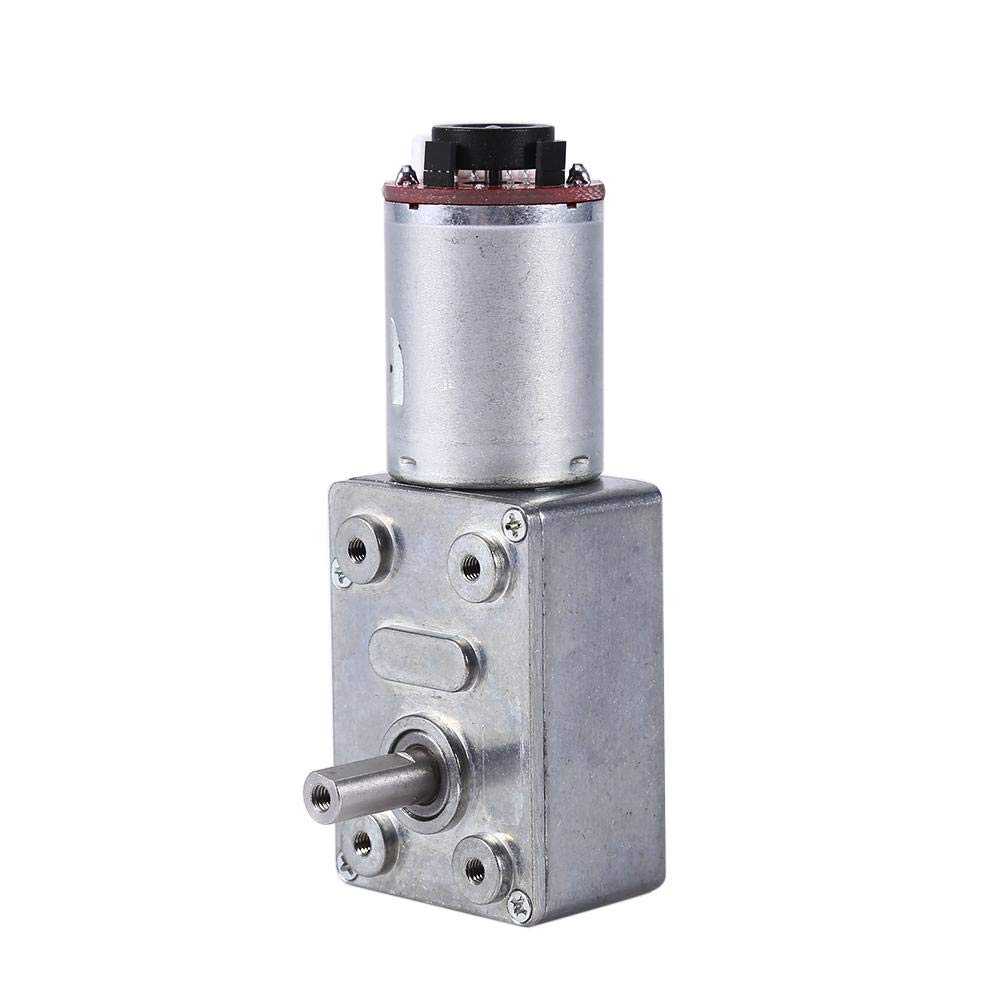

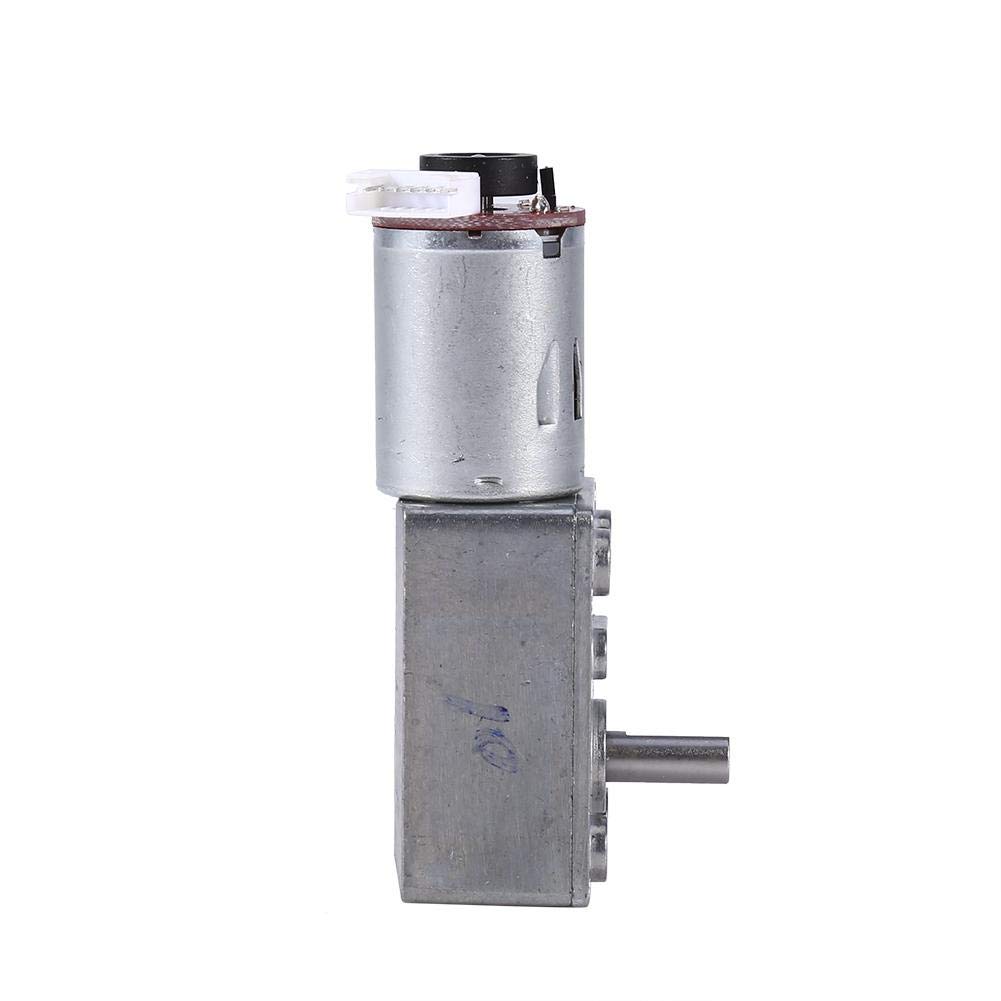

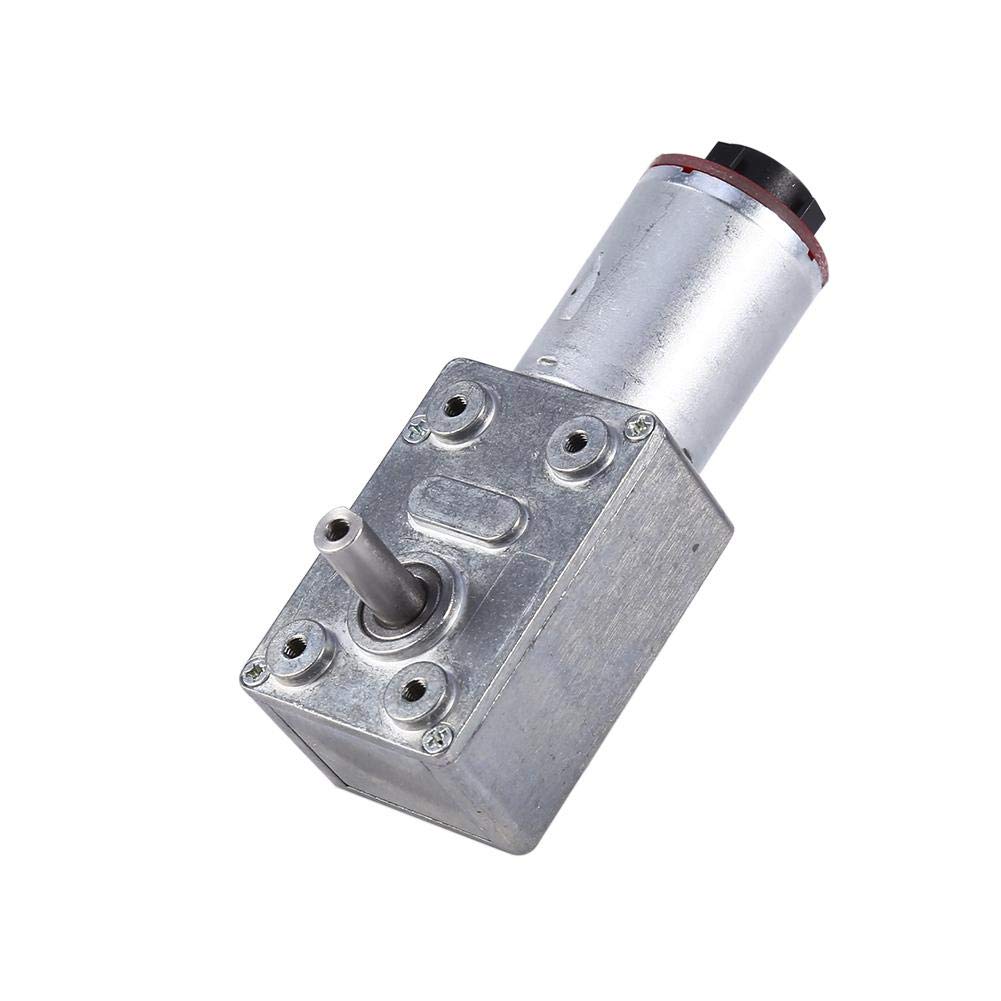

Yanmis Reduction Motor,DC 12V High Worm Geared Motor Reduction Motor with Encoder Srong Self-locking (20RPM)

• ★★★【With Encoder】Two-phase reduction gear motor with encoder. Widely adapted to a number of installation dimensions of the requirement occasion.
• ★★★【Premium Material】The dc motor is using precious metals carbon brush.Long service life, low noise, large
• ★★★【Features output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short.
• ★★★【High Performance】Can rotate and reversal, work more accurate.Stable and performance.
• ★★★【Specifications】Rated Voltage: 12V;No-load Current(MA) ≤60;Rated Current(A) ≤0.6;Stall Current(A) 1.3.

Description: output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of the requirement occasion. Features: Two-phase reduction gear motor with encoder. Using precious metals carbon brush. Long service life, low noise, large torque. Stable and performance. Can rotate and reversal, work more accurate. Specifications: Rated Voltage: 12V No-loading Revolving Speed: 100rpm / 40rpm / 30rpm / 20rpm / 10rpm(optional) Speed(rpm) 10 20 30 40 100 Rated Torque(kg.cm) 22.5 12 7.4 5.6 1.5 Max.Torque(kg.cm) 25 25 25 24 6.4 Reduction Ratio 600 340 200 150 40 No-load Current(MA) 60 Rated Current(A) 0.6 Stall Current(A) 1.3 Weight: 165g(approx.) Wiring Methods: Red: Motor power + (exchange can control rotating and reversing) Black: Coding power- negative (3.3-5V) polarity cannot be wrong Yellow: feedback Green:Signal feedback Blue:Coding power + positive(3.3-5V)polarity cannot be wrong White:Motor power - (exchange can control rotating and reversing) Package Includes: 1 x Motor
