YAJIERUI RGB LED lamp with Connector 20 Waterproof LED Adapter Connector Transparent solderless LED lamp with Connector for Strip lamp 5V 12V 24V Wireless Seamless Track Lighting Connector (5PIN12MM)

• Compatible with 5V, 12V, 24V led strips, support up to 5A current carrying, you could connect longer LED strips by one connector.

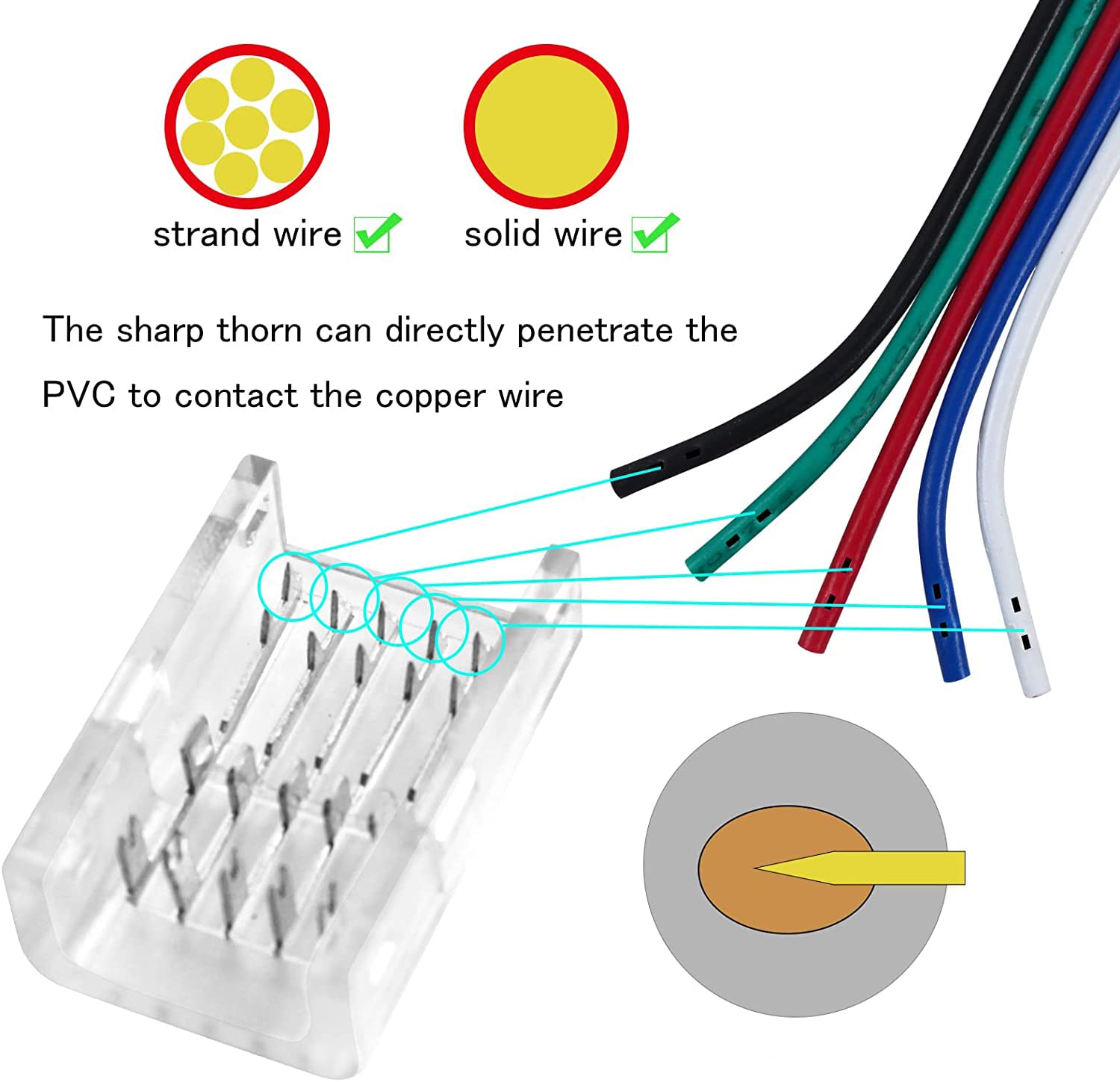

• Connect strip to wire without stripping insulation, no soldering, quick and flexible connection

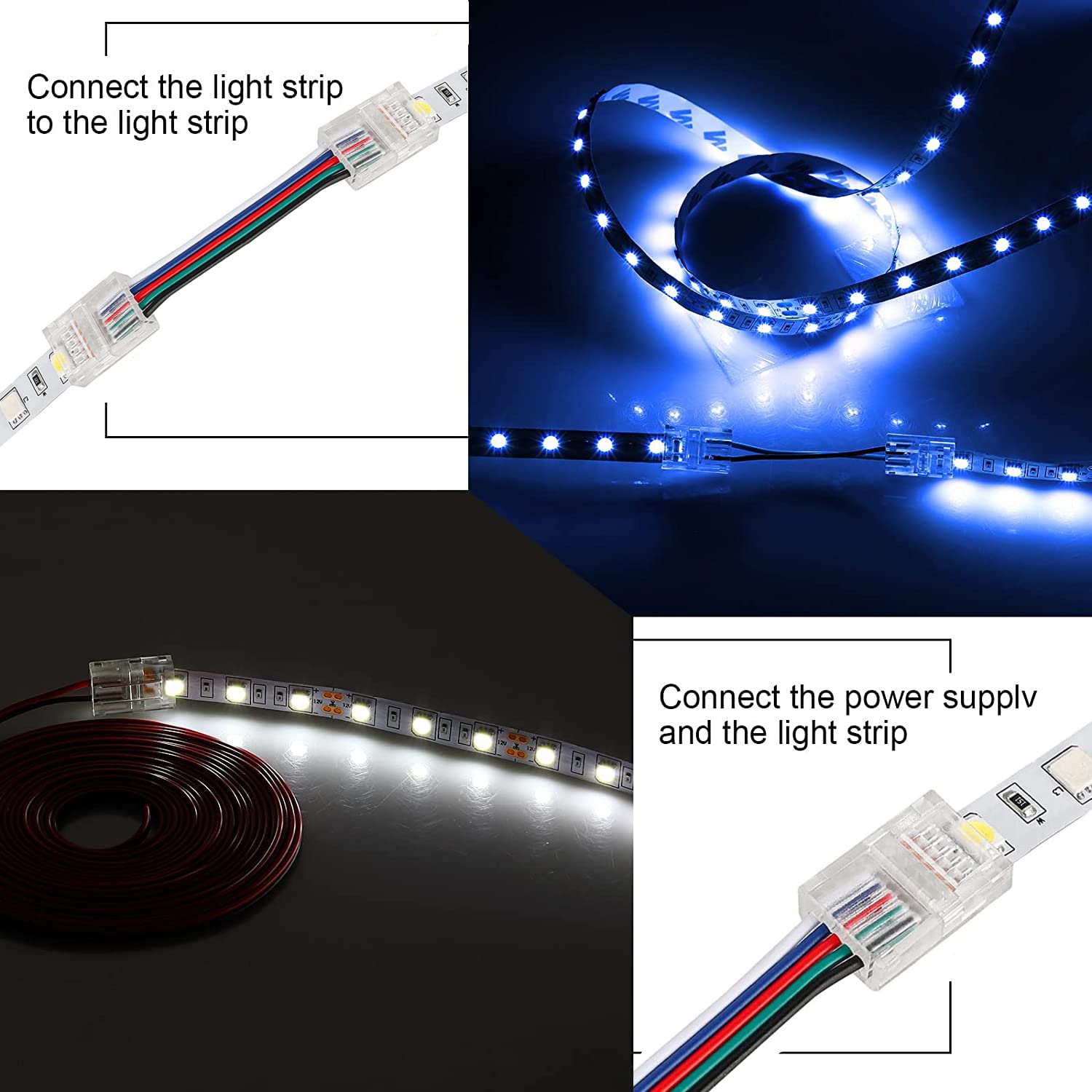

• QUICK AND FLEXIBLE CONNECTION: Connect rgbw strips to wire without stripping insulation, no soldering. 5pin led light connectors are suitable for 12mm rgbw LED strip lights, can also be applied to both non-waterproof and IP65 waterproof light strips. One end connects 5-conductor 22 gauge extension cable and another end for rgbw led strip. The led tape light connectors can not work with 8mm led strips, 3528 rgb led strip, or 20 awg wire.

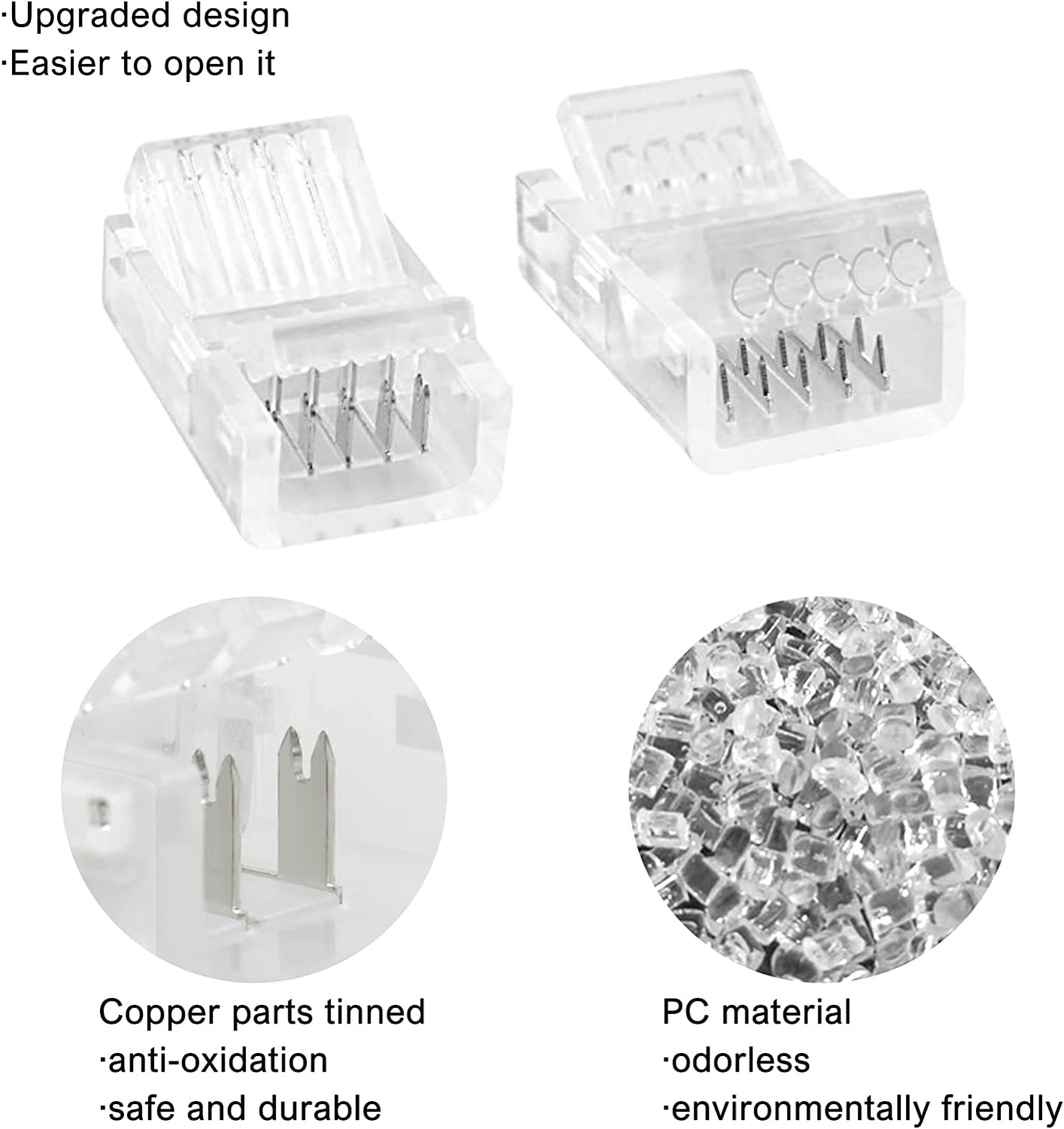

• SOLID & EFFECTIVE CONNECTION: High quality tin plated copper core and PVC plastic wire cover ensure steady, safety and long-lasting connection, firmly bite through the led light strip, much stronger than old style lights connectors, The clear terminal is easier to pierce the wire, and the one-time success rate is higher.
• You only need to align the front side (led surface) of the light strip with the pins of the connector, and then buckle the transparent cover to achieve a stable and good connection. Suit for 22 awg 5 conductor wire, solid wire and multi-core wire.

More tips: 1. The LED adapter connector of the connector is suitable for 0-24V system, RGB strip lamp with welding pad, IP20 non waterproof and IP65 waterproof strip lamp. 2. You can pierce the light bar from the back or front. 3. It is recommended to pierce the IP20 RGB light strip from the front of the light strip and the IP65 waterproof light strip from the rear without removing the silicone on the surface of the light strip. 4. If you accidentally cover the connector, you can pry it off with a screwdriver. 5. Make sure your LED strip is 12mm wide 5-pin LED strip. 6. It is suitable for waterproof and non waterproof LED strip lamps. 7. Make sure that your wire diameter is in the range of 20awg-22awg /0.34~0.75 mm2 and that there is no stripping line. Installation method: 1. Strip end Open the transparent cover of the connector. 2. Peel the tape around the cut line area on the back of the LED tape. 3. Insert the LED light strip into the side of the connector. 4. The five contacts of the LED light strip are located on the five pins of the connector. 5. Close the connector firmly with pliers. 6. Extension cable end Cut the required wire length and separate the 5 wires (22Awg). 7. Insert the wire into the connector card slot and ensure that the positive and negative electrodes on the surface of the light bar correspond to the correct wire. 8. Clamp the transparent cover with pliers until it is completely fixed on both sides of the bottom of the bottom. 9. Make sure that the metal connectors are insulated by wires. The package includes: 20 × LED strip to with connector
