YACSEJAO Video Balun HD-CVI TVI AHD Passive Connector BNC Video Balun Transceiver Cable for 1080P 720P CCTV Security DVR Surveillance Camera System-1 Pair

• YACSEJAO Video balun transceiver can transmit PAL/NTSC/SECAM composite video signals with better Video transmission quality and long distance HD transmiter.
• Support all video devices, such as camera、 CCTV、monitor、DVR card and recorder etc.Compatible with HD-CVI,HD-TVI and HD-AHD Cameras.
• Transmission distance:720P / 1080P CVI≤450M,720P / 1080P TVI=250M,720P AHD=320M.
• High-quality pure copper gold-plated contact core BNC, maintain the image and video transmission effect, and avoid occasional or unstable images caused by poor contact.

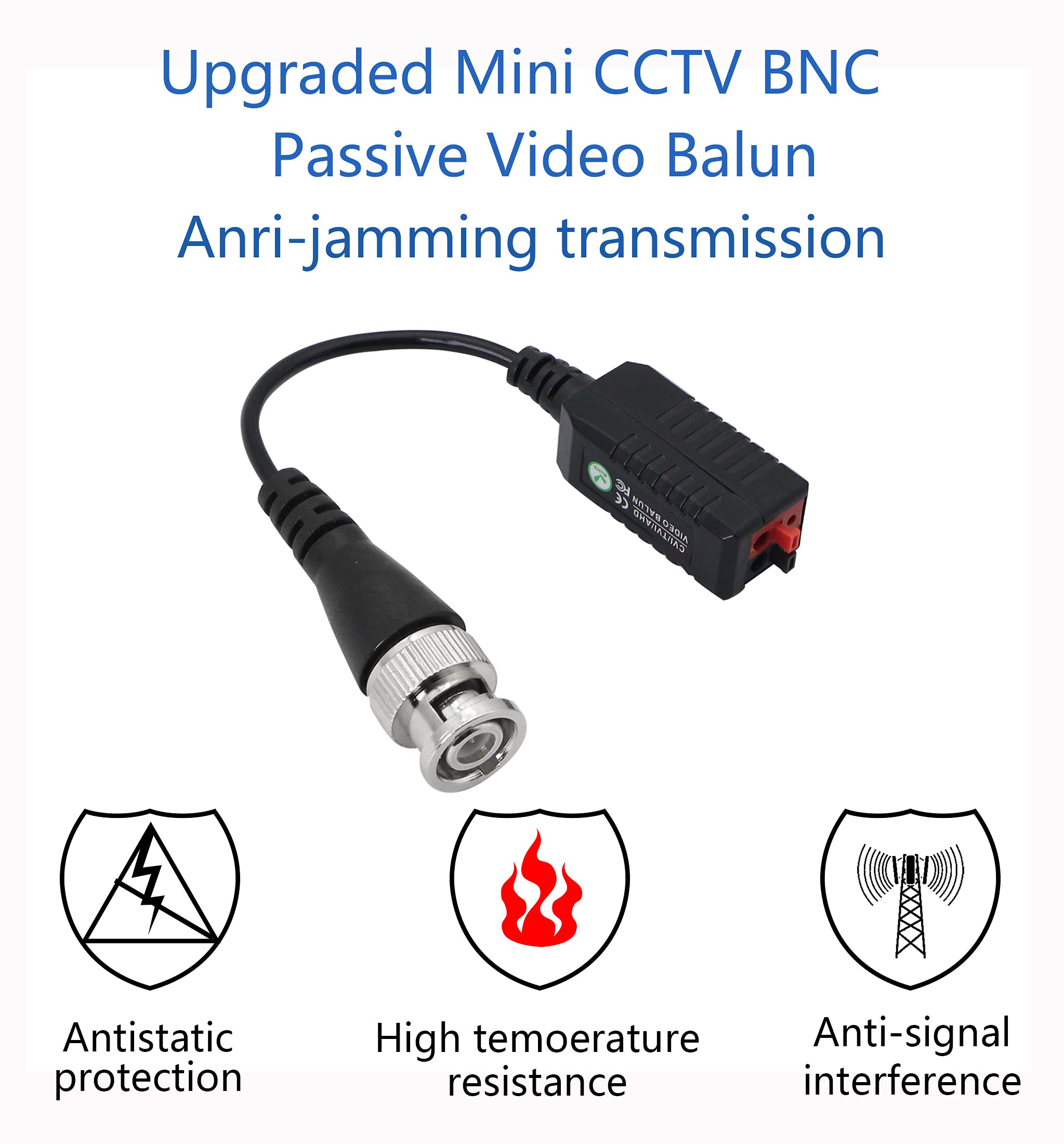

• Excellent protection against lightning, antistatic and anti-interference.

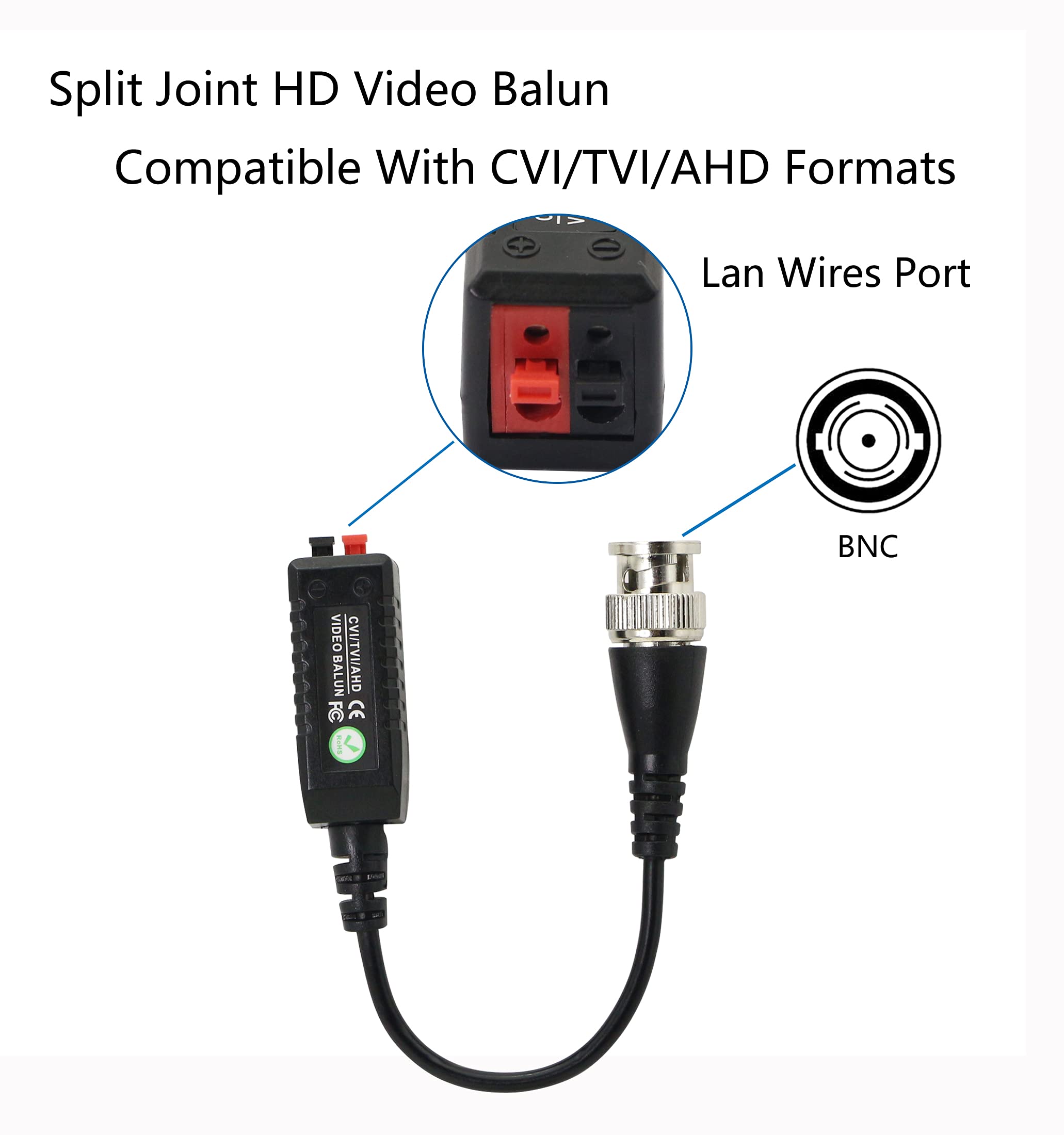

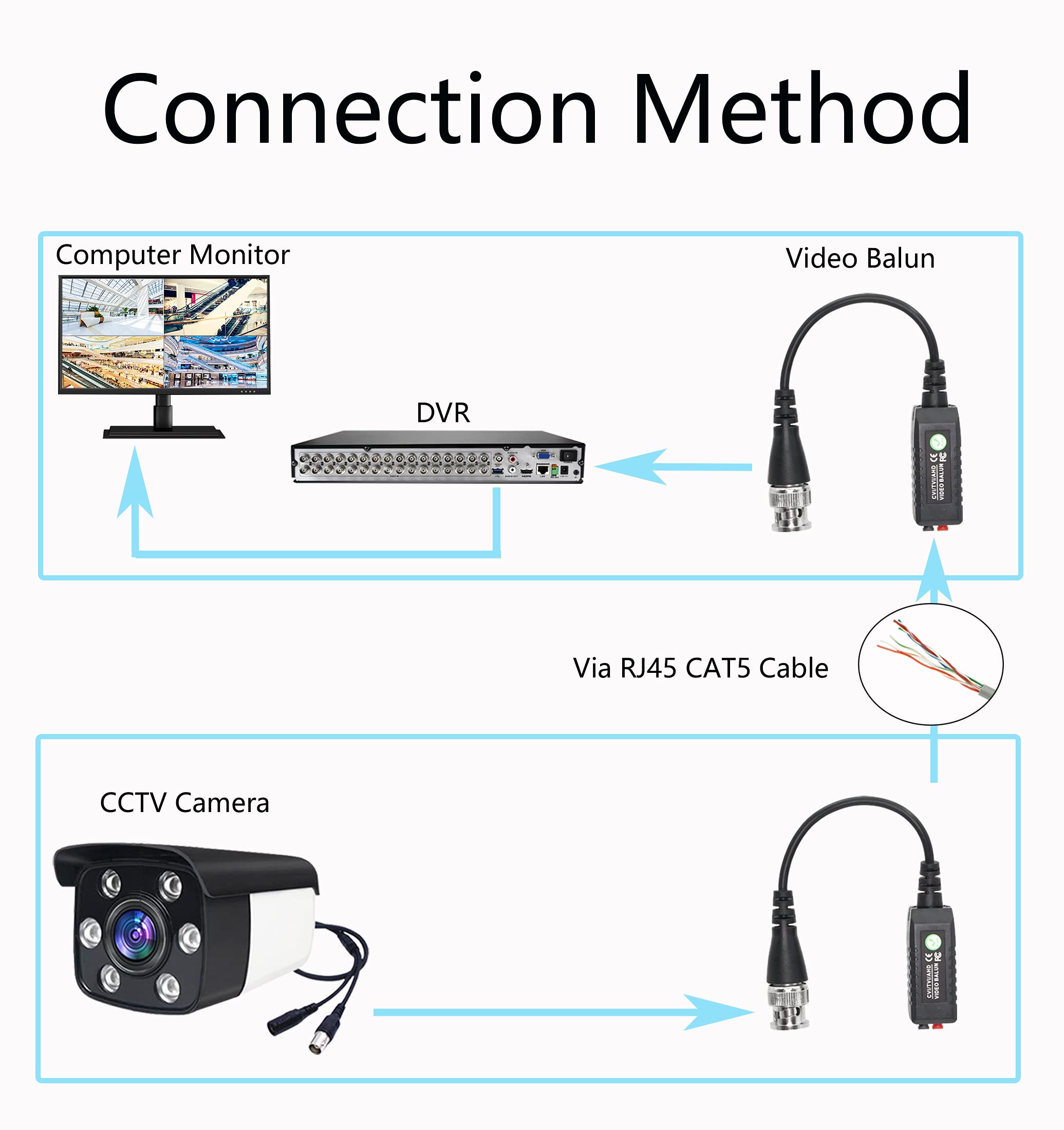

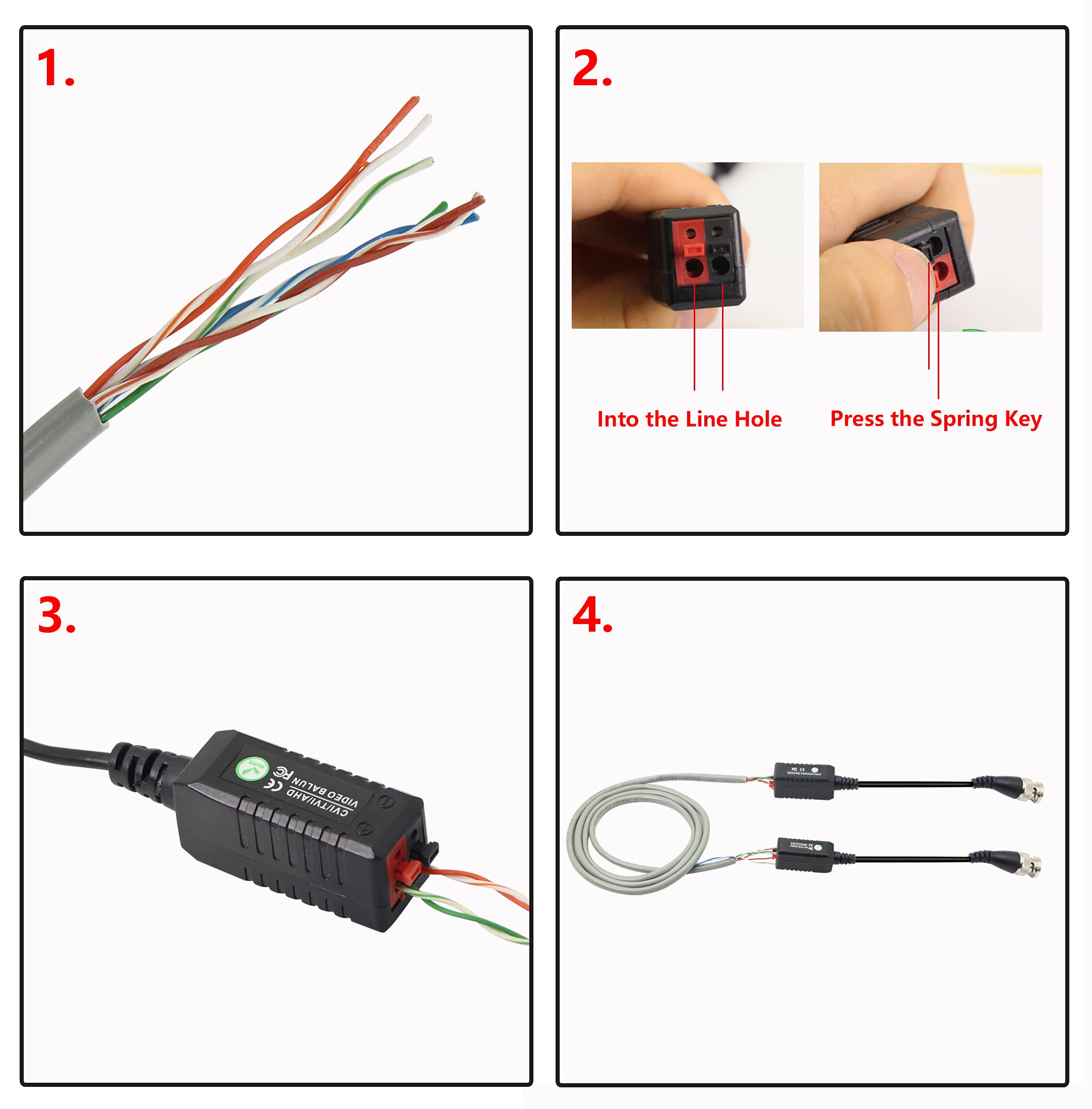

" Product name:Video Balun Transceiver Connectors:Male BNC and ""Press-Fit""terminal blocks The BNC Plug Material:Pure copper + Gold-plated contact core. Product Shell Material:ABS Color:Black This video transceiver is passive and allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair(UTP)telephone wire. Baseband (composite) signals of any type are supported. Features: * Compatible with all HD-CVI,HD-TVI,HD-AHD. * Video up to 450m for 720P CVI cameras. * Video up to 250m for 1080P CVI cameras. * Video up to 250m for 720P/1080P TVI cameras. * Video up to 320m for 720P AHD cameras. * NTSC,PAL,AND SECAM video formats. * 60db crosstalk and noise immunity. * Compact size and easy installation. * Built-in transient suppression protection. * Innovative combinabie design. Technical Specifications: 1.Frequency response:DC-60MHZ; 2.Attenuation:0.5dB typ; 3.CMRR(Common Mode Rejection Ratio):60DB; 4.Surge protection:4KV, ESD:8KV; 5.Impedance: BNC-75 Ohms, Terminal-100 Ohms; 6.Working temperature:-10~+70 Census Degree; 7.Storage temperature:-30~+70 Census Degree; 8.Humidity:0-95%; 9.Dimension:39*16*19mm with 10cm cable; 10.Real-time transmission over UTP cat5e/6. INSTALLATION METHOD：-Easy to install,as the picture shows,You only need to follow the steps above to install the press terminals (without screws),Support a variety of stitching, can meet your different needs, more convenient and practical. Male BNC allows connection directly to the camera or DVR. ""Press-in"" terminal blocks make the connection more stable and not easy to loosen. Package Dimensions:9.8 X 1 X 15.7 cm Weight：47g Package Contents：2 * Video Balun Transceiver"
