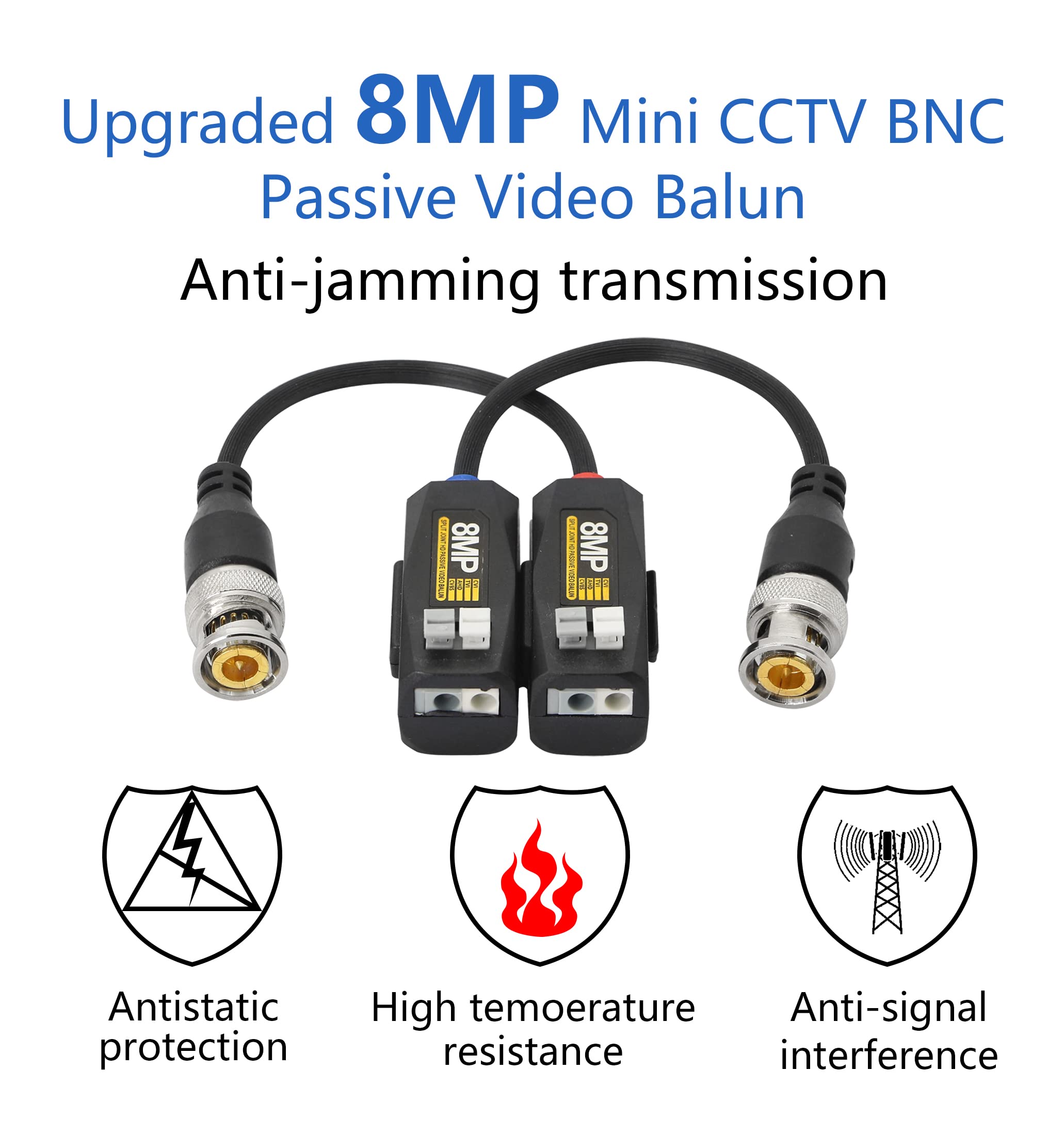

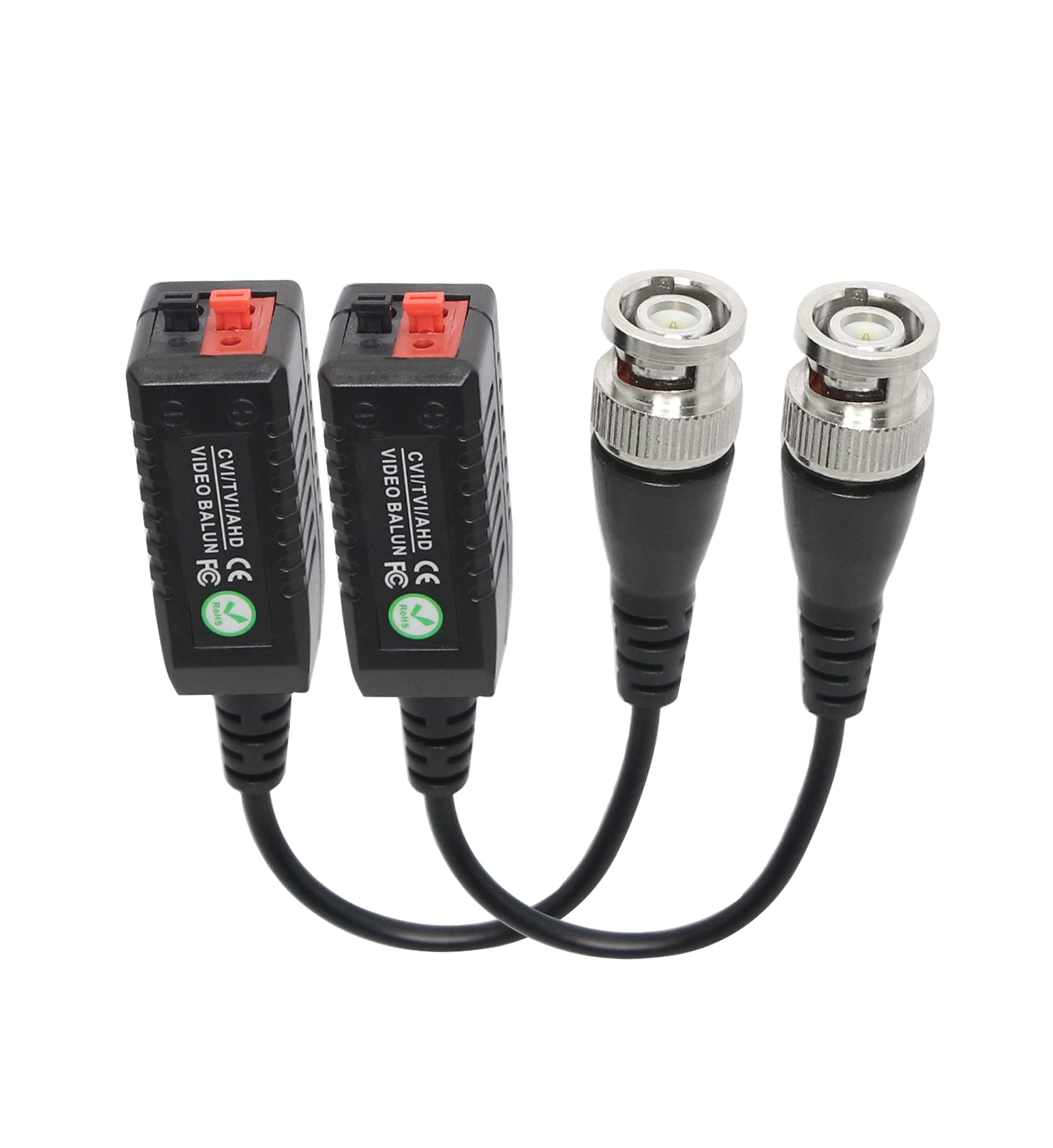

YACSEJAO Video Balun HD-CVI TVI AHD CVBS Passive Connector BNC Video Balun Transceiver Cable for 4K 1080P 960P 720P 8MP 6MP 5MP 4MP 3MP CCTV Security DVR Surveillance Camera System -1 Pair

• YACSEJAO Video balun transceiver can transmit PAL/NTSC/SECAM composite video signals with better Video transmission quality and long distance HD transmiter.
• Compatible Video Format CVI / TVI / AHD / CVBS for 4K / 1080P / 960P / 720P / 8MP / 5MP / 4MP /3MP CCTV、cameras、monitor、DVR card etc.
• Transmission distance: 720P / 960P / 1080P ≤ 400M, 3MP / 4MP / 5MP / 8MP ≤ 300M, AHD / CVI ≤ 400M, TVI / CVBS ≤ 300M.
• High-quality pure copper gold-plated contact core BNC, maintain the image and video transmission effect, and avoid occasional or unstable images caused by poor contact.
• Excellent protection against lightning, antistatic and anti-interference.

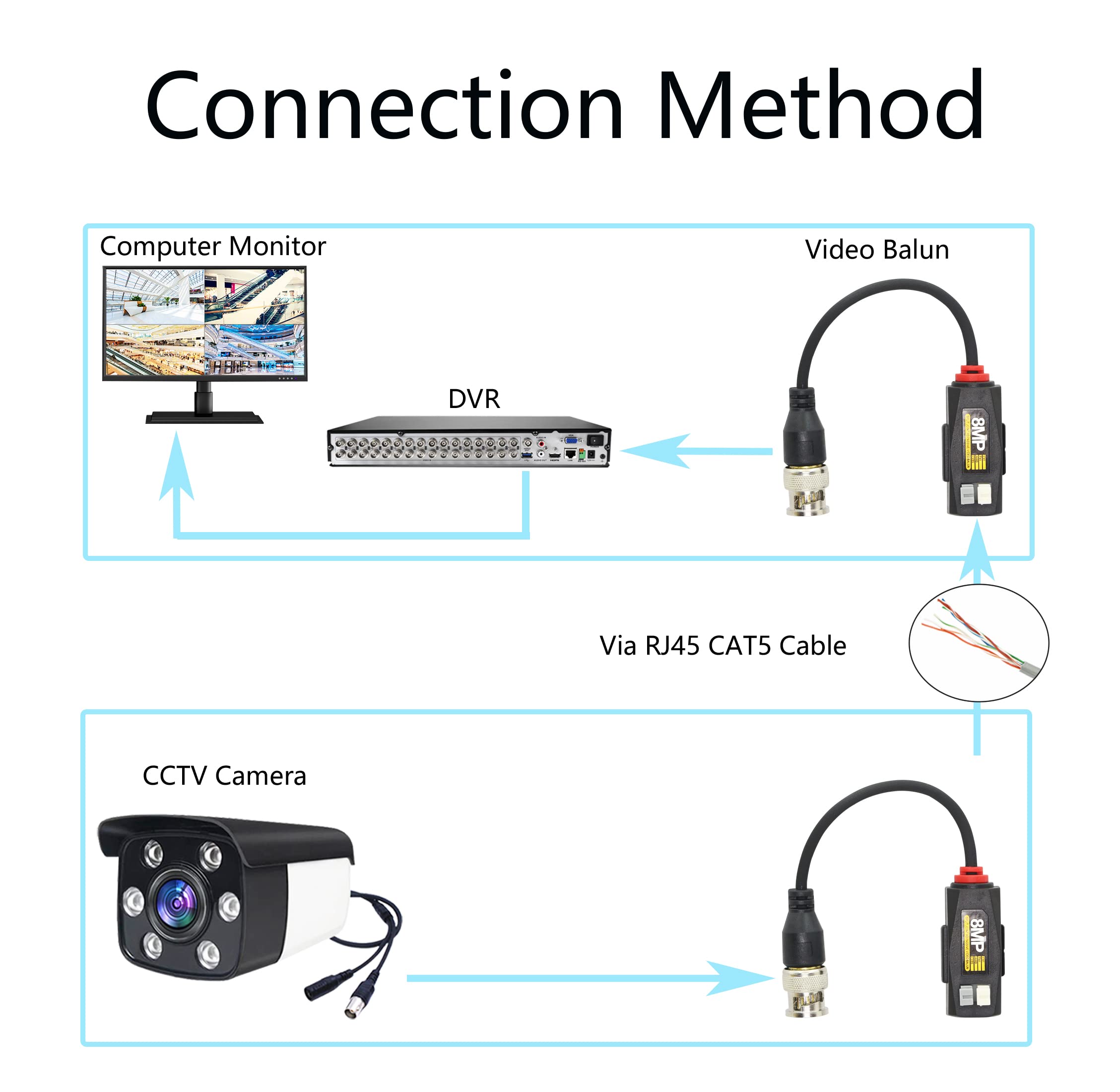

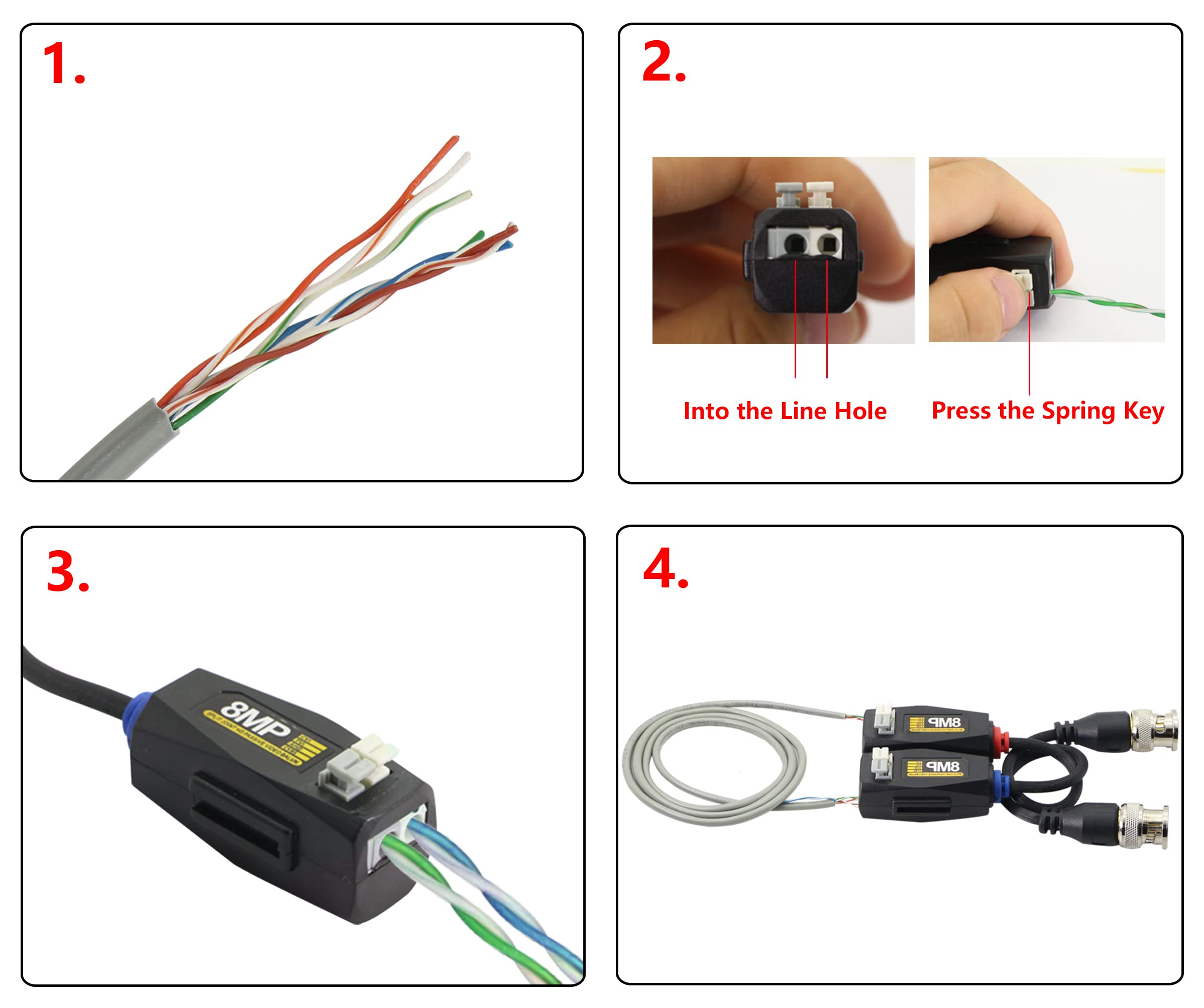

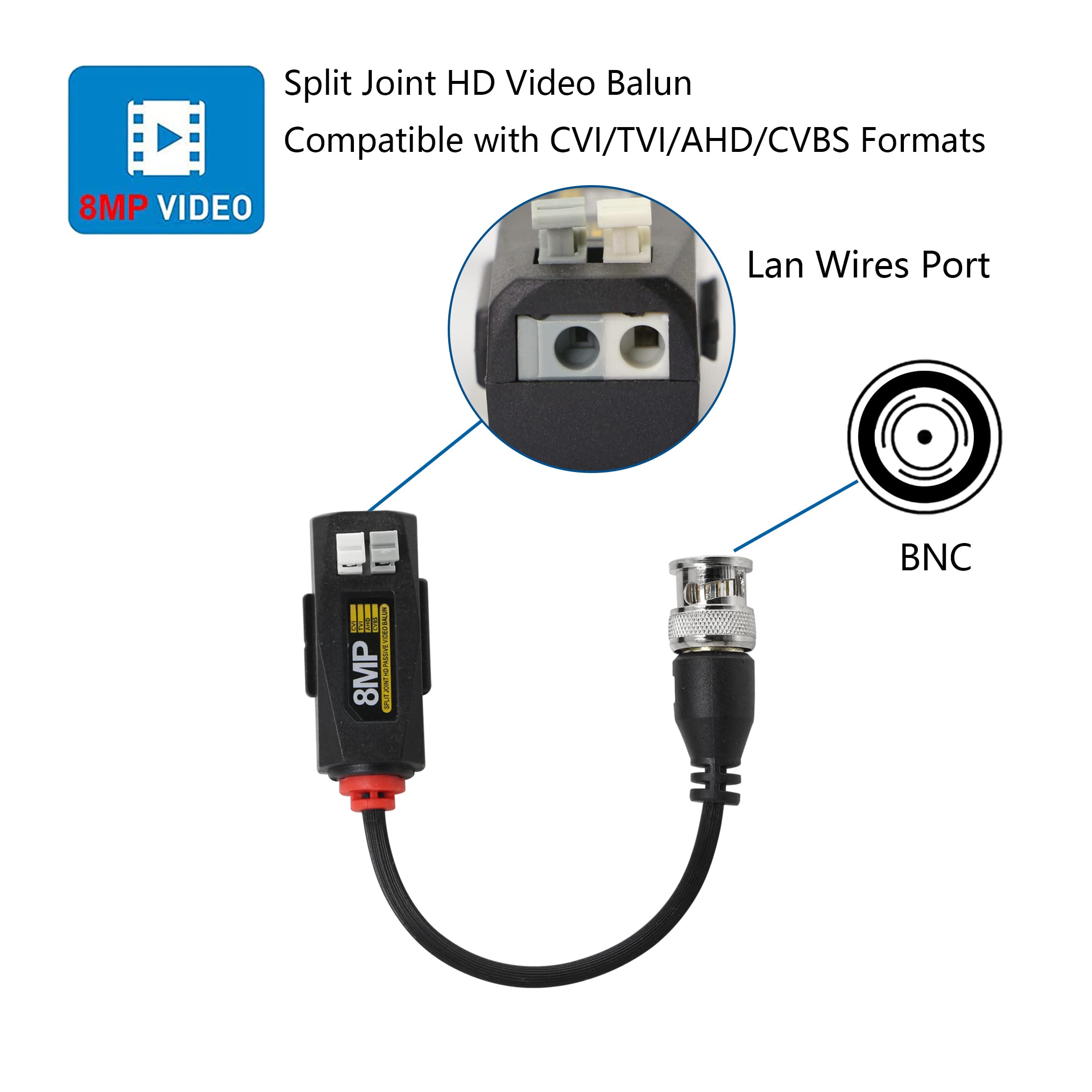

" Product name:Video Balun Transceiver Single channel split joint hd video balun Connectors:Male BNC and ""Press-Fit""terminal blocks The BNC Plug Material:Pure copper + Gold-plated contact core. Product Shell Material:ABS Color:Black This video transceiver is passive and allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair(UTP)telephone wire. Baseband (composite) signals of any type are supported. Features: Compatible with all HD-CVI,HD-TVI,HD-AHD,HD-CVBS. Video up to 400m for 720P CVI cameras. Video up to 300m for 1080P CVI cameras. Video up to 250m for 4MP/5MP CVI cameras. Video up to 200m for 6MP/4K CVI cameras. Video up to 200m for 720P/1080P TVI cameras. Video up to 180m for 3MP TVI cameras. Video up to 150m for 5MP/8MP TVI cameras. Video up to 400m for 720P/960P AHD cameras. Video up to 300m for 1080P/3MP AHD cameras. Video up to 250m for 4MP/5MP AHD cameras. NTSC,PAL,AND SECAM video formats. 60db crosstalk and noise immunity. Compact size and easy installation. Built-in solid state TVS(Transient Voltage Suppressor)for surge protection. Innovative combinabie design. Technical Specifications: 1.Surge protection:2KV. 2.Lightning protection design Grade:3. 3.Wave Filter Design.Anti-Statit Design. 4.Real-time transmission over UTP cat5e/6. INSTALLATION METHOD：-Easy to install,as the picture shows,You only need to follow the steps above to install the press terminals (without screws),Support a variety of stitching, can meet your different needs, more convenient and practical. Male BNC allows connection directly to the camera or DVR. ""Press-in"" terminal blocks make the connection more stable and not easy to loosen. Stackable for neat installtion. Package Dimensions:9.8 X 1 X 15.7 cm Weight：43g Package Contents：2 * Video Balun
