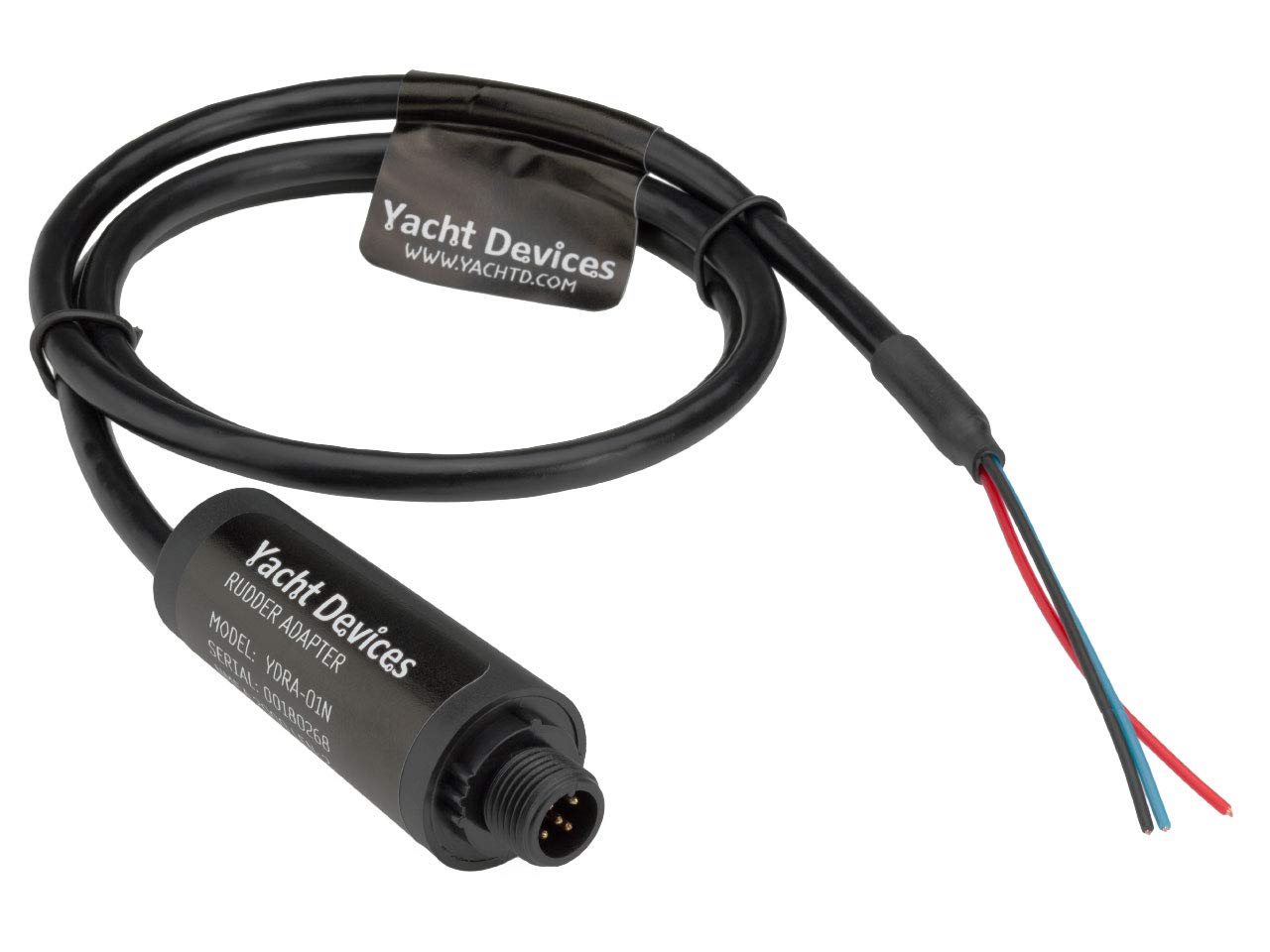

YachtD Yacht Devices Rudder Adapter for NMEA 2000 autopilots/displays (NMEA 2000 Micro Male)

• Rudder angle readings can be calibrated with up to 7 calibration points to compensate for the non-linearity of the sensor resistance value versus the rudder angle. The parasitic resistance of the sensor wires can also be compensated in the configuration of the device.

The NMEA 2000 YDRA-01 Rudder Angle Adapter allows you to connect a resistive type rudder angle sensor installed on a rudder and supply autopilots, plotters and other NMEA 2000 devices with the rudder angle. The device can be used with a rudder angle sensor with a maximum resistance less than 400 ohms, including standard European (range 10 to 180 ohms) or American (range from 240 to 33 ohms), and with 0-5V voltage output sensors.
