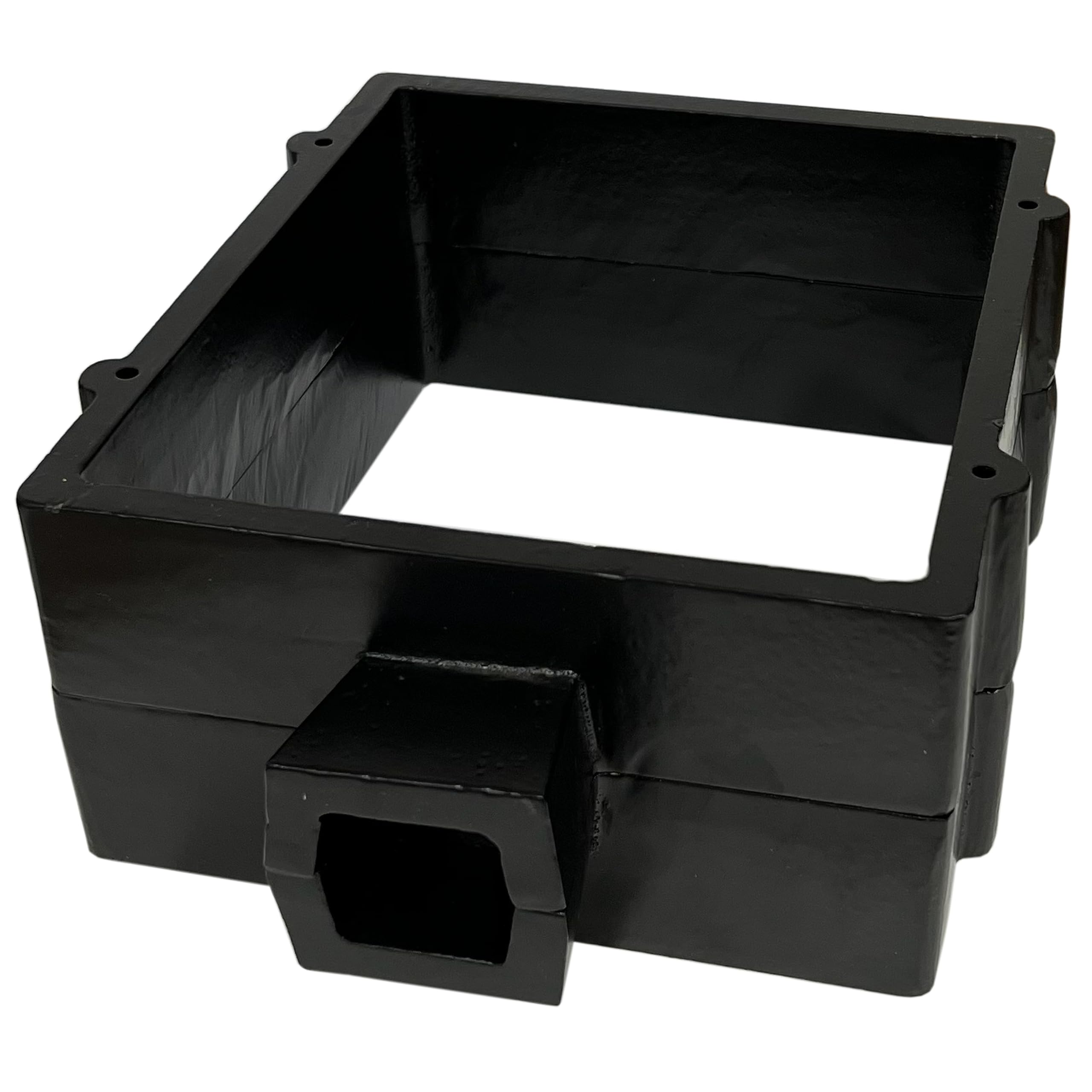

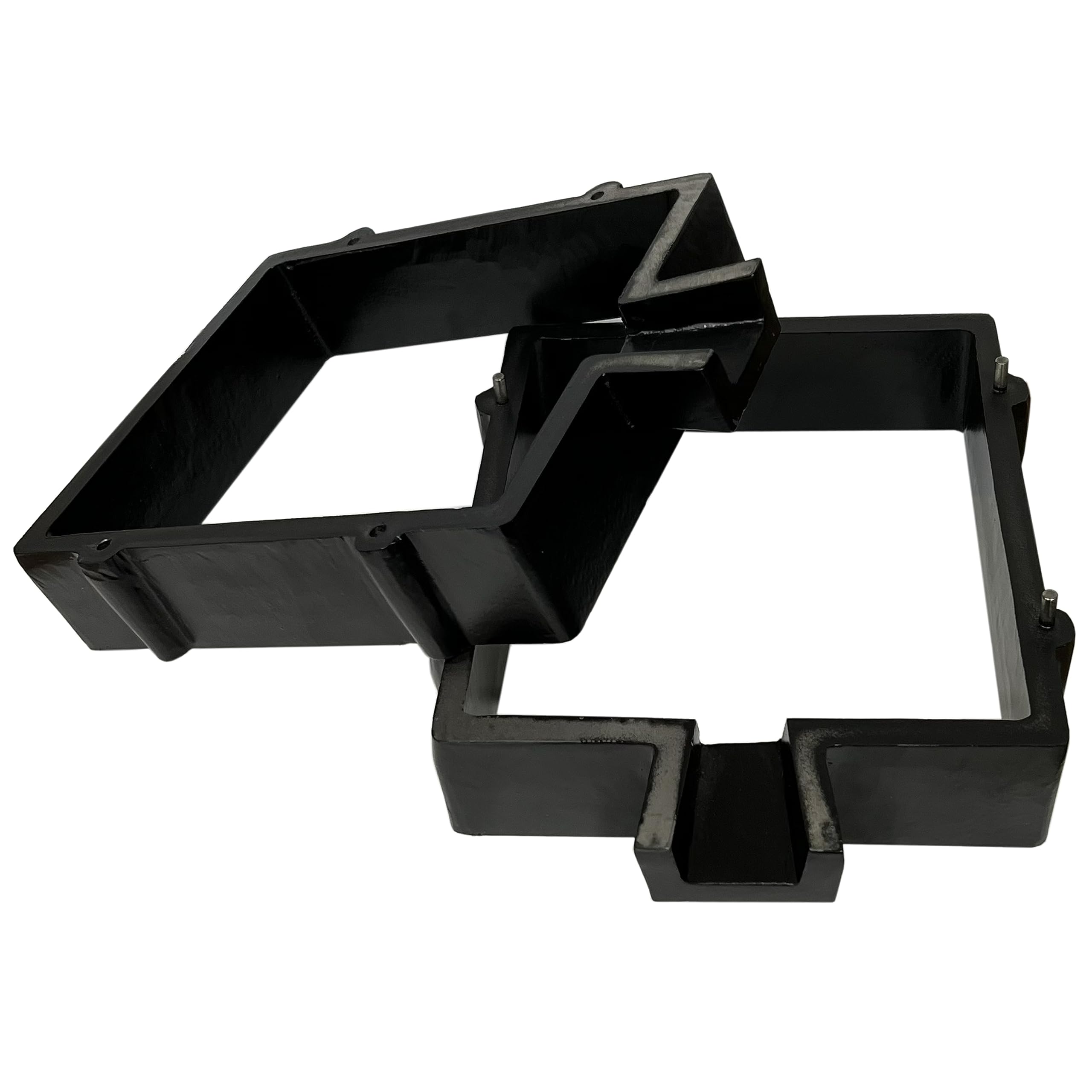

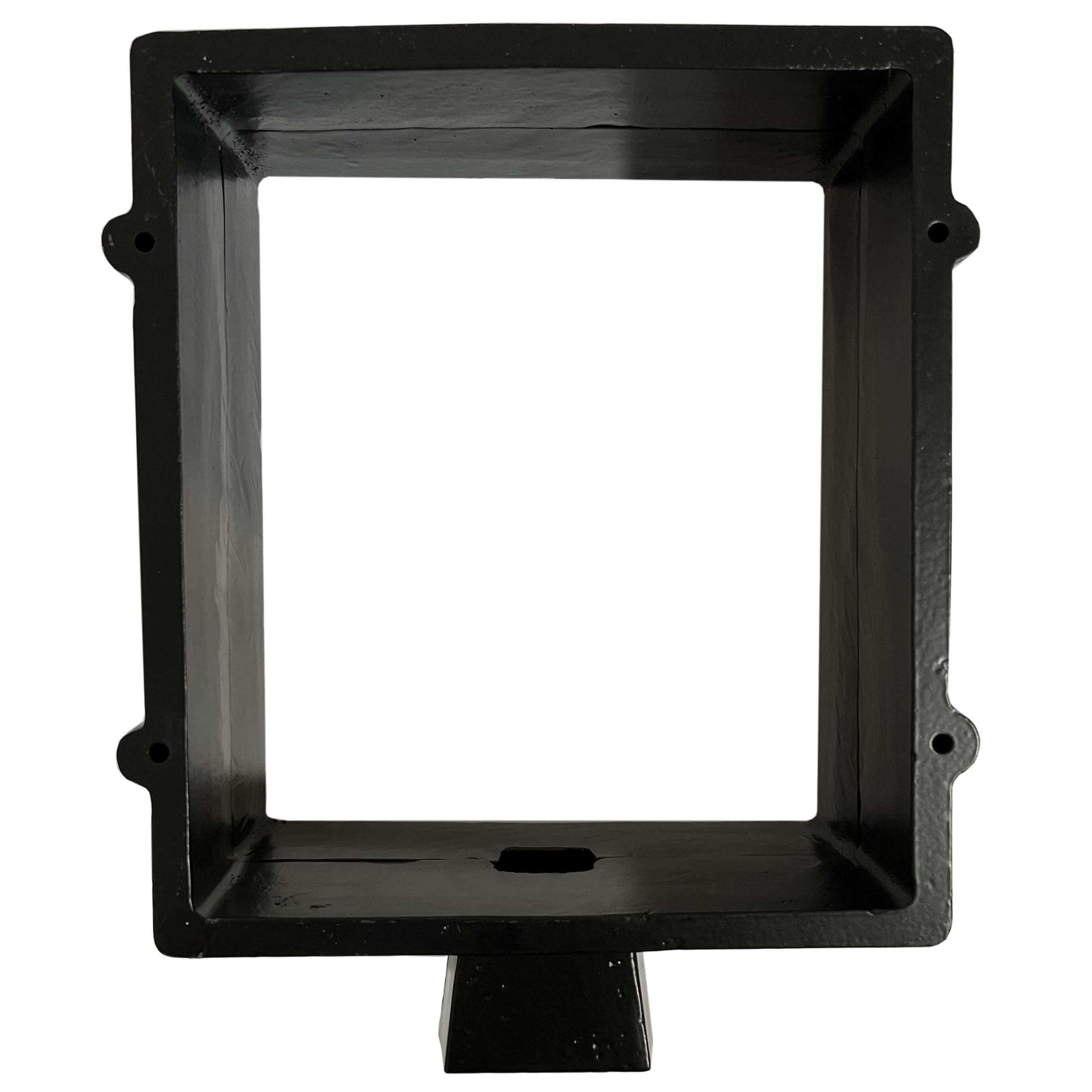

XXL Sand Casting 4 Pin All Types Traditional Sand Casting Flask Jewellers Tools

• Excellent Quality New Sand Casting Mould
• Traditional Jewellers Metal Casting Flask/Moulding box quality and robustly made from cast iron, with no movement around the pins.
• Traditional sand casting flask Vertical & horizontal filling
• Held securely by four locating pins
• Internal 203 x 175 x 100mm - External 214 x 195 x 100mm
• Pouring Spout - 38mm
• Weight 6.8kg

Excellent Quality New Sand Casting Mould Traditional Jewellers Metal Casting Flask/Moulding box quality and robustly made from cast iron, with no movement around the pins. Traditional sand casting flask Vertical & horizontal filling Held securely by four locating pins Internal 203 x 175 x 100mm - External 214 x 195 x 100mm Pouring Spout - 38mm Weight 6.8kg Moulding boxes hold the sand when a mould is being made. Accurate positioning of the cope top box onto the drag bottom box is possible alignment pins. Our moulding boxes are precision made to exact tolerances. Moulding box pins should be regularly lubricated with graphite and should never be hit with hammers or mallets as this will misalign them. When Knocking out the moulding boxes the boxes themselves and pins should not be hit as this can knock them out of square and damage the mating faces. Box faces are ground level and parallel. The above sizes are nominal. These are also ideal for those interested in Delft clay casting and allow larger pieces to be cast.
