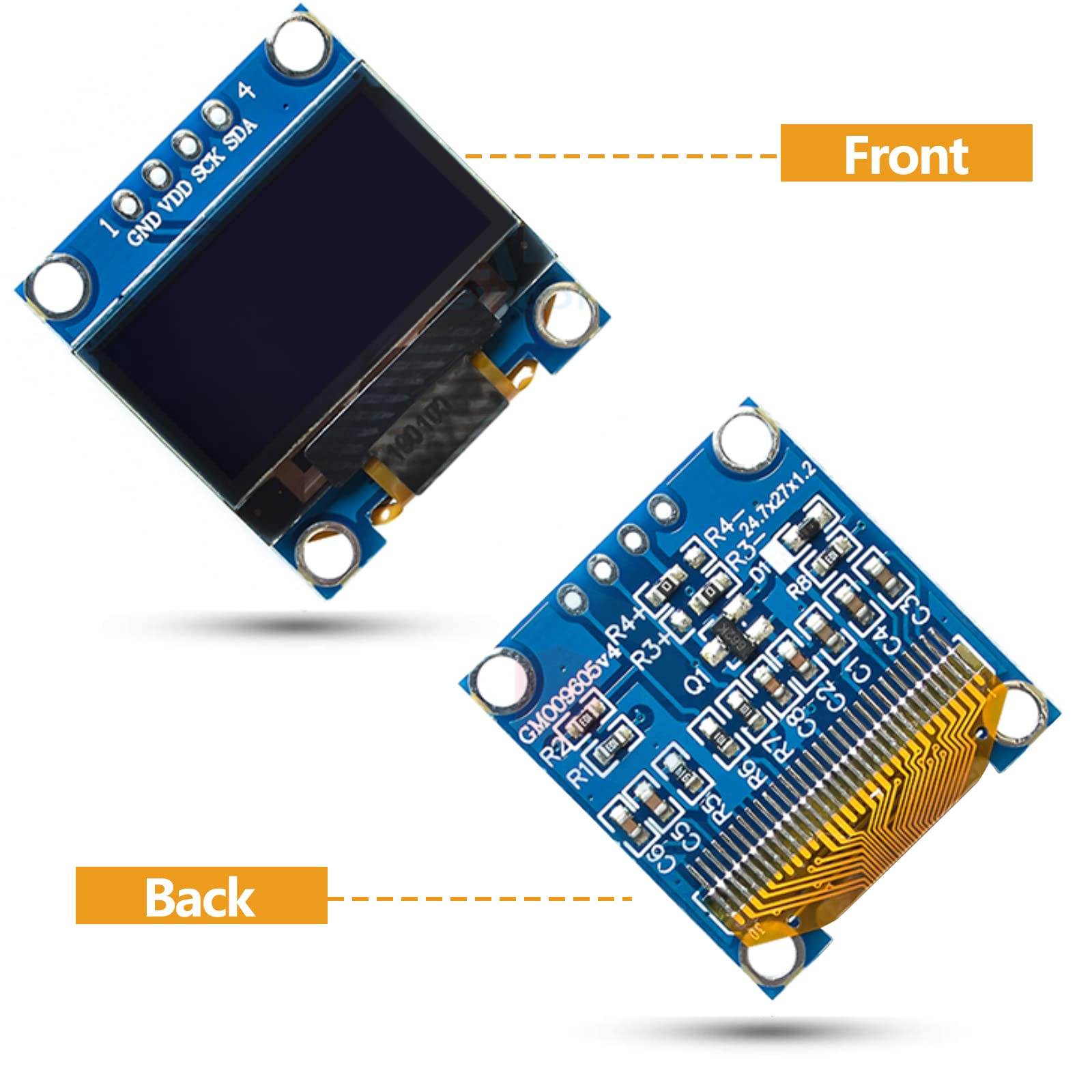

XTVTX 3PCS 0.96 Inch OLED Module 12864 128x64 Driver IIC I2C Serial Self-Luminous Display Board Compatible with Arduino PI (Blue and Yellow)

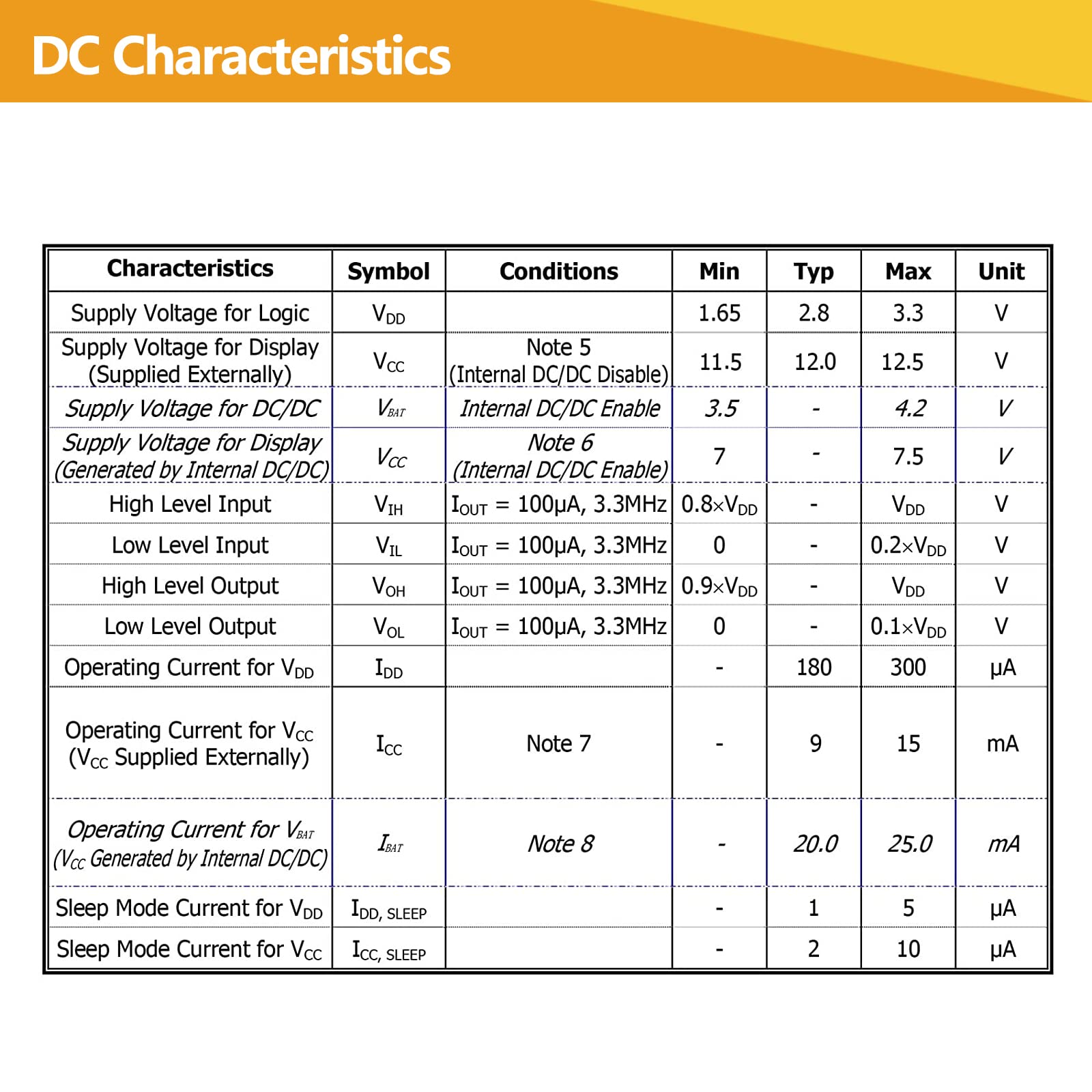

• Resolution: 128 x 64; Viewing angle: greater than 160 degrees; Support voltage: 3.3V-5V DC; Power consumption: normal working 0.04W, full screen light up 0.08W

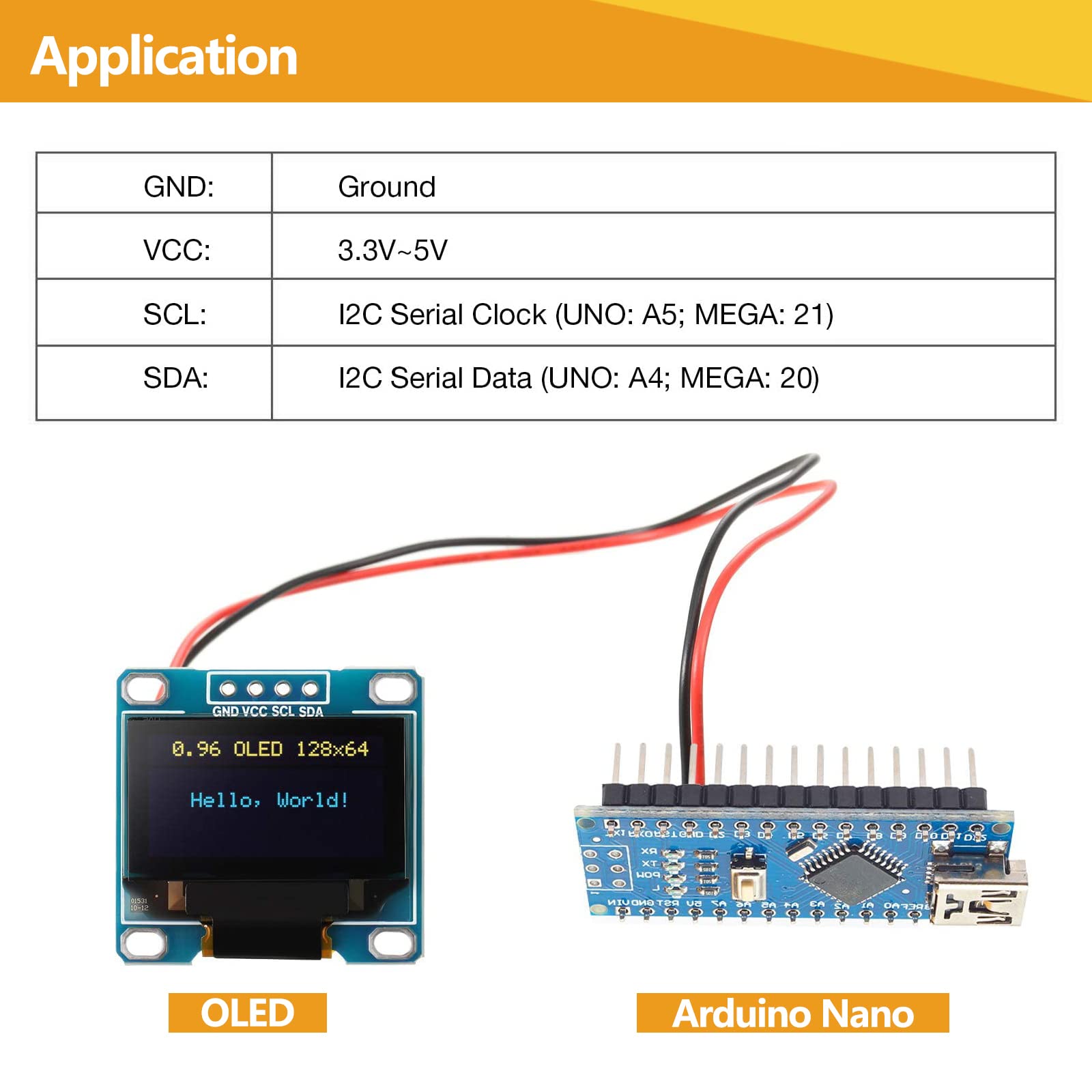

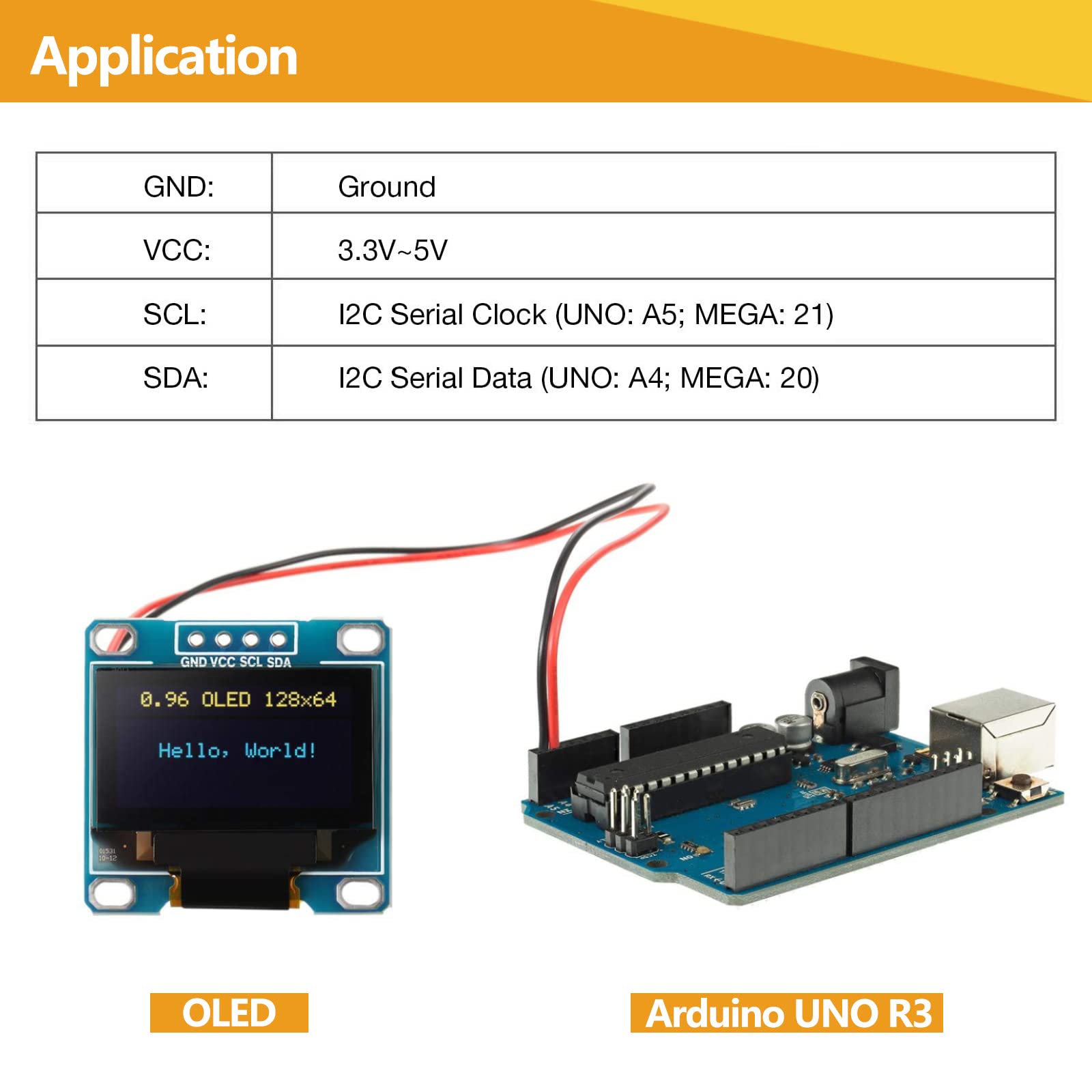

• Application: 0.96 inch OLED module, used to display graphics and text information directly on your microcontroller project; Support a variety of chips: compatible with Arduino Mega, pi, 51 MCU, STIM 32, etc.
• Self-illumination: No backlight is required, and the display can self-illuminate; it has high contrast, bright and clear dots, even small fonts are easy to read

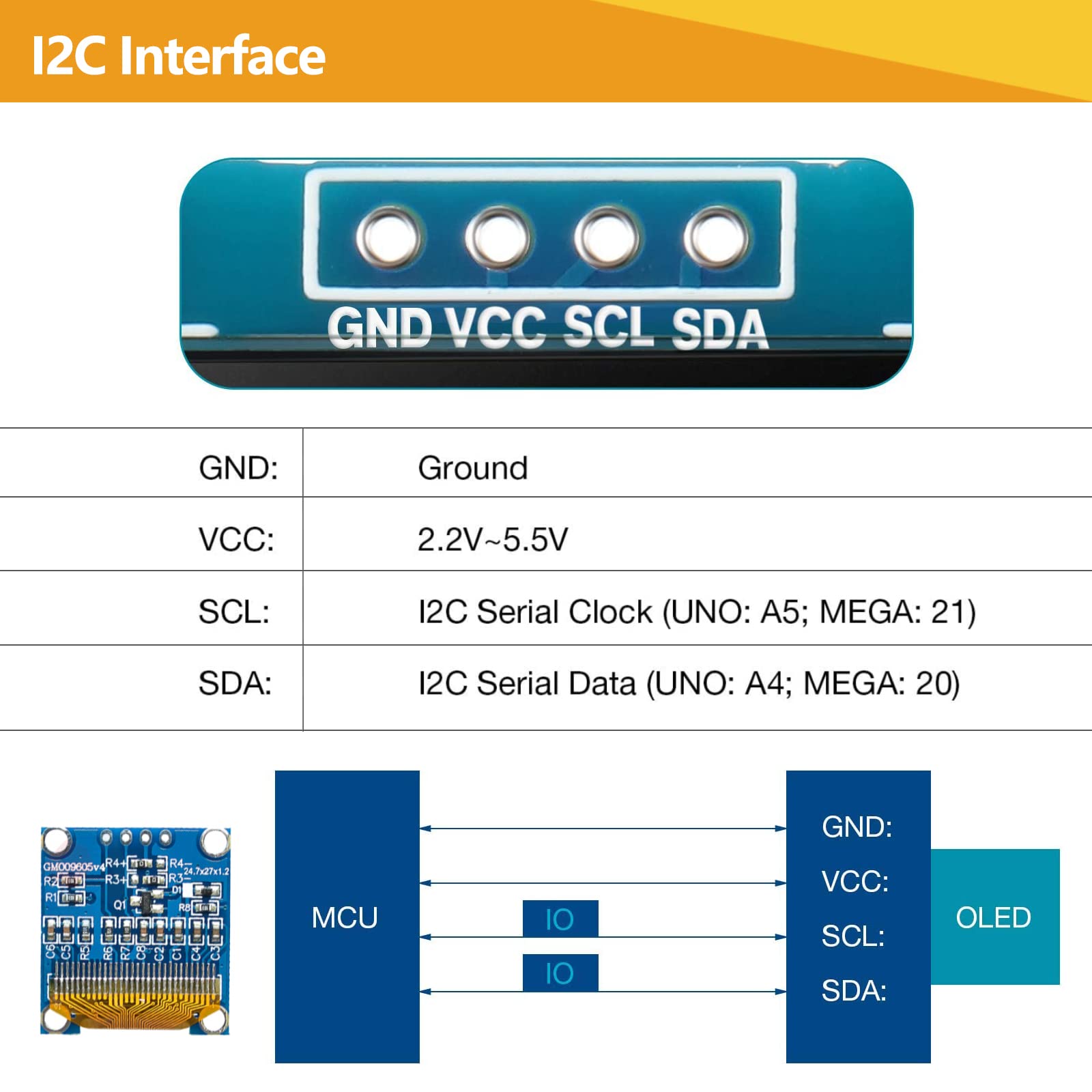

• Embedded driver IC: Communication: I2C/IIC interface, only 2 I/O ports are required; Compatible with MMDVM, Pi-Star, and compatible with Pi
• About fonts: There are no fonts embedded in the OLED controller, users can create fonts through font generation software

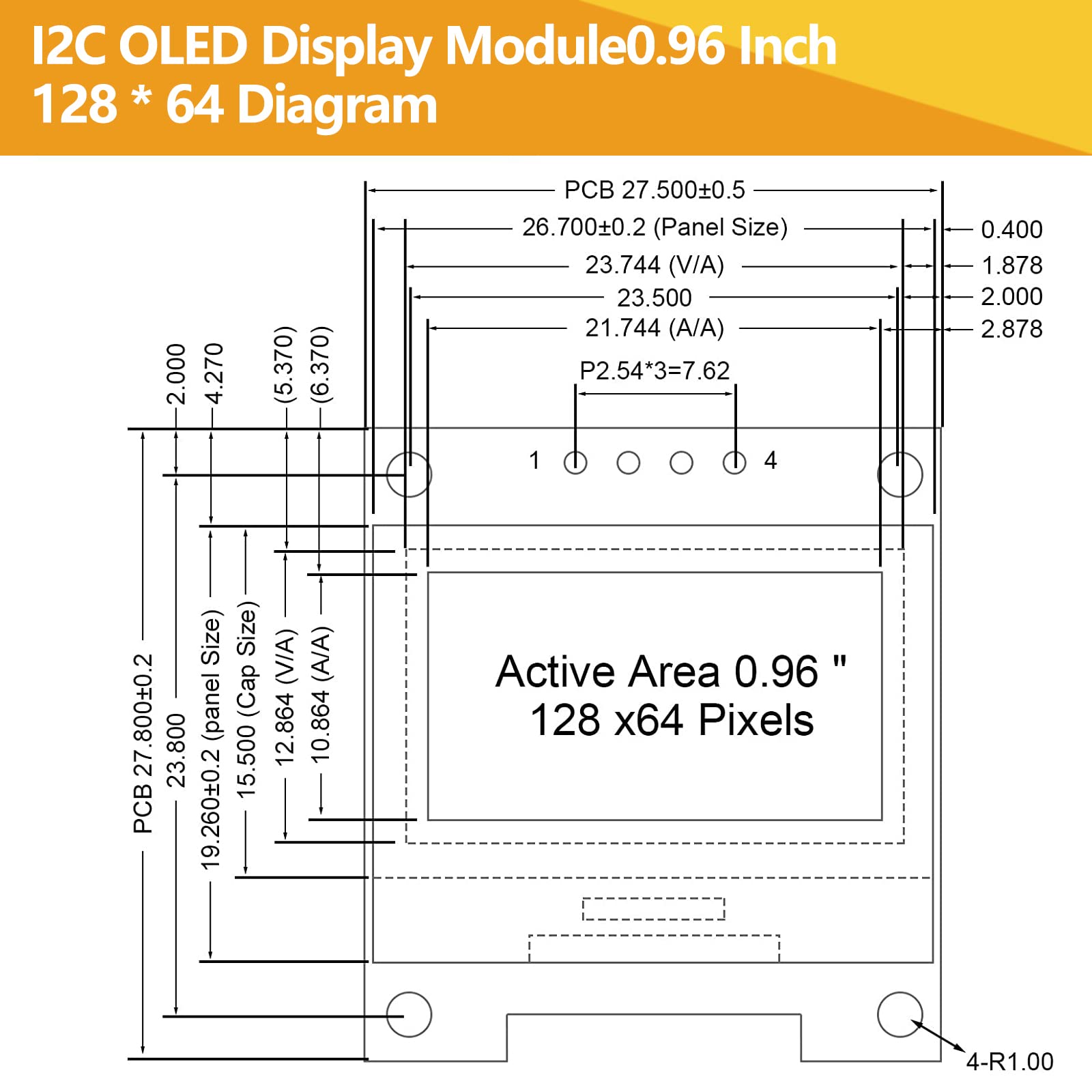

Features: OLED self-luminous, no backlight Size: 0.96'' Voltage: 3.3V-5V DC Viewing angle: > 160° High resolution: 128 x 64 Working Temperature: -30°C~70°C Display: 2 rows of yellow, 6 rows of blue Module Size: 27mmx 27mm x 4mm Screen material: glass, need good protection I2C Interface: GND: Ground VCC: 3.3V~5V SCL: I2C Serial Clock (UNO: A5; MEGA: 21) SDA: I2C Serial Data (UNO: A4; MEGA: 20) Applications: MP3, MP4, watch Head-mounted displays Meters and other intelligent instruments Design any pretty patterns for your beloved electronic devices! Package include: 3 * 0.96 Inch 128X64 Yellow Blue OLED Display Module
