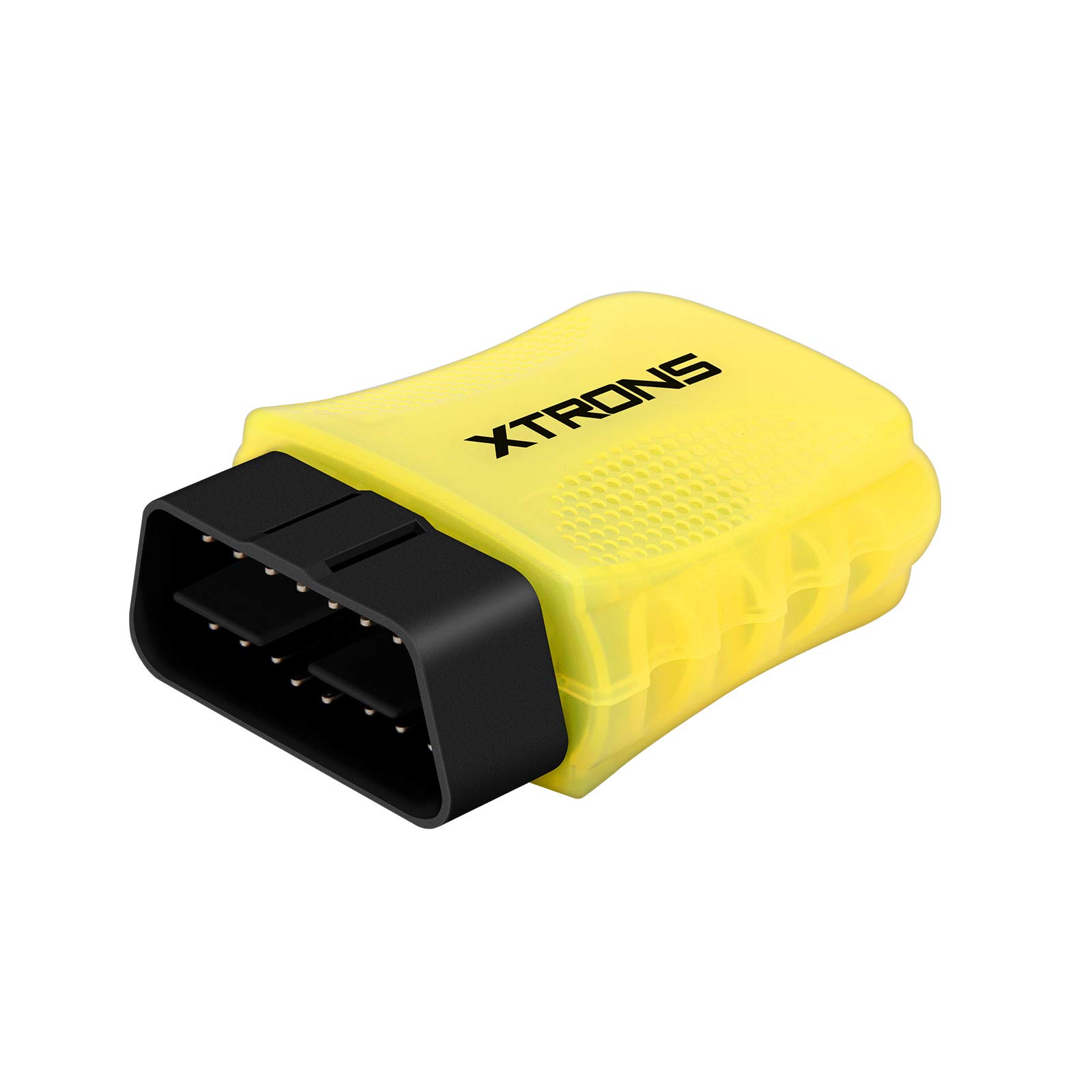

XTRONS Car Auto Diagnostic Scanner ODB2 II Tool Wi-Fi connection Adapter for XTRONS Android head units and iOS & Android Devices

• Compatible with XTRONS Android head units and iOS & Android Devices – Turn your smart phone or Android head unit into a sophisticated diagnostic scan tool and real-time monitor with a third-party OBD2 App.
• Diagnose And Monitor – With the proper app, you can read and clear check engine light trouble codes, reset check engine light, view real-time sensor readings, create customized dashboard and estimate fuel economy.

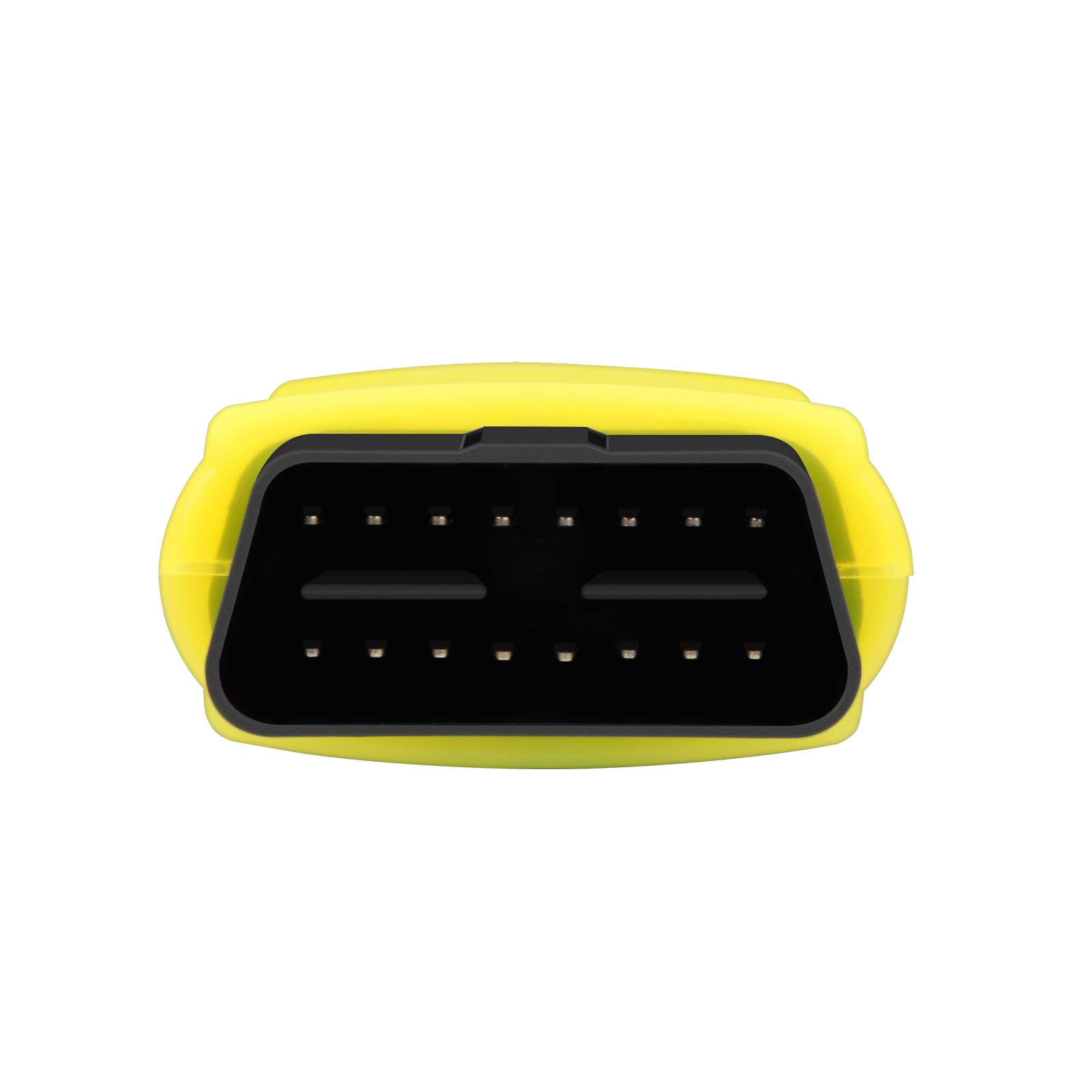

• Universal Vehicle Compatibility – Works with OBD II compliant cars, it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
• Better Connection Compatibility – No complex settings or incompatible Bluetooth module, It uses Wi-Fi and you can have other devices like Bluetooth speakers keep working.
• Various Apps Available - A third party App is required. Supports Auto Doctor, OBD Car Doctor, Car Scanner, Auto Doctor etc for iOS and Torque, Mini OBDII for Android. (some of them may require separate purchase)

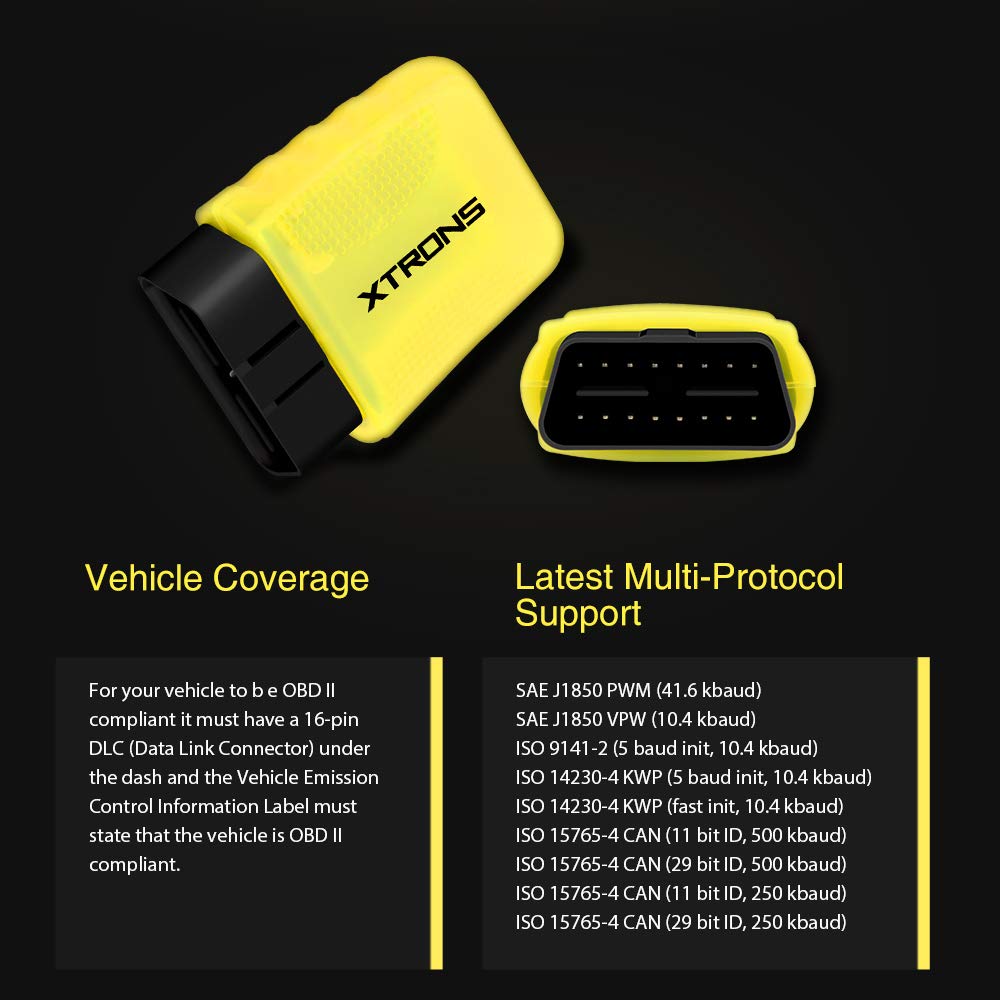

Latest Multi-Protocol Support: SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) Vehicle Coverage: For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant. With the appropriate apps (like: Torque, DashCommand, OBD Car Doctor), perform the following operations: Read diagnostic trouble codes, both generic and manufacturer-specific, and display code descriptions with over 3000 universal code definitions in the database Clear trouble codes and check engine lights Display real-time sensor data, including: Engine RPM Coolant Temperature Calculated Load Value Fuel System Status MPH Speed Short Term Fuel Trim Long Term Fuel Trim Intake Manifold Pressure Timing Advance Intake Air Temperature Air Flow Rate Absolute Throttle Position Oxygen Sensor Voltages/Associated Short Term Fuel Trims Fuel System Status Fuel Pressure Package includes 1 x OBD scan tool
