XOLORspace 43420A HDMI 2.1 8K HDR HDMI True Matrix Switch 4x2 Supports 4k 120hz and Dolby Vision with Optical and L/R Audio Extractor and ARC

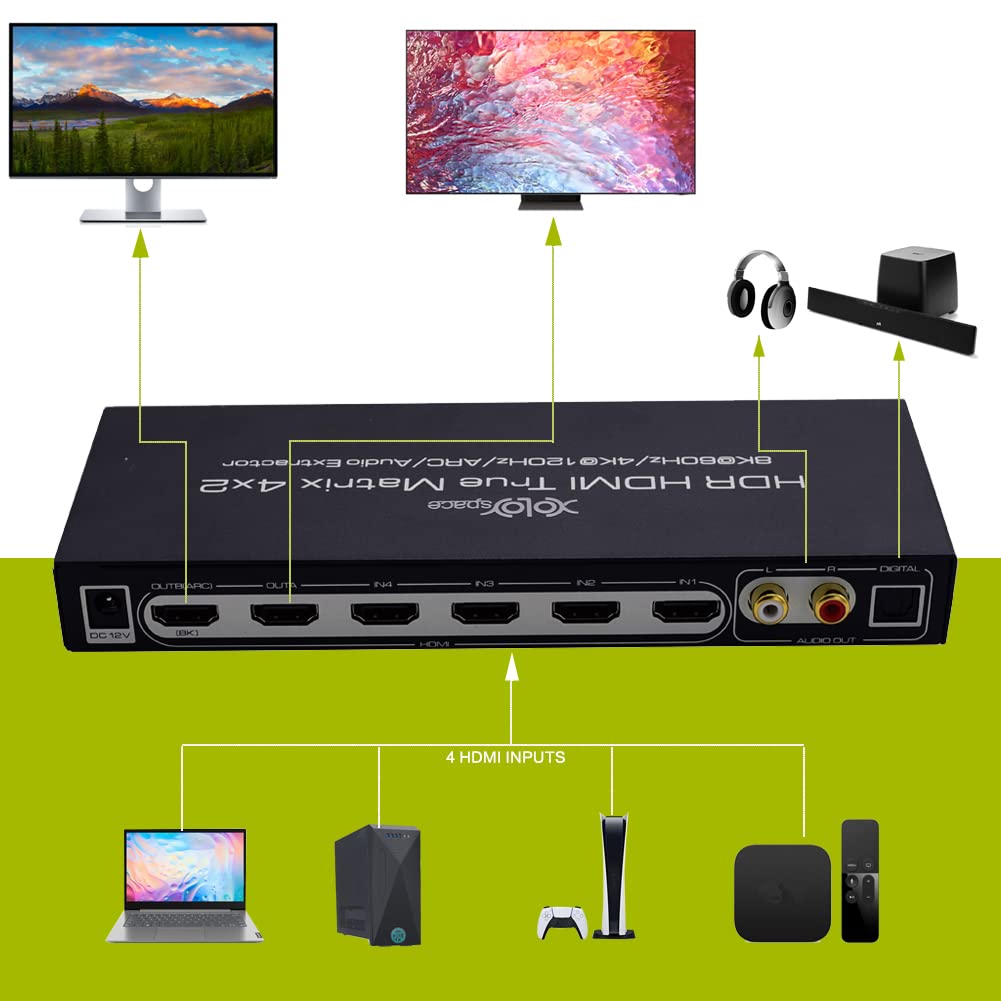

• 8K HDR HDMI True Matrix switcher switching any one of the four HDMI inputs to either one of the two outputs easily by remote control or buttons on the product panel
• Supports HDMI 2.1 version, resolution up to 4k 120HZ and supports Dolby vision & HDR. Compatible with lower HDMI version also
• With audio extractor. Extract audio from HDMI outputs and output to optical audio and L/R audio
• Supports ARC (not eARC). Return TV’s audio to optical audio port where the TV’s HDMI ports is ARC enabled (NOT SUPPORT CEC)
• Use premium 8K HDMI cables only, and if you do not get the perfect quality, please use shorter cables
• Supports audio independent EDID: choices for 5.1ch, 2.1ch and pass

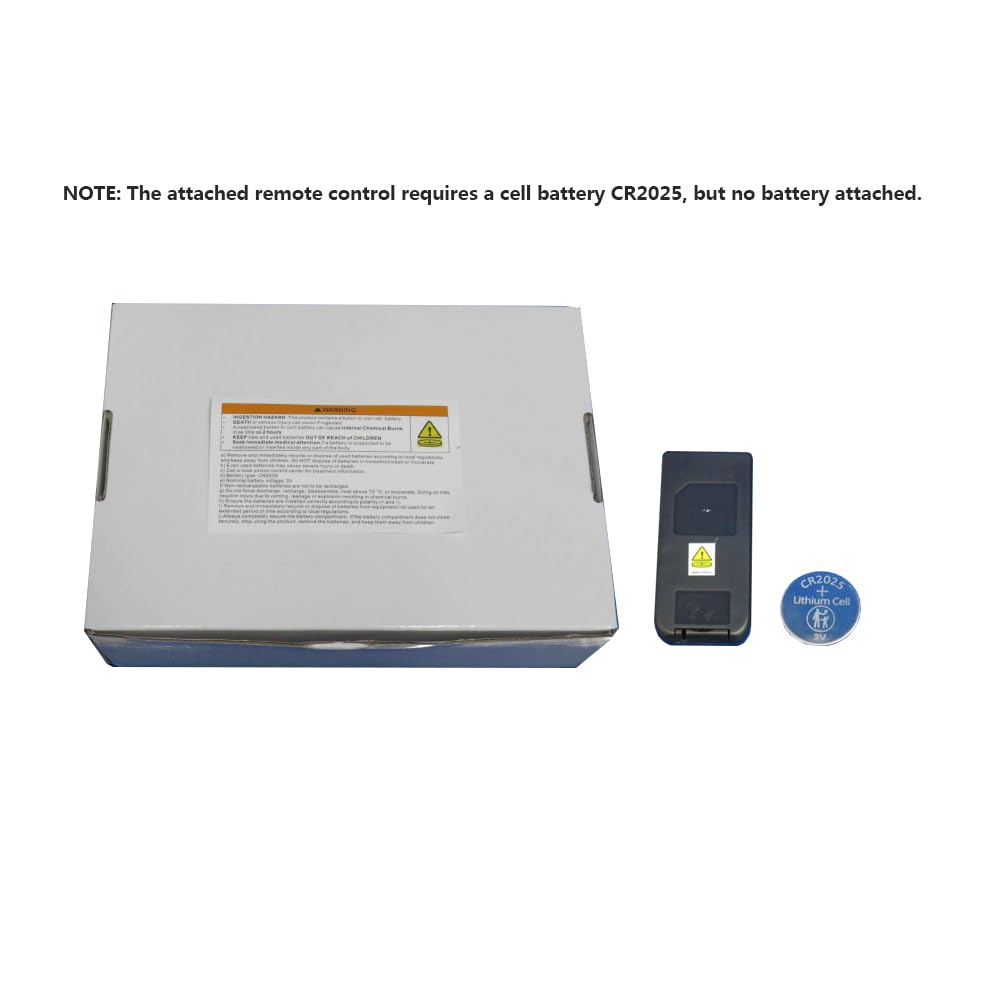

True 4x2 matrix: switch any of 4 HDMI 2.1 inputs to 2 HDMI 2.1 outputs easily Interface: HDMI inputs x4, HDMI outputs x2, L/R audio x 1, Optical audio x 1 Video format 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz; Up to 4320P@50/60Hz, Support HDR/Dolby Vision Deep color: 8/10/12/16Bit@2160P 8/10bit@4320P Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc. Supports ARC: return TV's audio to optical port With audio extractor Supports audio EDID: choices for 5.1ch, 2.1ch and pass Supports HDMI 1.4V downscaler, compatible with HDMI 1.4V devices Transmission bandwidth: 1200MHz Max. Transmission rate: 48Gbps Max. IR distanc: within 5m Input cable length 2160P/AWG 26 no more than 5m; 1080P/AWG 26 no more than 10m Output cable length 2160P/AWG 26 no more than 5m；1080P/AWG 26 no more than 12m Power adapter specification Input: AC 100~240V Output: DC 12V/1.5A Max working current: 500mA Size: 250x75x30 (mm) Weight: 440g Accessories: Manual, Remote, Power Adaptor
