2PCS DC 3-5V MAX6675 Themocouple Module Mini Board and 2PCS K Type Themocouple Temperature Sensor With Cable Cord

• SUPER MATERIAL: Made of high quality use electronic components, high structural strength, impact resistance, strong shock resistance. On-chip cold junction compensation. High-impedance differential inputs. Thermocouple break detection, excellent electrical conductivity, safe and reliable, long mechanical life.

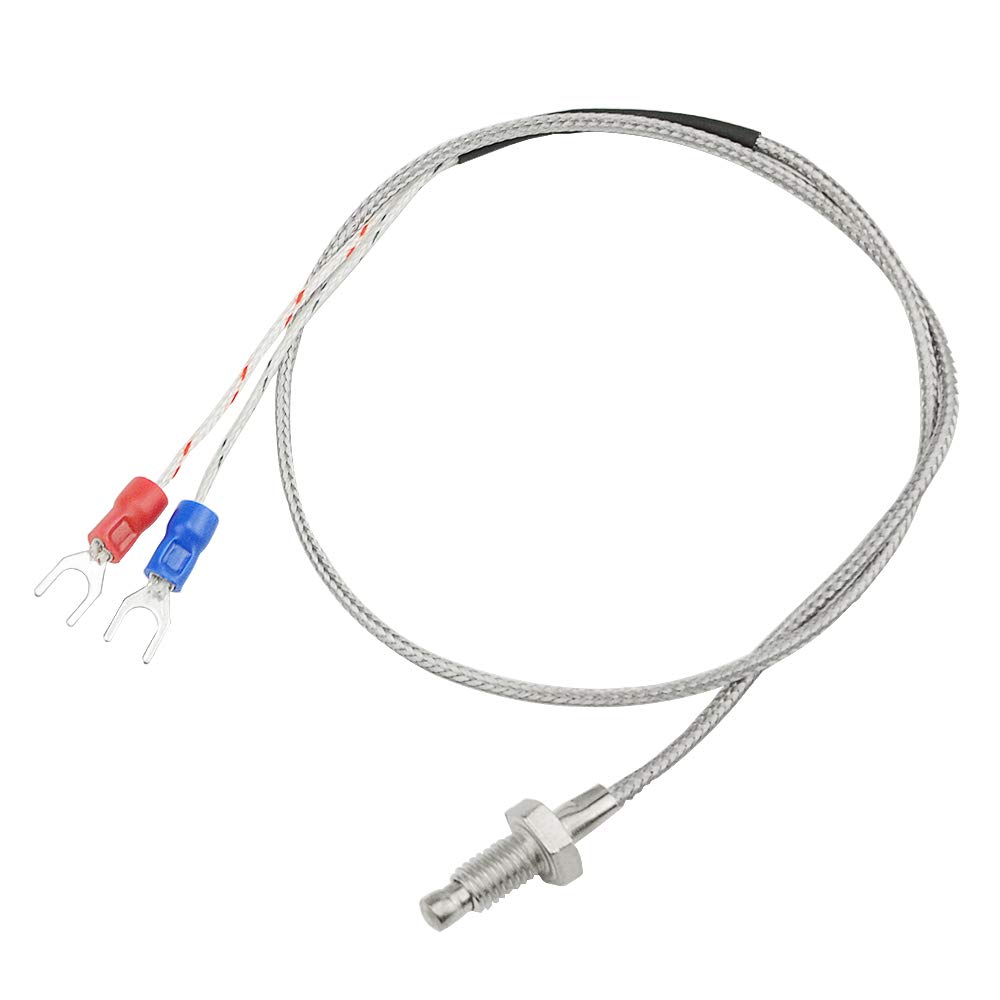

• PACKAGE INCUDIGN: Include 2pcs MAX6675 Module, 2pcs K Type Themocouple temperature sensor, and cable thread.
• Operating Voltage Range and Temperature Range: Operating voltage Range: 3.0~5.5V. Operating Current: 50mA. Operating Temperature Range: ̈20Degrees Celsius - 85Degrees Celsius
• HIGH QUALITY: Super wear-resistant, anti-oxidation and corrosion resistance, reliable operation and low power consumption. No electromagnetic interference, strong anti-interference, strong compatibility.
• A WIDE RANGE OF APPLICATION: Widely used in especially for single-chip computer enthusiasts, students, scientific research units experiment, prototype development, room temperature measurement, car modification, car air conditioners, refrigerators, freezers, and low temperature drying box and other proposed, silos, storage tank, telecommunications room, power room, such as cable trough temperature bearing, cylinder, textile machinery, air conditioning, and so on

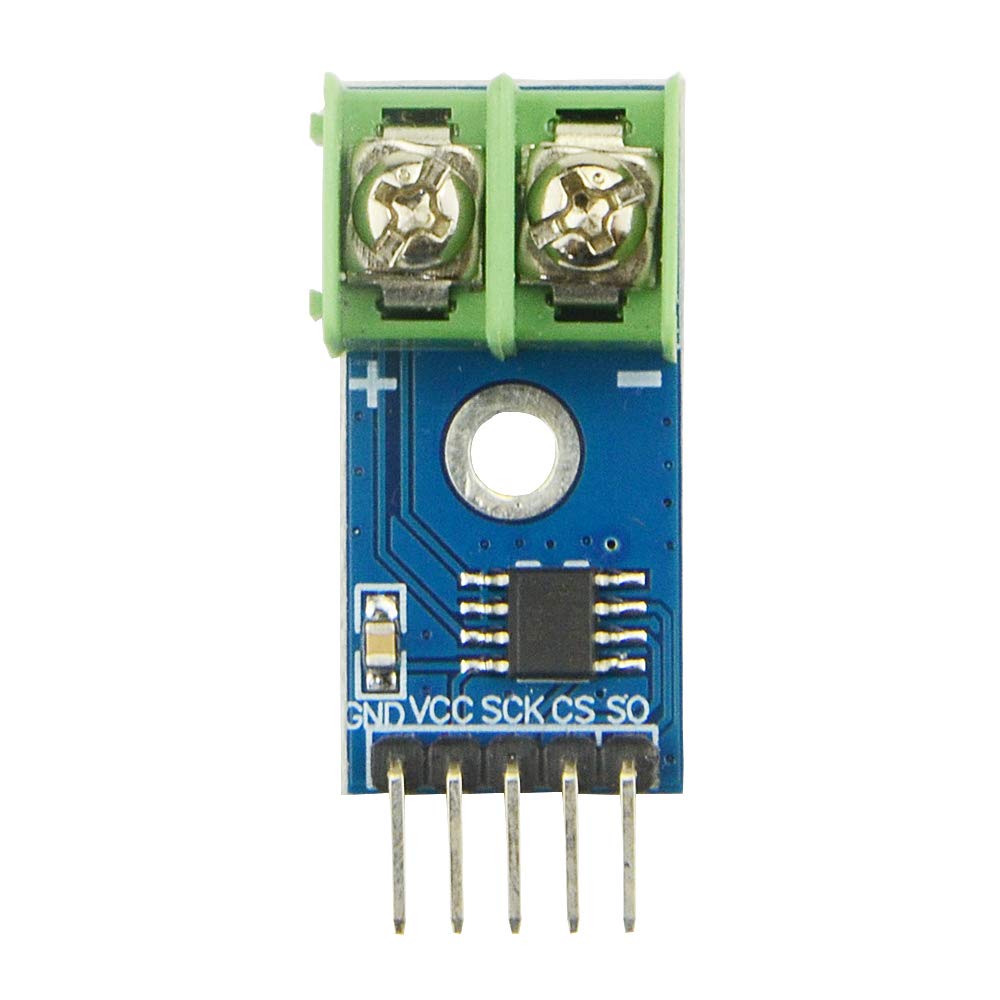

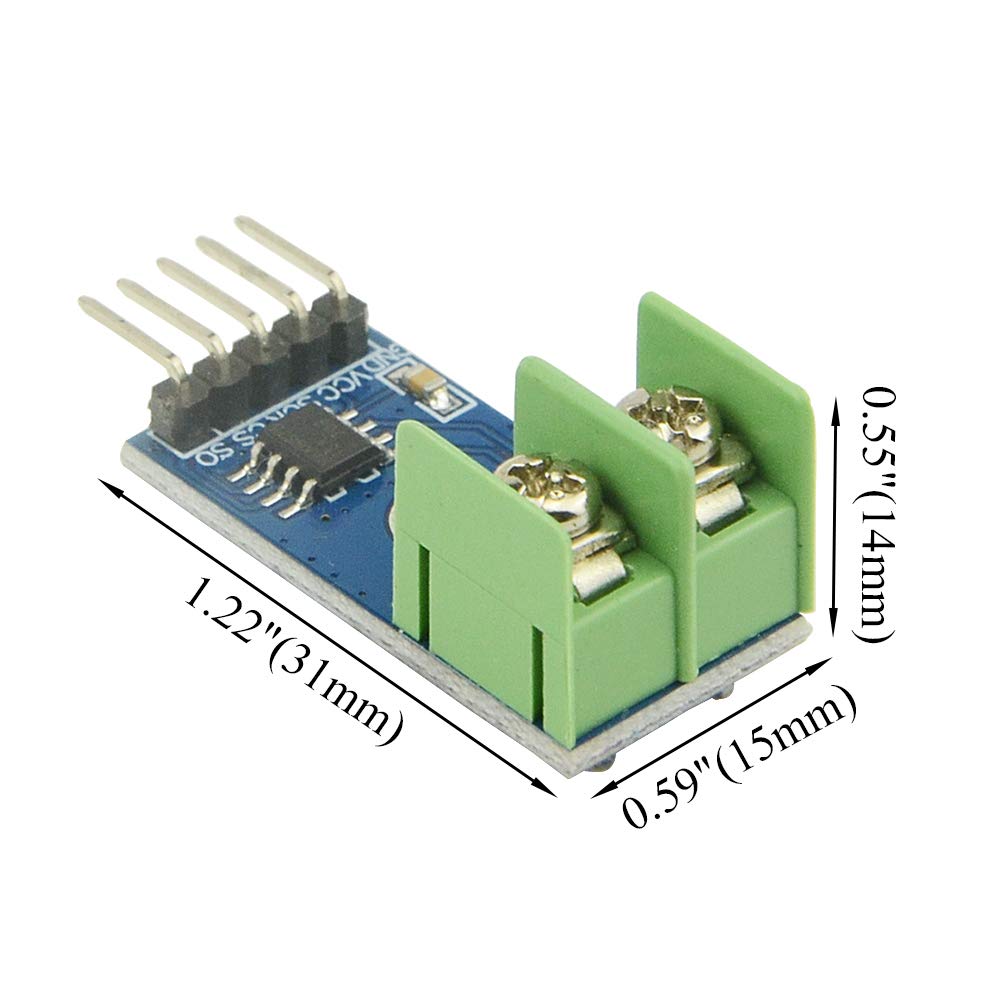

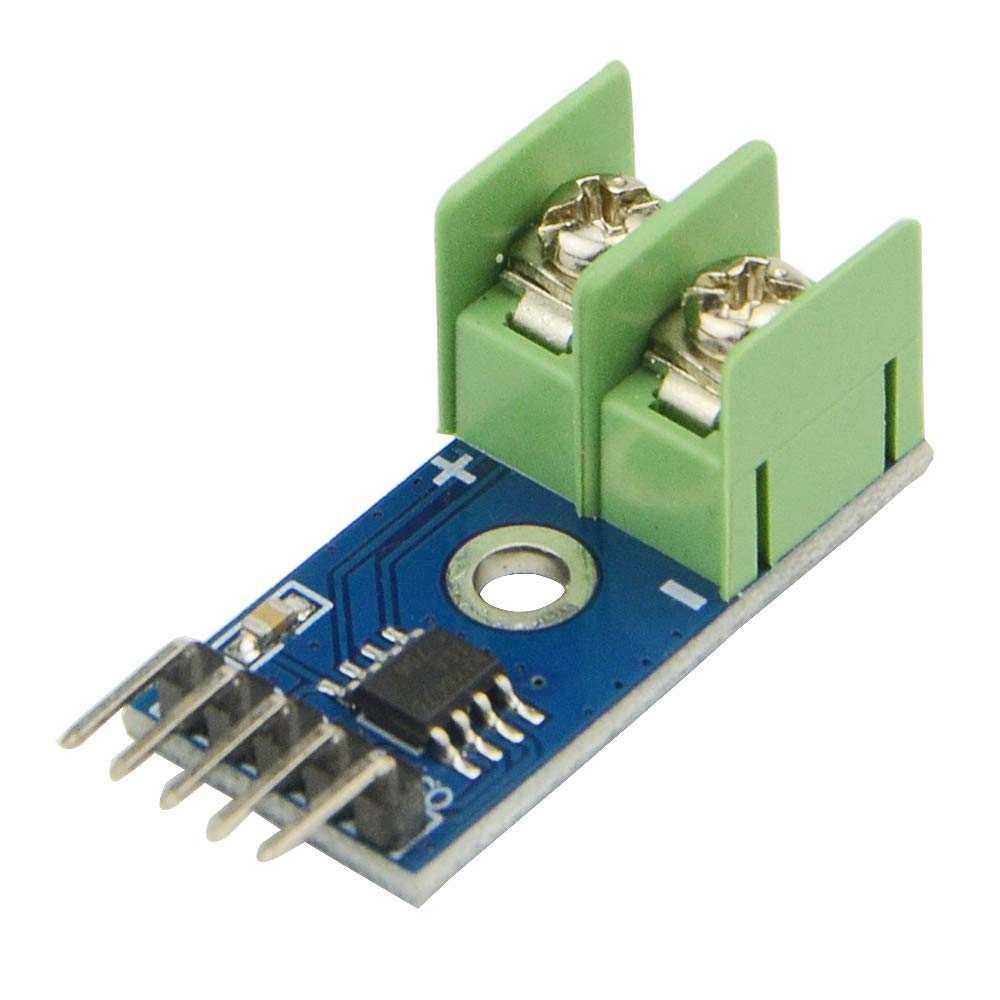

About us: The MAX667 module features a 12-bit resolution serial thermocouple analog-to-digital converter with cold junction compensation, linearity correction, and thermocouple break detection. The main features of the MAX6675 are as follows 1. Simple SPI serial port temperature value output. 2. The temperature range from 0 °C to 1024 °C, the converter temperature resolution is 0.25 °C. 3. On-chip cold junction compensation. 4. High impedance differential input. 5, Thermocouple disconnection detection. 6, The working voltage range is 3. 0 ~ 5. 5V, working current 50mA. 8. Operating temperature range is -20 °C ~ 85 °C. 9, 2000V ESD signal. Module Interface: GND VCC SCK CS SO Supply voltage: 3~5V DC Module size: 30mm*15mm(Length*Wide) Package including: 2 * MAX6675 Module 2 * K Type Thermocouple Sensor 2 * Cable Line
