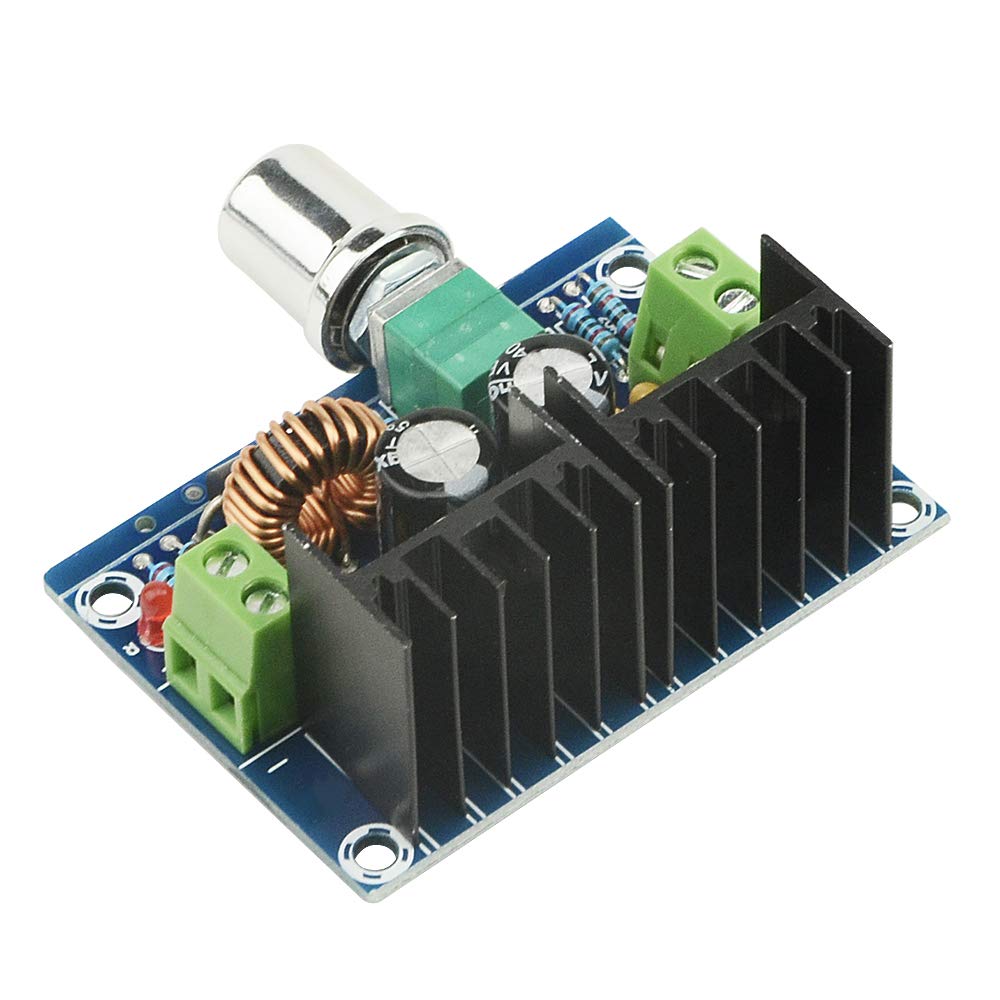

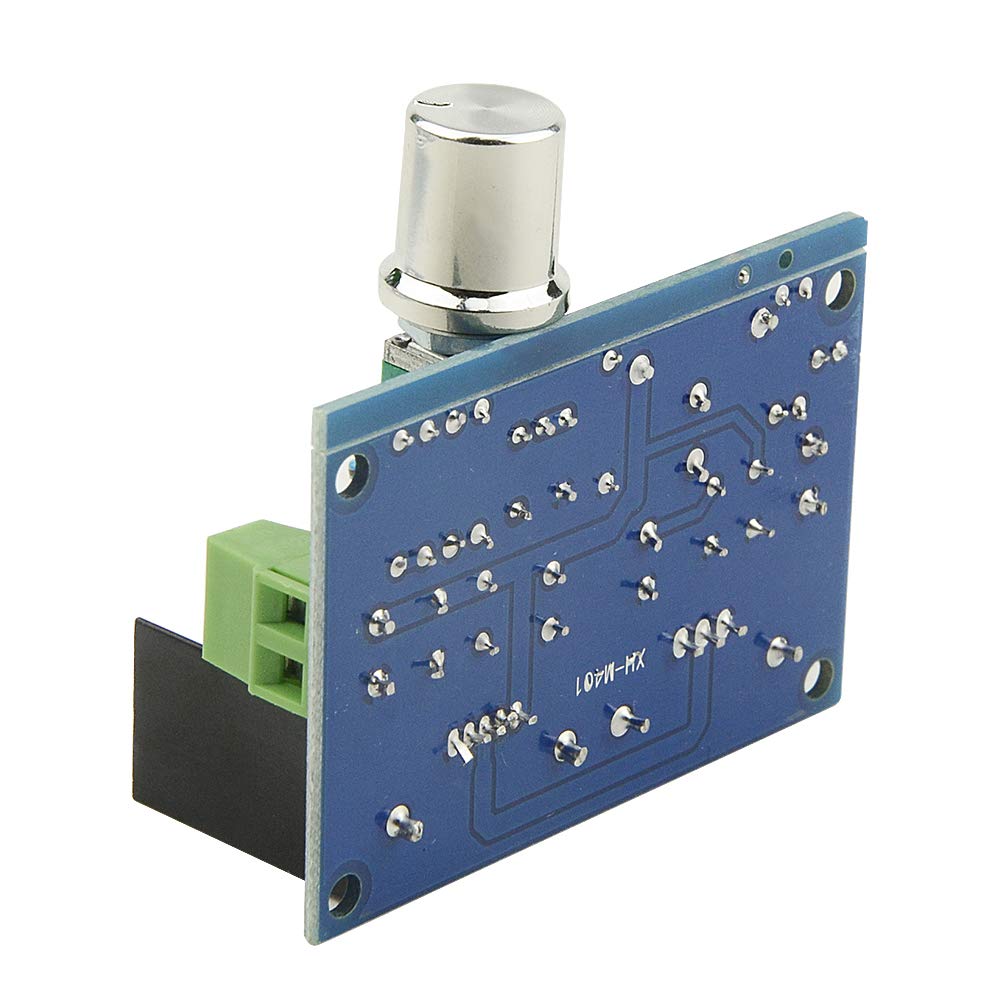

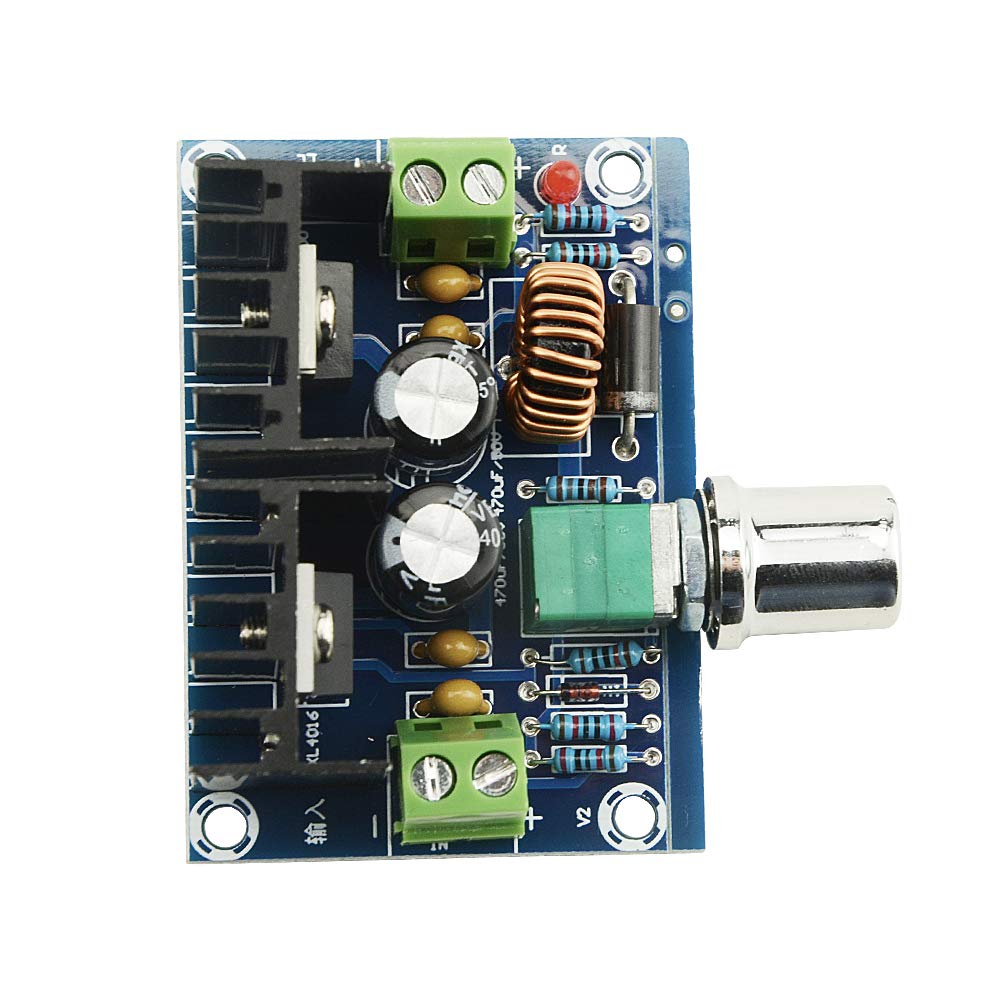

XLX 2PCS 5A Dc-Dc Adjustable Module Max 8A 200W 4-40V to 1.25-36V XL4016E1 High Power DC Pressure Regulating Board Constant Current Regulator Converter for Charging or LED Driver Module

• Super material: It is made of electronic accessories, nickel plating on surface(anti-oxidatioan), inner conductor: pure copper.it is long lasting and durable for you to use.
• Package including: 2 Pack of upgraded DC step-down module. PWM modulation, Moreover, a heat sink is added to make the module better, and a large area of copper and dense vias enhance heat dissipation. it has current limiting, short circuit and over temperature protection
• Input and output: Input voltage is about dc4-40v (try not to exceed 38V as input).Output voltage is about 1.25-36V continuously adjustable. Output current is about 0-8A, recommended for use within 4.5A
• High Power High Efficiency: High conversion efficiency up to 94%. It can reach up to 8A 200W high power, high efficiency and low ripple with power indicator. In addition to the current limiting and voltage regulation step-down function. High reliability, strong vibration resistance, good electromechanical performance.
• A wide range of applications: This module can be applied to the buck field where the input voltage is higher than the output voltage, such as battery, power transformer, DIY adjustable power supply, and so on.

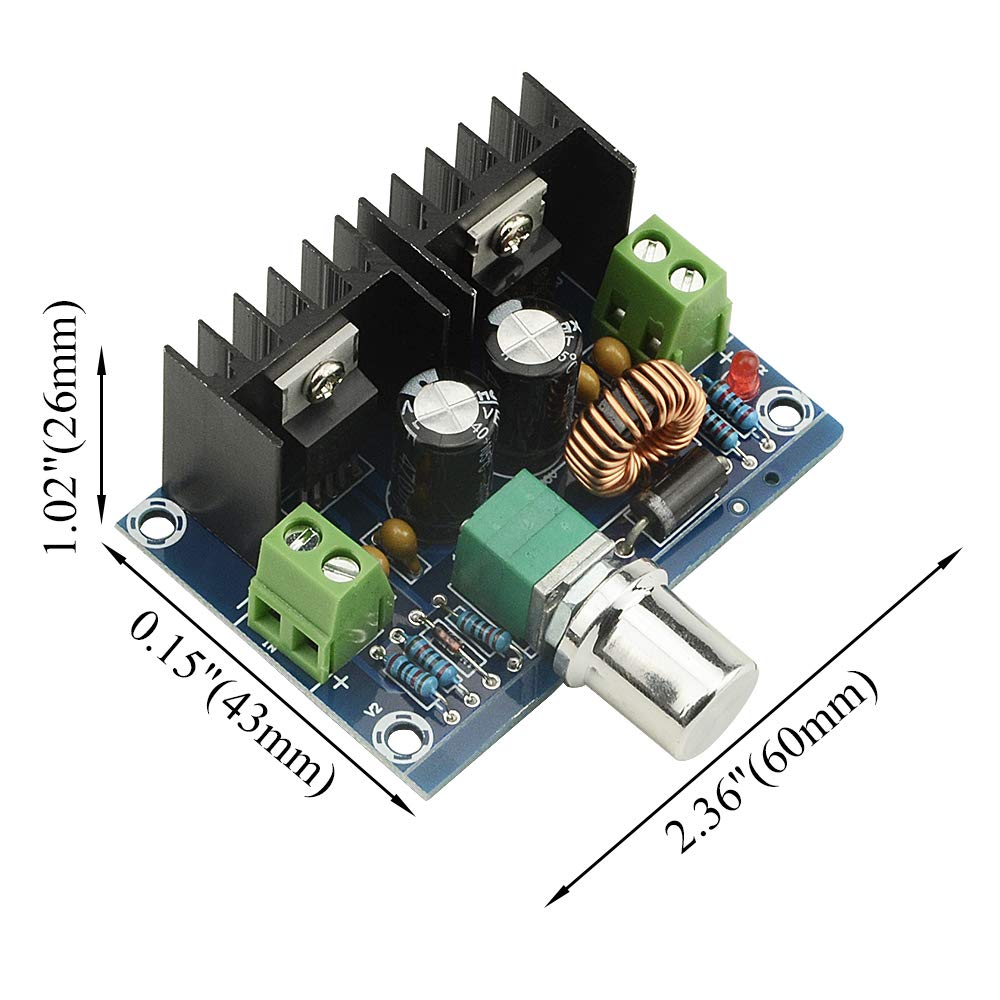

About us: This product adopts XL4016 switch voltage regulating chip, with MBR10200 double rectification, the input is up to 40V, and the output is continuously adjustable 1.25-36v. Potentiometer with switch. Product parameters: Product name: DC voltage regulator Voltage regulation: PWM modulation Input voltage: DC4-40V Output range: DC1.25-36V Current: 8A Power: 200w Conversion efficiency: 94% Switching frequency: 180KHz Appearance size: 61*41*27mm Product weight: 51g The output current is up to 8A.Need to add fan when using!Long-term work recommendations within 5A! Package including: 2pcs x XL4016 Step-Down Module
