XINCOL AC110V/220V to DC12V 15A 180W Switched Mode Switching Power Supply (SMPS) Transformer Driver Adapter for LED Strip Light

• Switch power supply, convert AC 110V/220V to DC 12V 15A 180W
• Dual input voltage: AC 110V/220V.Wide voltage input adjusted automatically to SMPS Model (12V 1A-5A, 12W-60W). As for Model (12V 10A-60A 120W-600W), there is a voltage selector switch located on the side of the switcher is used to set the input voltage to the power supply to either 110V or 220. We have already adjusted the switcher to 220V for our UK customers.
• Smart device surge protection for Short-circuit Protection, Overload, Over Voltage,Over Temperature Protection. High efficiency, High Reliability, Low Temperature Rise
• Built-in EMI filter, low output ripple, noise, Rugged heavy duty enclosure, 100% Full load burn-in Tested. Parallel/Redundancy Operation is possible.
• Widely being used in Industrial automation, LED display, electronic equipments, communications etc.

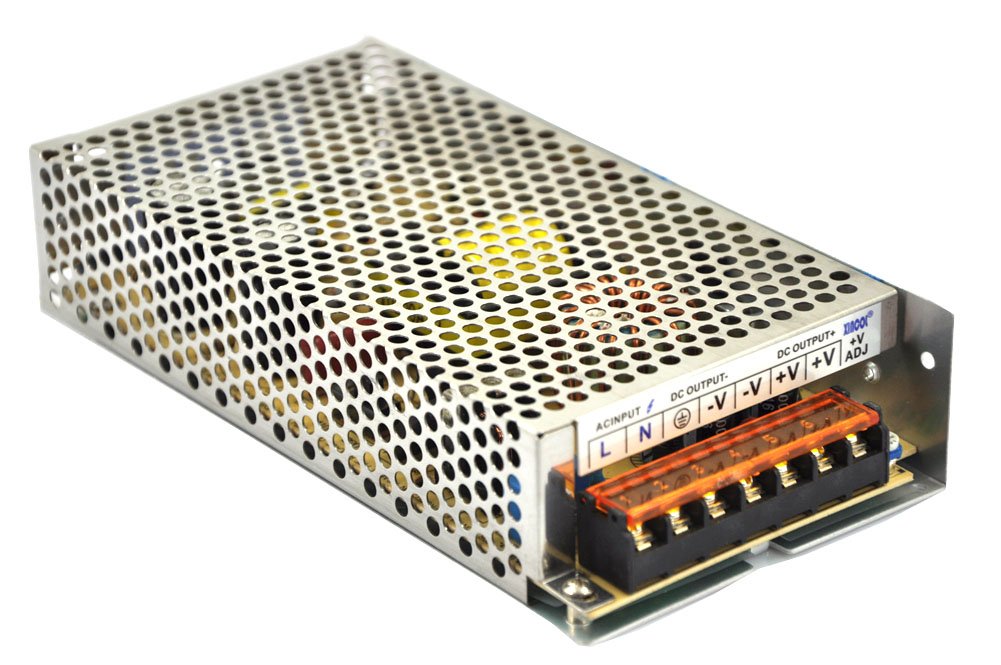

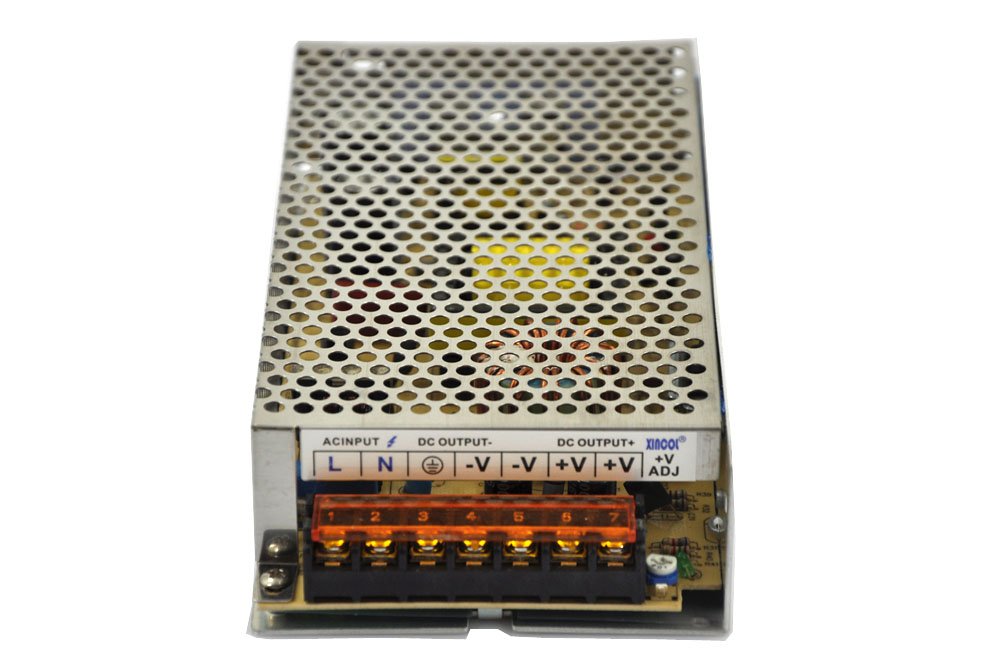

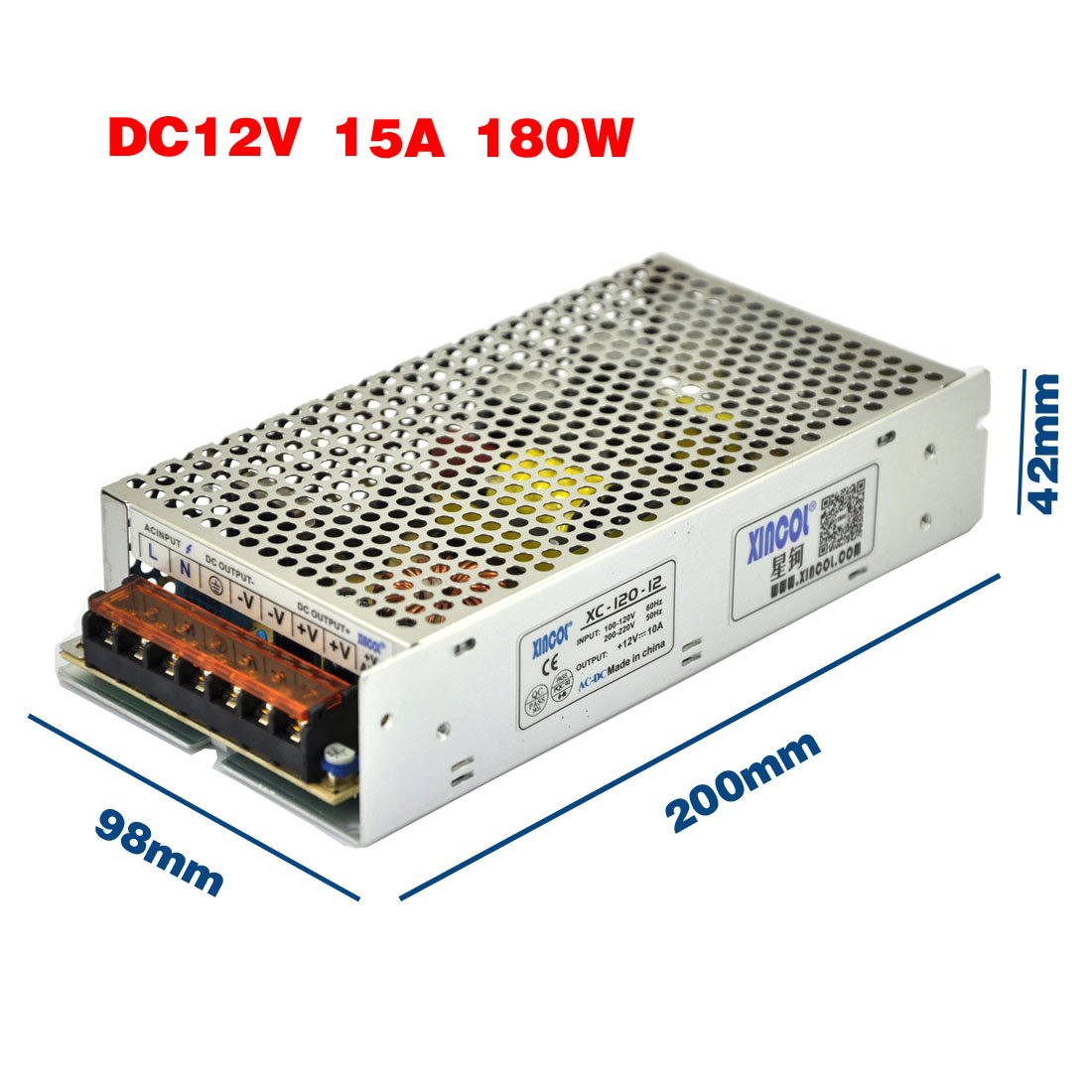

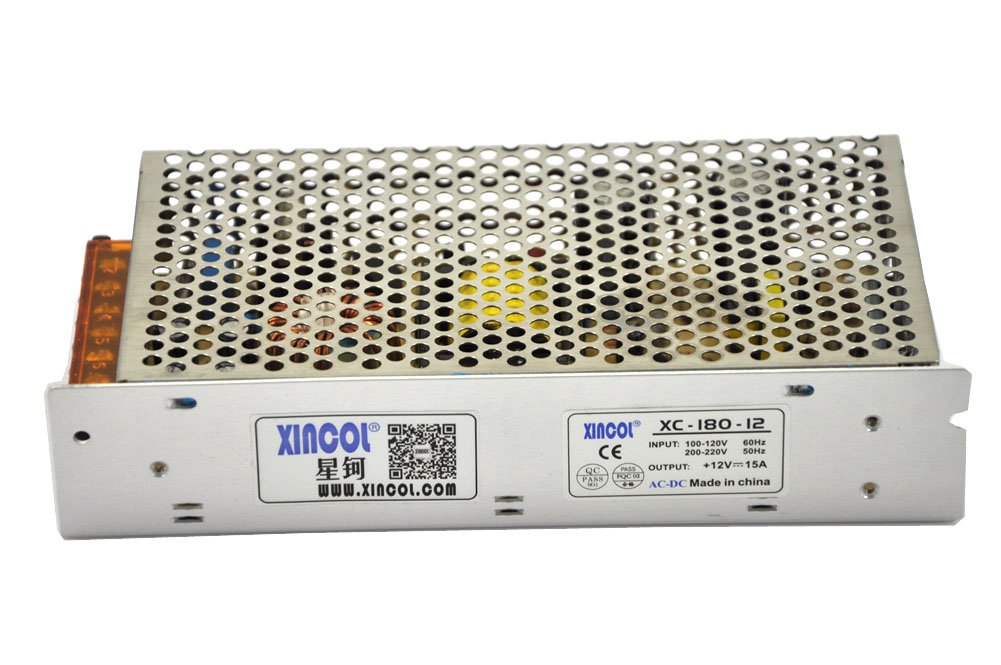

XINCOL Switched Mode Power Supplies(SMPS) X Series are being designed with advanced PWM technology, widely used in LED lighting, Home Appliance, Instrumentation, Office Automation, CCTV, Process and Engineering Industries etc. Technical Details: Model: XC-180-12 Safety Appliance: FCC/CE/RoHS Protection: Short-circuit, Overload, Over Voltage, Over Temperature Protection Input: AC110V/220V Output: DC12V 15A Output Power: 120W Number of Output: +V x 2, -V x 2 Frequency: 50/60Hz Working temperature:0~40℃ Storage Temperature: -20~60℃ Ambient Humidity: 0~95% Non-Condensation Shell Material: Metal case / Aluminum base Silver Tone Size: 7.87 inchx3.94 inchx1.65 inch/200mmx98mmx42mm(L*W*H) Net Weight:536g Connection: L, N: AC power input COM: DC power output V: DC power output + +V / ADJ: Adjust the output voltage (15%) Package Contents: 1 x XINCOL LED Switching Power Supply 15A 180W Note: 1. In UK or EU, the voltage switch of the unit should be set to 220V. Setting the power supply voltage switch to the incorrect input voltage may damage the power supply 2.The unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads 3.DO NOT let the unit work long hours over rated current! Work under 80% of rated currency 4.Dust the switcher out every 2 or 3 months if necessary 5.Even with EMI/RFI filter built inside, still not suitable for a hamradio operator connecting with radio or wireless communication equipments. 6. Do not power the unit before wire connection and voltage adjustment 7. IN-DOOR USE ONLY! This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
