XICOOLEE SG-92 9G Micro Digital Servo Nylon Carbon Fiber Gears High Precision Gear High Torque Servo for programmable Fixed Wing, Helicopter KT, Intelligent car, Small Robot DC4.8V/6V(2pcs)

• Strong compatibility, whether it is the program or mechanical structure for standard building blocks, as far as possible compatible processing;
• It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged;
• Suitable for fixed wing, helicopter KT, gliding, intelligent car, small robot manipulator and other models;
• Classic 9g Servo, control is simple, 3Pin 2.54mm DuPont cable Header;
• Supply Voltage:DC4.8V-6V, Operating speed(at no load): 4.8V 0.12±0.01sec/60°6V 0.1±0.01sec/60°

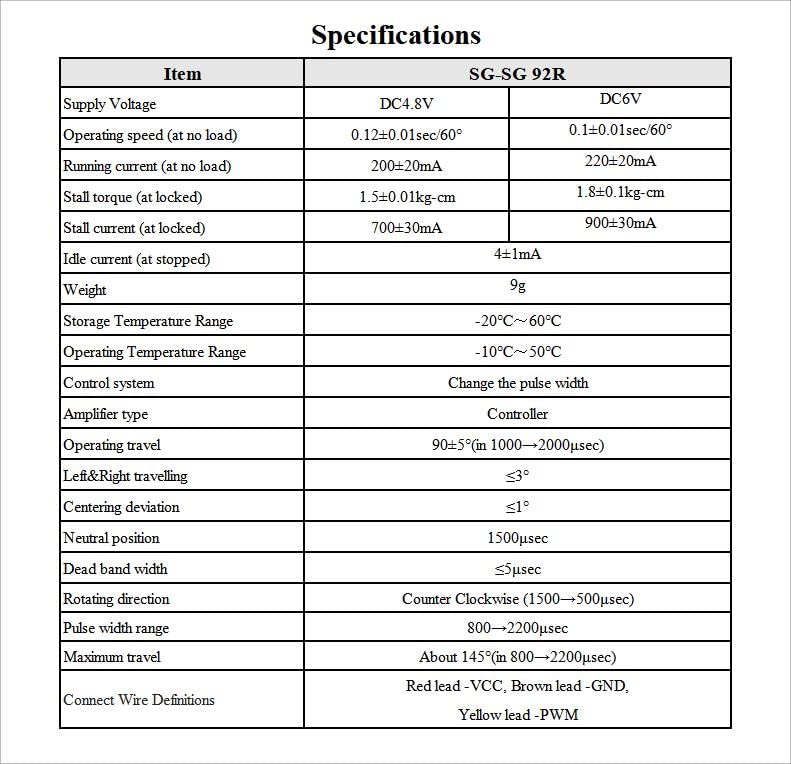

Overview: The product can control the rotation speed and direction of the output shaft. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged. The internal integrated reduction gear can increase the torque and is suitable for programmable fixed wing, helicopter KT, glide, intelligent car, small robot manipulator and other models. Specifications: Supply Voltage: DC4.8V / DC6V Operating speed (at no load): 4.8V 0.12±0.01sec/60° 6V 0.1±0.01sec/60° Running current (at no load) : 4.8V 200±20mA 6V 220±20mA Stall torque (at locked): 4.8V 1.5±0.01kg-cm 6V 1.8±0.1kg-cm Stall current (at locked): 4.8V 700±30mA 6V 900±30mA Idle current (at stopped): 4±1mA Weight: 9g Storage Temperature Range：-20℃～60℃ Operating Temperature Range：-10℃～50℃ Control system：Change the pulse width Amplifier type：Controller Operating travel：90±5°(in 1000→2000μsec) Left&Right travelling：≤3° Centering deviation：≤1° Neutral position：1500μsec Dead band width：≤5μsec Rotating direction：Counter Clockwise (1500→500μsec) Pulse width range：800→2200μsec Maximum travel：About 145°(in 800→2200μsec) Connect Wire Definitions：Red lead -VCC, Brown lead -GND,Yellow lead -PWM Package contents: 1.SG-92 Micro Servo motor×2
