Xiatiaosann Toggle Switch Rocker Heavy Duty 3 Position 3PDT 9 Terminal ON/Off/ON 15A 250V 10A 380V, 2 PCS Toggle Switches with Metal Knob Cover Cap Waterproof TEN-303

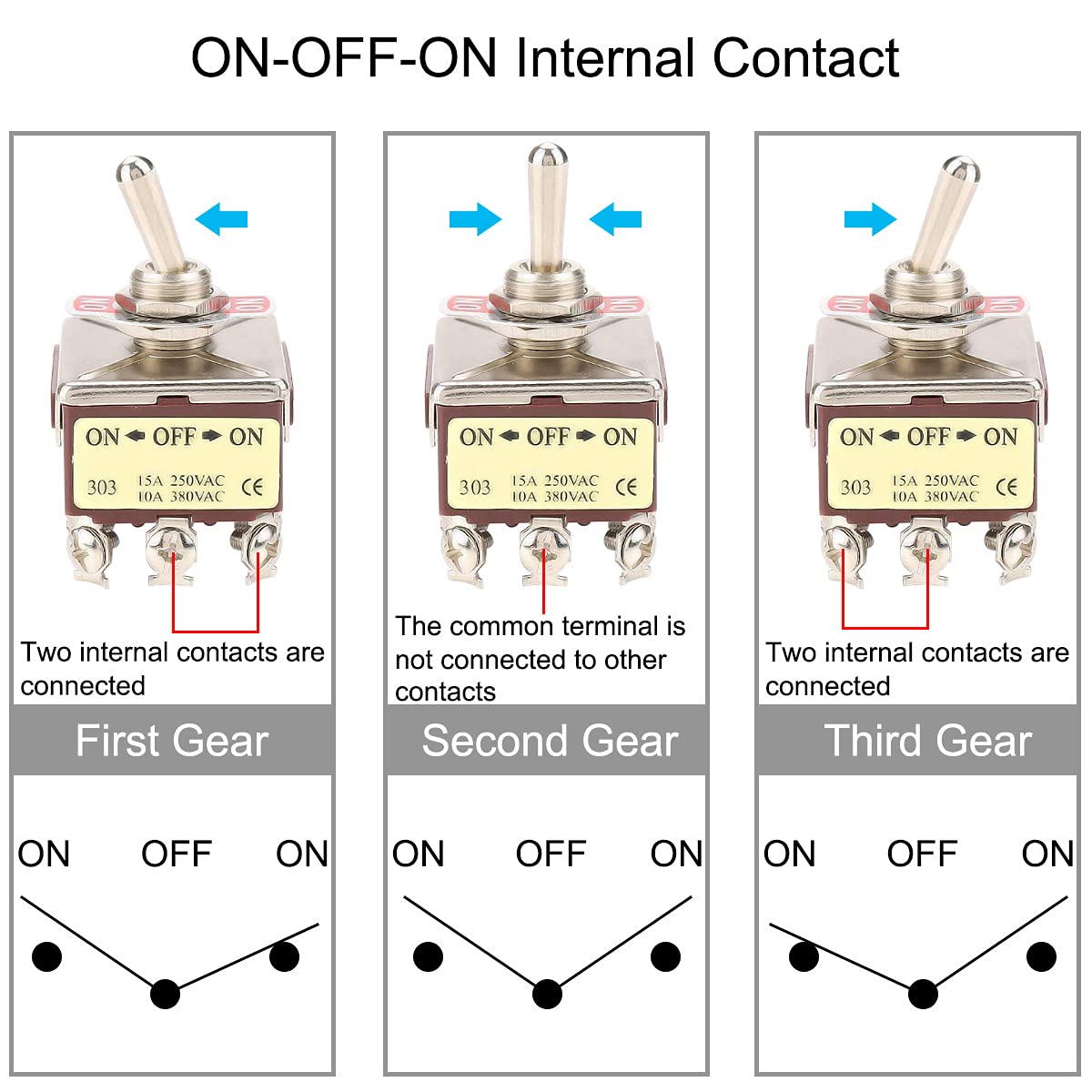

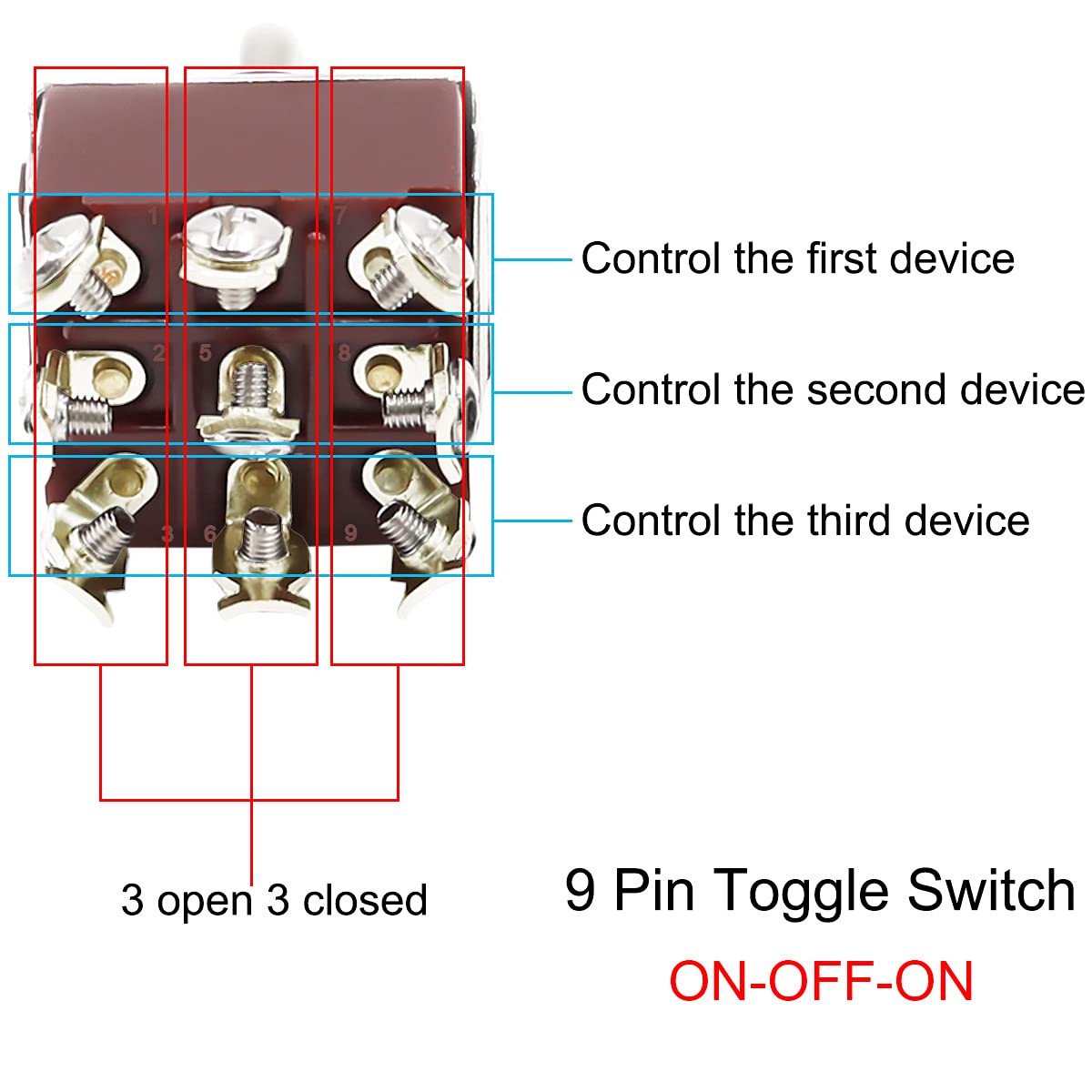

• Product Type: Product Name: Toggle switch; Terminal Type: 3PDT; Circuitry: ON-OFF-ON ; Number of terminals: 9 Screw Terminals.
• Working Conditions: Rated Voltage & Current : 15A 250V AC, 10A 380V AC; Operating temperature: -40 to 85°C.
• Quality Contacts: Make contact reliable for longer life.Mechanical life: more than 80,000 cycles. Electrical life: more than 12, 000 cycles

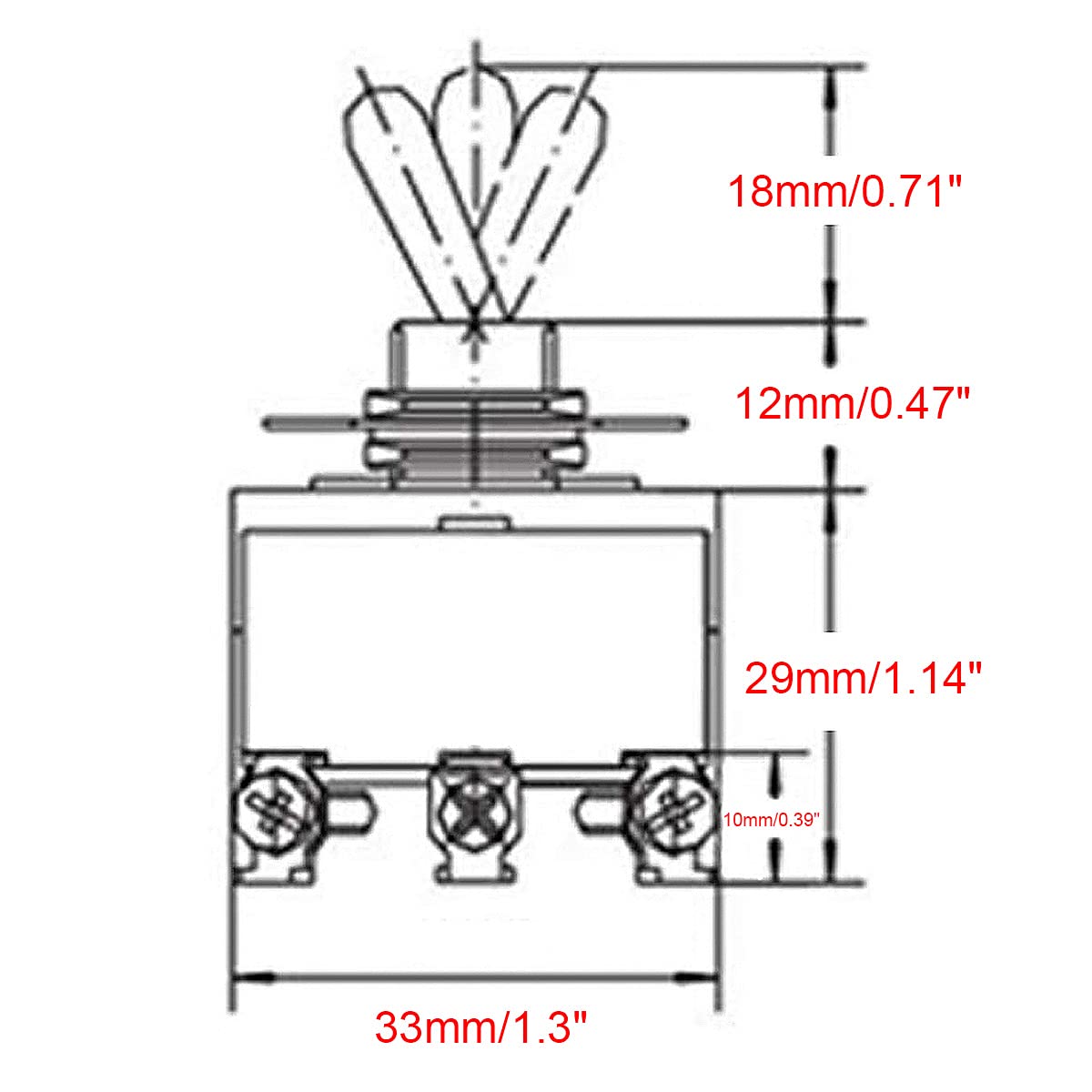

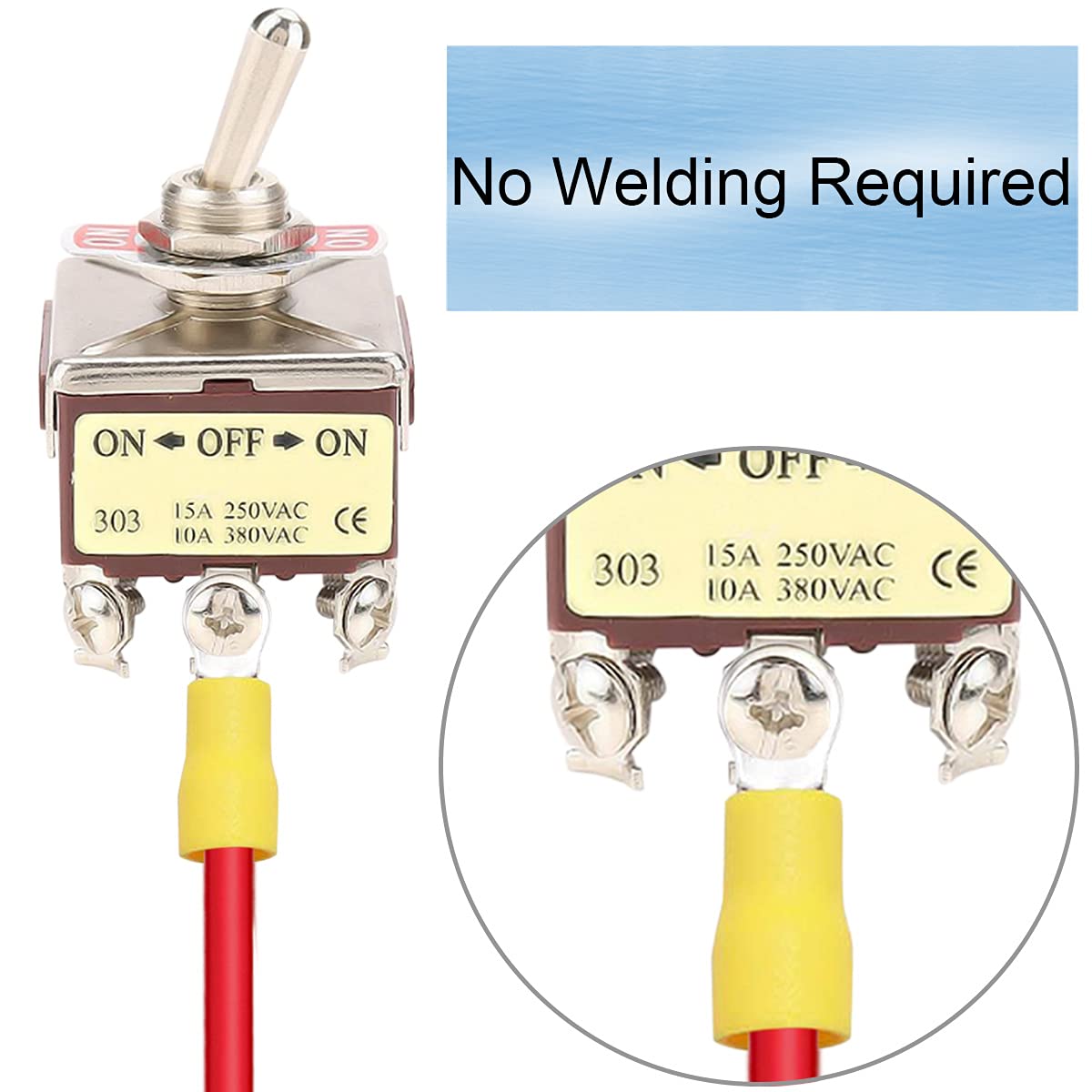

• Easy to wire: Total Size(Approx) : 3.3x 2.9x 6cm/ 1.4" x 1.1" x2.4"(LxWxH) Easy to install: Mounting hole diameter: 12mm. Each of the terminals has a machine screw for quick connections, but also easy to be soldered.

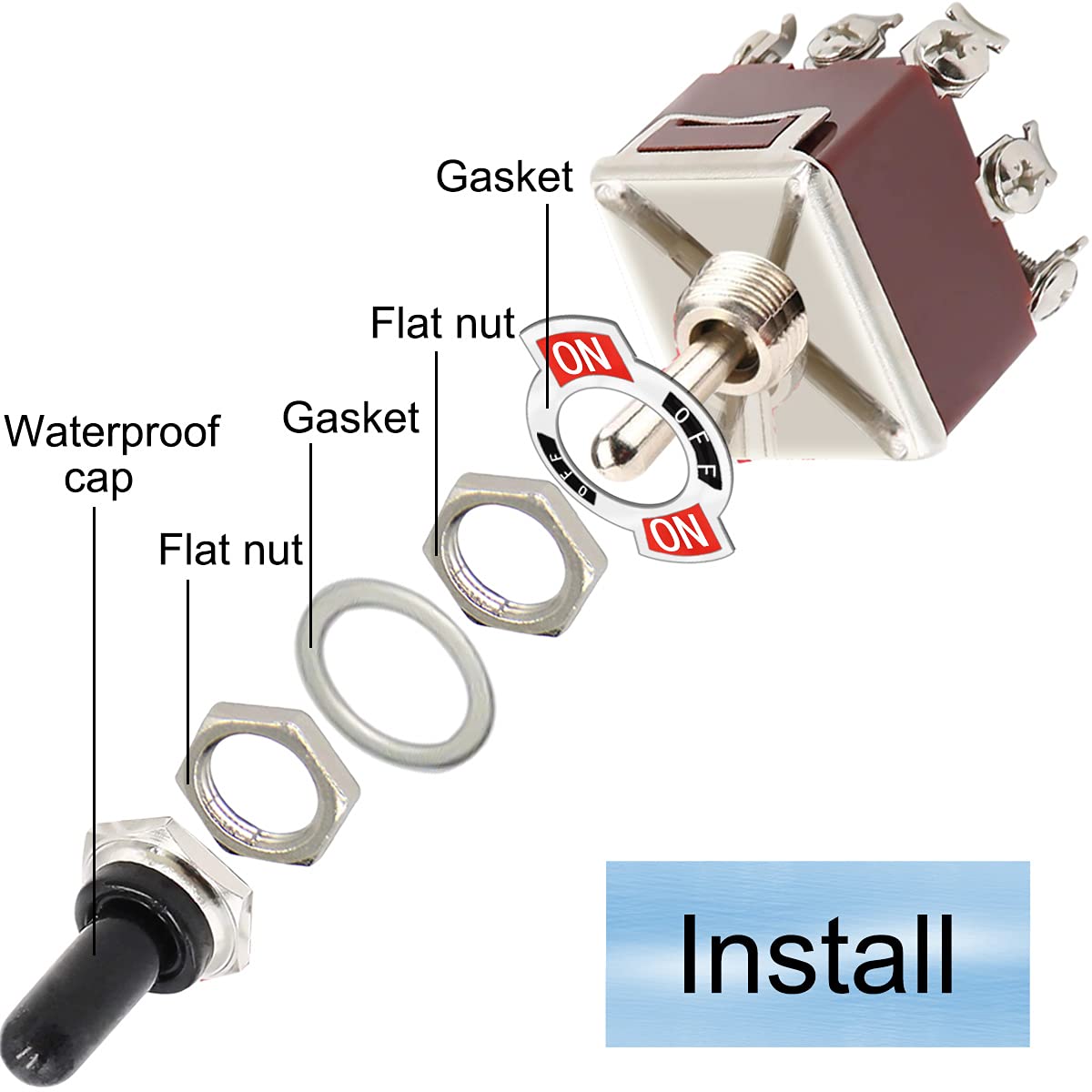

• Package Content: 2 pcs toggle switch; 2 pcs waterproof cap cover; 18 pcs quick connect terminal.

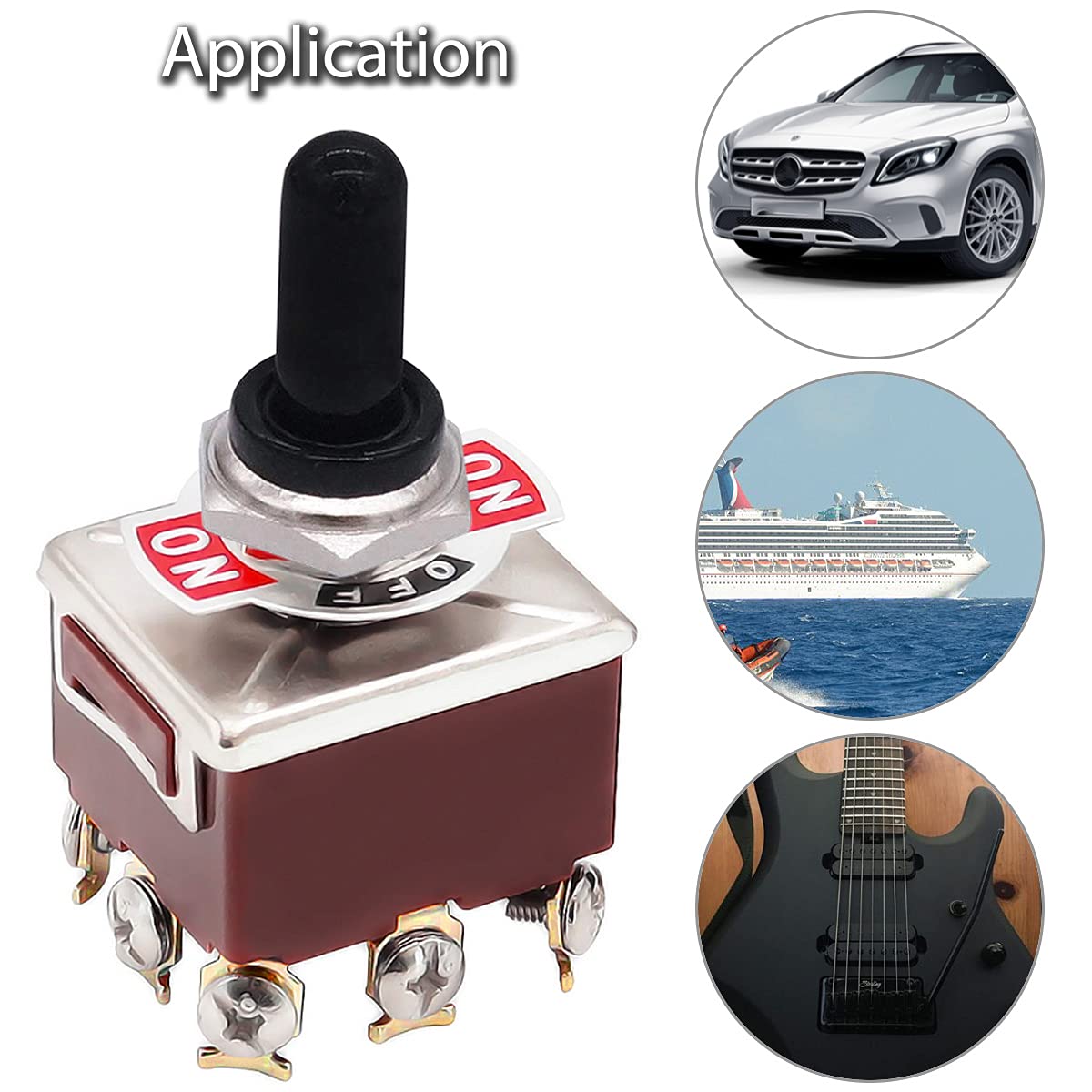

Specifications: Product Name: Toggle switch Connector type: 3PDT Type: ON-OFF-ON Number of terminals: 9 Screw Terminals Material: Plastic and metal Features 1. Thick Handle : Iron dust cover is designed with strong hardness, wear resistance, no deformation and long service life. 2. Quality Contacts : Thick copper parts, large contact area, good conductivity and long service life. 3. Flame Retardant Shell : Using high-strength PC material, it is flame-resistant, wear-resistant, high temperature resistant and has good electrical insulation. 4. Copper Pins : Copper pin, fast conductivity, screw connection, sufficient current, strong conductivity. 5. Application Range : The switch is built by high quality industrial material, widely applied to different Cars, Marine and used for Critical lights, Chassis lamps, Fog lamps, Dome lights. 6. Rubber Cover : screw on, tough, weather resistant rubber covers protect all toggle switches from moisture and dust when you applied it to a boat, yacht, vessels and other marine. Package Included: 2 x Toggle switch 2 x Waterproof cap cover 18 x Quick connect terminal
