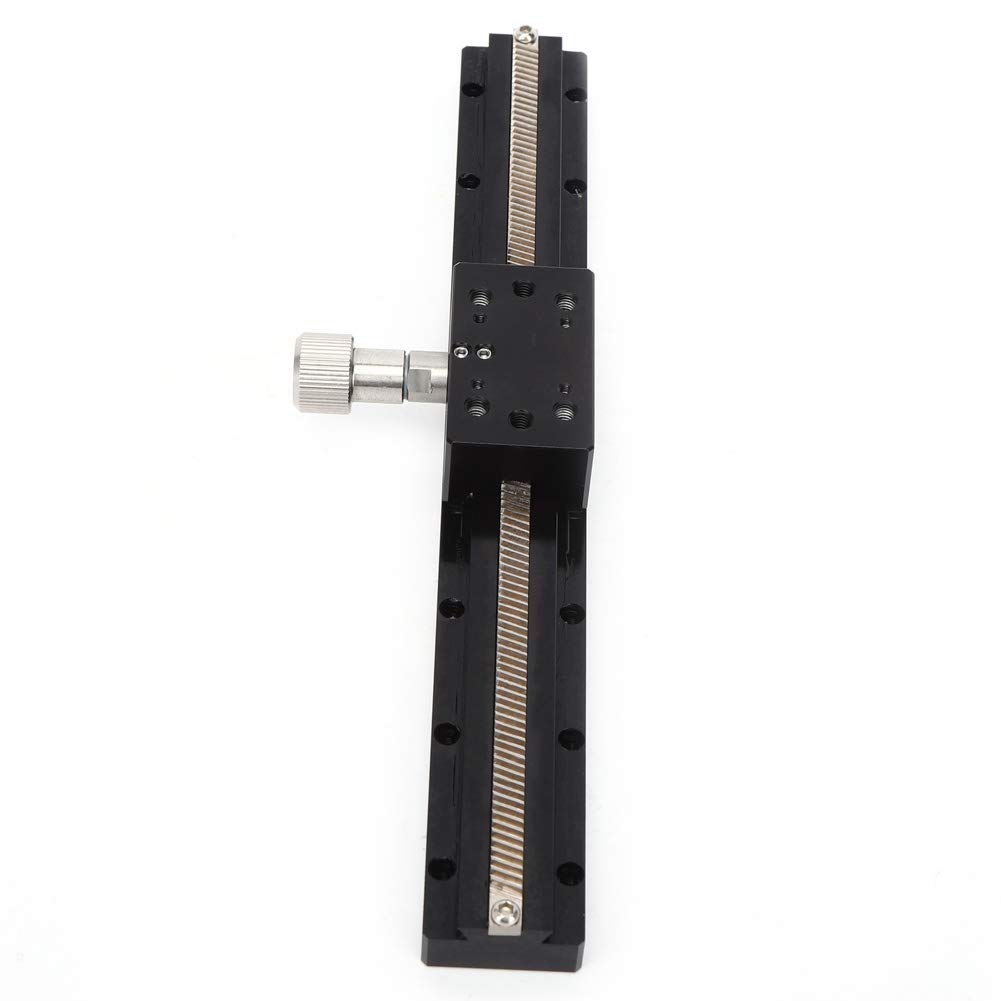

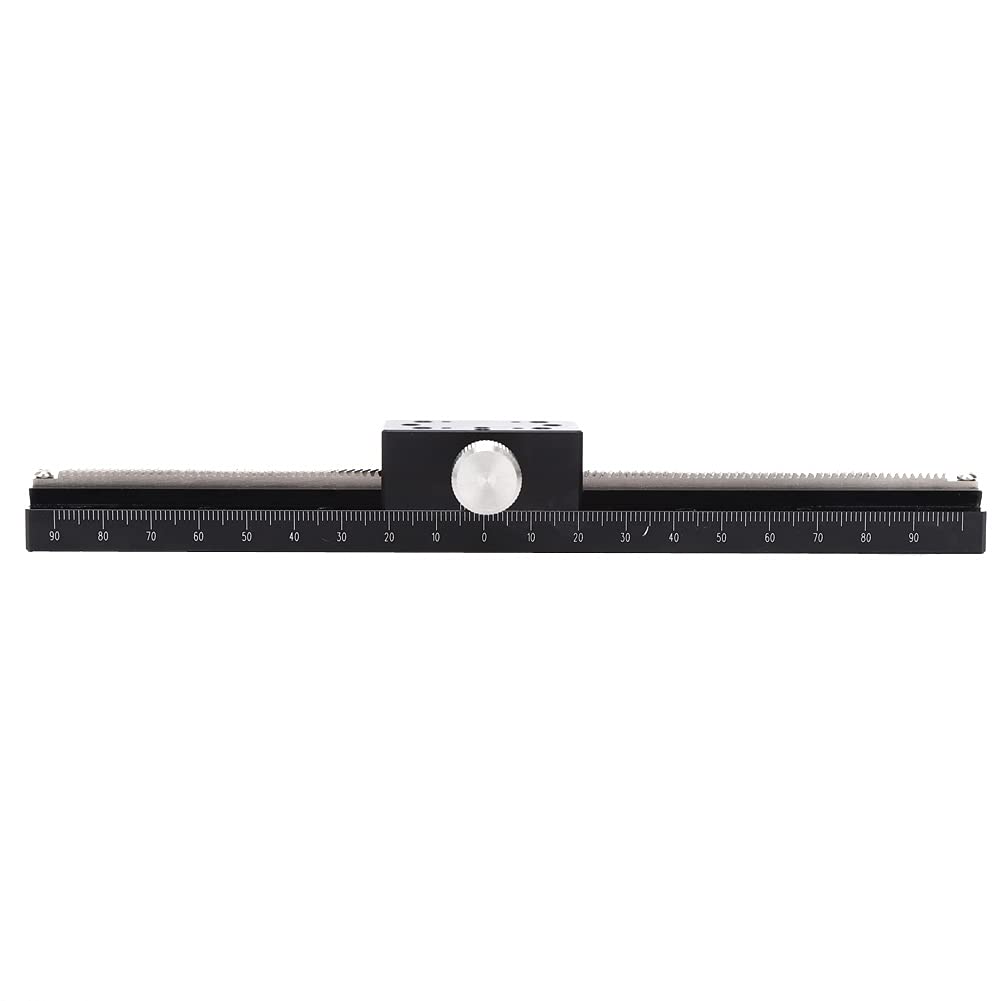

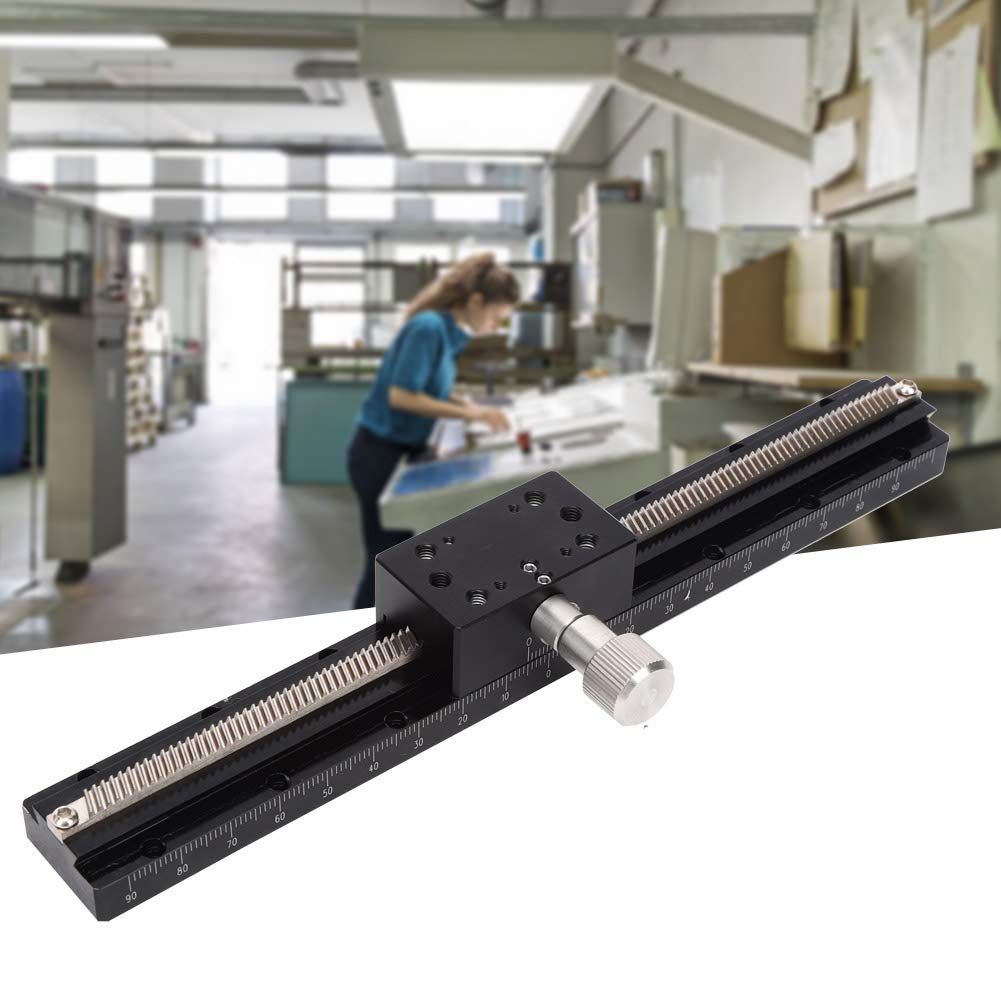

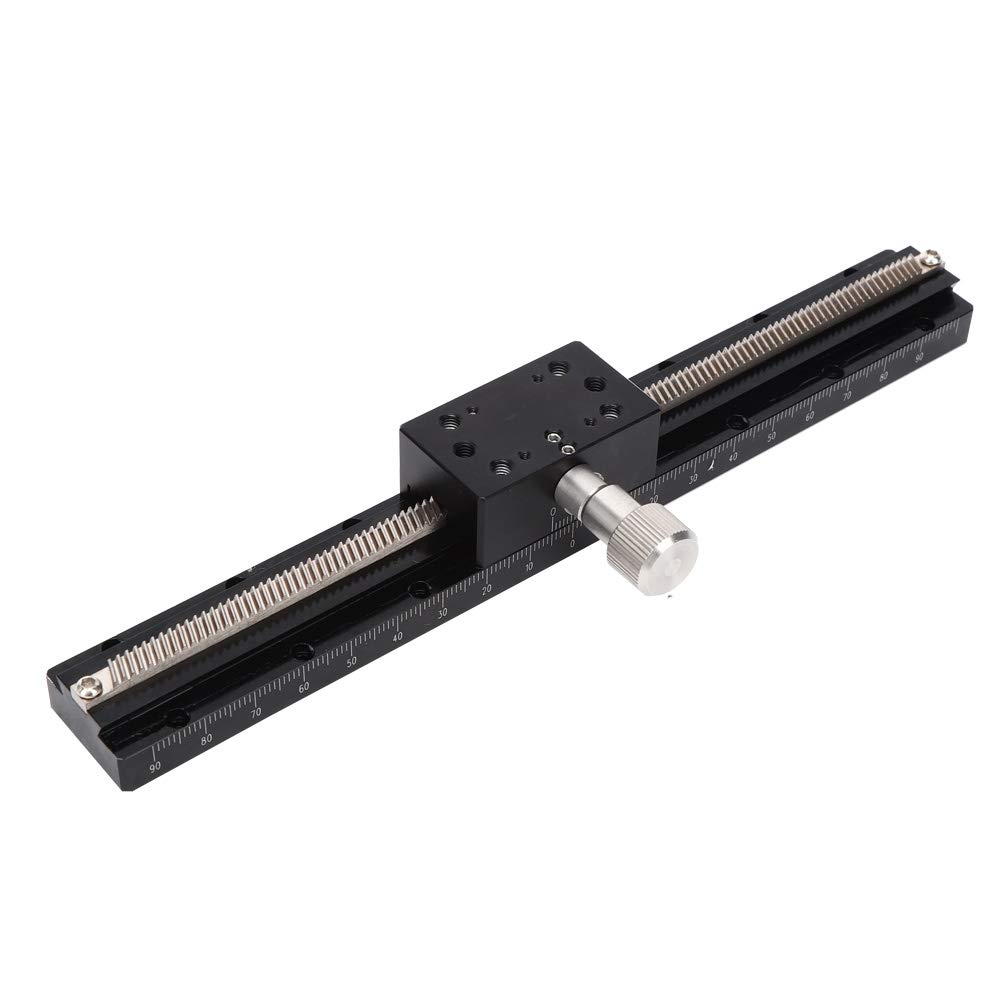

X-Axes Sliding Stage SPLWX25-L200 X Axes Dovetail Manual Platform Fine-Tuning Slide Stage Replace for misumi XLWG200 for Optical Instruments, Measuring Instruments

• Number Of Table Thread Mounting Holes: 6, Threaded Hole Diameter: 4mm, Threaded Mounting Hole Depth: 6mm, Vertical Load Resistance: 29.4N (3Kgf), Stroke: ±90mm, Minimum Scale: 0.01mm, Straightness: 0.03mm

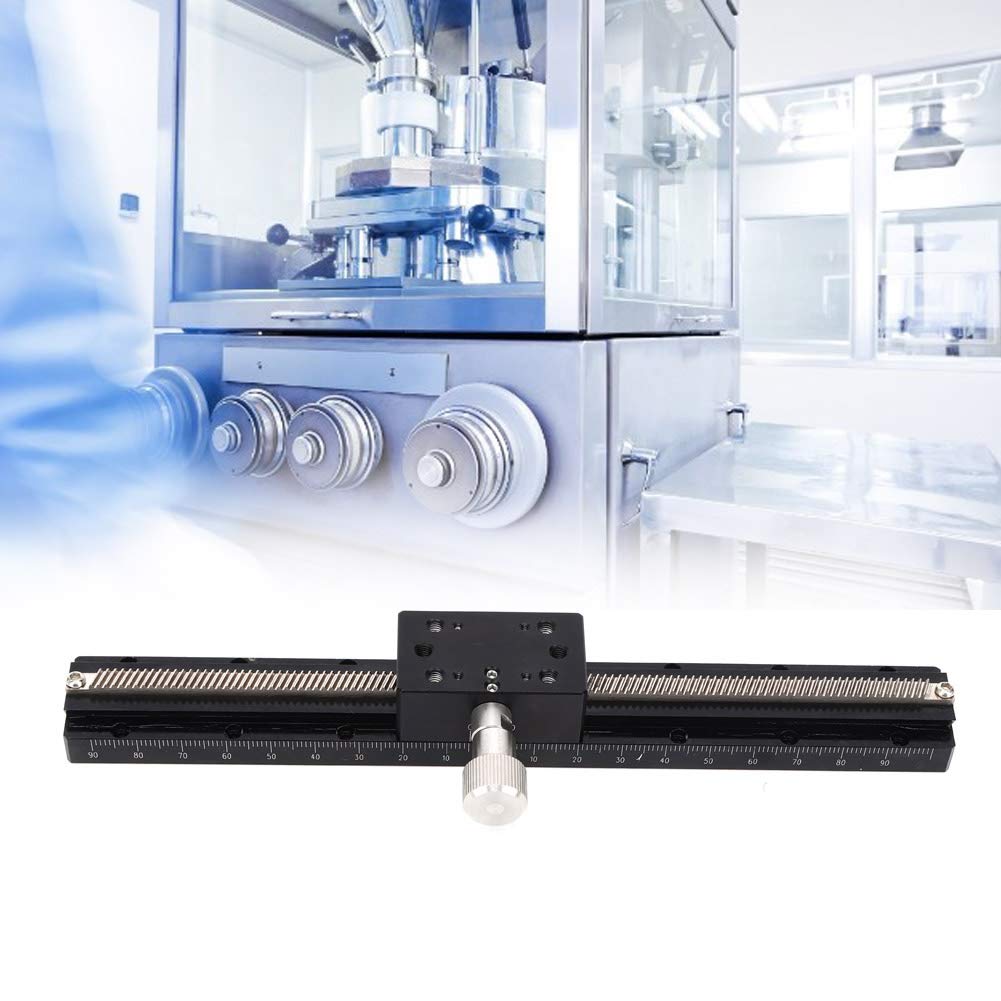

• X axes manual sliding stage is widely used for optical instruments, measuring instruments, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, conveyors, processing machines, medical equipment, printing machines, etc.
• Premium Material: The main body of the manual trimming platform is aluminum alloy material, is light weight and
• Long Stroke: The dovetail platform is suitable for situations requiring fast movement and large strokes. It has long stroke, can be equipped with multiple sliders.

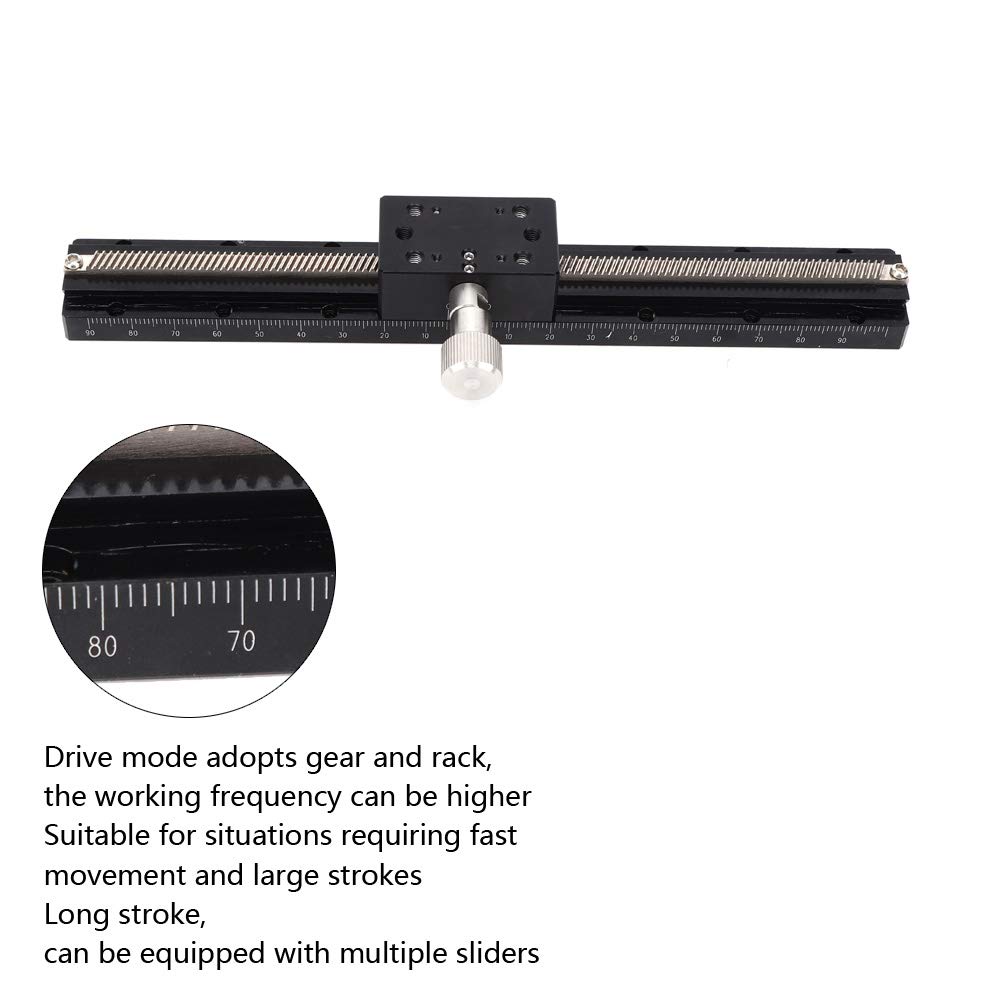

• Professional Design: Drive mode of the fine-tuning sliding table adopts gear and rack, the working frequency can be higher.

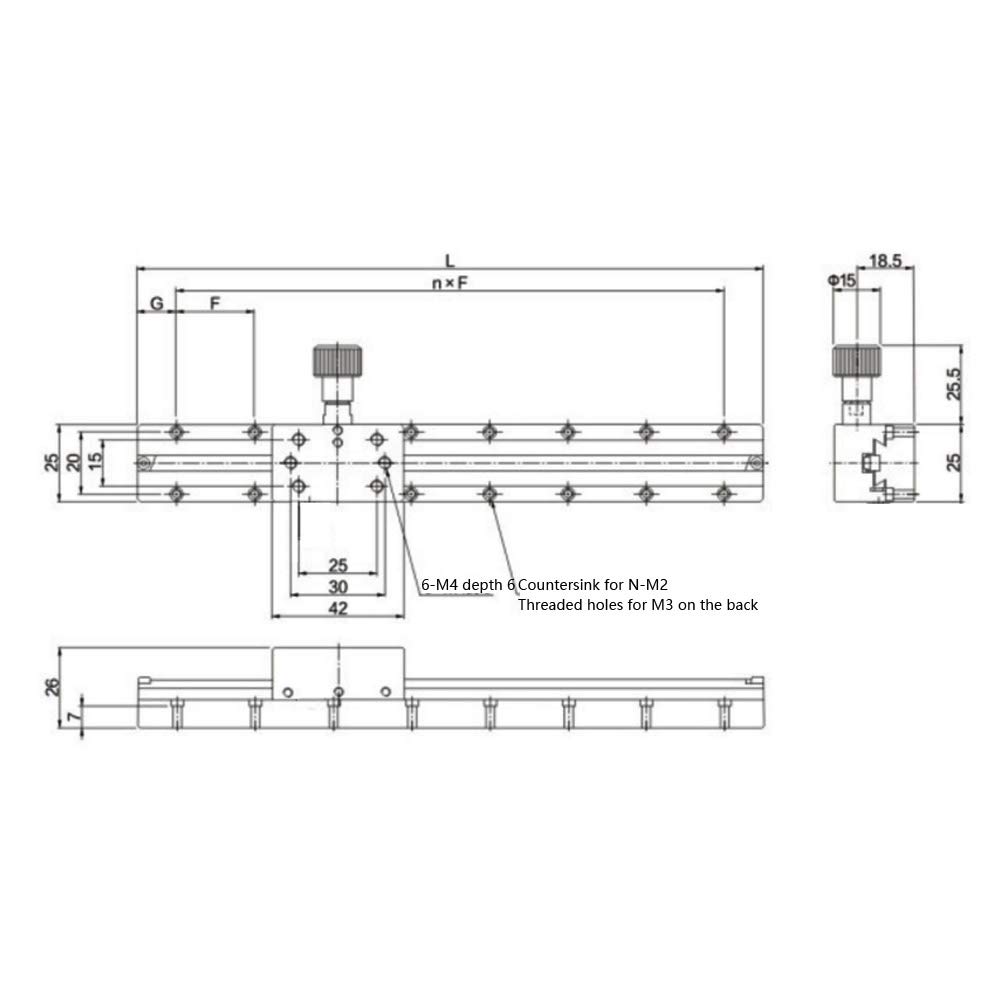

Feature: 1. Suitable for optical instruments, measuring instruments, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, conveyors, processing machines, medical equipment, printing machines, etc. 2. Drive mode adopts gear and rack, the working frequency can be higher. 3. Suitable for situations requiring fast movement and large strokes 4. Long stroke, can be equipped with multiple sliders. 5. Main body is aluminum alloy material, light weight and durable. Specification: Item Type: X Axes Manual Sliding Stage Model: SPLWX25-L150 Table Size: Approx. 42 x 25mm / 1.7 x 1in Overall Height Of The Product: Approx. 26mm / 1in Rail Length: Approx. 200mm / 7.9in Moving Direction: 1 direction of X Axes Body Material: Aluminum alloy (black anodized) Drive Method: Manually turn the knob to control the gear drive (gear + rack) Glide Track: Rack rail Guide Rail Type: Dovetail groove Number Of Table Thread Mounting Holes: 6 Threaded Hole Diameter: 4mm Threaded Mounting Hole Depth: 6mm Vertical Load Resistance: 29.4N (3Kgf) Stroke: ±90mm Minimum Scale: 0.01mm Straightness: 0.03mm Scope Of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, medical equipment, printing machines, etc. Package List: 1 x X-Axes Sliding Stage
