Weytoll XR2206 Signal Generator Function Sine/Triangle/Output 1Hz-1MHz Adjustable Amplitude Frequency Generator
★★★★★4.6
Price unavailableView
Price
$29.48
WSFG-06 Module Multifunctional Generator PWM Pulse Multifunctional Module 20mA 2-10V Supply for PWM/Pulse/Signal Source Mode
★★★★★
$29.48
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- Multifunctional :Multifunctional adjustable generator .

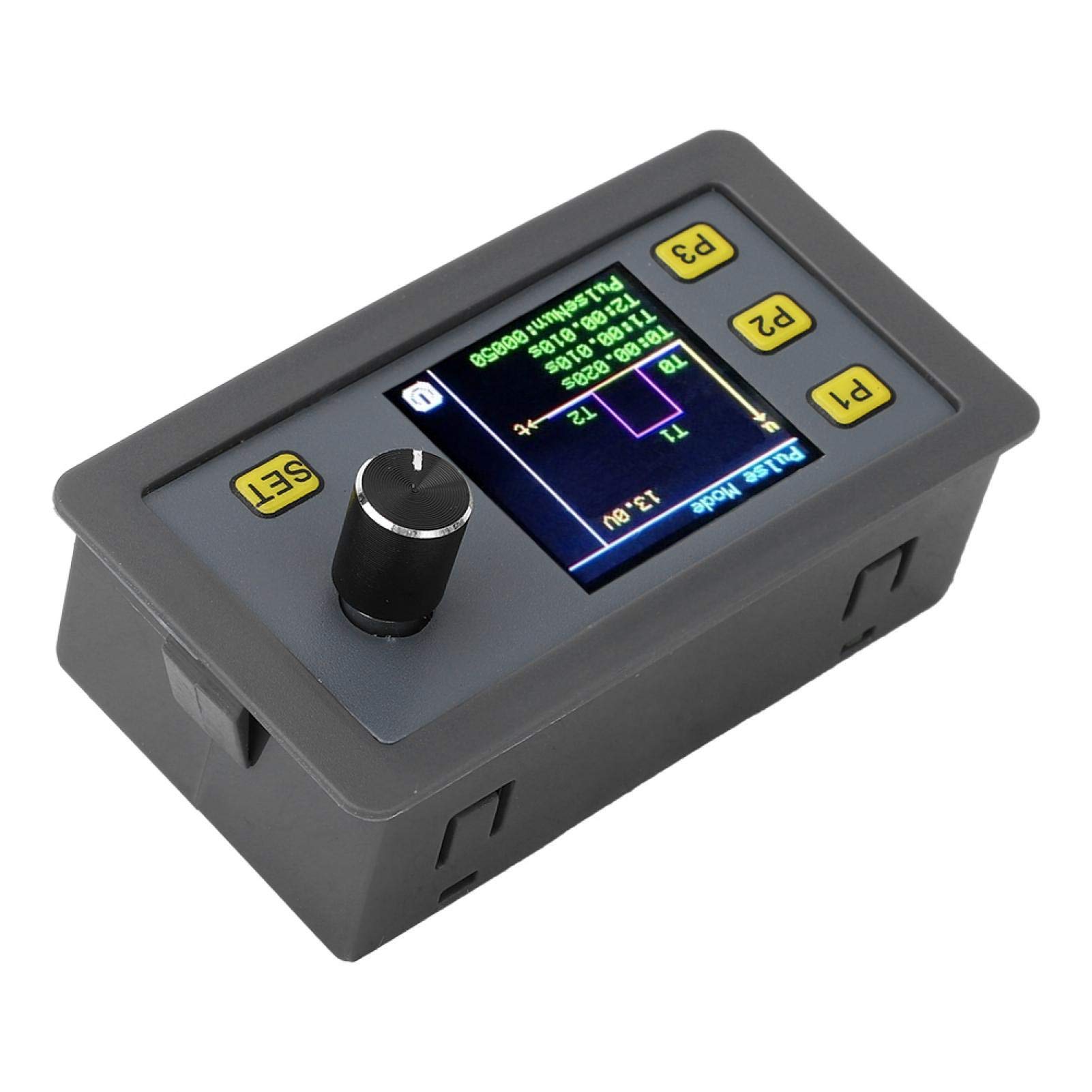

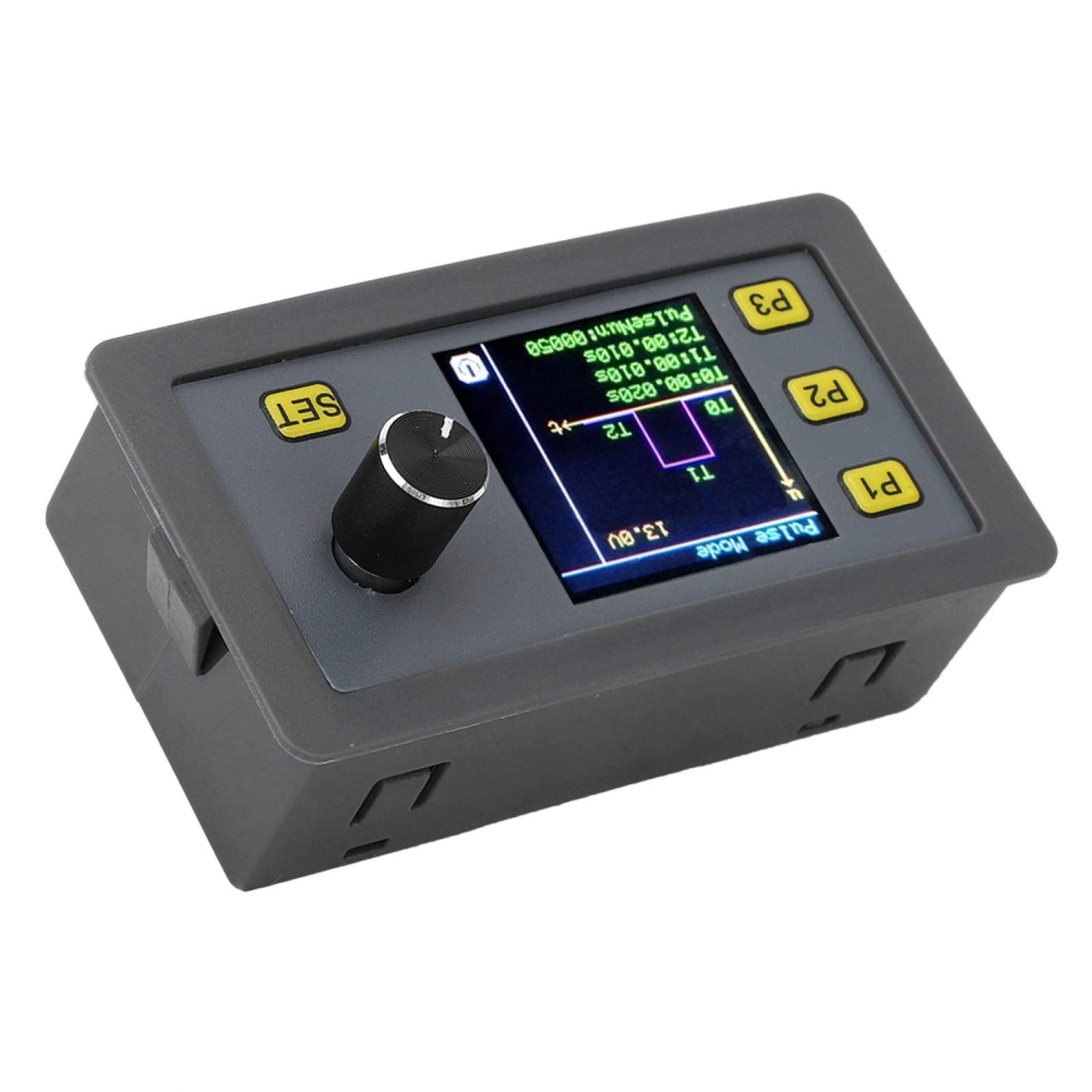

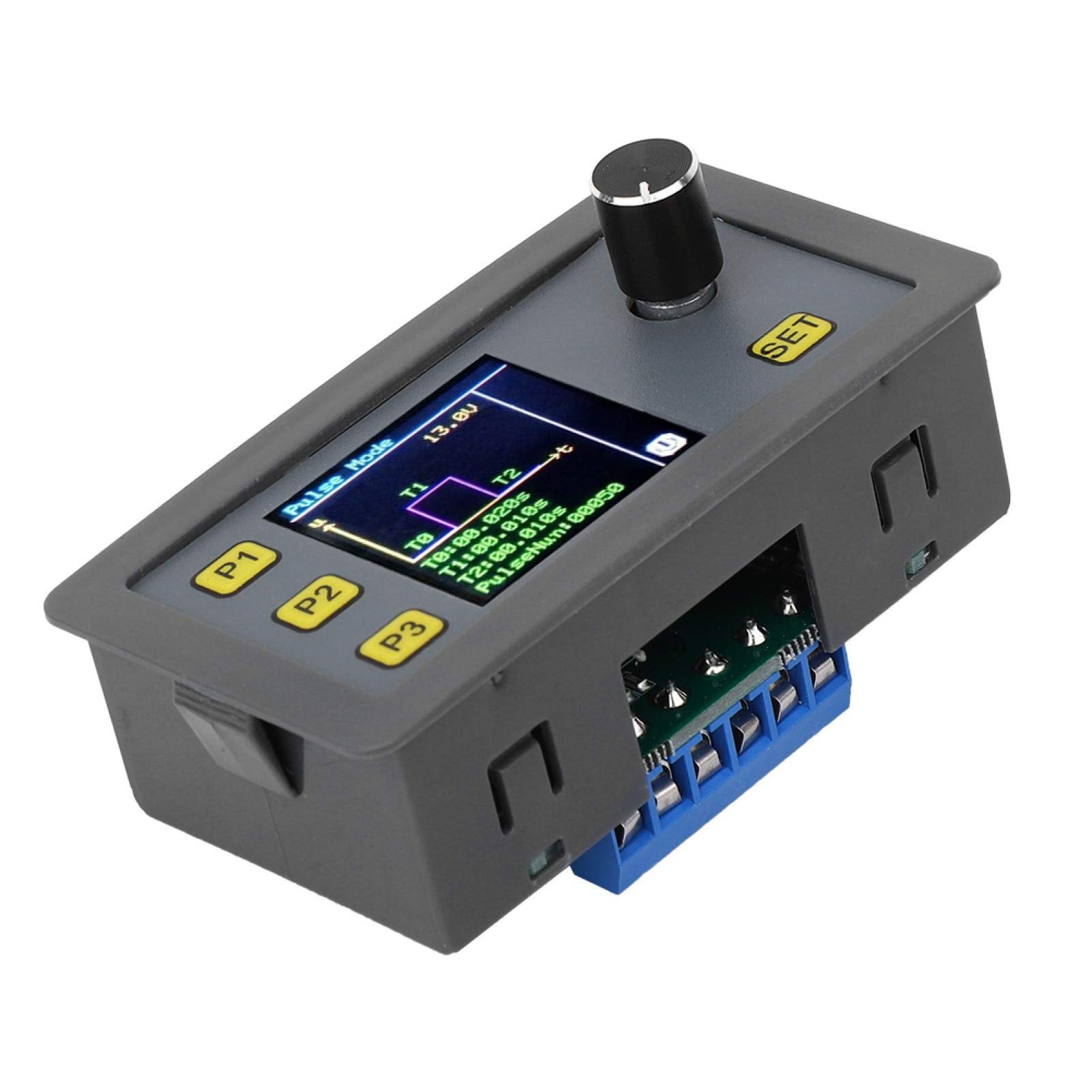

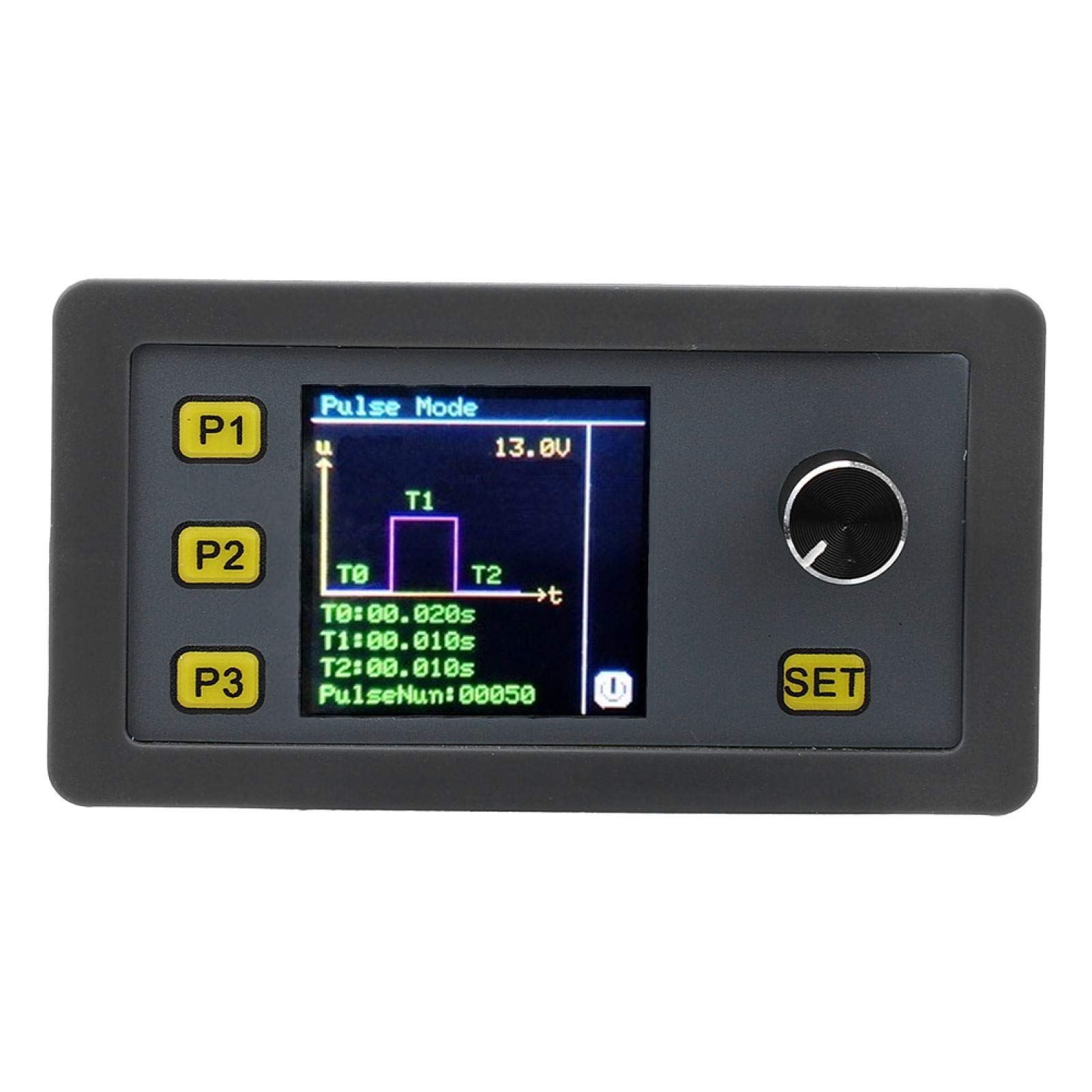

- Clear Display Screen :Clear display screen ,concise control panel layout .
- Adjustable :Voltage ,frequency ,duty cycle are adjustable under PWM mode .
- Strong Load Capacity :Strong load capacity ,output current up to 30mA .

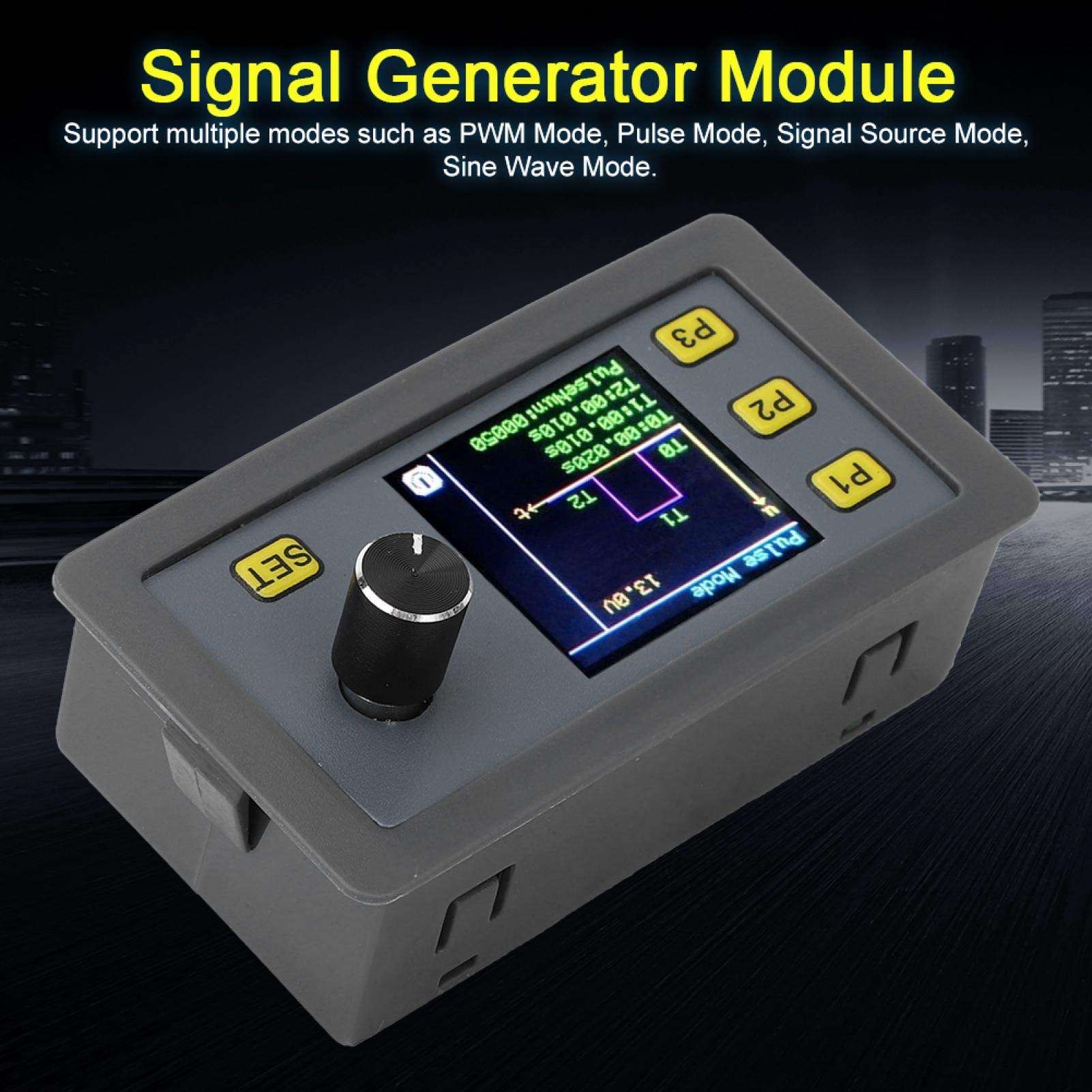

- Versatilit :Support multiple modes such as PWM Mode ,Pulse Mode ,Source Mode ,Sine Mode .
Product description

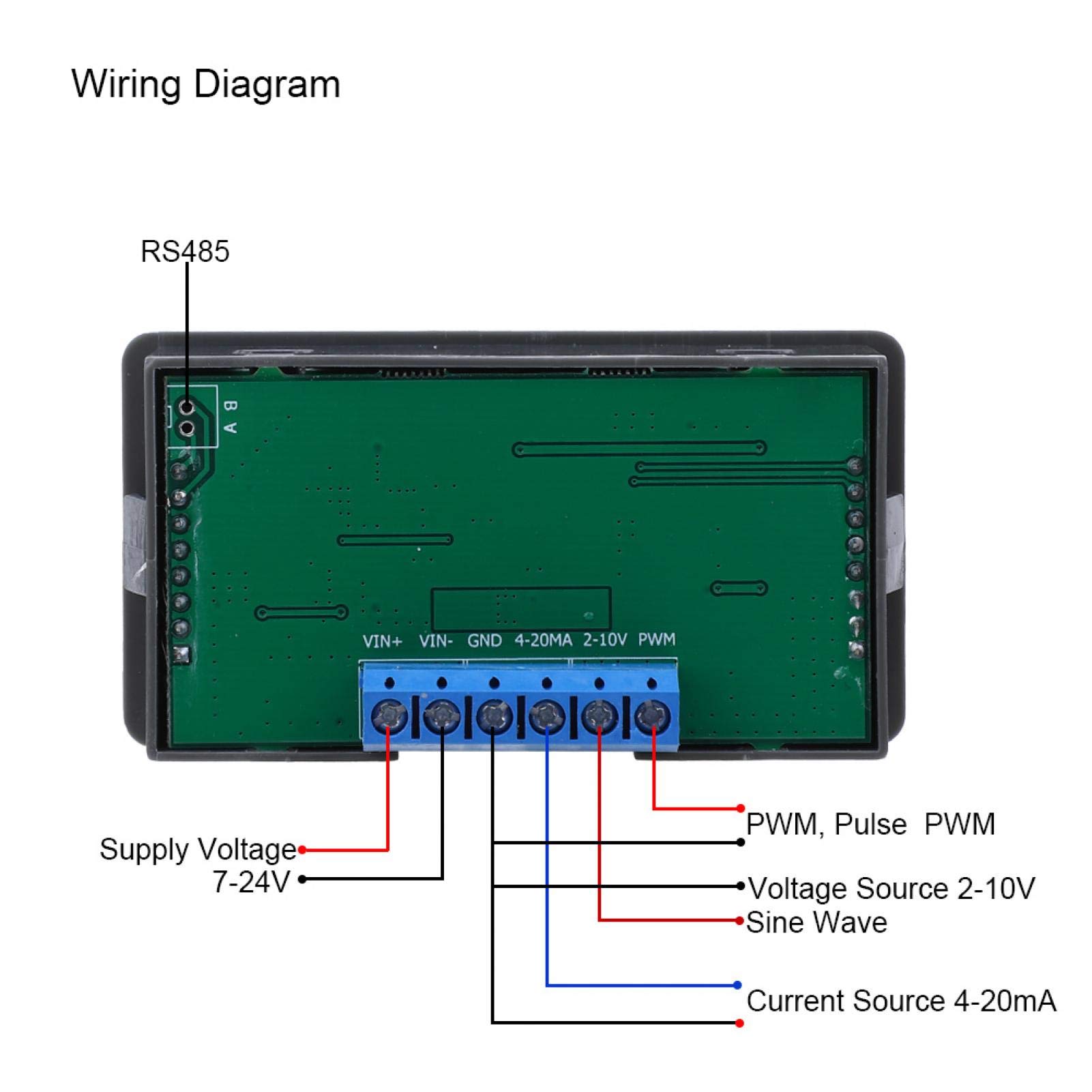

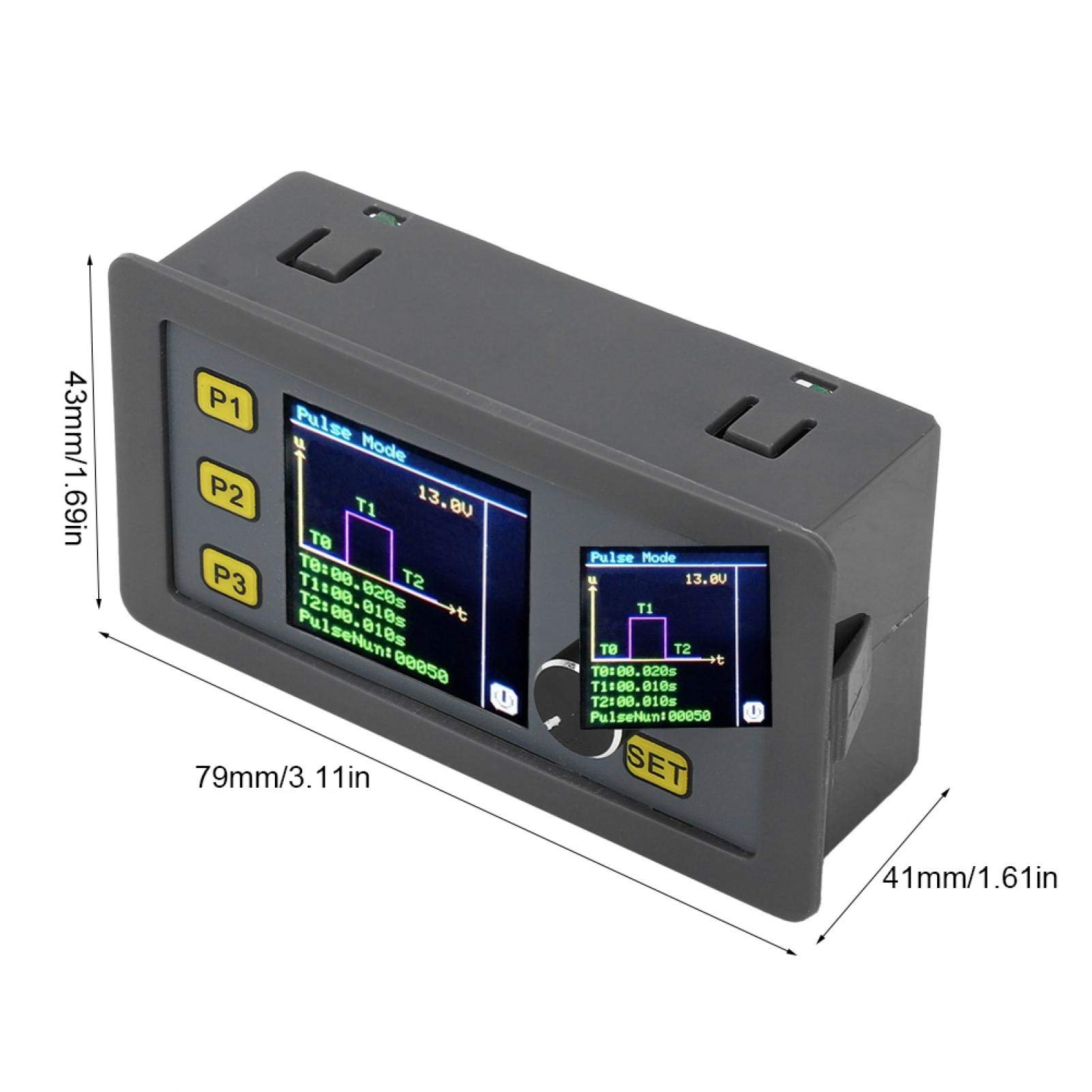

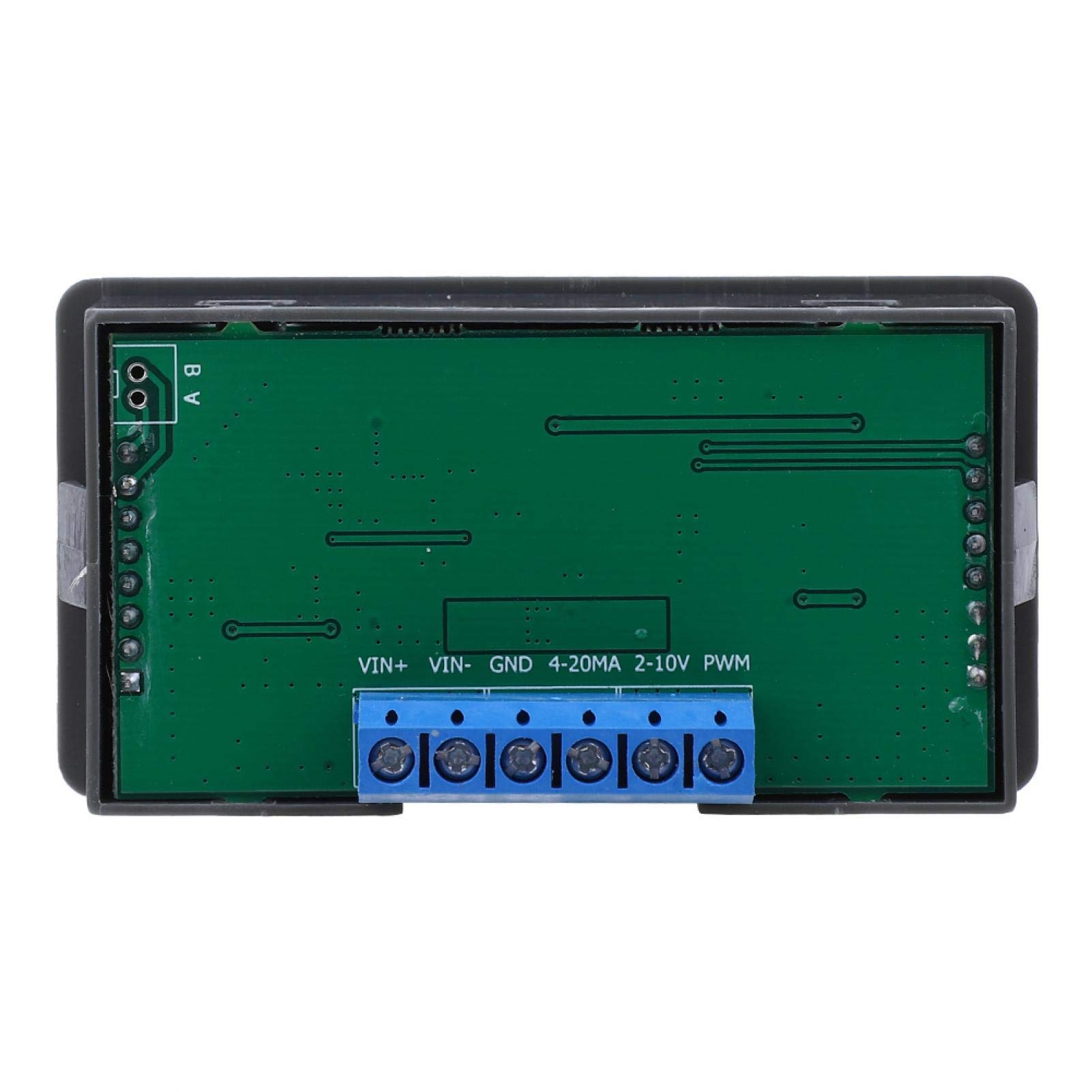

Description Spec: Item Type: Signal Generator Module Model: WSFG-06 Supply Voltage: 7-24V Product Function: PWM Mode, Pulse Mode, Source Mode, Sine Wave Mode PWM Mode: Voltage, frequency, duty cycle are adjustable, accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100% Pulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000 Signal Source Mode: Voltage source 2-10V, current source 4-20mA Sine Wave Mode: 1-1000Hz Signal Load Capacity: Output current up to 30mA (Note: This product outputs signal source, can not directly drive the high power load) Ambient Temperature: -10-+70°C Module Size: 79x43x41mm / 3.11x1.69x1.61in Opening Size: 76x39mm / 2.99x1.54in Package List: 1 x Signal Generator Module
