Ws2811 Controller, SP110e Addressable LED Bluetooth Ws2812b Controller 5V-24V, iOS/Android App Wireless Remote Control, Pixel Light Controller for WS2812 SK6812 SK6812RGBW Dream Color RGB Strip Lights

• Work with Smart IC Lights: SP110E supports almost all the one-wire or two-wire LED driver ICs. Such as WS2811/ WS2812B/ WS2813/ SK6812RGB/ SK6812RGBW/ SK6812/ SK9822/ APA102/ LPD8806/ etc. (Not support RGB or RGBW led strips without IC)
• User-friendly Design: SP110E led controller supports setting pixels number, control up to 1024 pixels in total. Save user setting when power off; Reverse connection protection; Small and convenient, the light effect is vivid and beautiful.
• Safety: The support working voltage of WS2812b controller is from DC5V to 24V, but it can’t regulate the output voltage at the VCC. 5V power supply for 5V led strips, never use 12V or 24V power supply, otherwise your lights will be damaged.
• Color/ Brightness/ Speed adjustment: Built-in 120 kind of lighting effects, brightness control from 1% to 100% and speed adjustment. Can adjust the color order RGB/RBG/BRG/BGR/GRB/GBR. Select WS2811 IC to control WS2812B and WS2813. Select SK6812 to control SK6812RGB. The white channel can be adjusted individually when you connect SK6812-RGBW LED Strip.

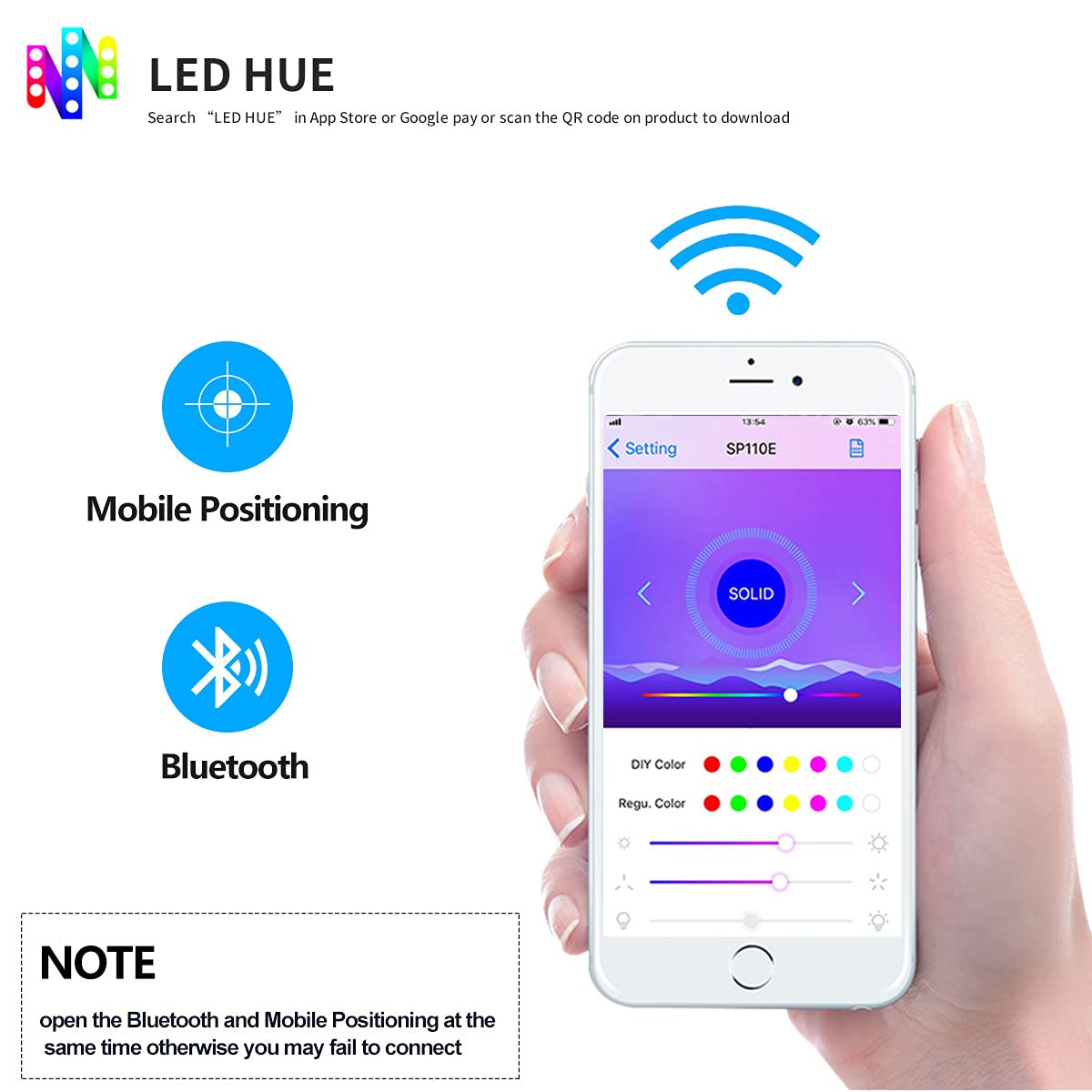

• APP Remote Control via Bluetooth: Search “LED Hue” in App Store or Google pay or scan the QR code on product to download and install the App. Apply to Android 4.4 / ISO 10.0 / Bluetooth 4.0 or later edition. Long distance remote control up to 20m without barrier, convenient to use.
• Pro Tips: 1. The Ws2812b controller cannot regulate the output voltage at VCC. 2. This Bluetooth controller cannot support LED lights without driver IC. 3. Please get more detailed operation steps on the video, or user manual on the APP. 4. The box contains 1 pcs SP110E controller and 1 pcs DC connector.

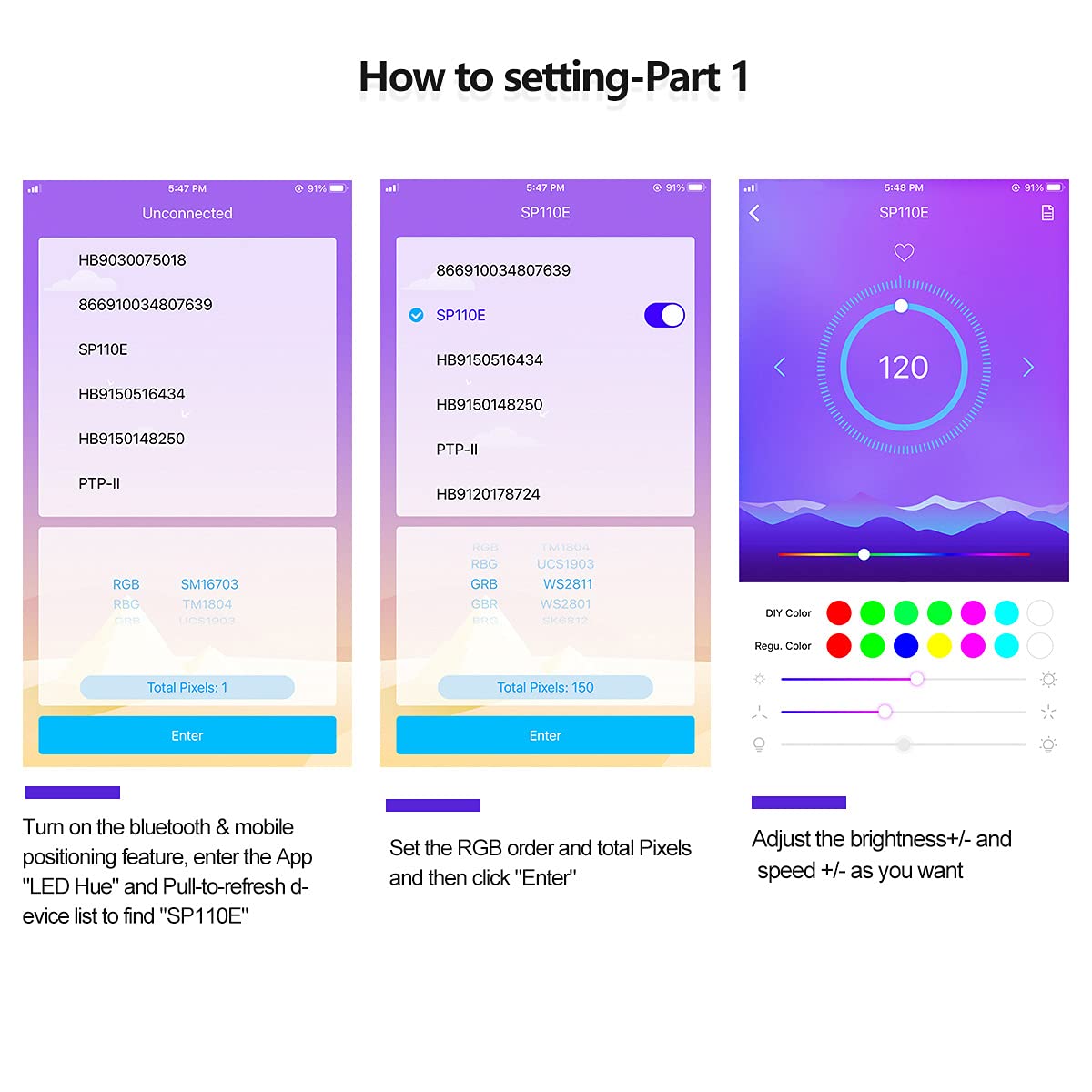

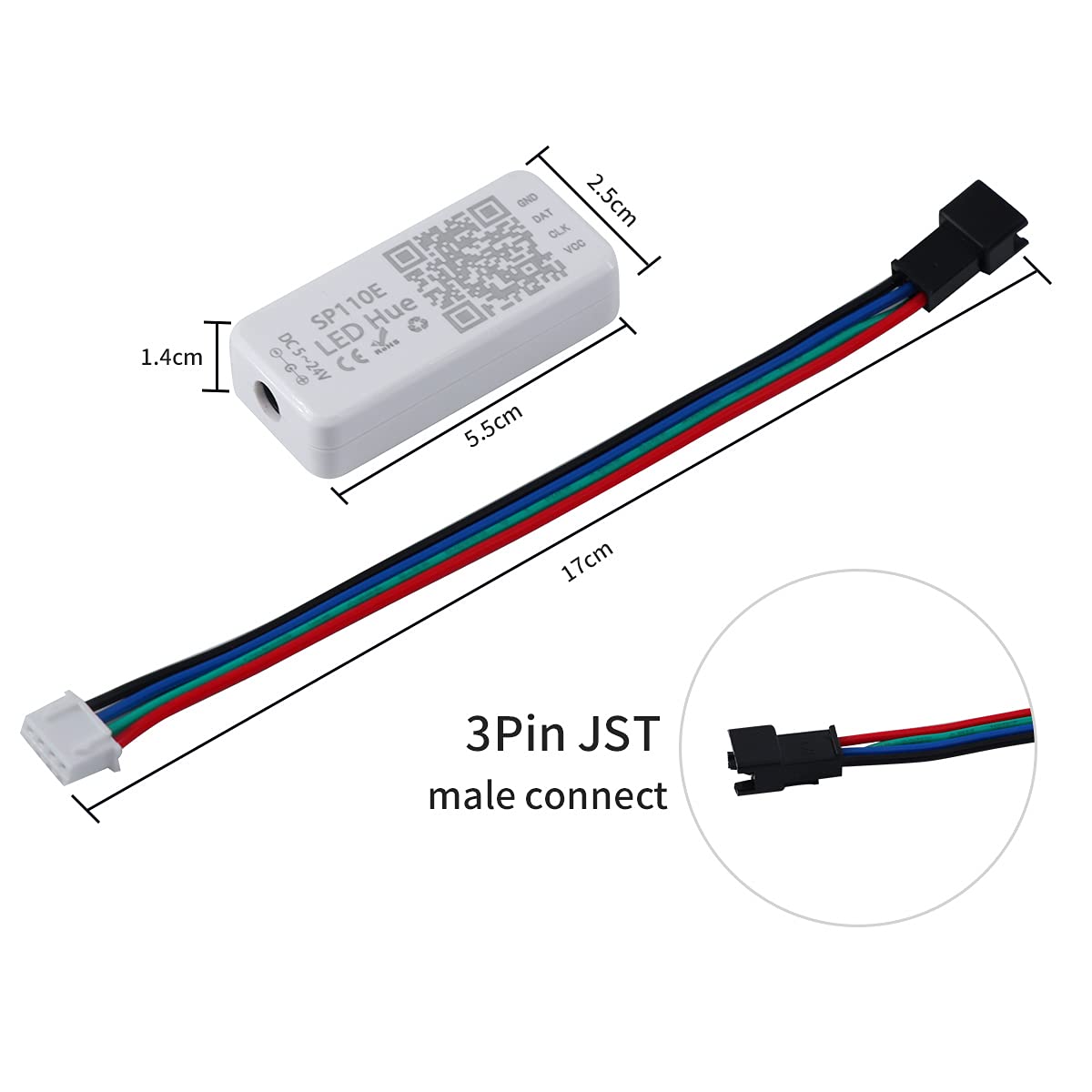

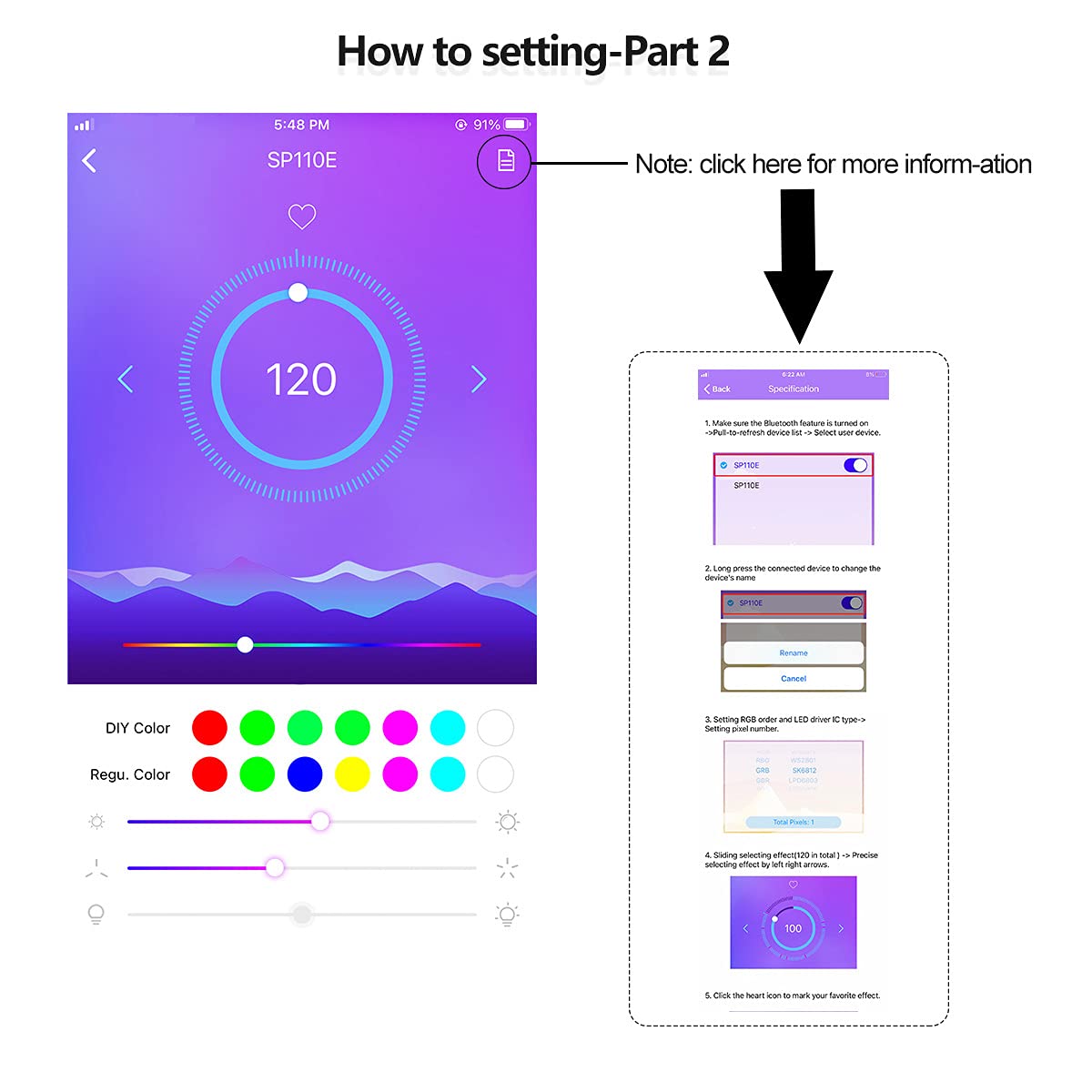

Package Included： SP110E Bluetooth LED controller x 4 (Note: DC terminated connectors inclided but power supply/led strip/mobile not included! ) Main Features： Model: Addressable Led Bluetooth Controller Working temperature: -20℃~60℃; Working Voltage: DC5V~24V; Working Current : 20mA~40mA; Product size: 2.17" x 0.98"x0.51"(L x W x H) Product weight: 40g ; Certificates: CE, RoHS; Easy to operate： Step1: Search “LED Hue” in App Store or Google pay or scan the QR code on product to download and install App. Step2: Make sure your phone is turned on Bluetooth-drop-down refresh list - select user settings. Step3: Long press on the connected device to modify the device name Step4: Set RGB order, IC model - set the number of points to drive according to the actual situation. Step5：After you enter the adjustment interface. You can adjust the lightness, speed and brightness what you like. The controller doesn’t include a paper user manual. If you need more detailed instructions, pls click the icon in the upper right corner to enter the "instructions" interface. Wide application： The ws2812b bluetooth controller has smart size design for led strip, led rope, led pixel, etc. It is also can be used for small voltage light, such as led panel light, etc. Ideal for home decoration, advertising displays, shopping mall, wedding scenes, cars, LCD, festival decoration etc via remote control with pixel lights.
