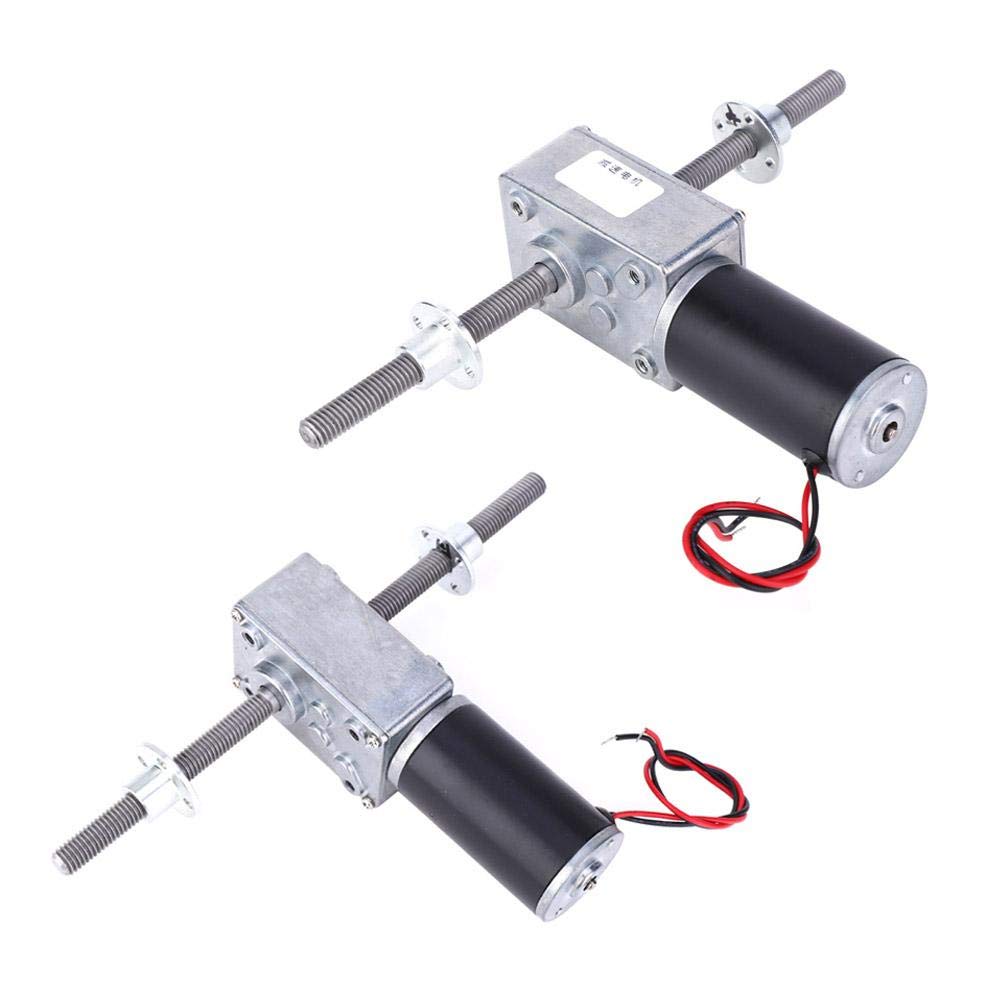

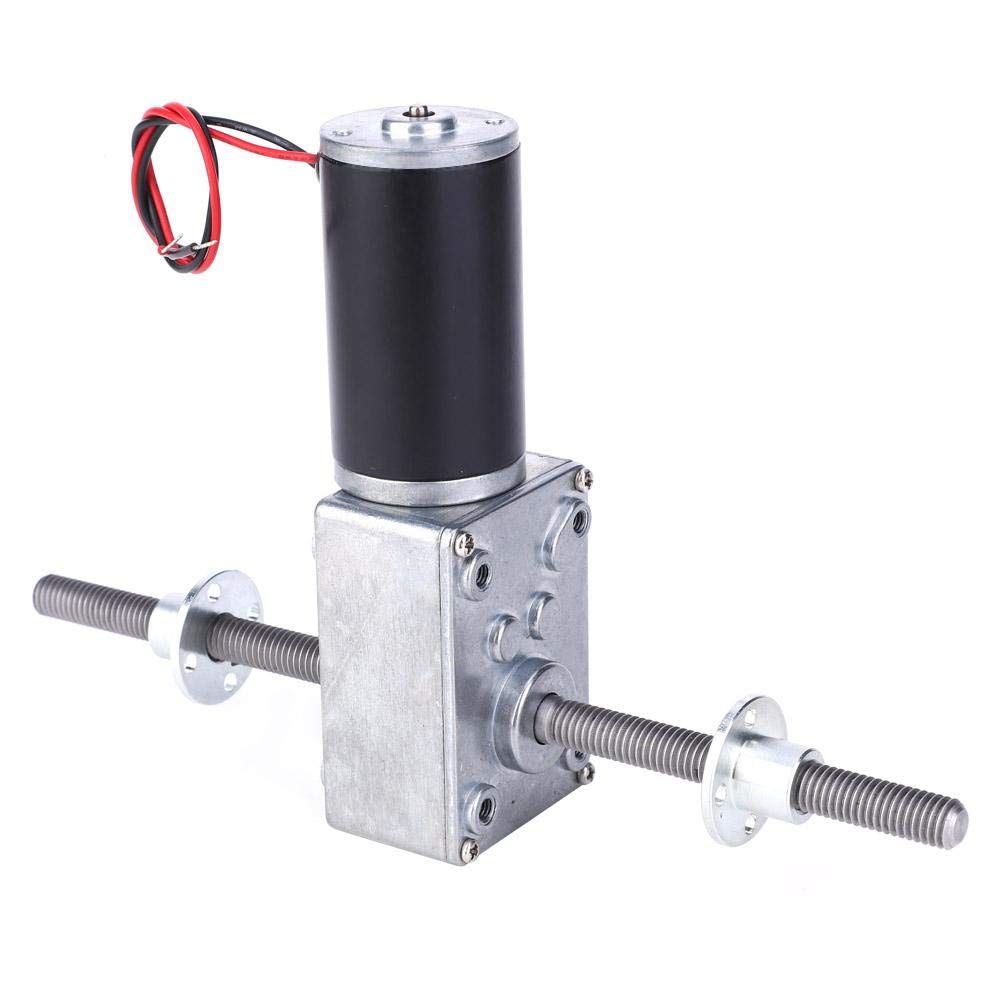

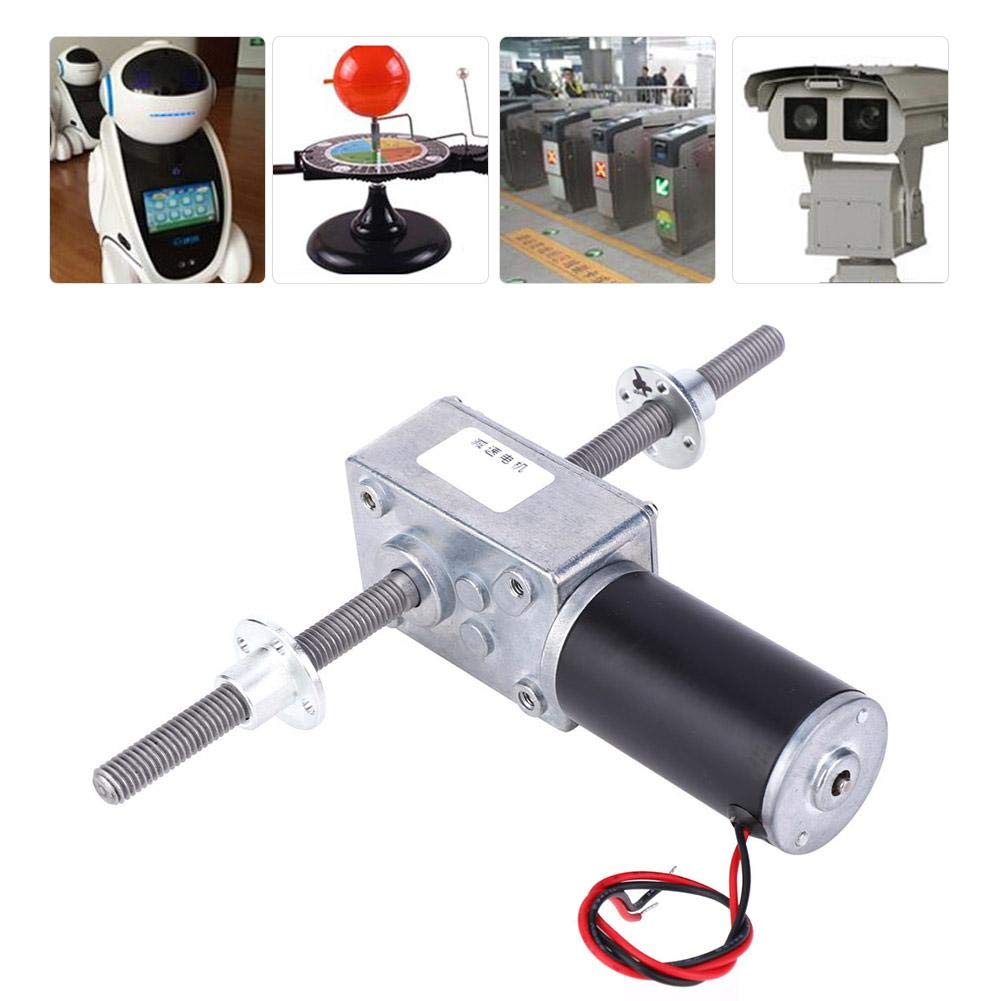

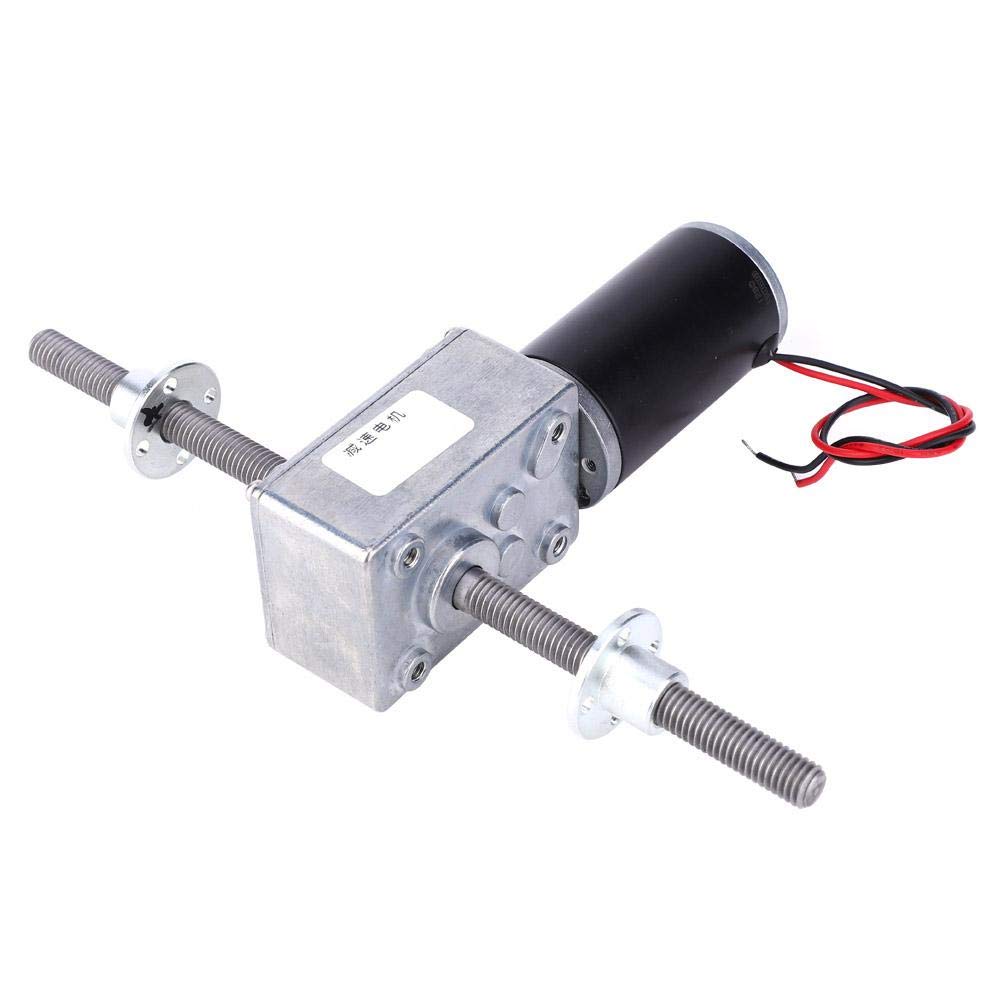

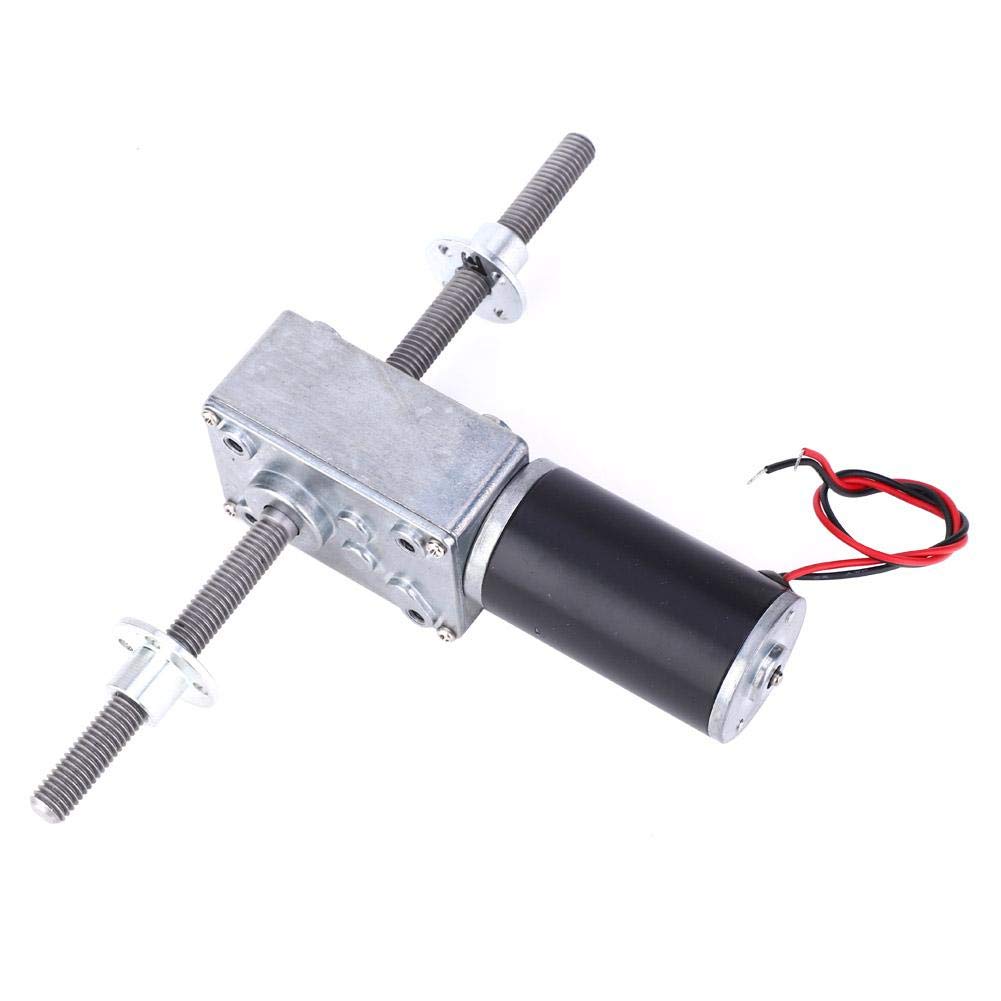

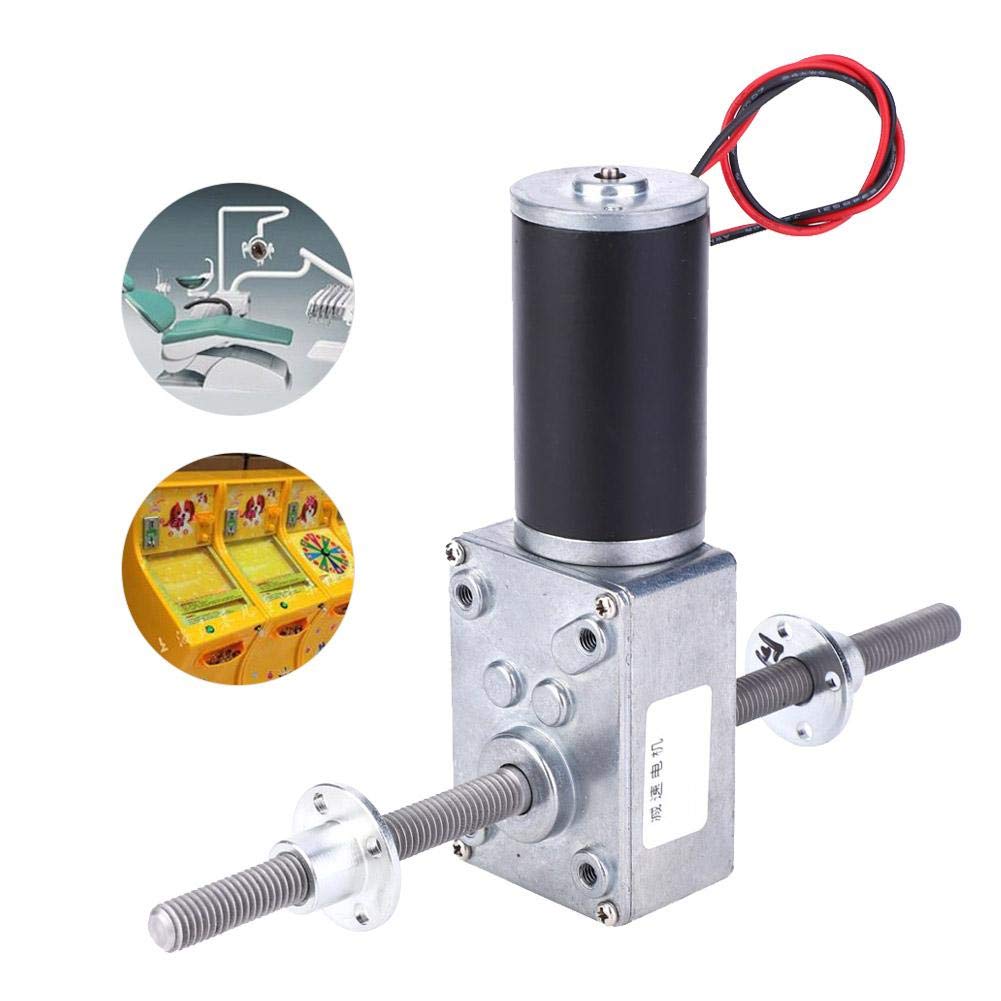

ViaGasaFamido Worm Gear Motor, DC 24V Electric Double Shaft M8 Right-Hand and Left-Hand Thread DC Gear Motor High Speed High Worm Reduction Electric Motor with Flange(Speed Reduction Rate 17)

• High Performance: This worm gear motor has small size but the power is sufficient, M8 screw double shaft for long life and high accuracy.
• High Quality: This worm gear motor has solid and cabinet. Using best materials, energy efficient and corrosion resistant.
• Low Noise: This worm gear motor has strong body and silent structure, very suitable for home use.
• Low Loss: All machine gears are made of steel teeth, alloy material, accurate and durable, low loss.

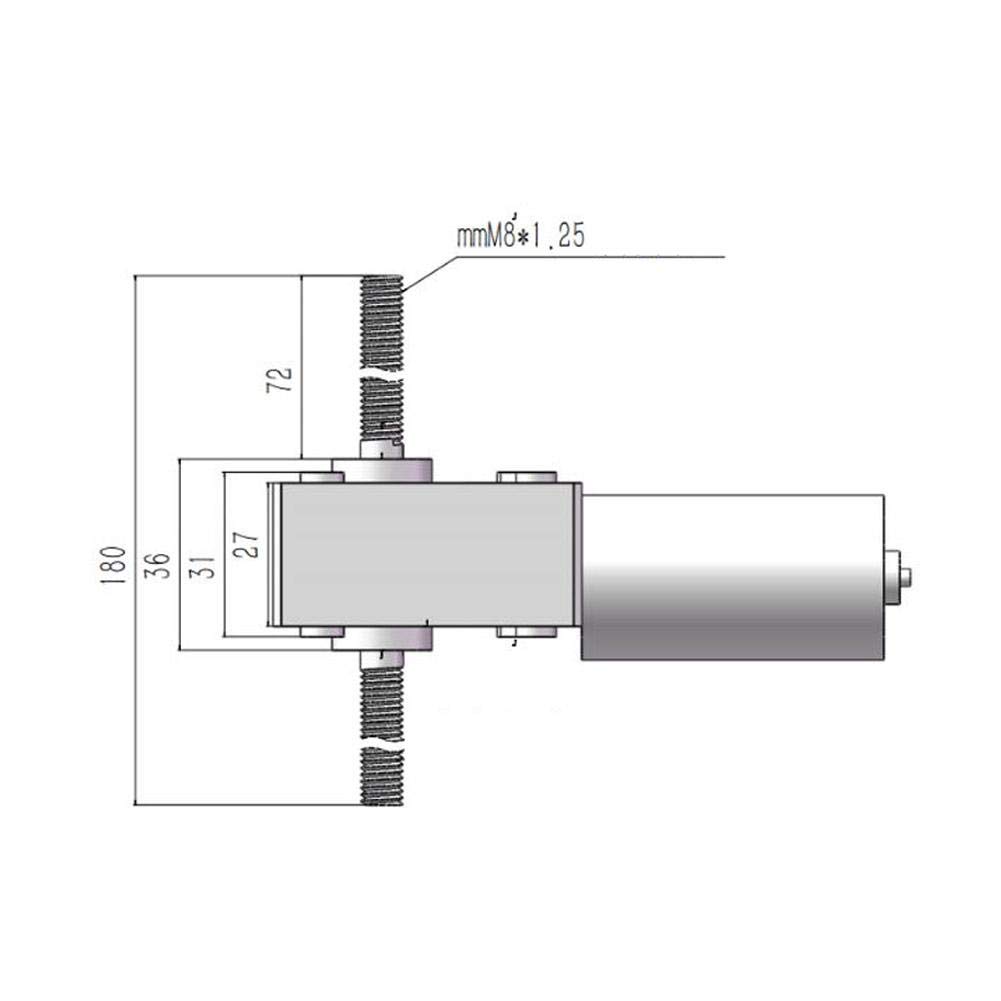

• Right And Left Thread: This worm gear motor equipped with right and left hand thread, suitable for flange relative movement and opposite motion.

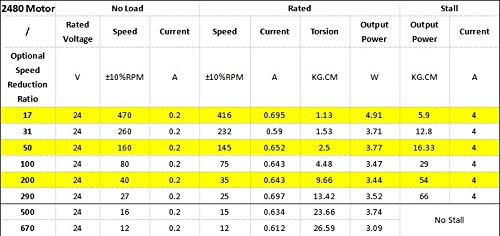

Specification: Item Type:Worm Gear Motor Flange:Equipped Thread:Double Shaft Right and Left Handed M8 Thread 2480 Motor Optional Speed Reduction Ratio17/31/50/100/200/290/500/670 No Load Rated Voltage (V)24/24/24/24/24/24/24/24 No Load Speed ±10%RPM470/260/160/80/40/27/16/12 No Load Current (A)0.2/0.2/0.2/0.2/0.2/0.2/0.2/0.2 Rated Speed ±10%RPM416/232/145/75/35/25/15/12 Rated Current (A)0.695/0.59/0.652/0.643/0.643/0.697/0.634/0.612 Rated Torsion (KG.CM) 1.13/1.53/2.5/4.48/9.66/13.42/23.66/26.59 Rated Output Power (W)4.91/3.71/3.77/3.47/3.44/3.52/3.74/3.09 Stall Output Power (KG.CM)5.9/12.8/16.33/29/54/66/No Stall Stall Current (A)4/4/4/4/4/4 Package List: 1 x Motor 2 x Flange
