WMYCONGCONG 660V 30A Single Phase 2 Inlet 12 Outlet Metering Box Junction Power Distribution Terminal Block (2 Inlet 12 Outlet)

• Metering box junction terminal block, enables house service wire to be separated from metering service wire which solves the problem of parallel connection.

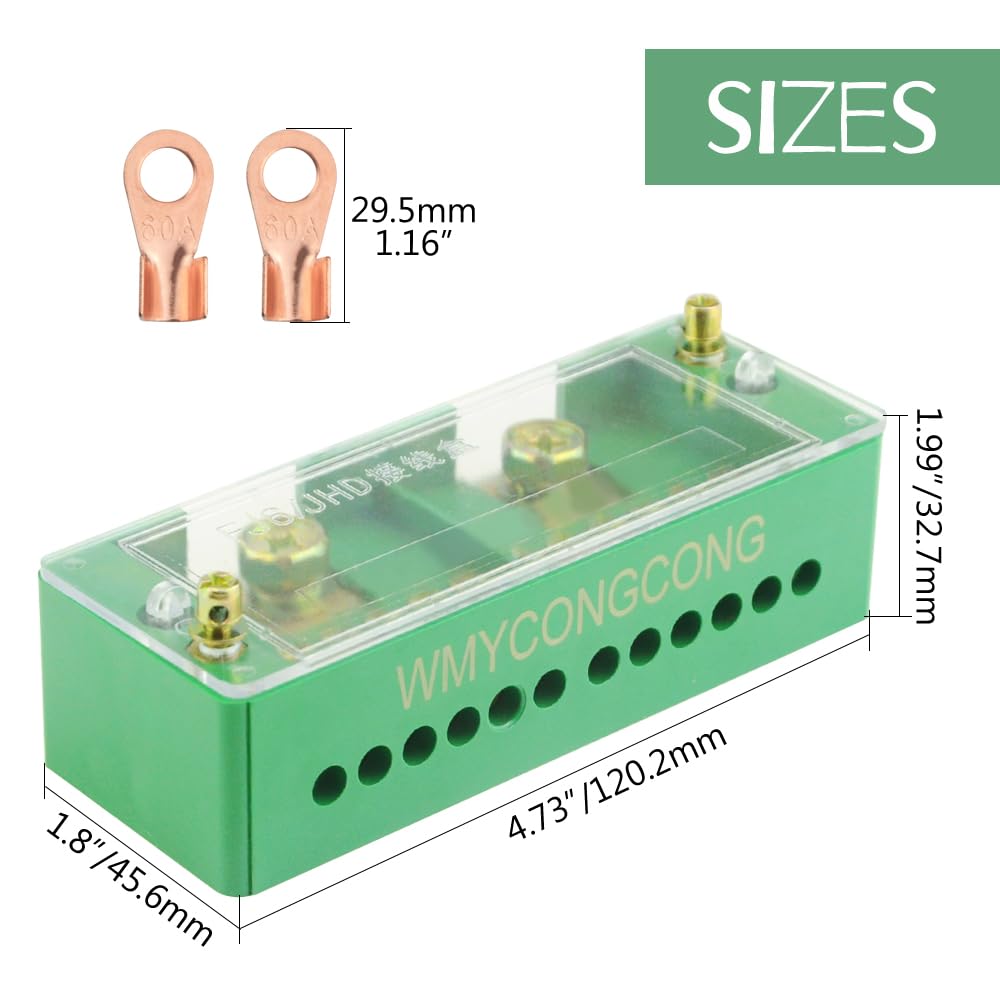

• Material: Polycarbonate, Metal; Overall Size: 120 x 46 x 36mm/4.68 x 1.79 x 1.4"(L * W * H).
• Calibrated Current: 30A; Insulation voltage: 660V 50HZ/60HZ.
• Type: Single Phase 2 Inlet 12 Outlet; Mounting Hole Diameter: 5mm/0.2".
• Package Content: 1 x 2 Inlet 12 Outlet Terminal Block.

Specification: Product Name: Metering Box Junction Box Material: Polycarbonate, Metal Main Color: Green Main Line Connection Range: 4-16 square Branch Wiring Range: 1.5-10 square Calibrated Current: 30A Insulation Voltage: 660V 50HZ/60HZ Working Temperature: -40°C~+120°C Between Terminals and Insulation Resistance: >40MΩ Dimension: 120 x 46 x 36mm/4.68 x 1.79 x 1.4"(L * W * H) High impact resistance, moisture resistance, favorable insulation, ageing resistance, flame retardant, high temperature resistant. Package Content: 1 * 2 Inlet 12 Outlet Terminal Block
