WMYCONGCONG 2 PCS Momentary Push Button Switch 19mm Waterproof Metal Flat Top 250V 3A 1NO

• 19mm Momentary push button switch, press the button the contacts - on, when you release the button the contacts - off.
• Switch Rating: 2A/36V DC/AC; Switch Combination: 1NO.

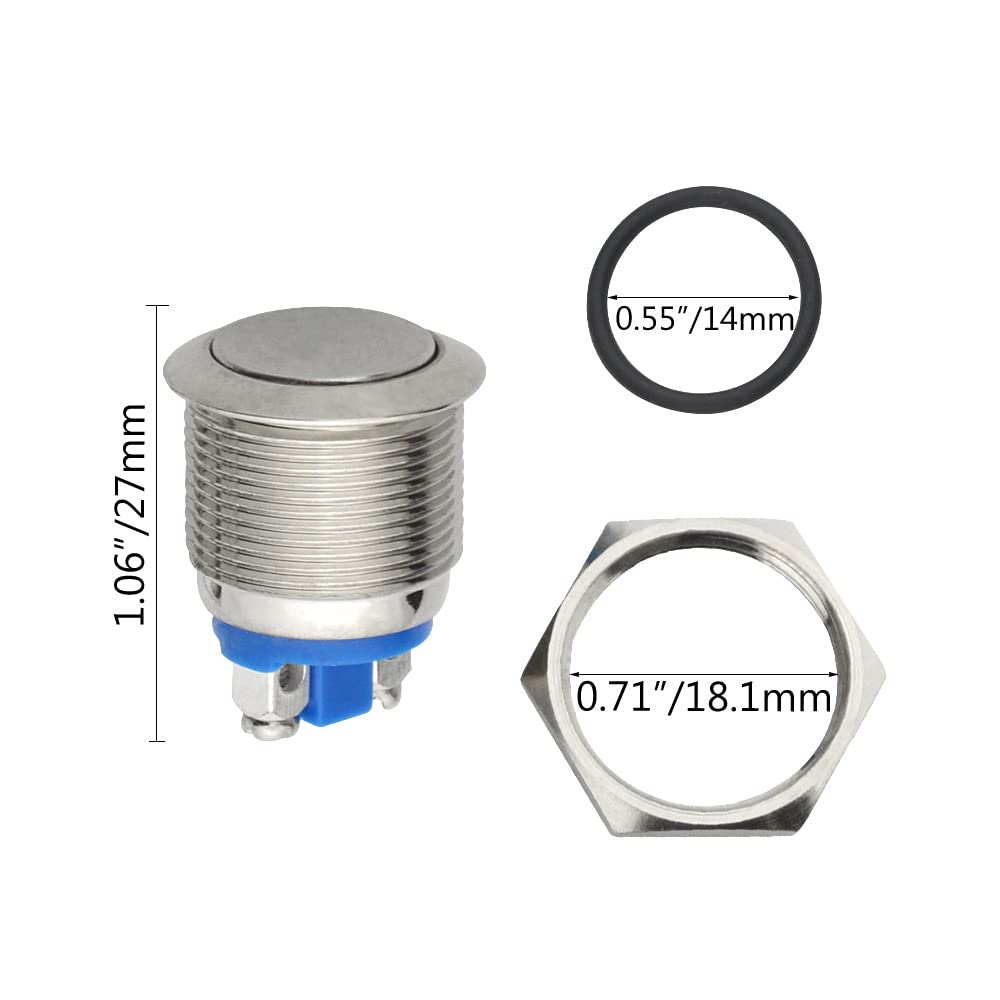

• Dimensions: 21.5 * 30mm/0.85 * 1.18inch(Max. D*H); Mounting Hole Diameter: 19mm/0.75inch.

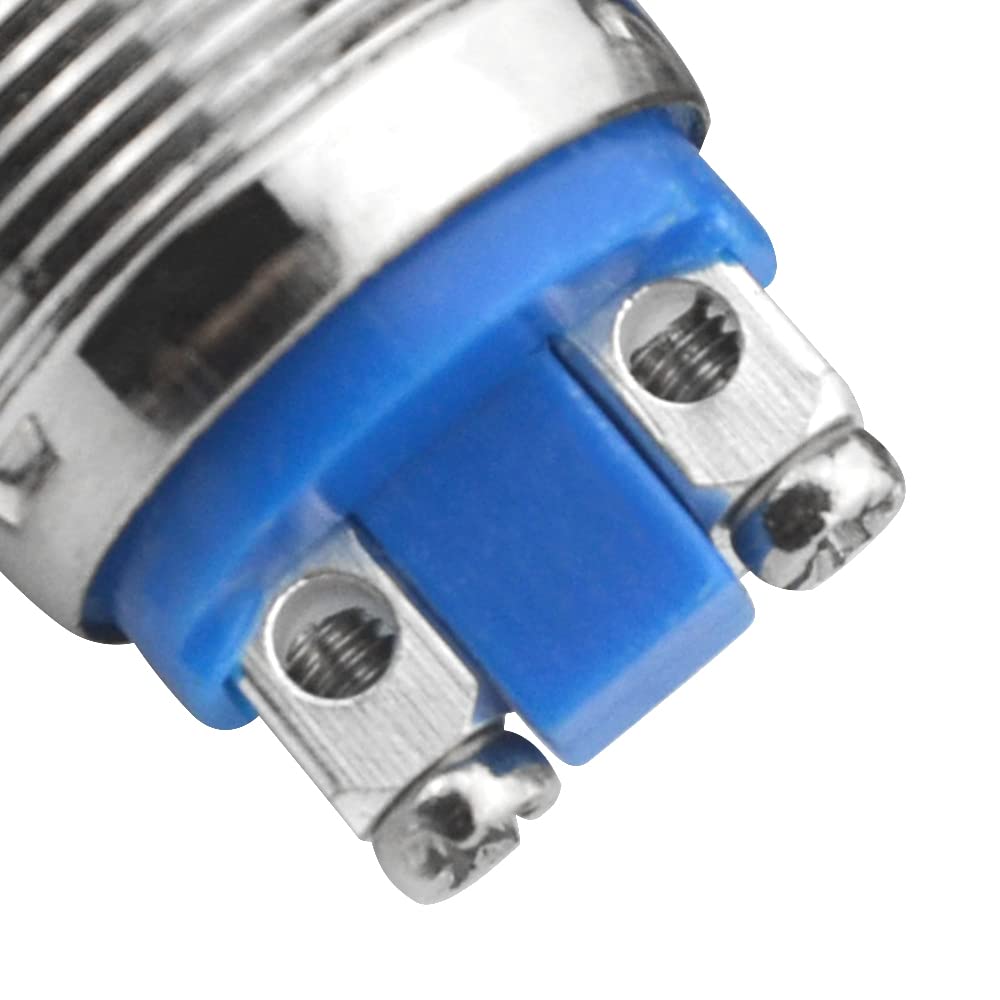

• Screw clamp type terminals, reliable, no need soldering, easy to install and use; IP65 waterproof protection, can be used in wet and dust surroundings.

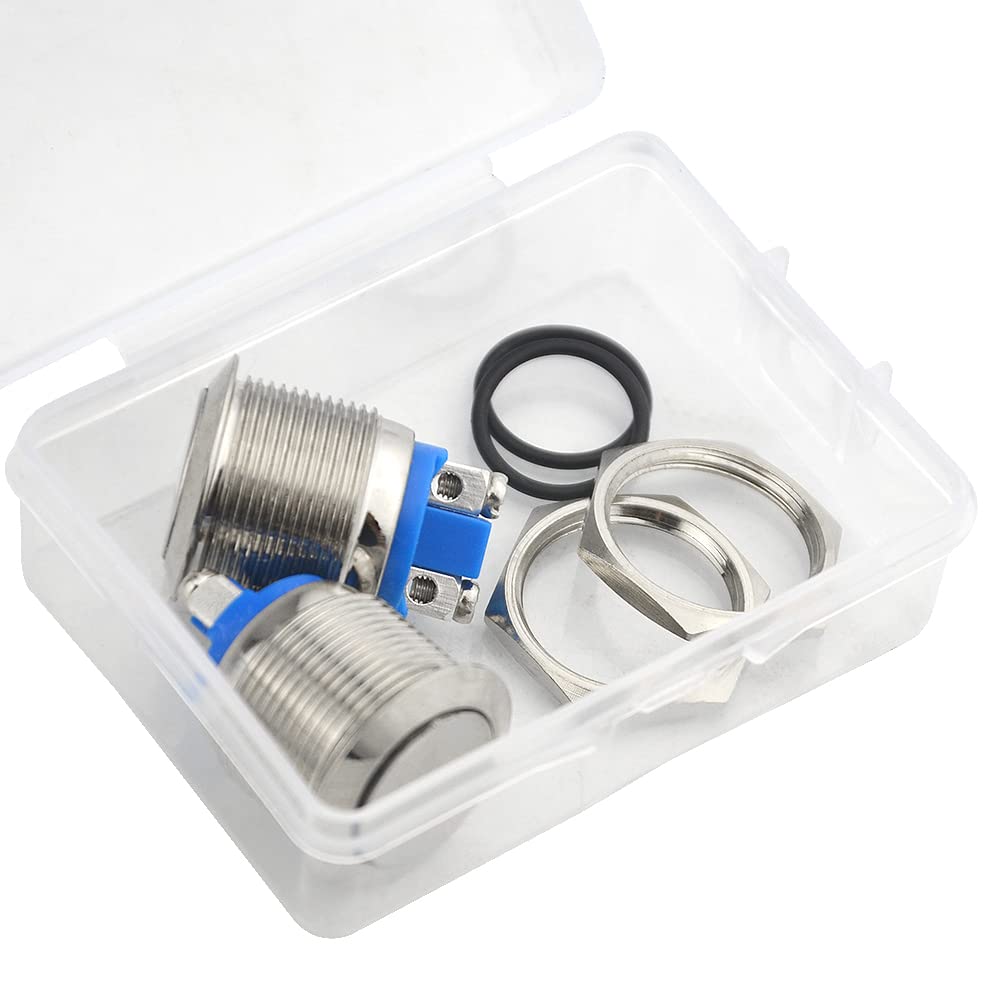

• Package Content: 2* 19mm Momentary Push Button Switch Flat Top.

Specification: Rating Voltage and Current: 2A/36V DC /AC Material: Metal External Overall Color: Golden Mounting Hole Diameter: 19mm/0.75inch 2 Foot Spacing: 9mm/0.35inch Dimensions: 21.5 * 30mm/0.85 * 1.18inch(Max. D*H) When you press the button the contacts close(on), when you release the button the contacts open(off), ideal for something low profile. Contact Configuration: 1 NO Operating Type: Momentary Head Shape: High Head Terminal Type: Screw Protection Degree: IP65 Switch Type: Two terminal breakpoints slow moving contact Contact Resistance: ≤50mΩ Insulation Resistance: ≥1000mΩ Dielectric Strength: 2000VAC Operating Temperature: -20℃ to +55℃ Mechanical Life: > 1,000,000 times Electrical Life: > 200,000 times Great for electromagnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls on over 500,000 cycles, easy to install, screw clamp type terminals to make fitting very easy. Package Content: 2 * 19mm Momentary Push Button Switch Flat Top
