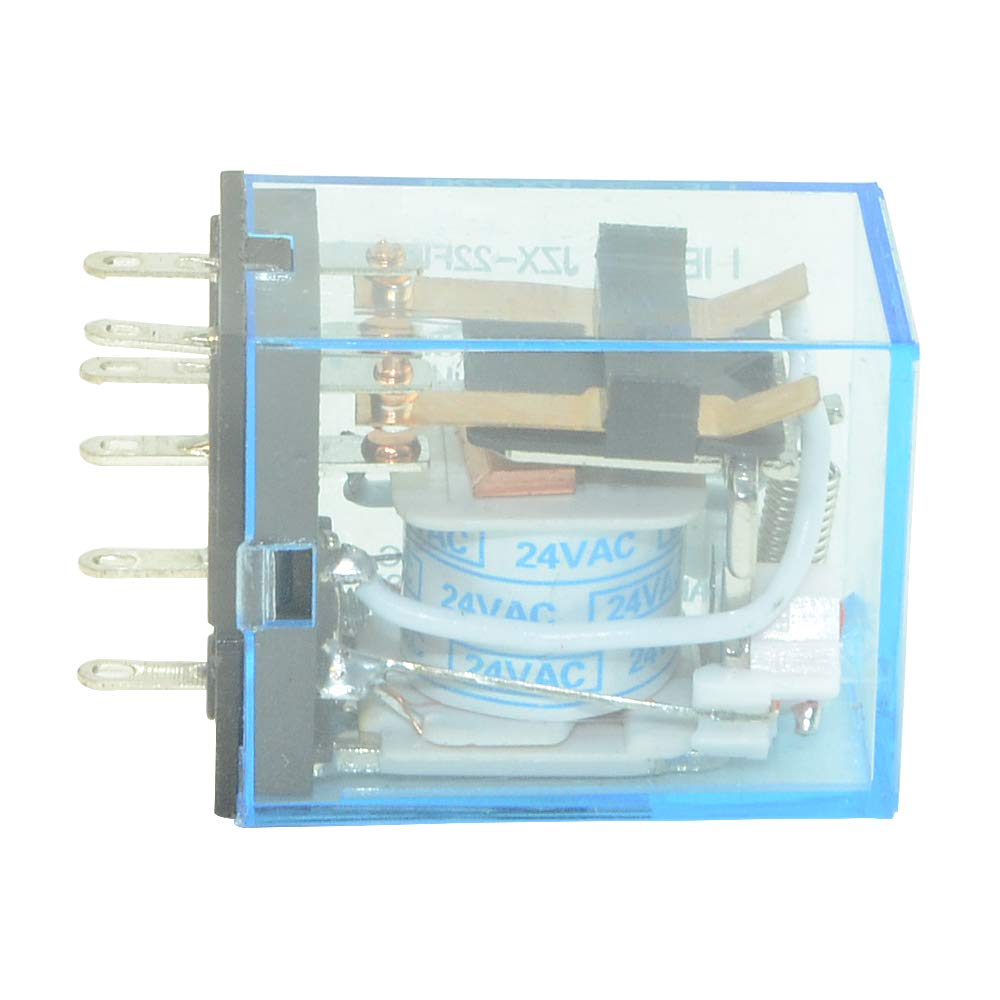

WMYCONGCONG 2 PCS Electromagnetic Power Relay, HH52P 8-Pin 5A AC 24V Relay Coil with Socket Base DPDT 2NO 2NC

• Product Name: Electromagnetic Power Relay; Model: HH52P; Type: DPDT; Number of Terminals: 8 Pins.
• Coil Voltage: AC 24V; Contact Capacity: 5A 250VAC/5A 28VDC.

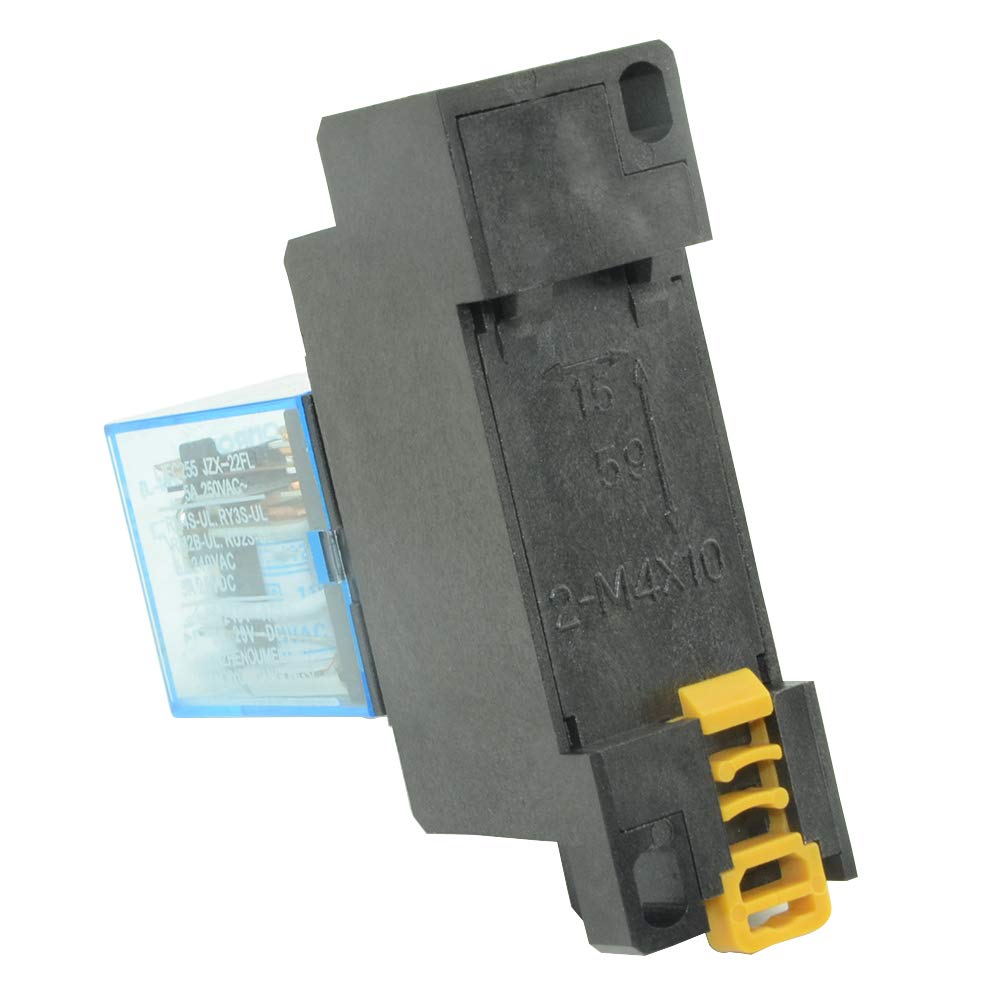

• Mounting Rail Width: 35mm; Installing Hole Size: 6 x 4mm / 0.24 x 0.16inch (L*W); Installing Hole Center Distance: 59 x 15mm / 2.32 x 0.59inch(L*W).
• 8 Terminals, DPDT 2NO 2NC type, plastic housing, built with red indicator light, widely applied to remote control, communication, automatic control system, electronic equipment, etc.
• Package Content : 2 x HH52P AC 24V Electromagnetic Relay.

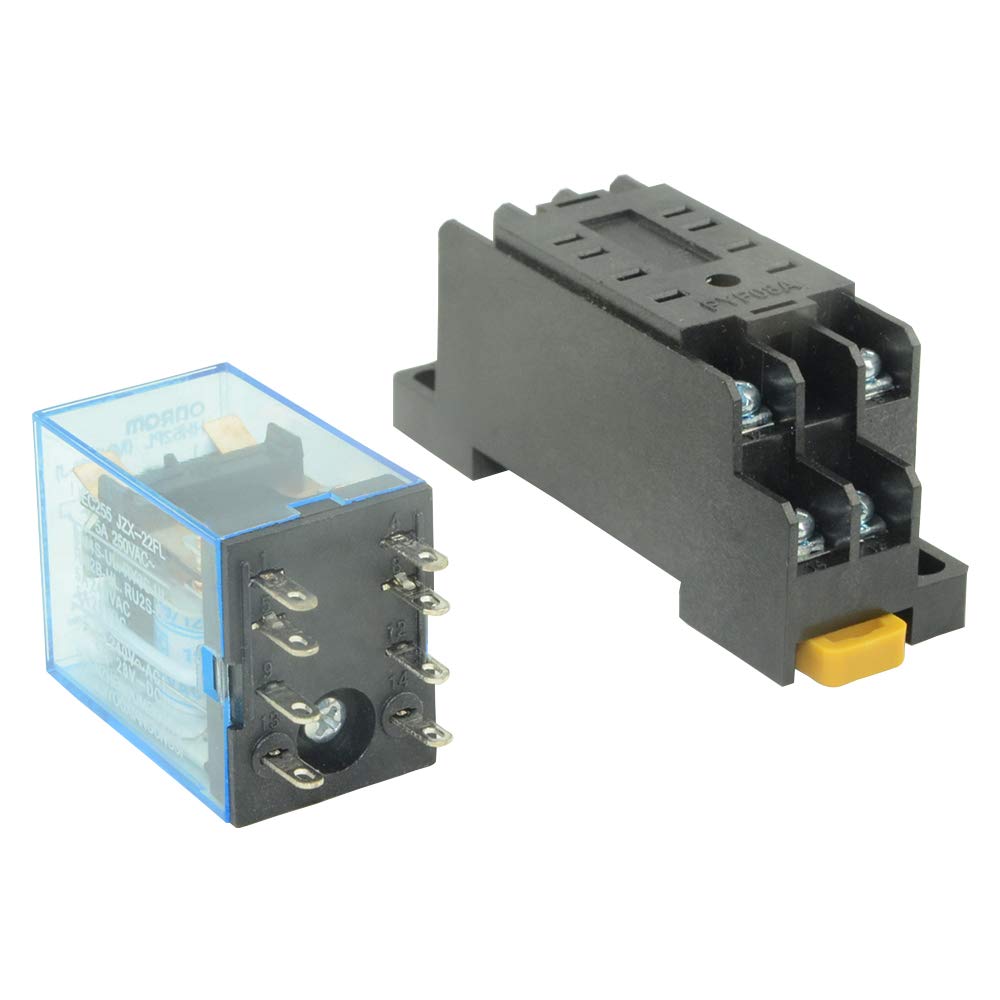

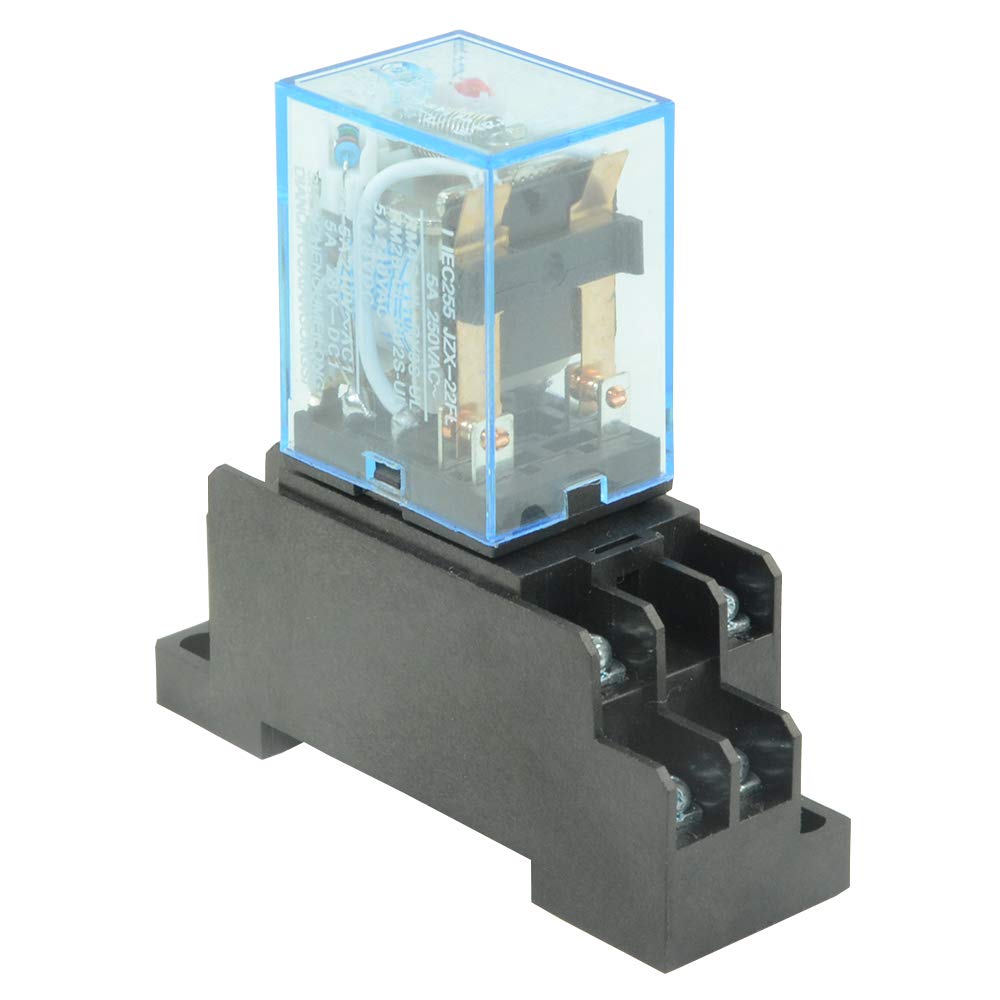

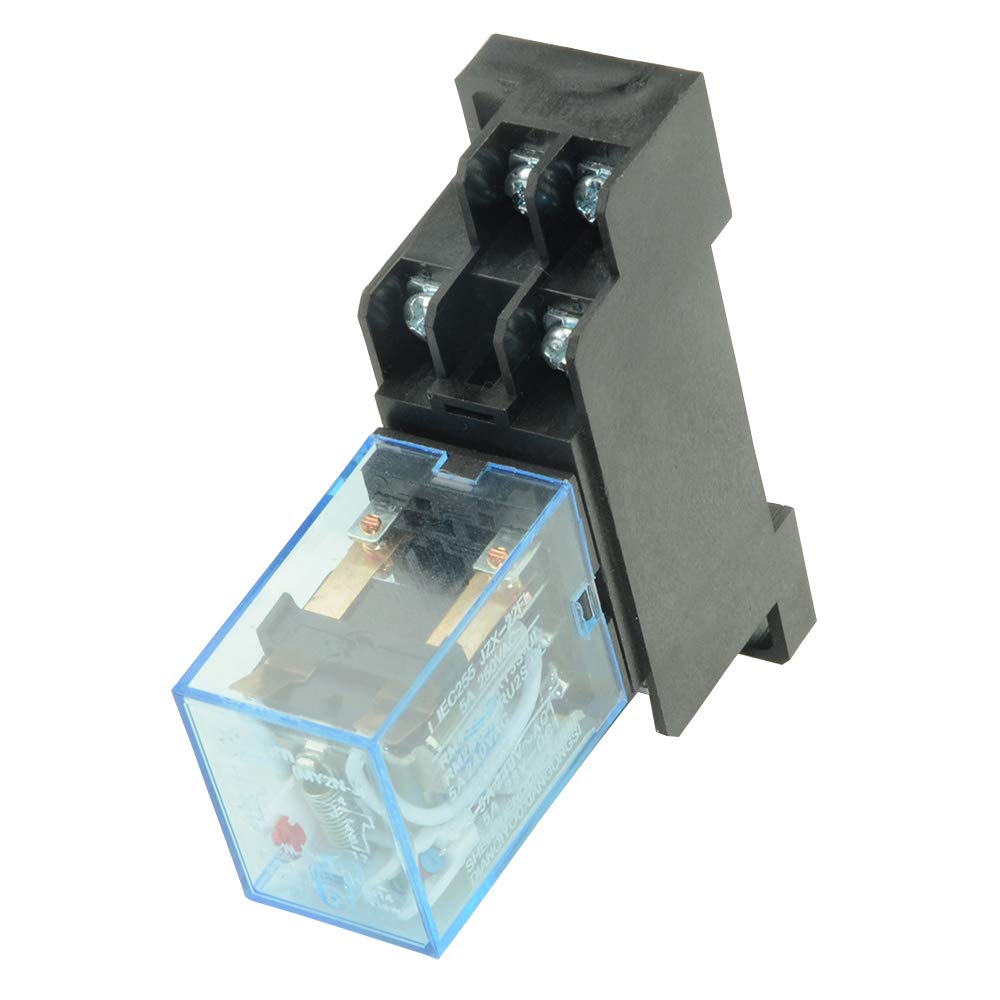

Specification: Product Name: Electromagnetic Relay Model No.: HH52P Coil Voltage: AC 24V Contact Capacity: 5A 240VAC /28VDC Type: DPDT Number of Terminals: 8 Pins Mount Rail Type: 35mm DIN Rail Fixing Mount Hole Size: 6 x 4mm/0.24" x 0.16"(L*W) Total Size (Approx.): 68 x 22 x 65mm/2.7" x 0.9" x 2.6"(L*W*H) Shell Material: Plastic Main Color: Black, Clear Blue Net Weight: 58g The wire terminals are a standard type and have a nice clamp plate under the screw head to retain the wires. Built with red indicator light, come with socket base, can adjust automatically, protect and transform the electric circuit. Widely applied to remote control, communication, automatic control system, electronic equipment, etc. Package Content: 2 x AC 24V Electromagnetic Relay
