WMYCONGCONG 10 PCS PIR Module Pyroelectric Infrared Motion Sensor Module Detector Security

• Compatible with Security Products, human body sensors toys, human body sensor lighting industrial automation and control, etc.
• Delay time: adjustable(0.3 seconds to 10 minutes)
• Working voltage: DC5V-20V

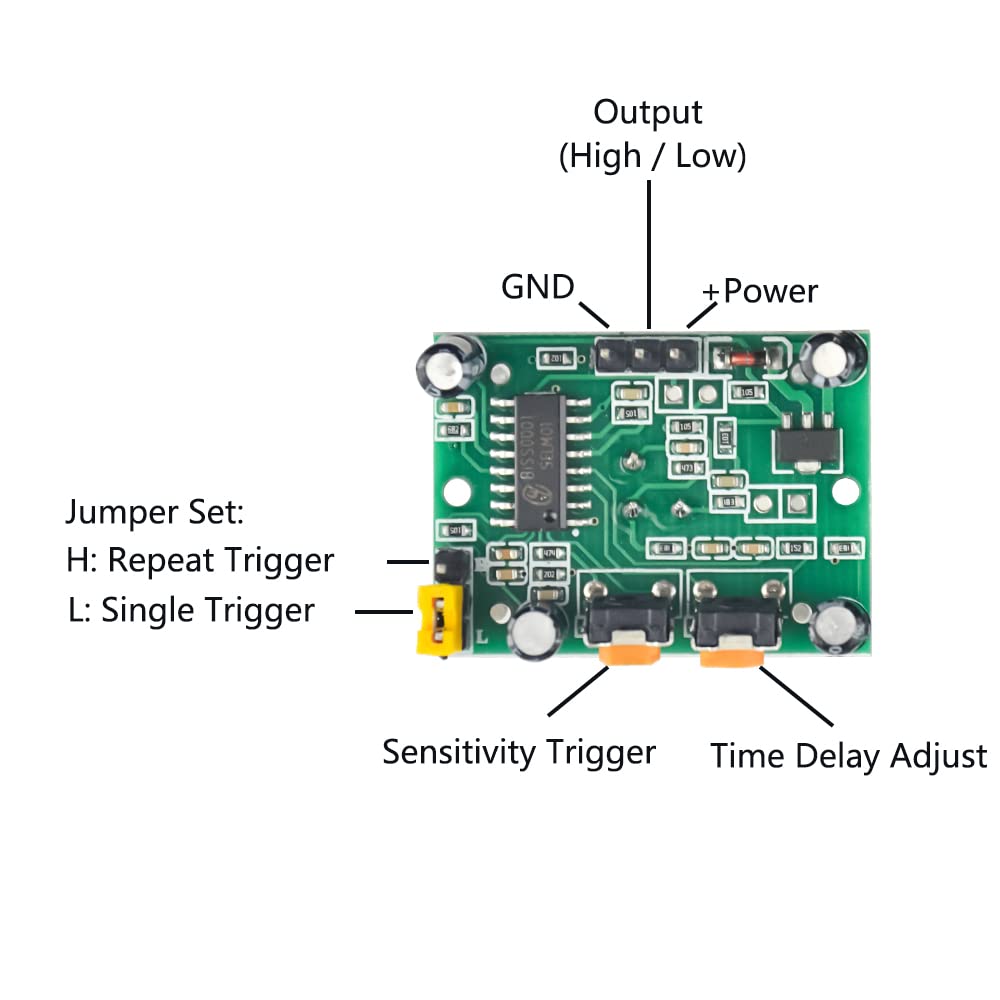

• Motion Sensor Detector, when people approach to the sensor, its output is high, when people leave the sensor, its output is low.
• Applied to the corridor, bathroom, basement, warehouse, garage and other places’ automatic lighting, can also be applied to enterprises, hotels, shopping malls’ alarm system.

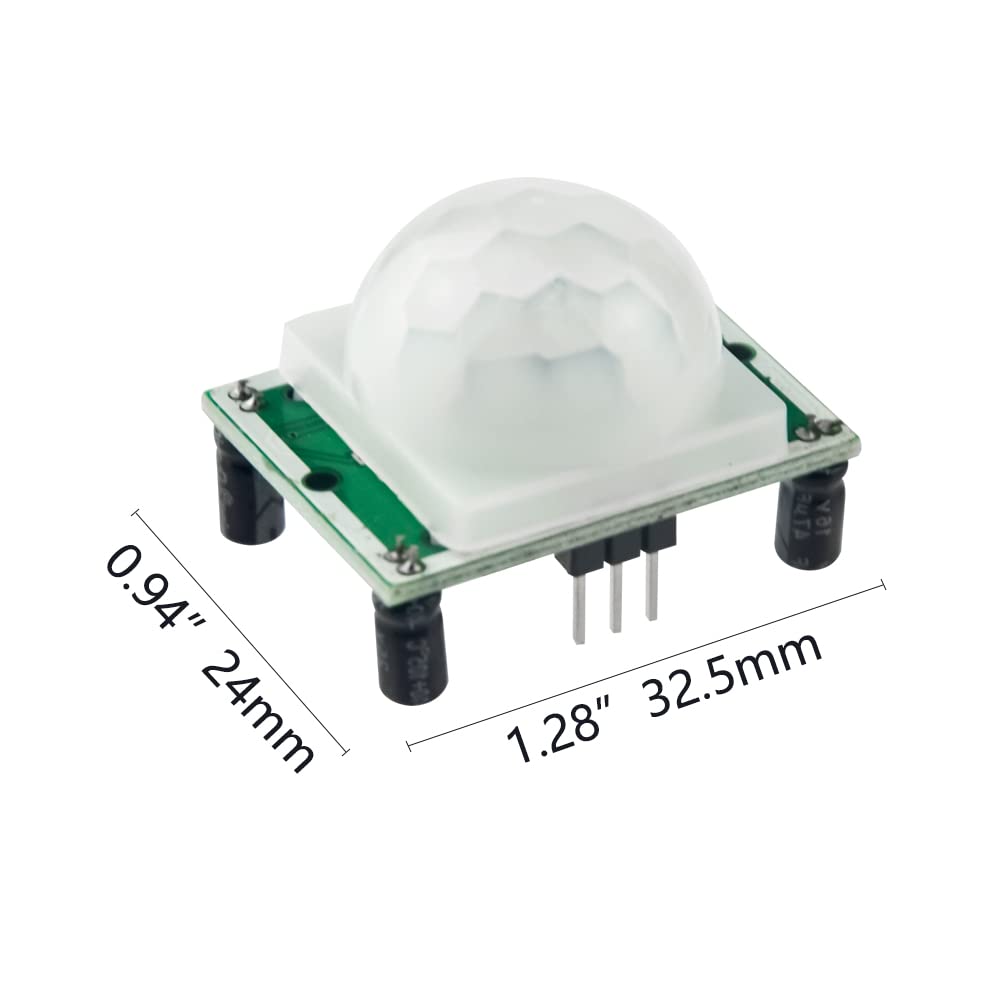

This automatic control module based on infrared technology, high sensitivity, reliability, ultra-low voltage, widely used in various auto-sensing electrical equipment, especially in battery-powered AC appliances. Specifications: Dimension: 1.26*0.94in DC voltage: 4.5-20V Quiescent Current: <50uA Level output: High 3.3 V / Low 0V Trigger mode: L unrepeatable trigger / H repeat trigger (default trigger repeat) Delay time: 0.5-200S (adjustable) range can be made zero seconds - several minutes Block time: 2.5S (default) range of a few tenths can be made - tens of seconds PCB Dimensions: 32mm * 24mm Induction angle:<100 degree cone angle Operating temperature: -15- + 70 degrees Induction lens size: Diameter: 23mm (default) Package: 10 pcs Motion Sensors
