Wiska 308 Black Junction Box with 3 x 20mm M20 IP68 Cable Glands IP66 IP67 Outdoor Electrical Enclosure 85 x 85 x 51 mm

• Wiska 308 black junction box supplied with 3 black 20mm M20 IP68 cable glands

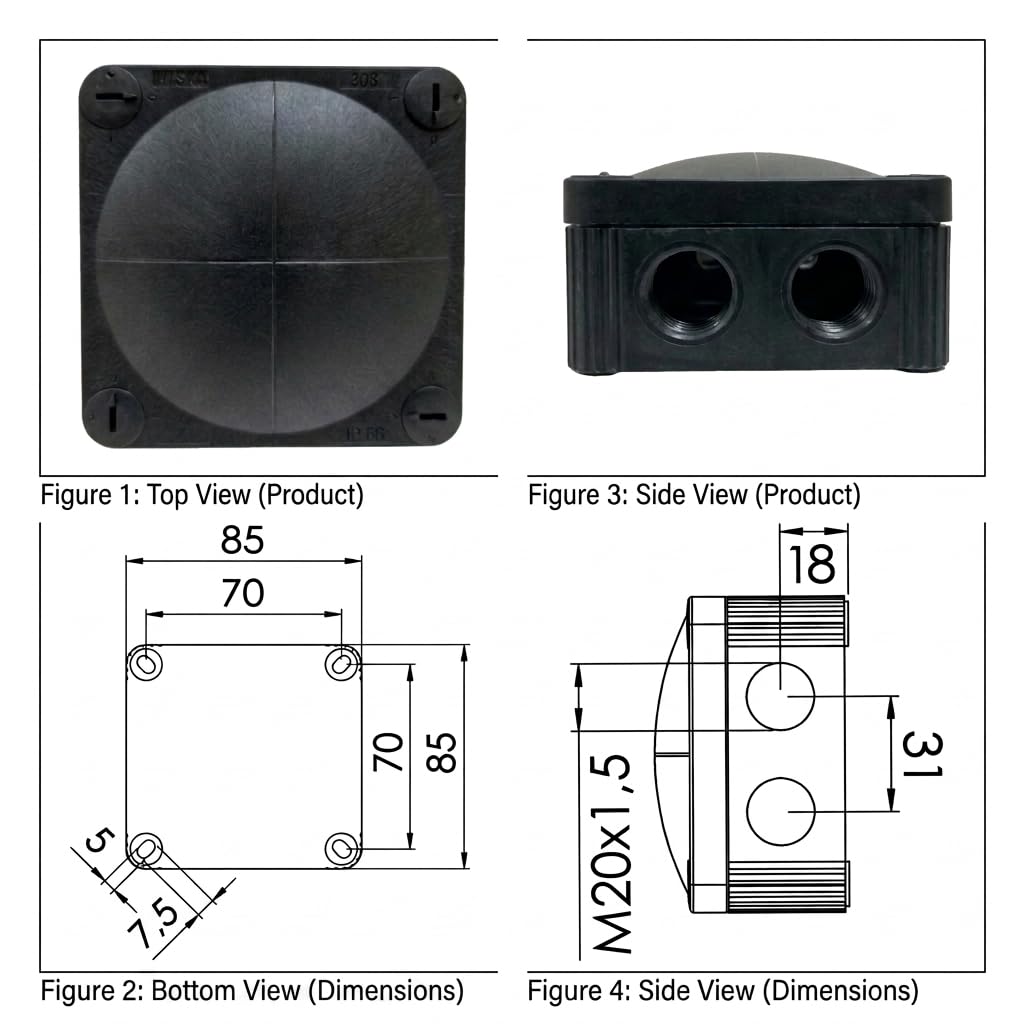

• Compact junction box size of 85 x 85 x 51 mm for cable joints connections and small wiring projects
• IP66 and IP67 rated enclosure helps protect against dust water jets and temporary immersion when correctly installed

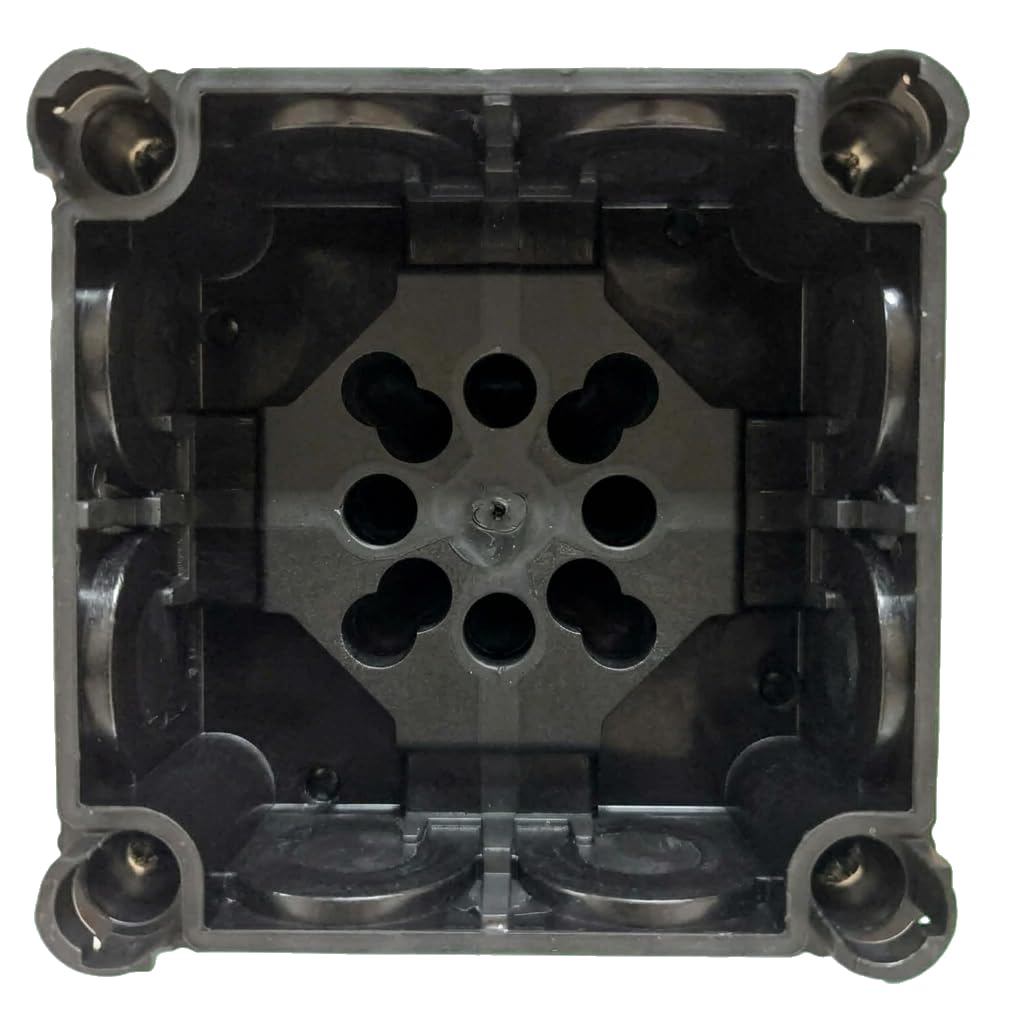

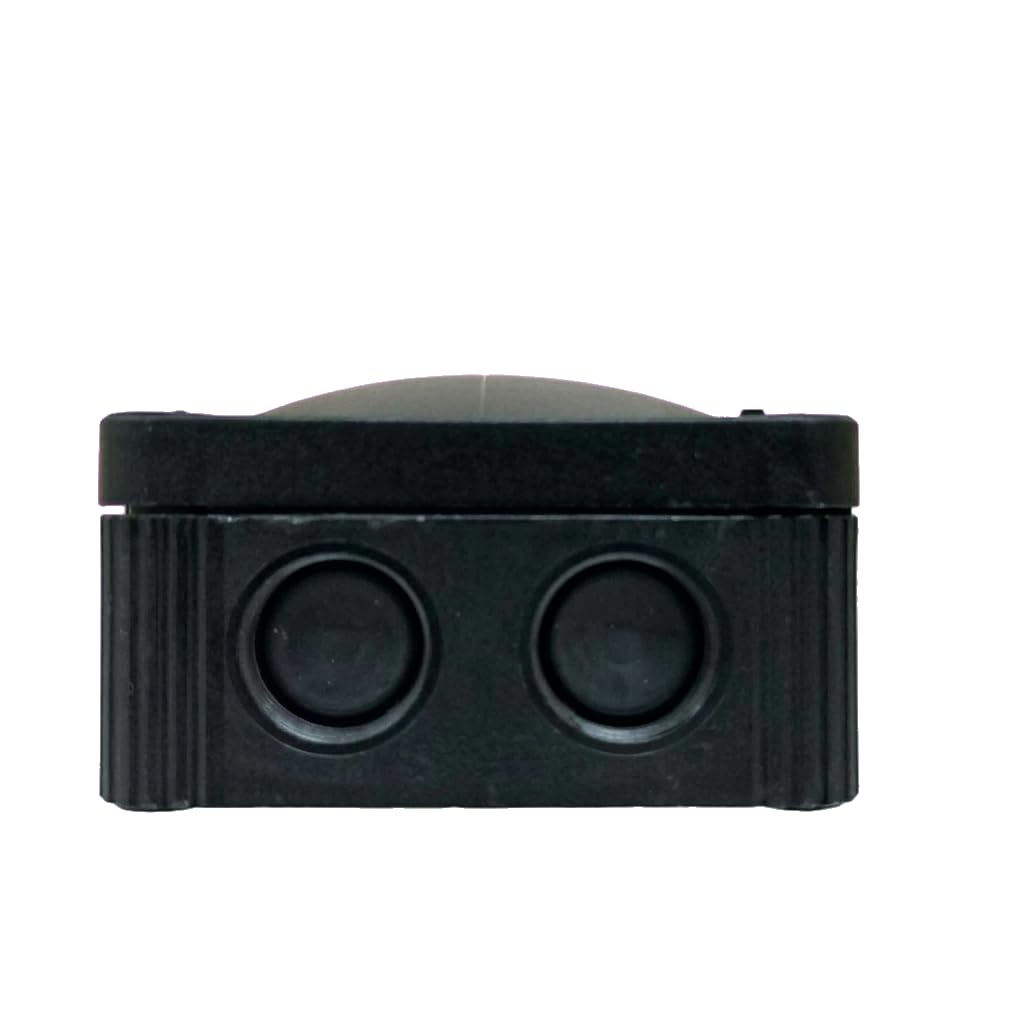

• Includes 8 x 20 mm threaded cable entries around the side for flexible cable entry positions
• Each cable entry is sealed with a rubber gasket to help keep unused entries protected

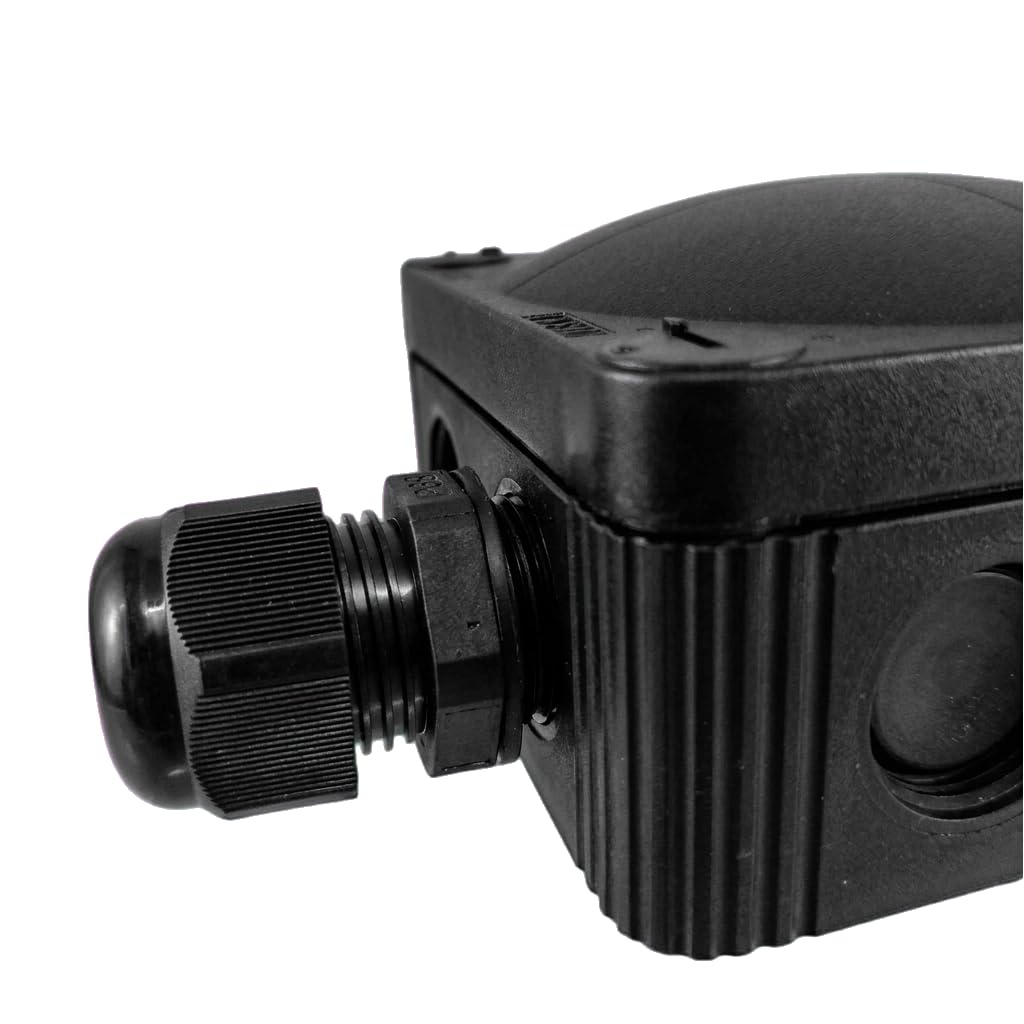

• 20mm glands screw directly into the threaded entries and cut through the gasket cleanly during installation

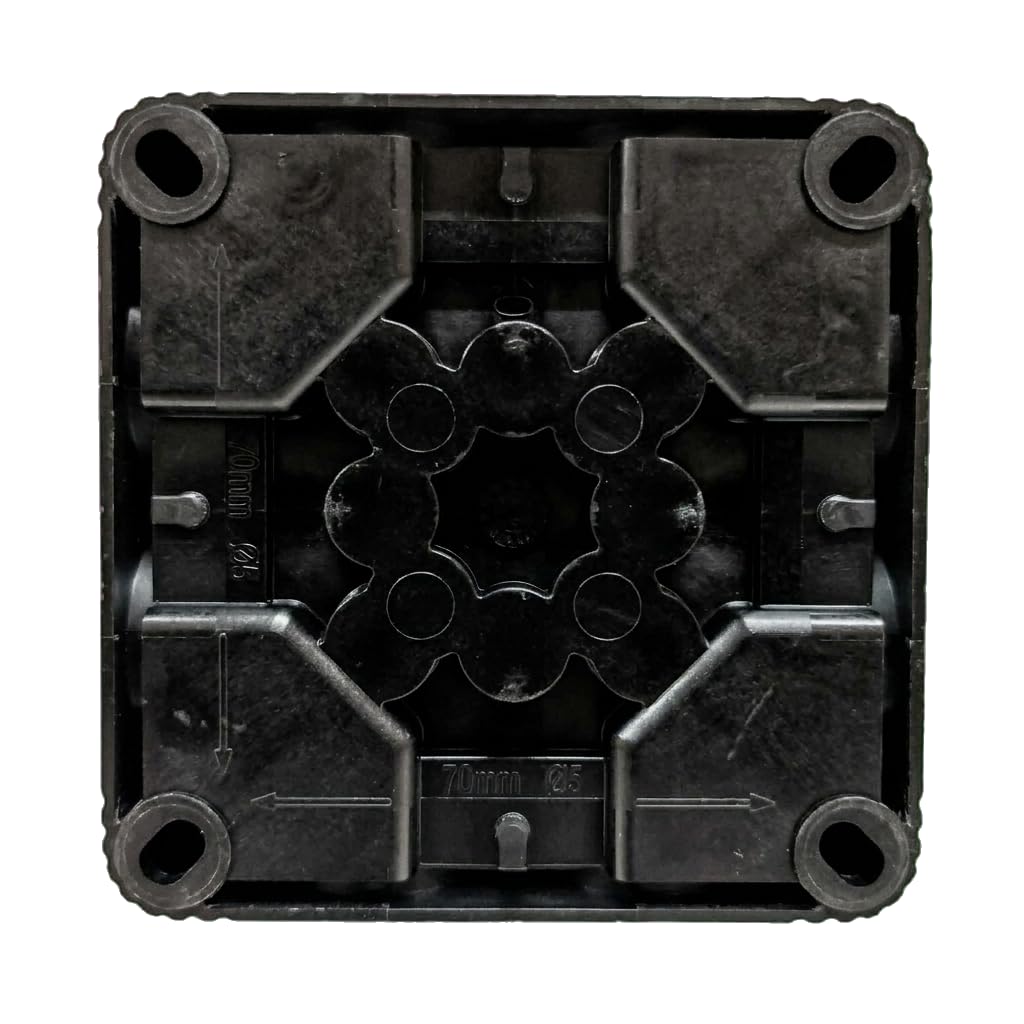

• Supplied with an exterior clip on mounting bracket so holes do not need to be drilled through the box

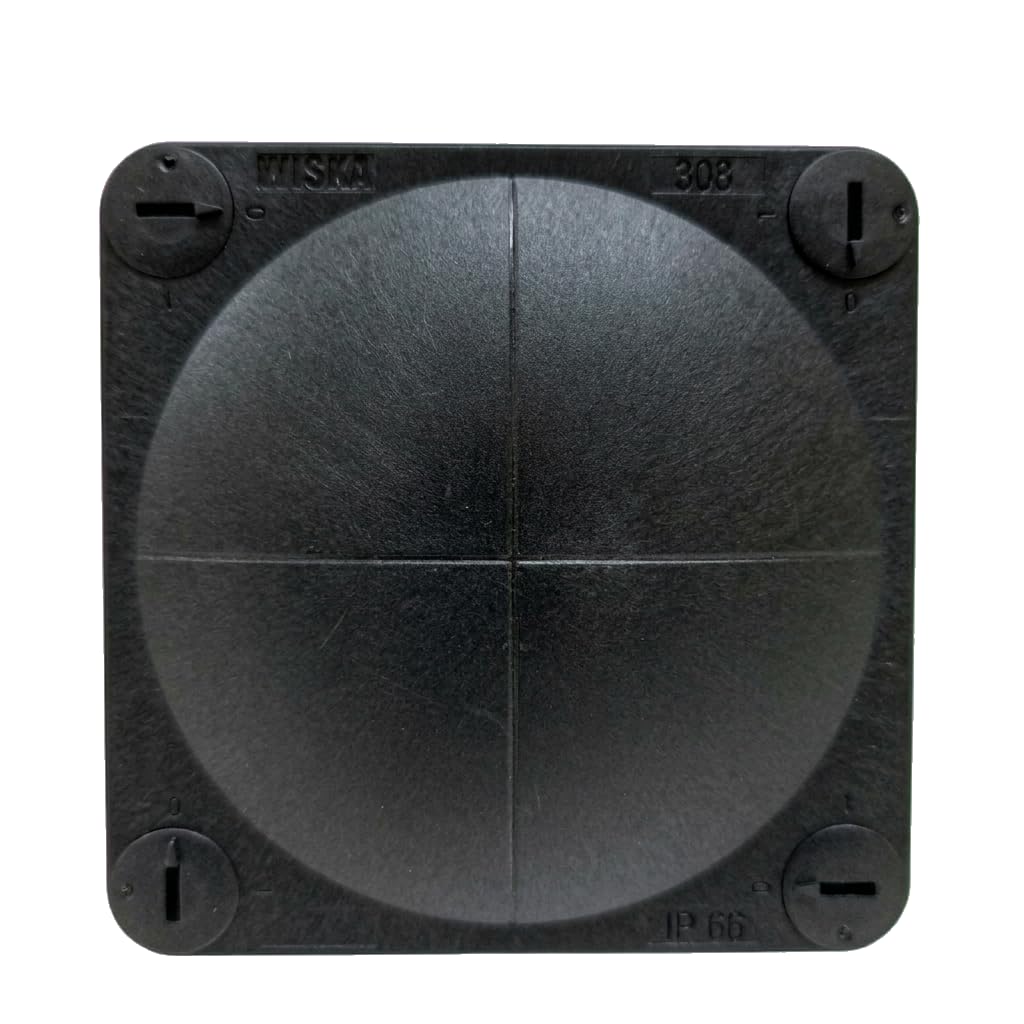

• Plastic quarter turn lid screws allow quick access for installation inspection and maintenance
• Made from polypropylene with TPE gasket and suitable for temperatures from minus 30°C to 100°C
• Suitable for outdoor lighting garden electrics security cameras pumps controls workshops sheds garages and general wiring

This Wiska 308 black junction box is supplied with 3 black 20 mm M20 IP68 cable glands, making it suitable for outdoor wiring, cable joints, lighting circuits, garden electrics, security systems, pumps, controls and general electrical installations. The junction box measures 85 x 85 x 51 mm and is rated to IP66 and IP67, helping protect electrical connections against dust, water jets and temporary immersion when correctly installed. The box has 8 x 20 mm threaded cable entries around the sides, giving the installer flexible options for cable entry positions. Each entry is sealed with a rubber gasket. When a 20 mm gland is screwed into the threaded entry, it cuts through the gasket cleanly to form the cable entry point. This helps keep unused entries sealed while allowing selected entries to be opened as required. The box is made from polypropylene with a TPE gasket and has a temperature range of minus 30°C to 100°C. It has also been glow wire tested to 750°C. The lid is secured with plastic quarter turn screws for quick opening and closing during installation or inspection. An exterior mounting bracket is included, which clips onto the box so the installer can mount it without drilling holes directly through the enclosure.
