Wire Tracker XQ-350 RJ45 RJ11 Finder for Telephone Network Wire Lan Cable for Line DC Detecting/Anode/Cathode Determination Diagnose Tone Networking Tool with Crystal Head

• Automatic efficient scan for the miss wiring, disorder cable, open and short circuit
• Trace telephone wire/LAN cable. Trace wire in electrical system. It can take place of cable tester.
• Verify LAN cable condition. Continuity test. Cable Assignment Test and Cable State Testing;Remotely test cable up to 1000 ft in length ( remote kit included )
• Low Battery Indication with Bright white LED flash light. Rapidly find the target wire from among plenty of telephone wires. Rapidly find the target wire from among plenty of network wires.
• High quality protecive case provides more secure protection

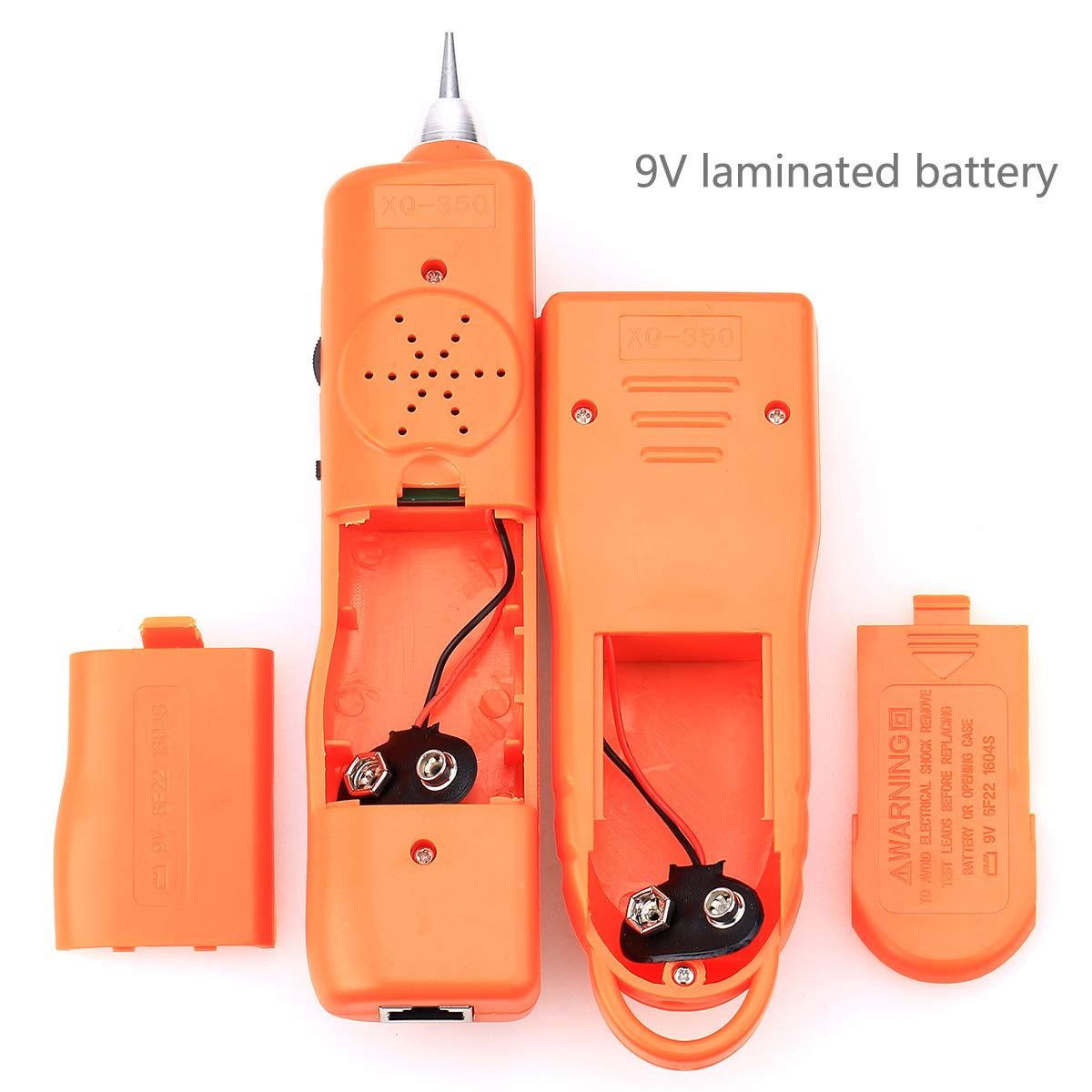

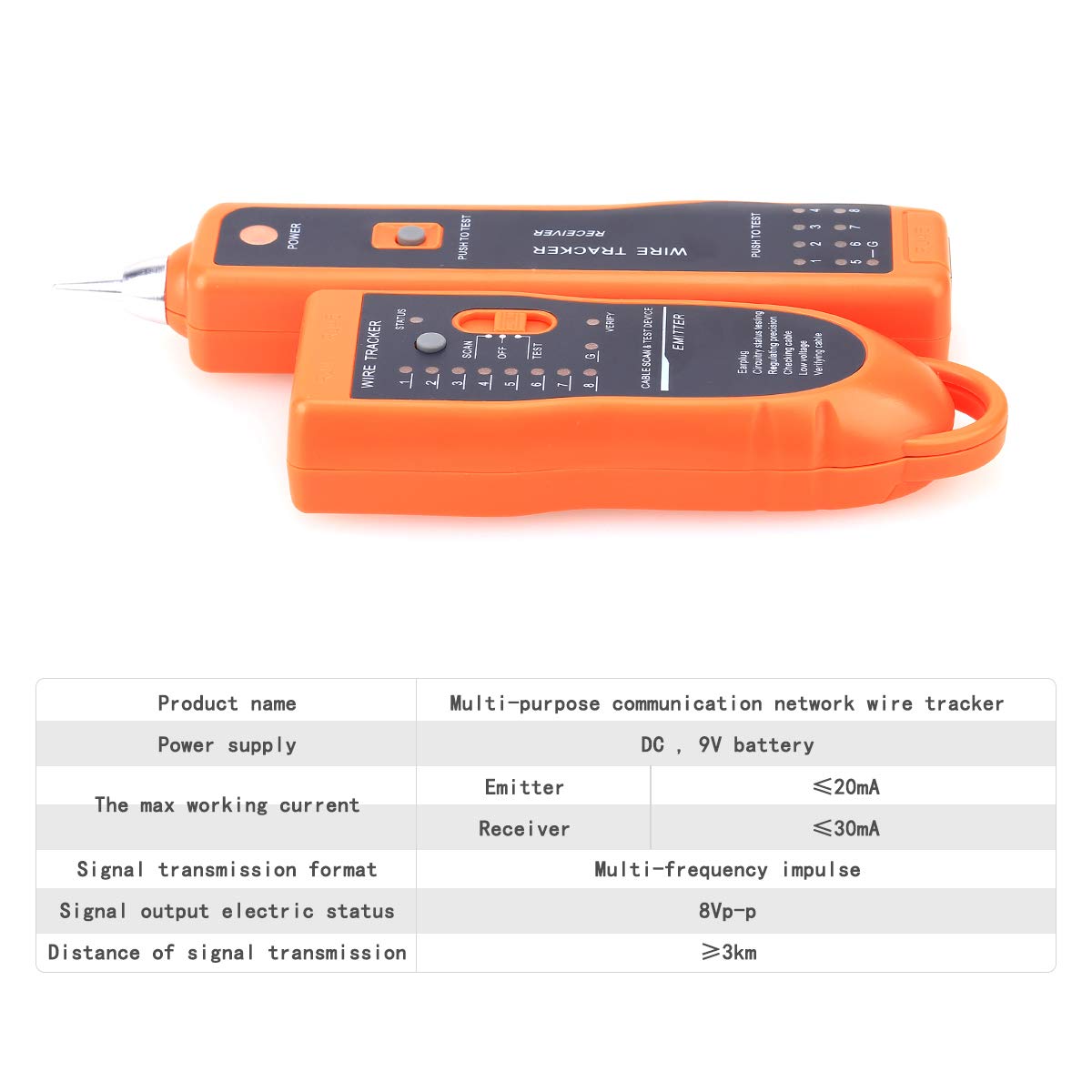

Applicable scope: Telecom network line engineering and routine servicing; computer network line maintenance; other metal wire line engineering and maintenance Features: 1. Trace telephone wire/LAN cable 2. Trace wire in electrical system 3. Verify LAN cable condition 4. Continuity test 5. Low Battery Indication 6. Bright white LED flash light 7. Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) telephone cable 8. Cable State Testing (2-wire) a. Line DC detecting and anode, cathode determination b. Ringing signal detecting c. Open, short and cross testing Function: 1. Find wire on all types of connected operating Ethernet switch/Router/PC terminal 2. Rapidly find the target wire from among plenty of telephone wires 3. Rapidly find the target wire from among plenty of network wires 4. It can take place of cable tester 5. Compare the volume of the "tout" sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator Specification: Model: XQ-350 Power: DC 9V battery (not included) Working current: test: =10mA, receiver: =30mA Signal transmission format: Multiple frequency pulse Signal output electric status: 8VP-P Distance of signal transmission: =3km Color: Orange Material: ABS plastic Dimension: Approx. 12.8×4.5×2.5cm(Emitter); 17.5×4×2.2cm(Receiver) Note: Due to the difference between different monitors and the light influence on the camera, the picture may be a little different from the actual color of the item. Thank you for your kind understanding About the service If you have any questions, please feel free to contact us.
