WINGONEER XL4016E1 DC 4-40V to DC 1.25-36V 8A Buck Converter Voltage Regulator 36V 24V 12V to 5V High Power Efficiency Step Down Converter Power Supply

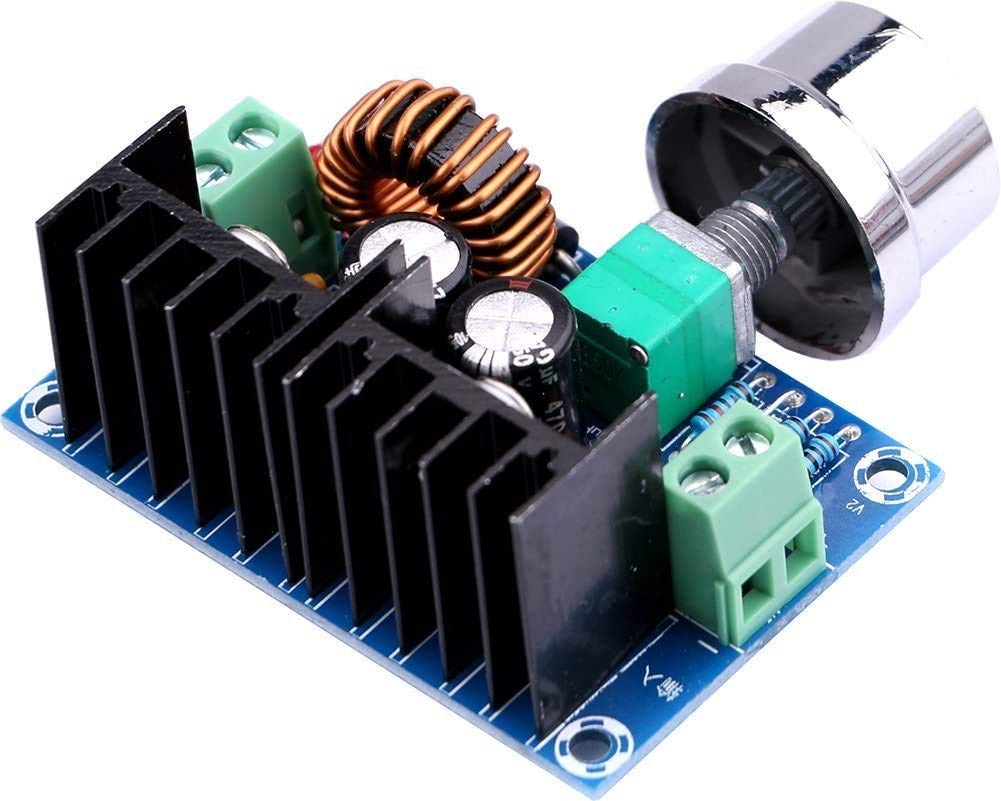

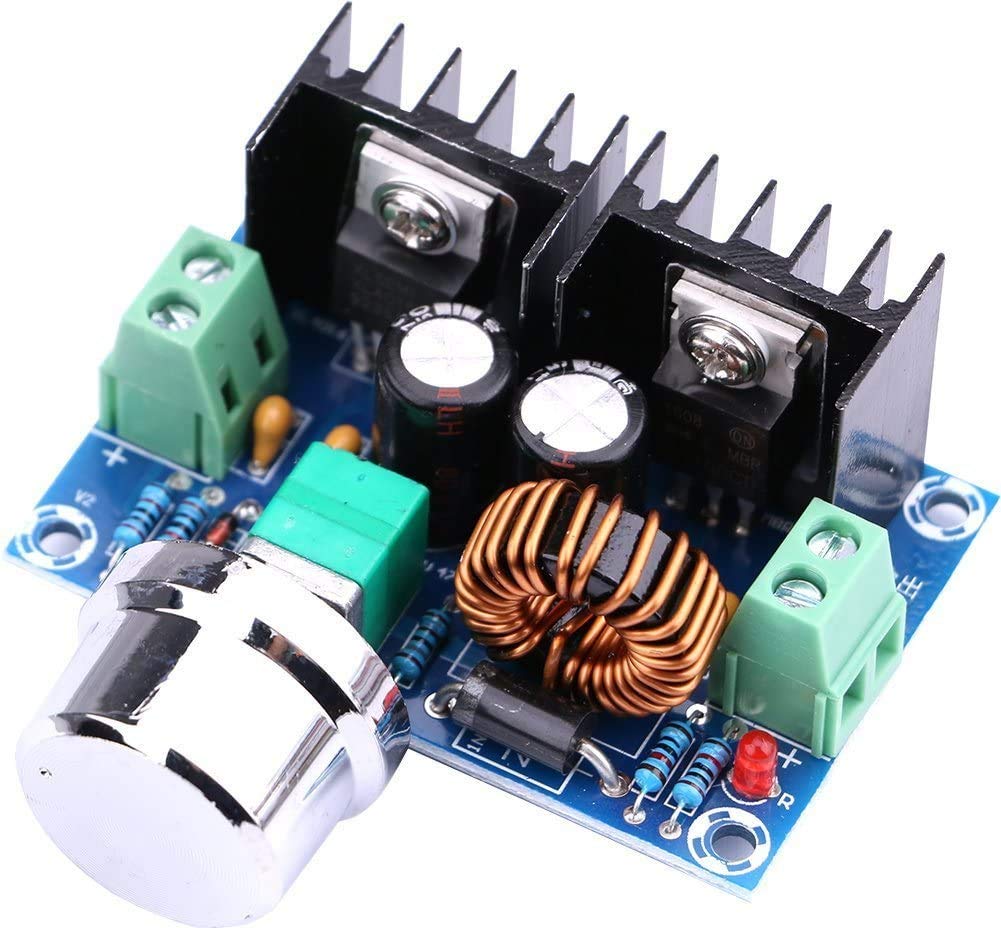

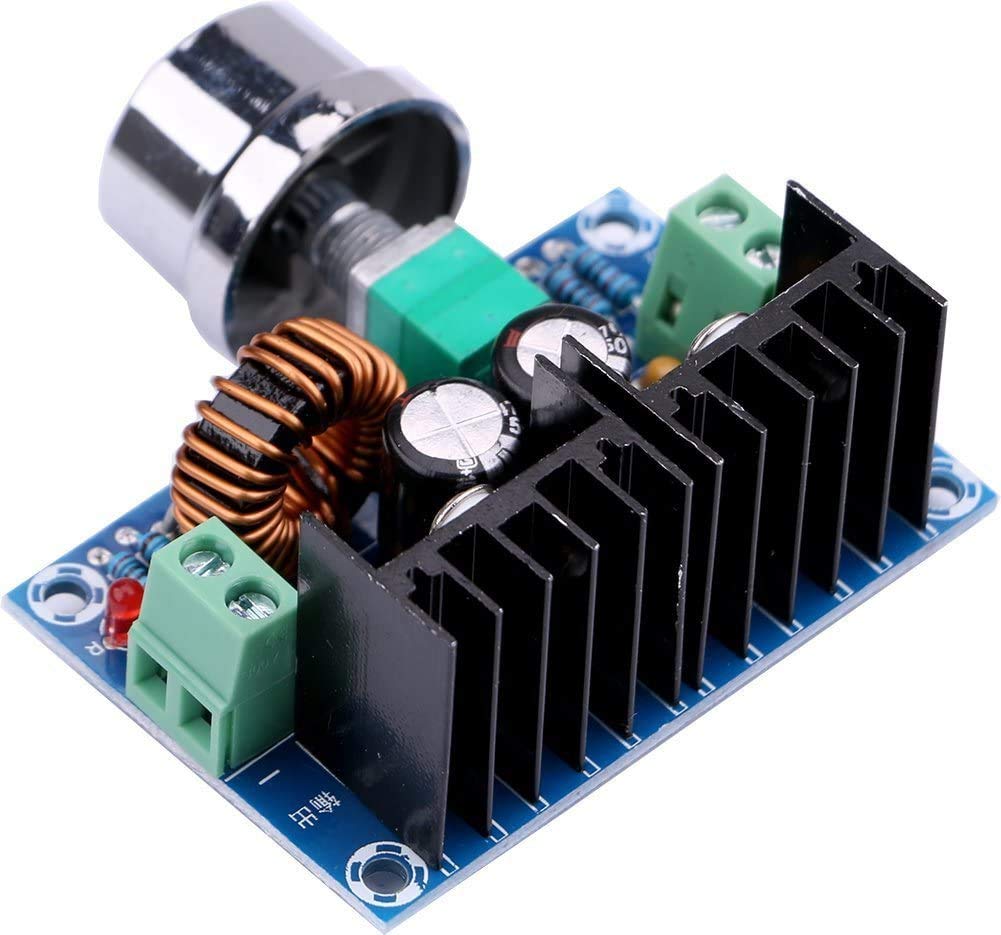

• The regulator combines XL4016 switching voltage regulation chip and MBR10200 double rectification, the maximum input voltage can be 40V, output voltage is 1.25-36V continuously adjustable.
• Multiple protection: over-current protection, over-temperature protection and short circuit protection, etc.
• This DC converter can be installed on panel: 1. drill a 7mm hole on panel; 2. put the potentiometer handle out of the panel; 3. lock the screws and install the knob.
• This voltage regulator has high conversion efficiency which is up to 94%, besides, it is provided with 180KHz switching frequency.
• Note: The max output current can be up to 8A and it need to work with fan under this max current; it is suggested to use current within 5A for a long term use.

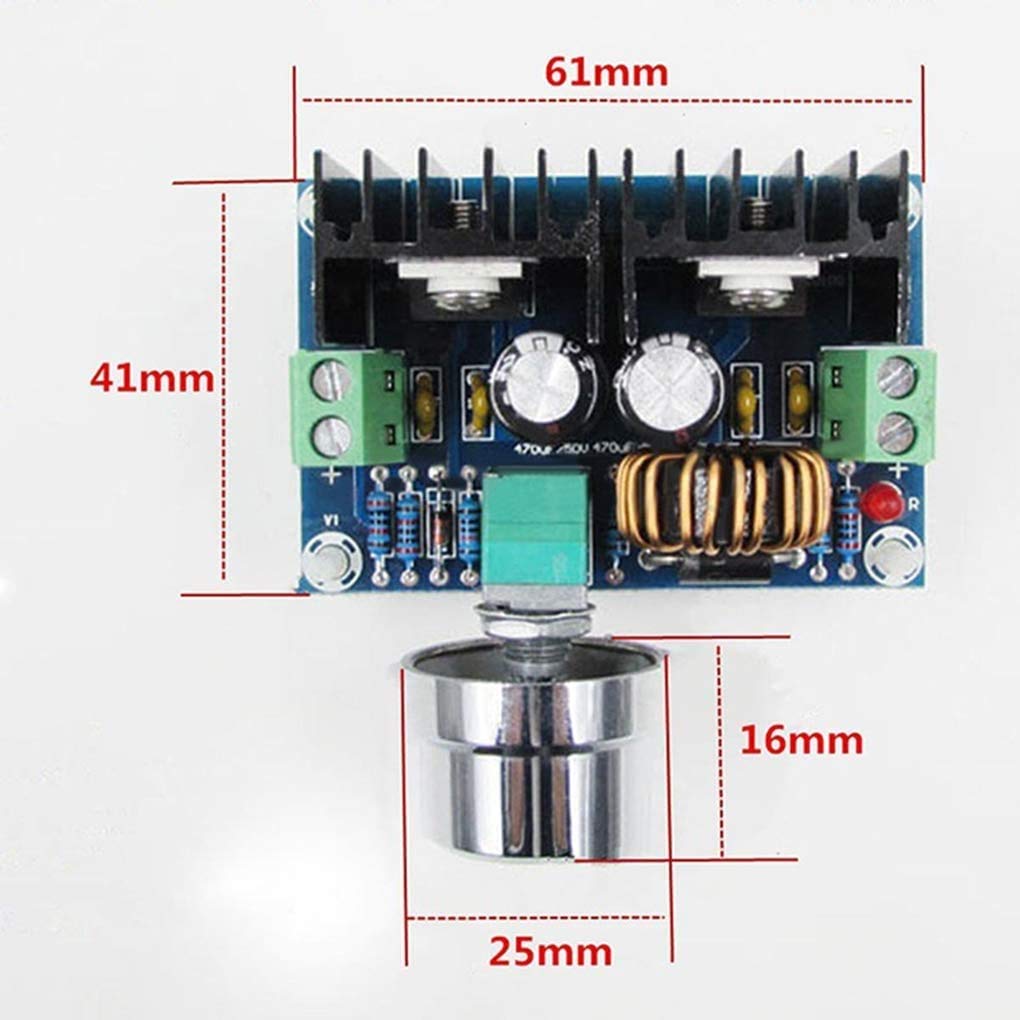

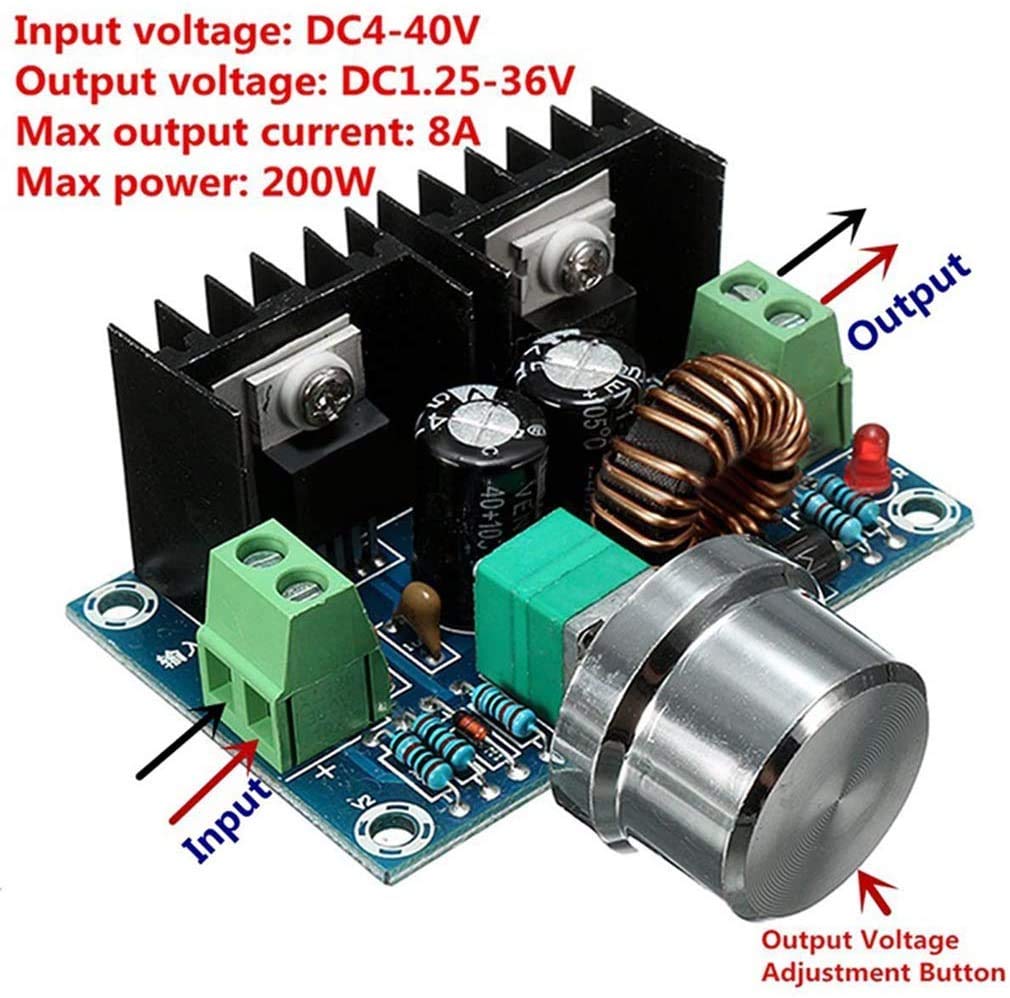

WINGONEER trademark Reg.NO:012678447 Parameters: Product name: DC voltage regulator Voltage regulating mode: PWM modulation Input voltage: DC 4-40V Output voltage: DC 1.25-36V Maximum current: 8A(please add fan and make current less than 5A for a long term use) Maximum power: 200W Conversion efficiency: 94% Switching frequency: 180KHz Dimensions: 61*41*27mm Features: The regulator combines XL4016 switching voltage regulation chip and MBR10200 double rectification, the maximum input voltage can be 40V, output voltage is 1.25-36V continuously adjustable. Multiple protection: over-current protection, over-temperature protection and short circuit protection, etc. Can be installed on panel: 1. drill a 7mm hole on panel; 2. put the potentiometer handle out of the panel; 3. lock the screws and install the knob. Package Includes: 1x WINGONEER DC Voltage Regulator
