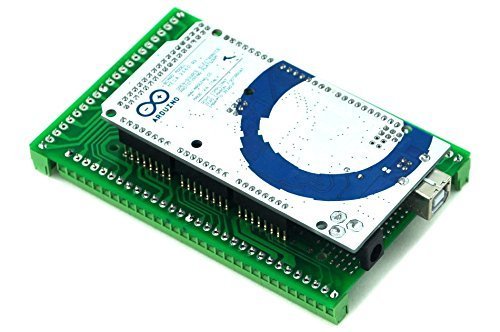

WINGONEER® Prototype Screw/Terminal Block Shield Board Kit For Arduino MEGA 2560 R3 DIY

• Unassembled, variety mount methods, you can make flexible use.

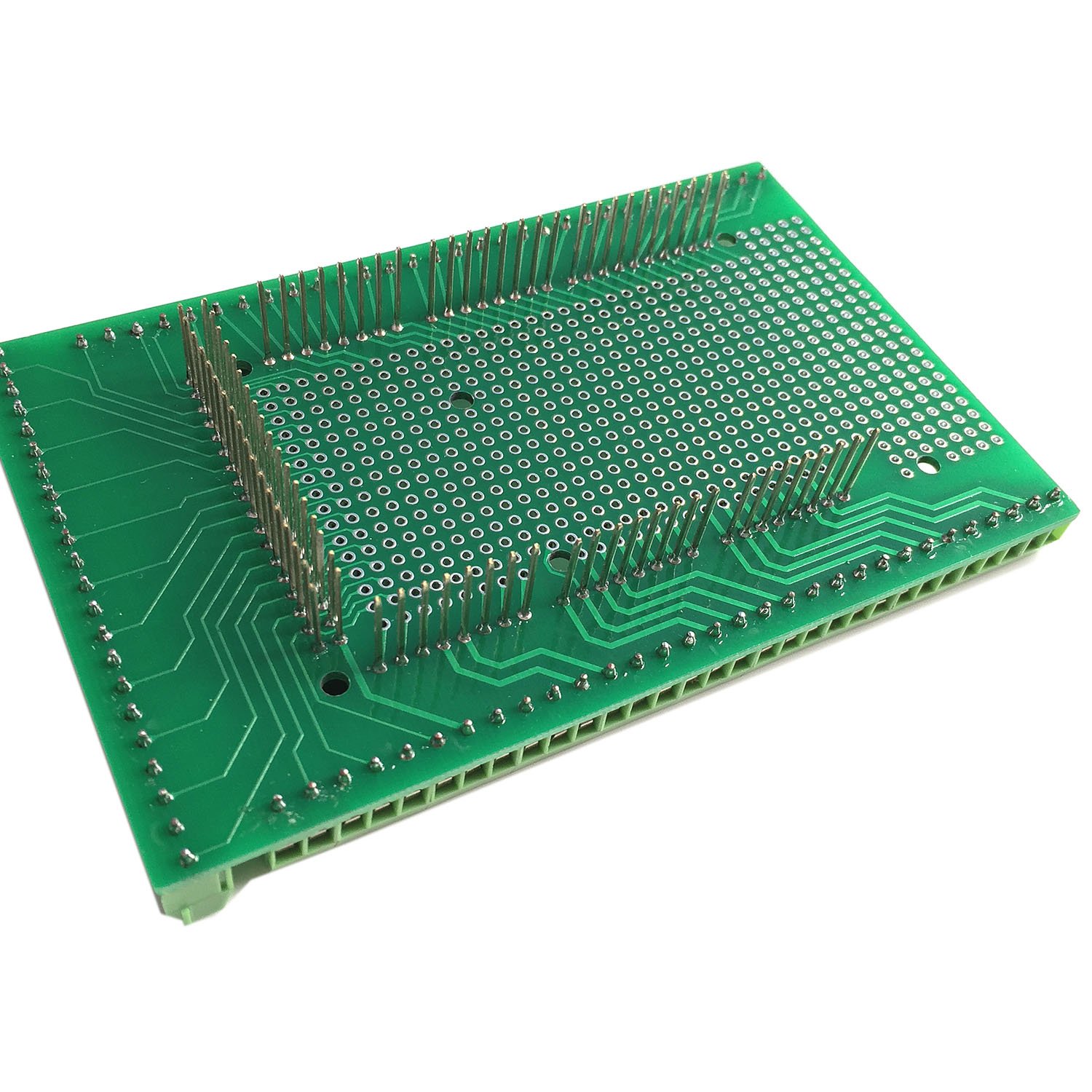

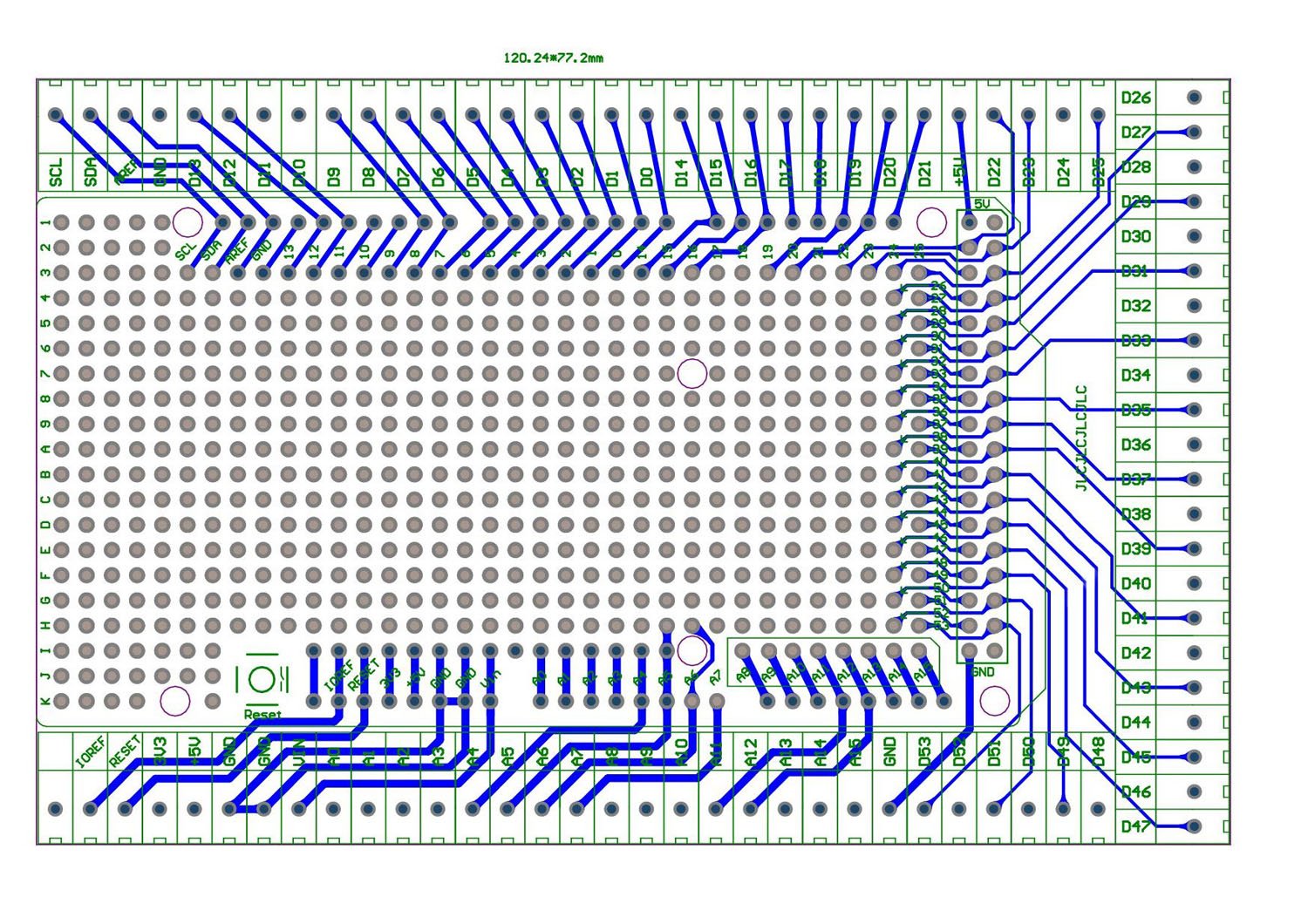

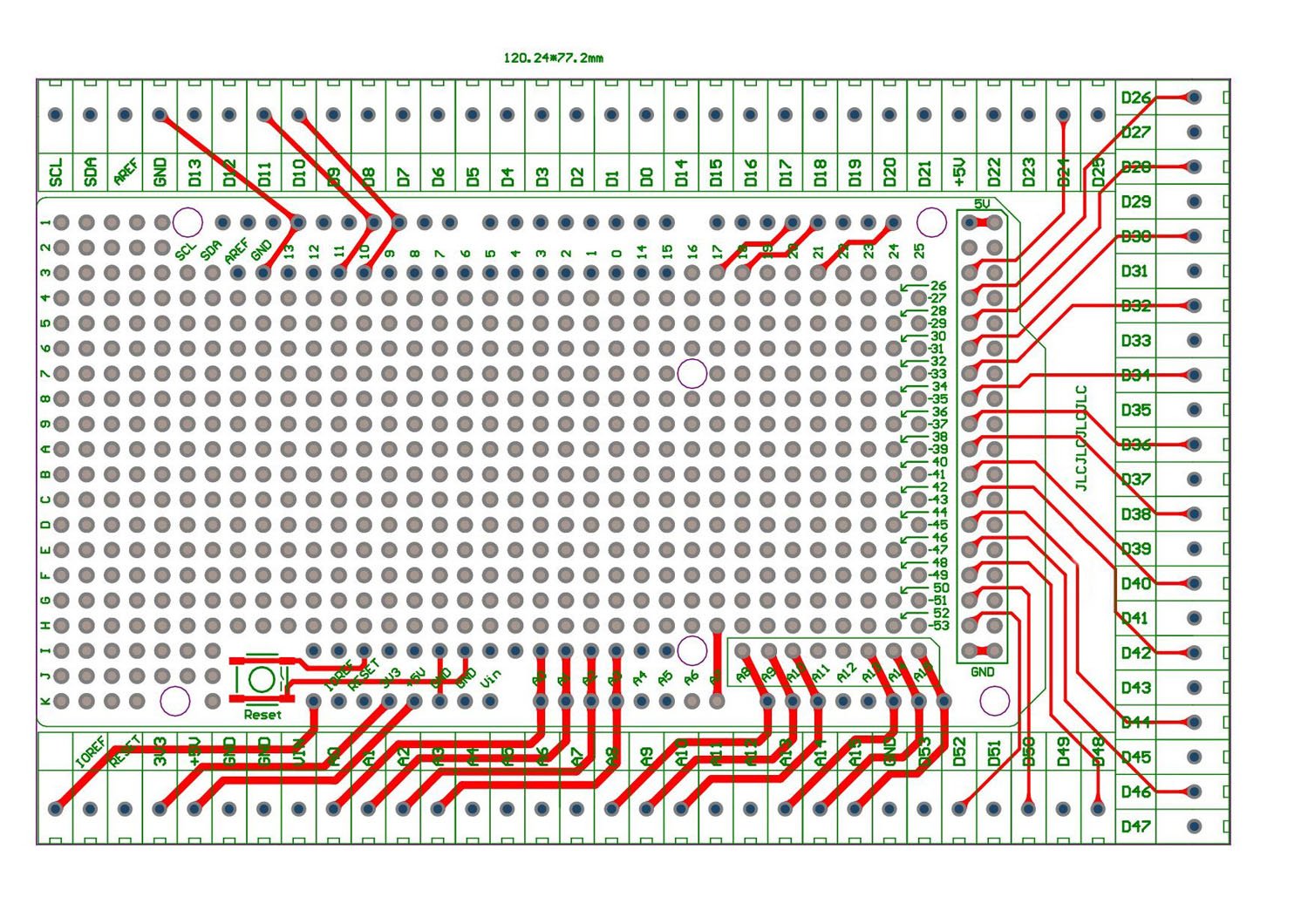

• PCB: FR-4 fiber glass PCB, dual copper layers, size 120 mm x 78 mm. Grid/pitch pads 2.54 mm/0.1 inches, hole diameter 0.8 mm. Terminal block pitch 3.5 mm/0.138 inches, hole diameter 1.2 mm.

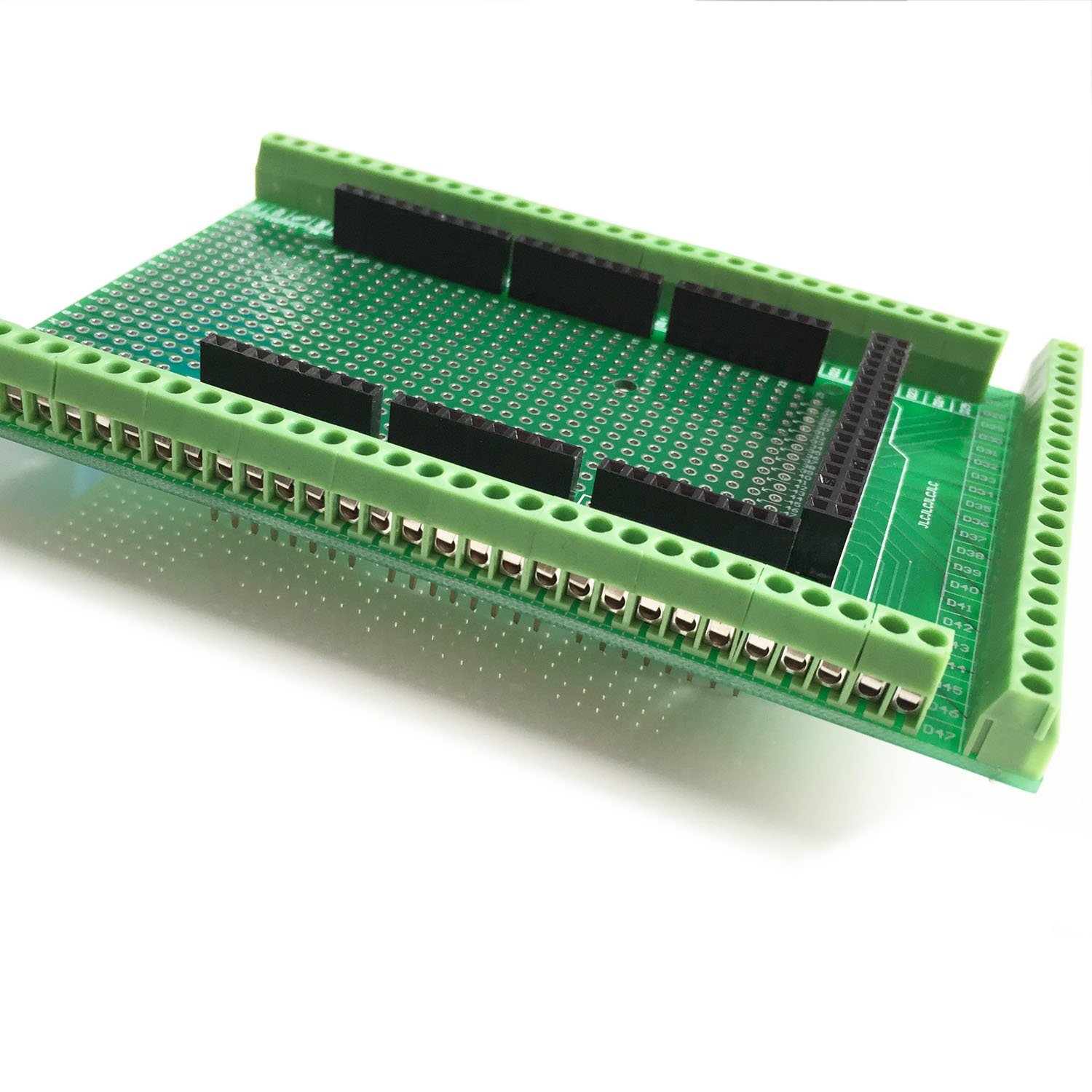

• Terminal block: Pitch 3.5 mm/0.138 inch mini terminal blocks, total 84 pins (3 poles x 24 pieces, 2 poles x 6 pieces). Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
• Female Header Socket: Pitch 0.1"/2.54mm, pin length 15mm/0.59" Single row 10pin x1pcs, Singal row 8pin x 5pcs, dual row 18pin x1pcs.
• Note: This is not original Arduino product.It only has a substitute accessories from WINGONEER

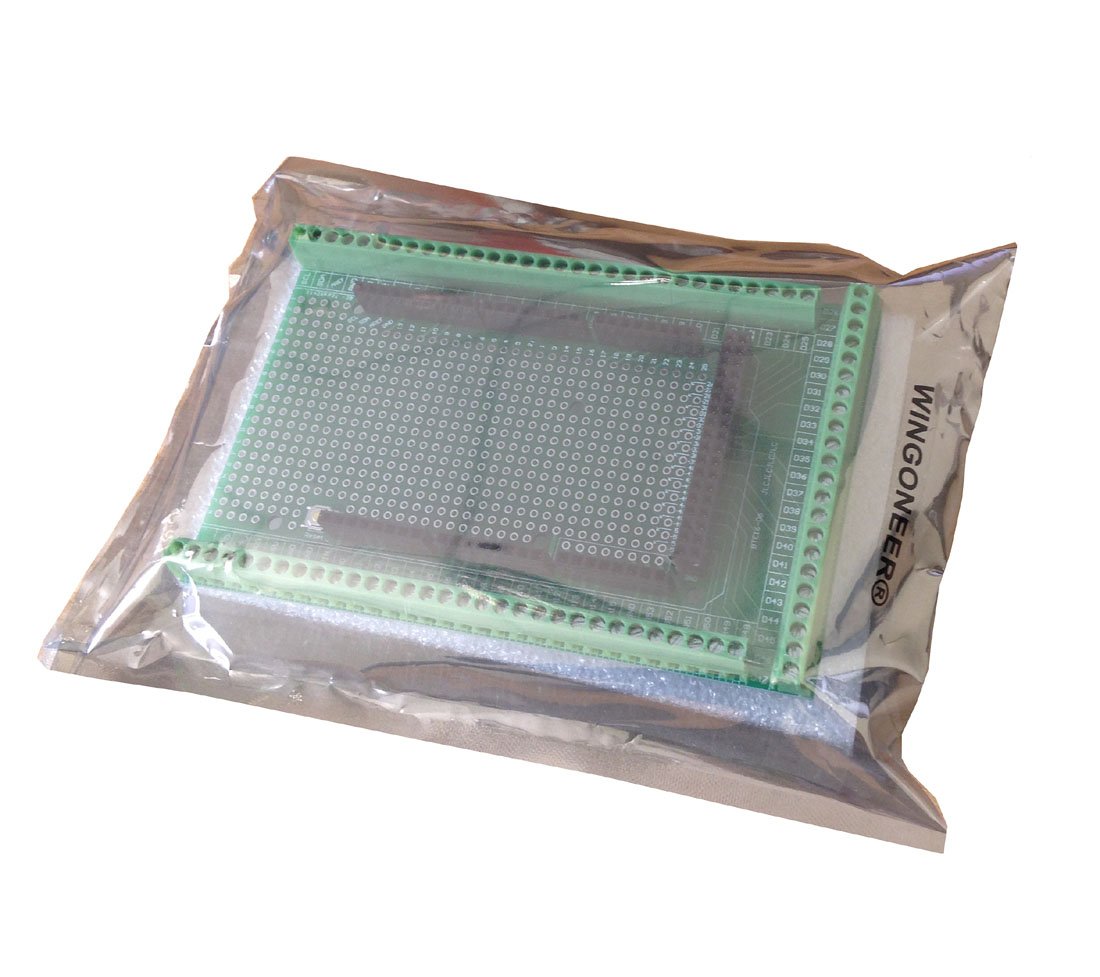

WINGONEER Prototype Screw / Terminal Block Shield Board Kit for ArduinoMEGA-2560 R3 The kit includes PCB prototype, terminal blocks, female header sockets. Unassembled, variety mount methods, you can make flexible use. PCB: FR-4 fiber glass PCB, dual copper layers, size 120 mm x 78 mm. Grid/pitch pads 2.54 mm/0.1 inches, hole diameter 0.8 mm. Terminal block pitch 3.5 mm/0.138 inches, hole diameter 1.2 mm. Terminal Block: Pitch 3.5 mm/0.138 inch mini terminal blocks, total 84 pins (3 poles x 24 pieces, 2 poles x 6 pieces). Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass. Female Header Socket: Pitch 0.1 inches/2.54 mm, pin length 15 mm/0.59 inches. Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs. Note: This is not an original Arduino product. It only a substitute accessories from WINGONEER Package includes: 1 x WINGONEER PCB board.
