Wind Solar Hybrid Charge Controller PWM Boost Charge 12/24V Auto Lighting Street Lamp Charging Controller 600W Wind + 400W Solar

• Boost charging function can solve the low charging efficiency problem caused by low wind speed.
• Adopt fan charging mode, higher charging efficiency than ordinary PWM mode.
• Digital intelligent control, stable performance, safety and reliability.

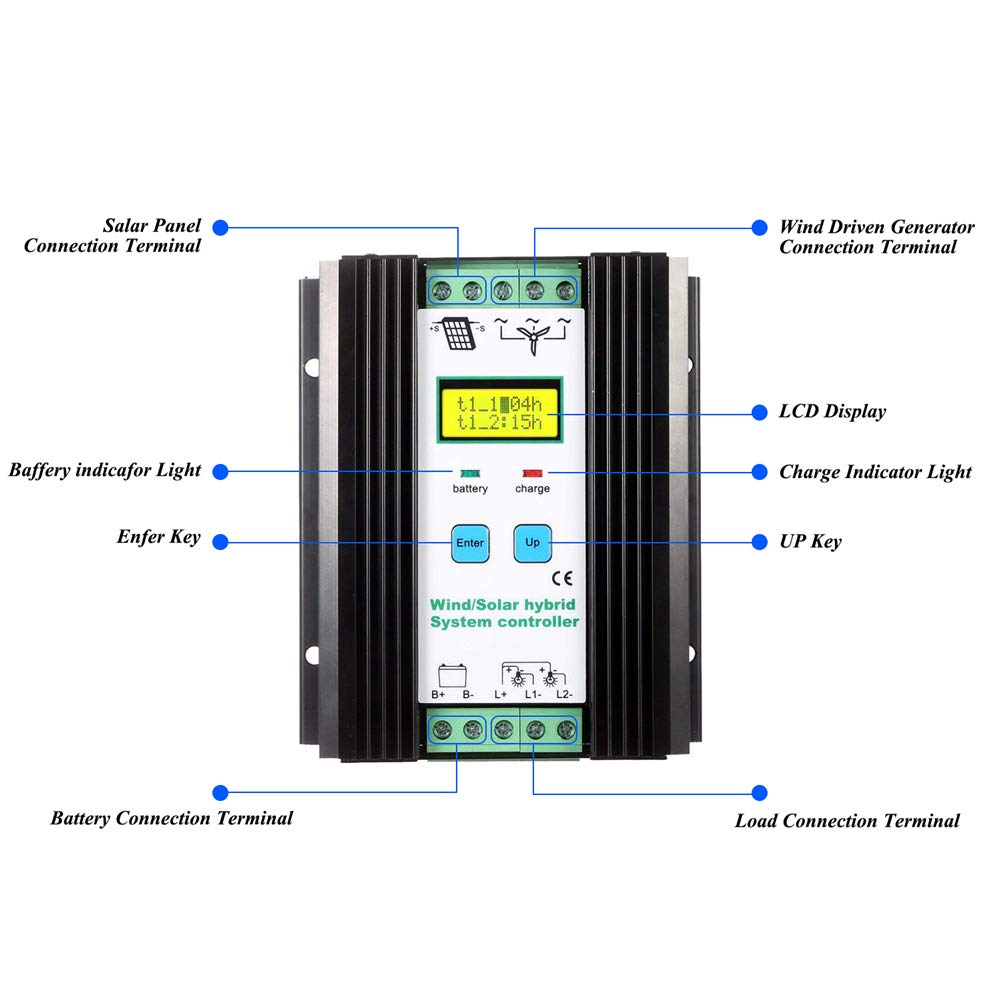

• Large LCD display and humanized operation interface, all parameters are directly visible. Choose PWM stepless unloading way, ensuring the best charging feature for the storage battery.
• Multiple output states setting function: full power, half power, separated period of time, etc. Easy and simple installation, and perfect protection function.

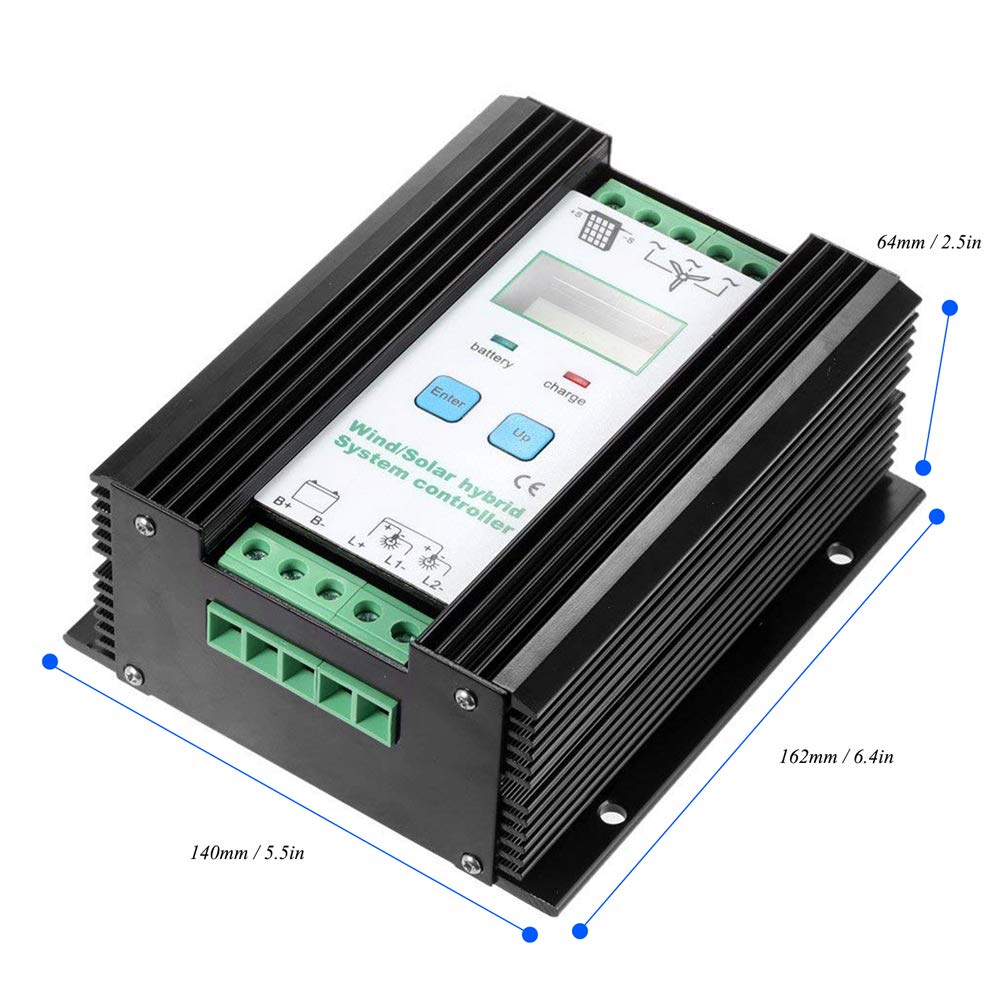

Specifications: Color: Black Material: Aluminium Alloy System Rated Voltage: 12V / 24V (Automatic Identification） Photovoltaic(PV) Modules Power：400W (Max.) Wind Power Generator Power: 600W Charging Current: 37.5A Filling protection: 28.8V±1% Float Filling: 27.6V±1% Filling Recovery: 26.4V±1% Temperature Compensation: -48mV/℃ Over Discharge Disconnect (dc): 21.8V±1% Over Discharge Recovery (dc): 24.6V±1% Over-voltage Cut off (dc): 32.0V±1% Over-voltage Recovery (dc): 30.0V±1% Unload Current (dc): ≤0.1A Voltage Drop (dc): ≤0.5V Control Mode: PWM Display: LCD Protection Type: Lightning Protection, Solar Reverse Charge Protection, Battery Open-circuit Protection, Battery Reverse Protection, Over Wind Speed and Over-voltage Soft Automatic Brake Protection, Overload Protection etc. Heat-dissipating Method: Radiator Environment Temperature: -25℃ ～ +55℃ (-13℉ ～ 131℉) Using Altitude: ≤5500 m (It need to reduce power above 2000m.) Environment Humidity: 0～90%, No Condensation Item Size: Approx. 165 * 140 * 64mm / 6.5 * 5.5 * 2.5in (L * W * H) Item Weight: Approx. 1112.7g / 39.2oz Package Size: Approx. 18.5 * 17 * 9cm / 7.3 * 6.7 * 3.5in (L * W * H) Package Weight: Approx. 1209g / 42.7oz Package List: 1 * Wind/Solar Hybrid System Controller 1 * User Manual
