WilTec Sleeve for PTO Shaft B Type 60 mm for Multi Spline with 1 3/8" 6-notch Tractor Attachment

• Power Take-Off bushing for splined shaft, type B
• Length: 60 mm

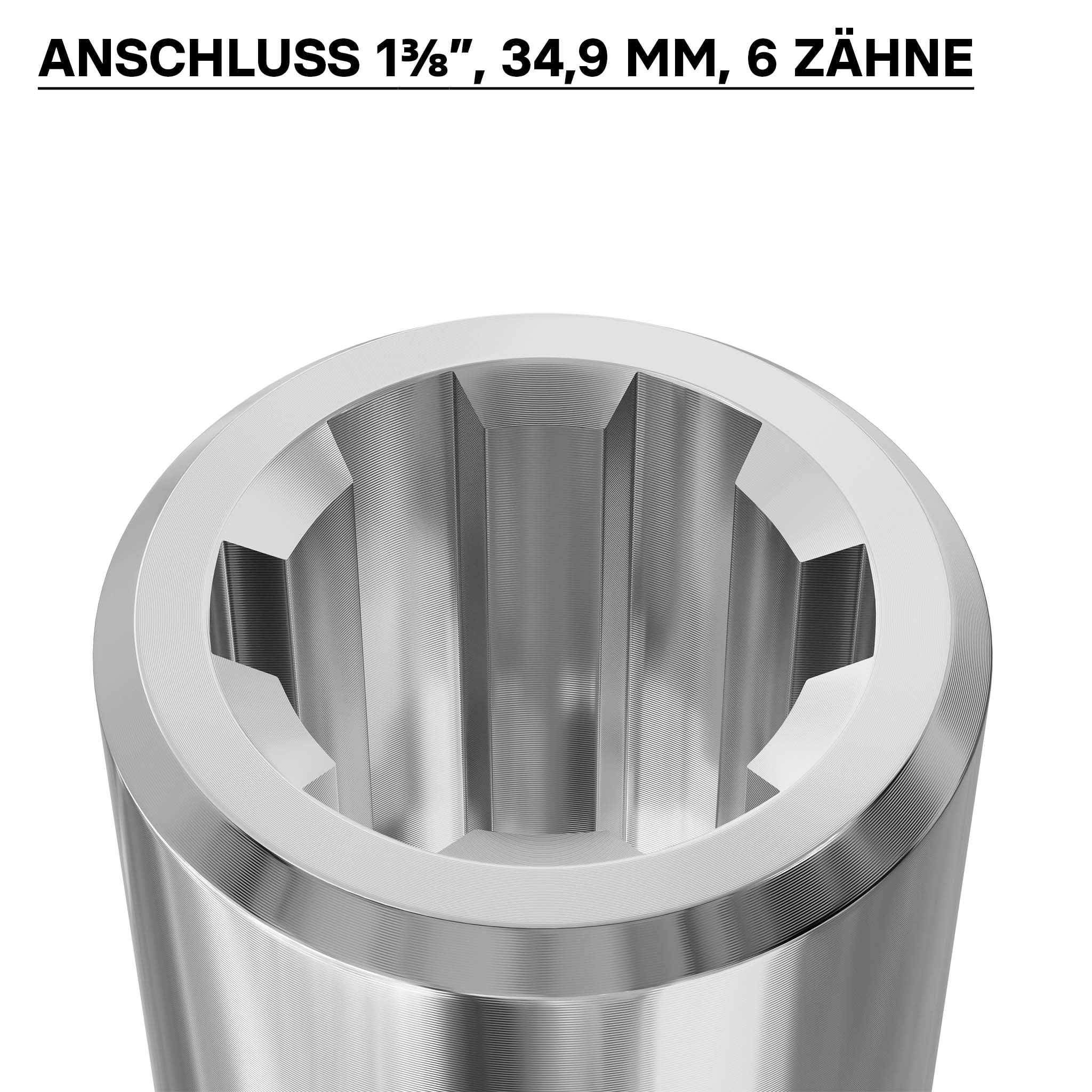

• Connection: 1⅜″
• Profile: 6 notches

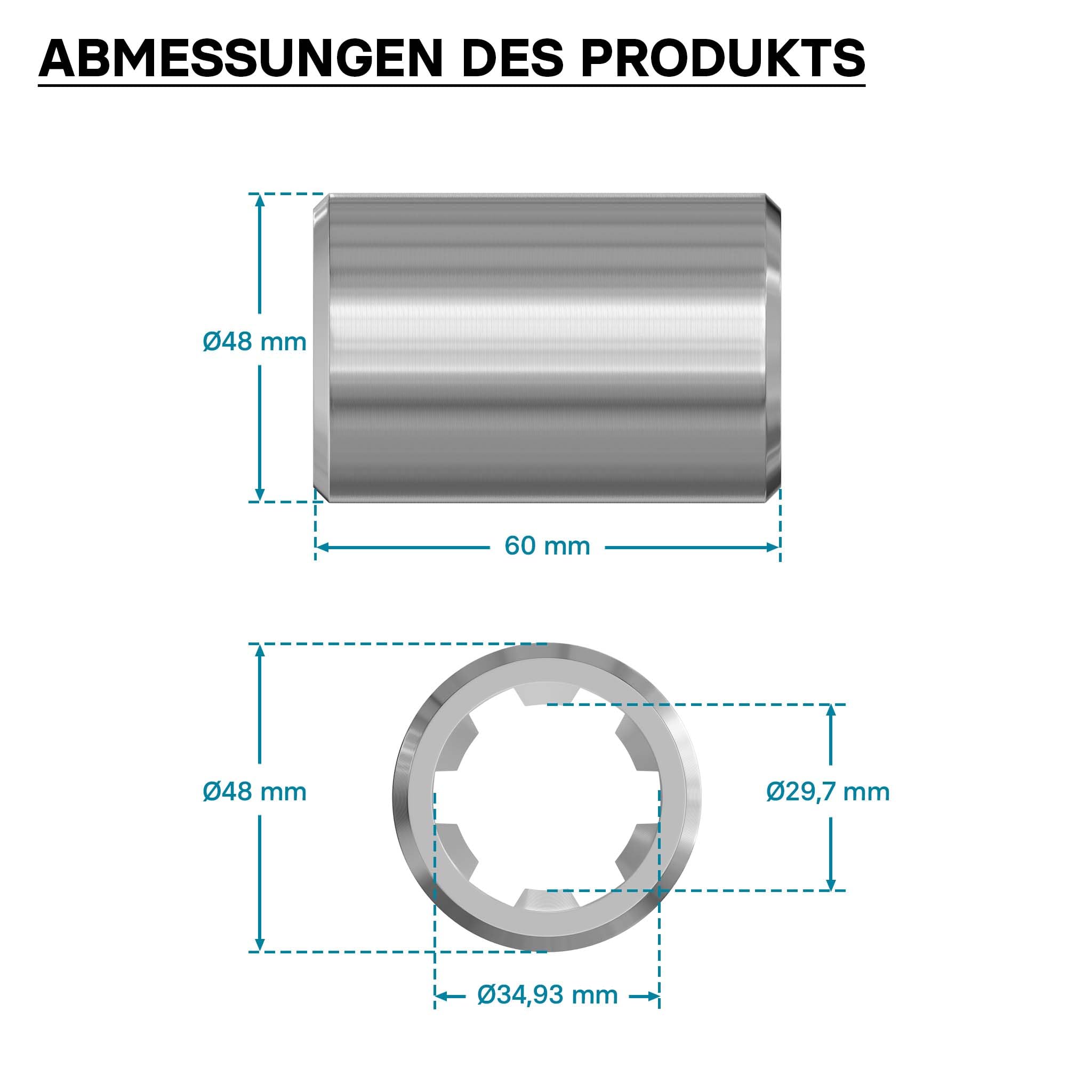

• Inner diameter: ø 34.93 mm (with notch), ø 29.7 mm (without notch)

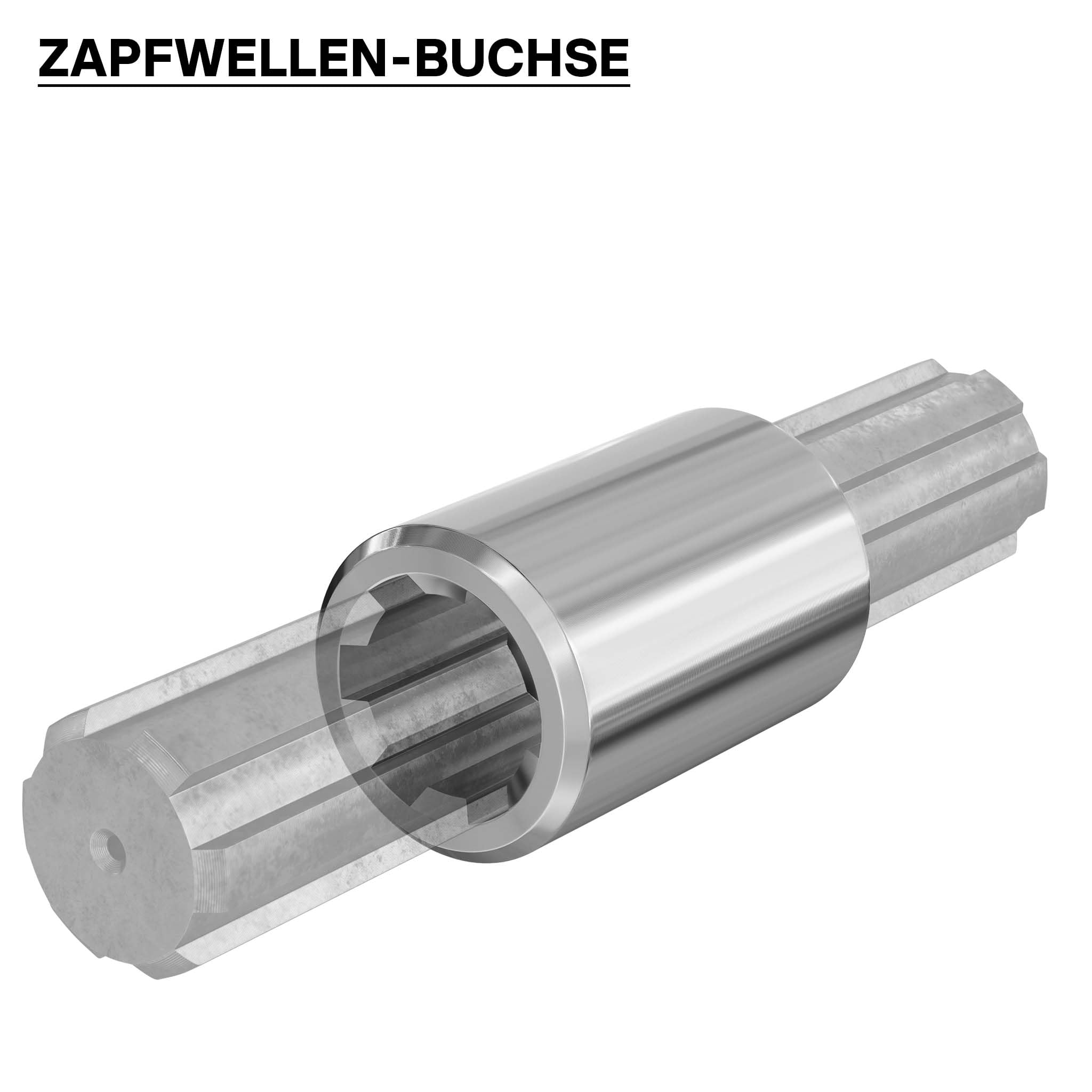

A high-quality PTO shaft is essential in agriculture, as it transmits the power of the tractor to various agricultural machines attached to it. Besides the spline shaft that has an external or male thread, the sleeves for PTO shaft are the counterpart, having a female or internal thread. The spline saft is slid into this sleeve (also called: PTO shaft adaptor). The teeth or ridges of the spline shaft and the notches of the sleeve engage, preventing the shaft from spinning and allowing for the transmission of the force. The number of notches in the profile of the sleeve is variable. Here, you can purchase sleeves with 6, 20, and 21 notches. To find the correct PTO shaft sleeve, take nevertheless note of the given technical data and check that these match the PTO shaft, tractor, and attachment. We would also like to suggest to your kind attention our PTO shafts, PTO clutches, freewheel clutches, and spline shafts in different versions to purchase in our shop. Thus, you are able to compose the entire power-transmission unit that you need and also find spare parts. There is certainly a part that fits the requirements of your machines. Safety instructions for PTO shafts: – All shafts, complete and replacement shafts, and all drive-shaft adapters and components as well as their locking devices can under certain circumstances catch or wind up clothing worn on the body during operation. – Always ensure sufficient safety distance and additional protective devices appropriate to the application! Wear tight-fitting work clothes! – Make sure that nobody is near the PTO shaft while it is in operation.
