WilTec PTO Freewheel Clutch 201mm, 1 3/8" Male/Female Thread PTO-Shaft 6 Multi Spline max. Torque 2400Nm

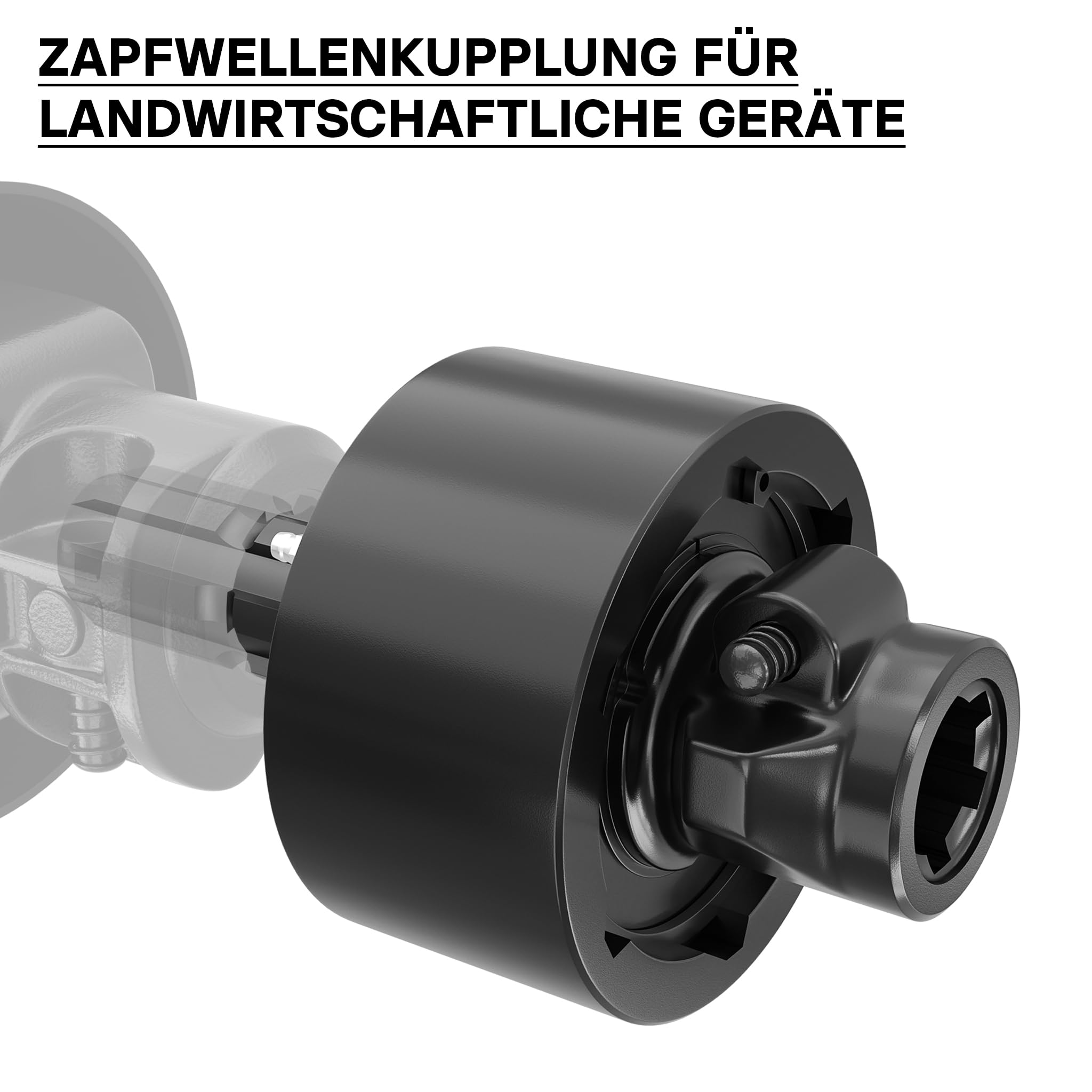

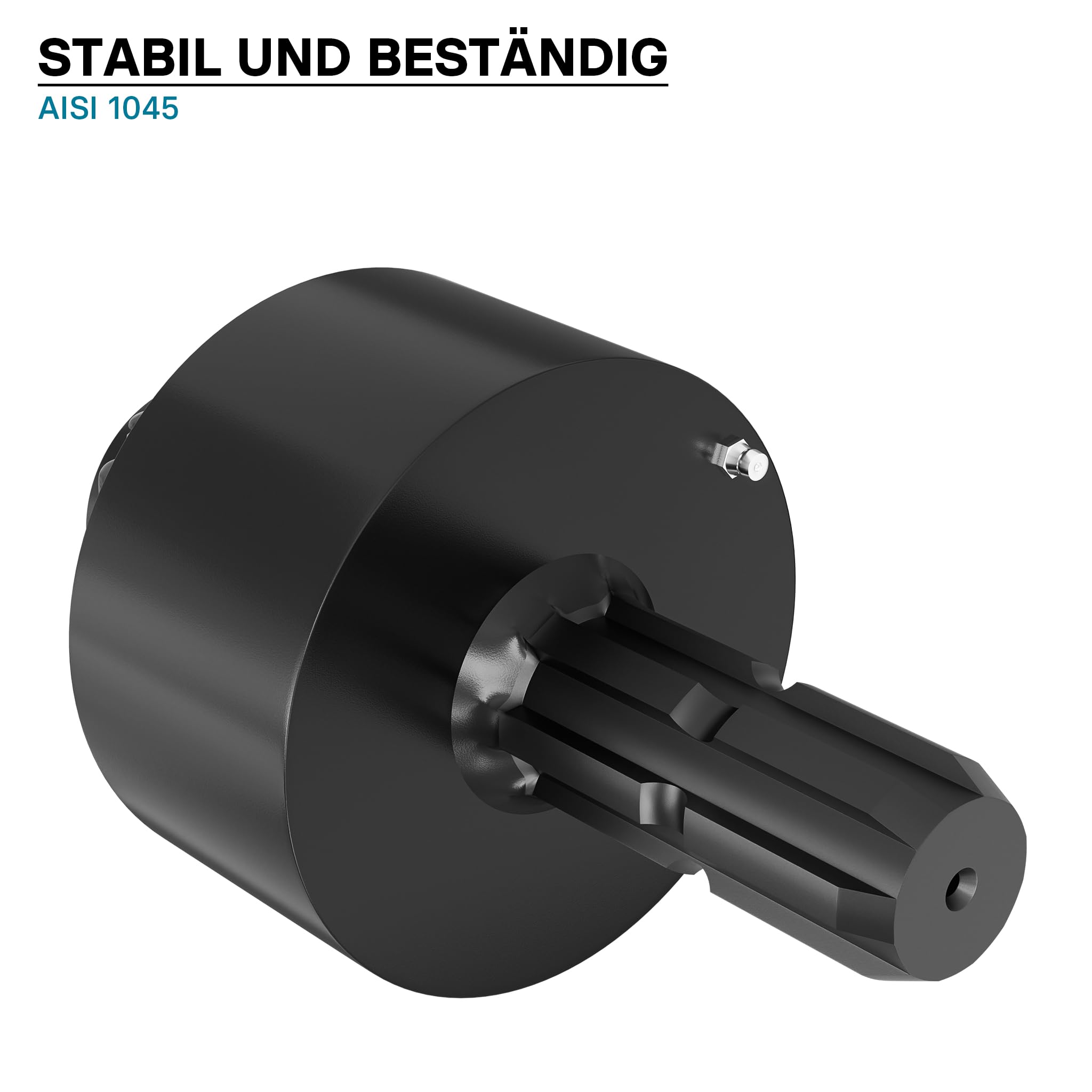

• 6-spline PTO shaft freewheel clutch

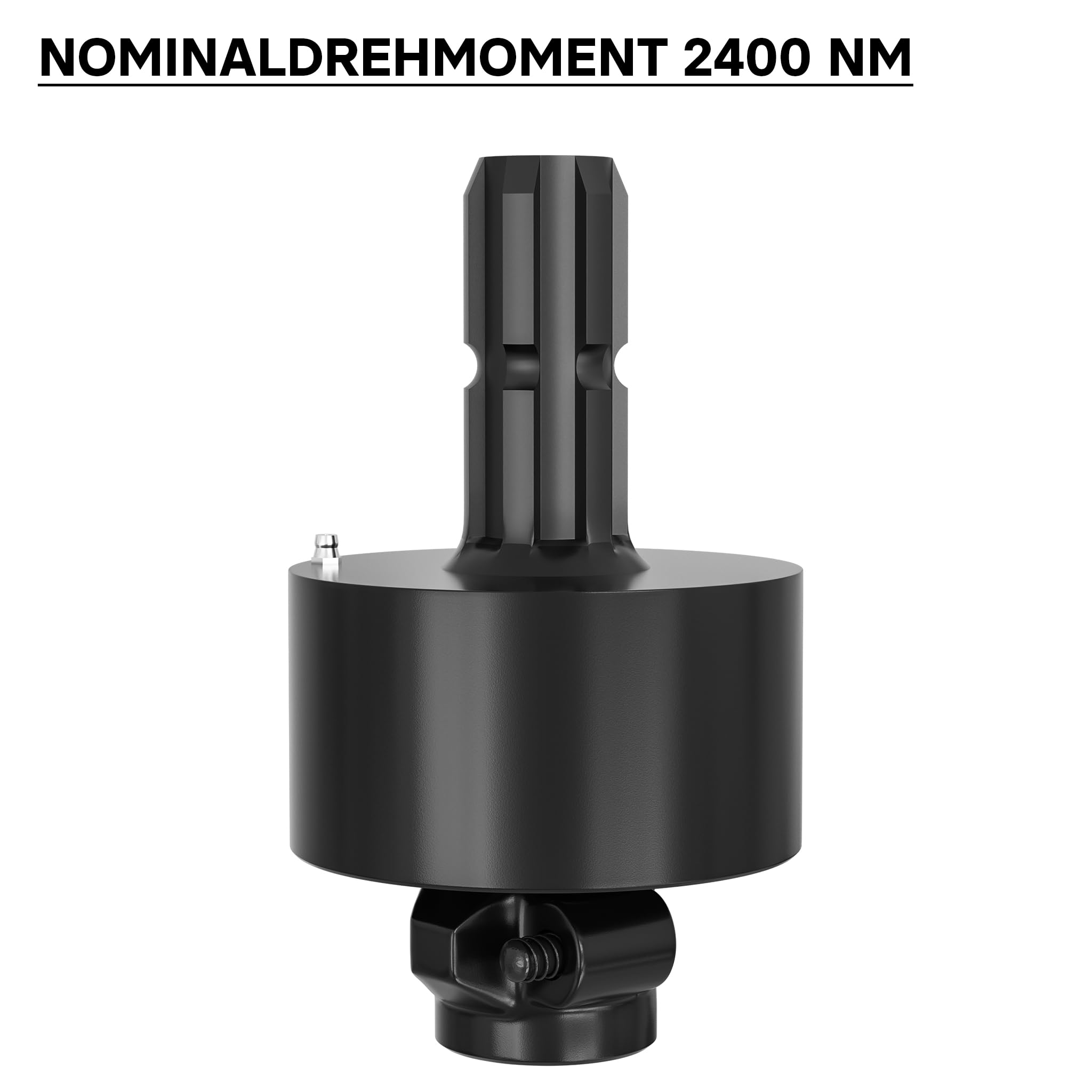

• Max. torque 2400 Nm

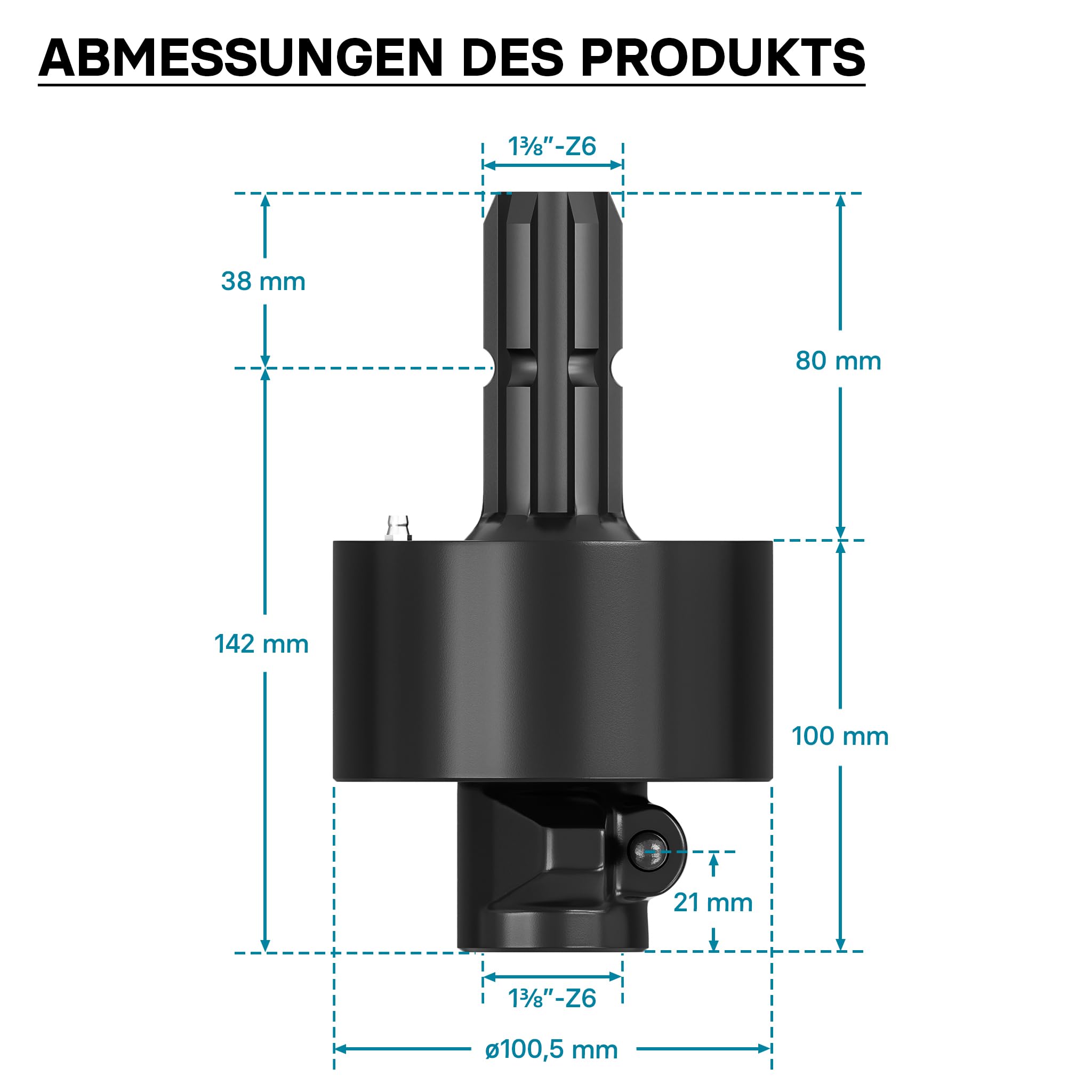

• Dimensions 201 mm

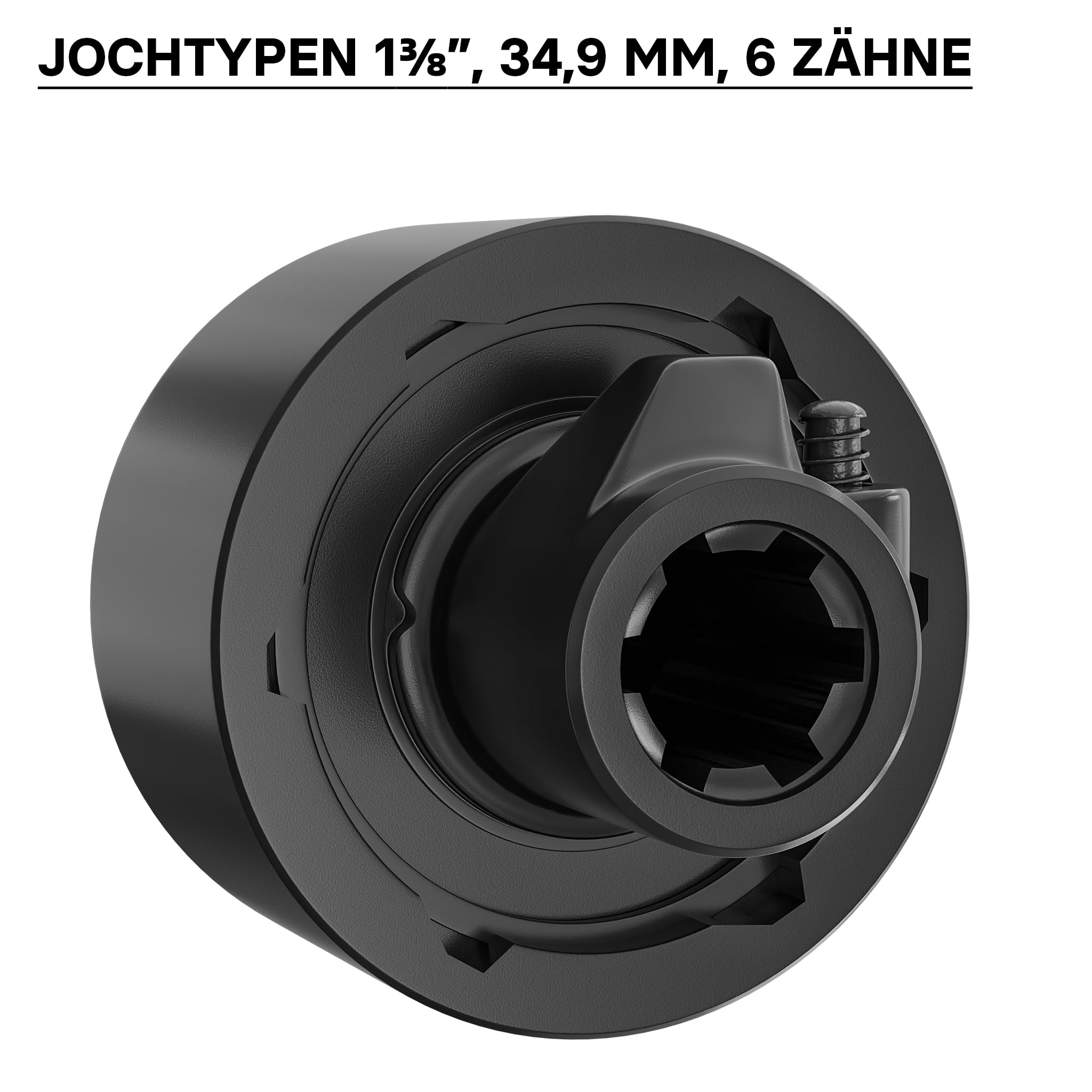

• Yoke type 1 (tractor) 1⅜″, 34.9 mm, 6-spline (male thread)
• Yoke type 2 (attachment) 1⅜″, 34.9 mm, 6-spline (female thread)

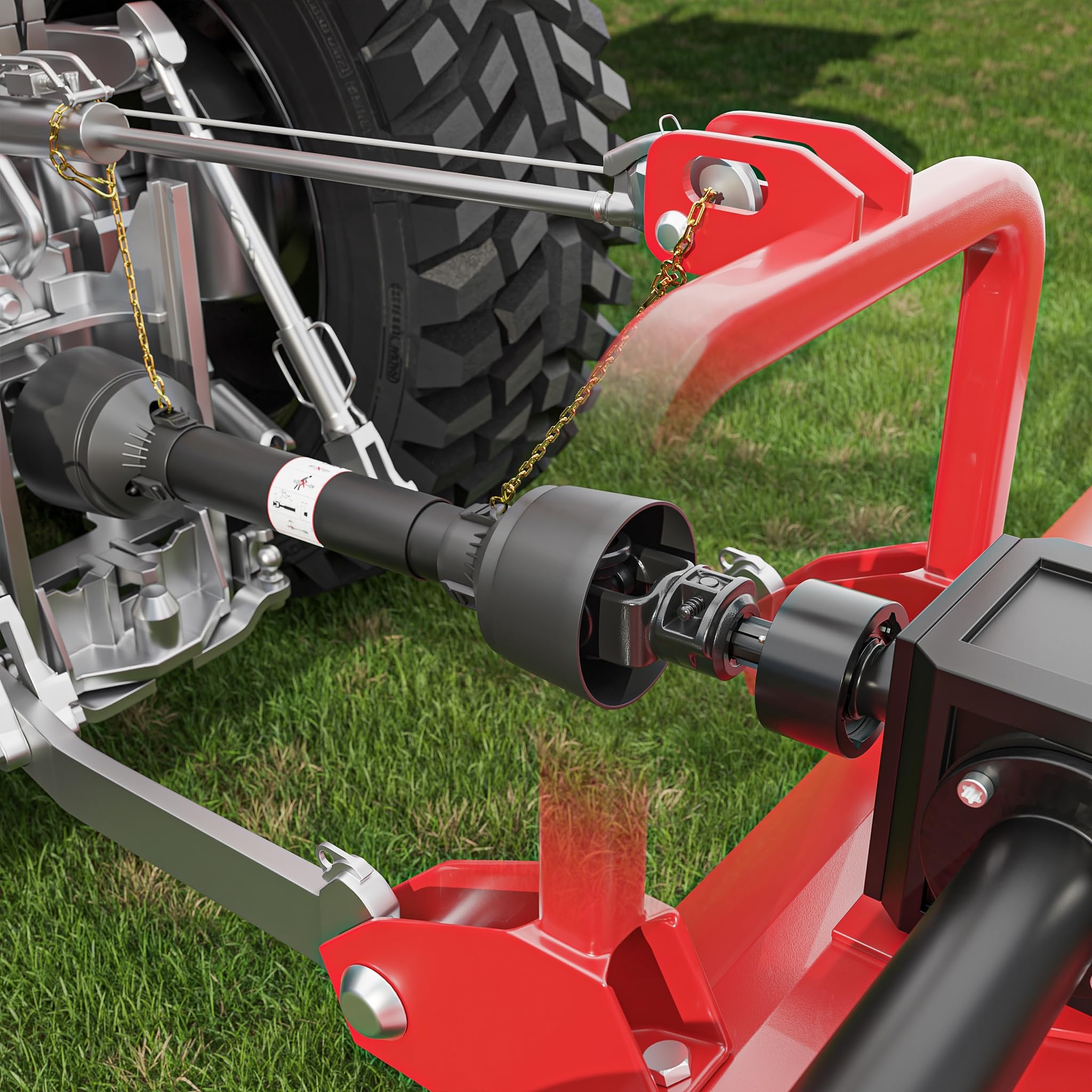

A high-quality PTO shaft is essential in agriculture, as it transmits the power of the tractor to various agricultural machines attached to it. For the PTO shaft to be connected to both tractor and attachment, a clutch or coupling is required that transmits the power of the tractor to the shaft and that the shaft can turn into. The shaft itself is meant to transfer the kinetic energy to the agricultural machine. However, if the attachment continues operation after the drive of the PTO shaft has been switched off (e.g., with drum-type mowers or mulchers), a special freewheel clutch is required that prevents the shaft from being strained too much from the continued operation by not transmitting the torque to the stub of the PTO shaft. Thanks to its standardised size, the freewheel clutch fits to every common PTO shaft. Nevertheless, to find the correct clutch, take note of the given technical data and check that these match the PTO shaft, tractor, and attachment. We would also like to suggest to your kind attention our PTO shafts, PTO clutches, splines, and sleeves in different versions to purchase in our shop. Thus, you are able to compose the entire power-transmission unit that you need and also find spare parts. There is certainly a part that fits the requirements of your machines. Safety instructions for PTO shafts: – All shafts, complete and replacement shafts, and all drive-shaft adapters and components as well as their locking devices can under certain circumstances catch or wind up clothing worn on the body during operation. – Always ensure sufficient safety distance and additional protective devices appropriate to the application! Wear tight-fitting work clothes! – Make sure that nobody is near the PTO shaft while it is in operation.
